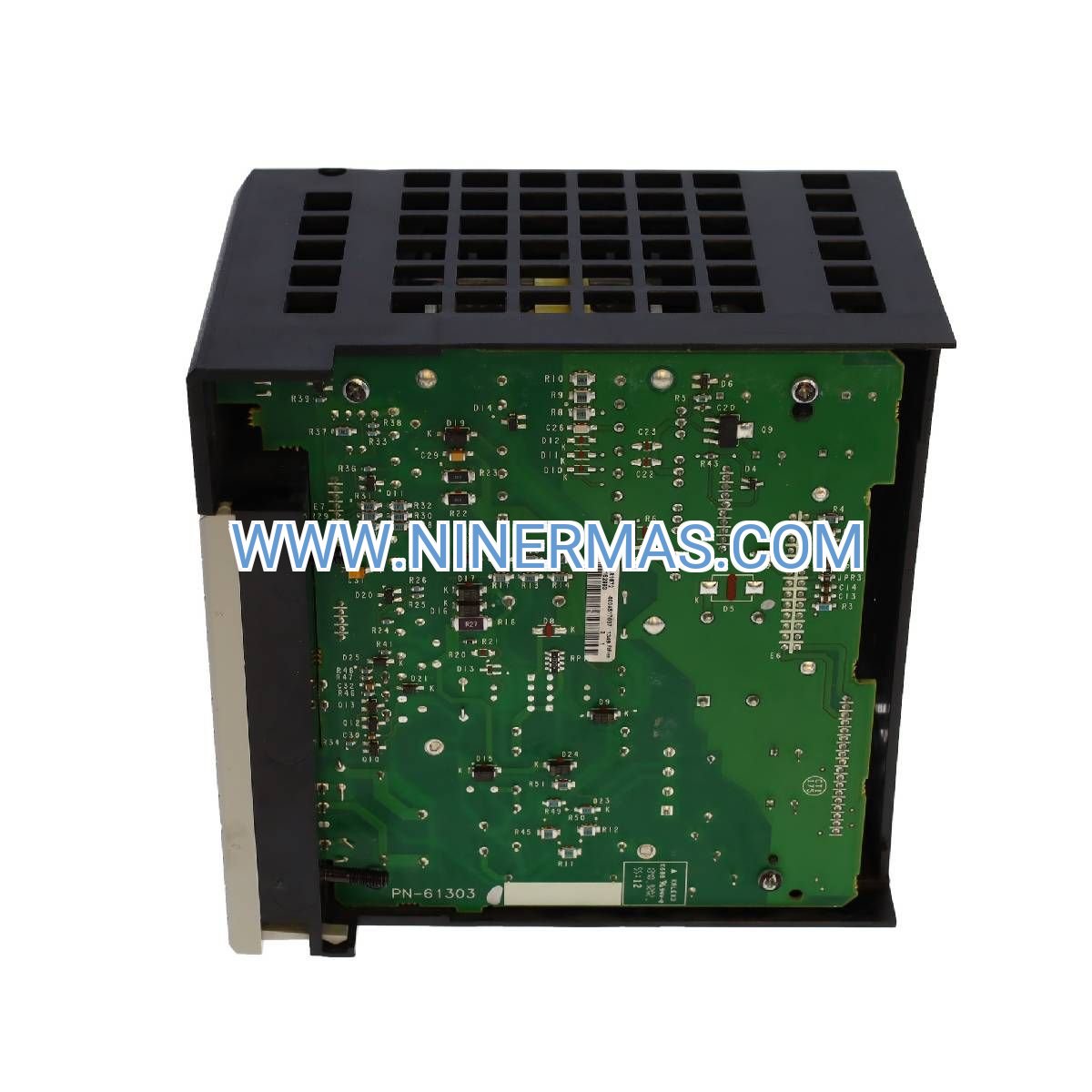

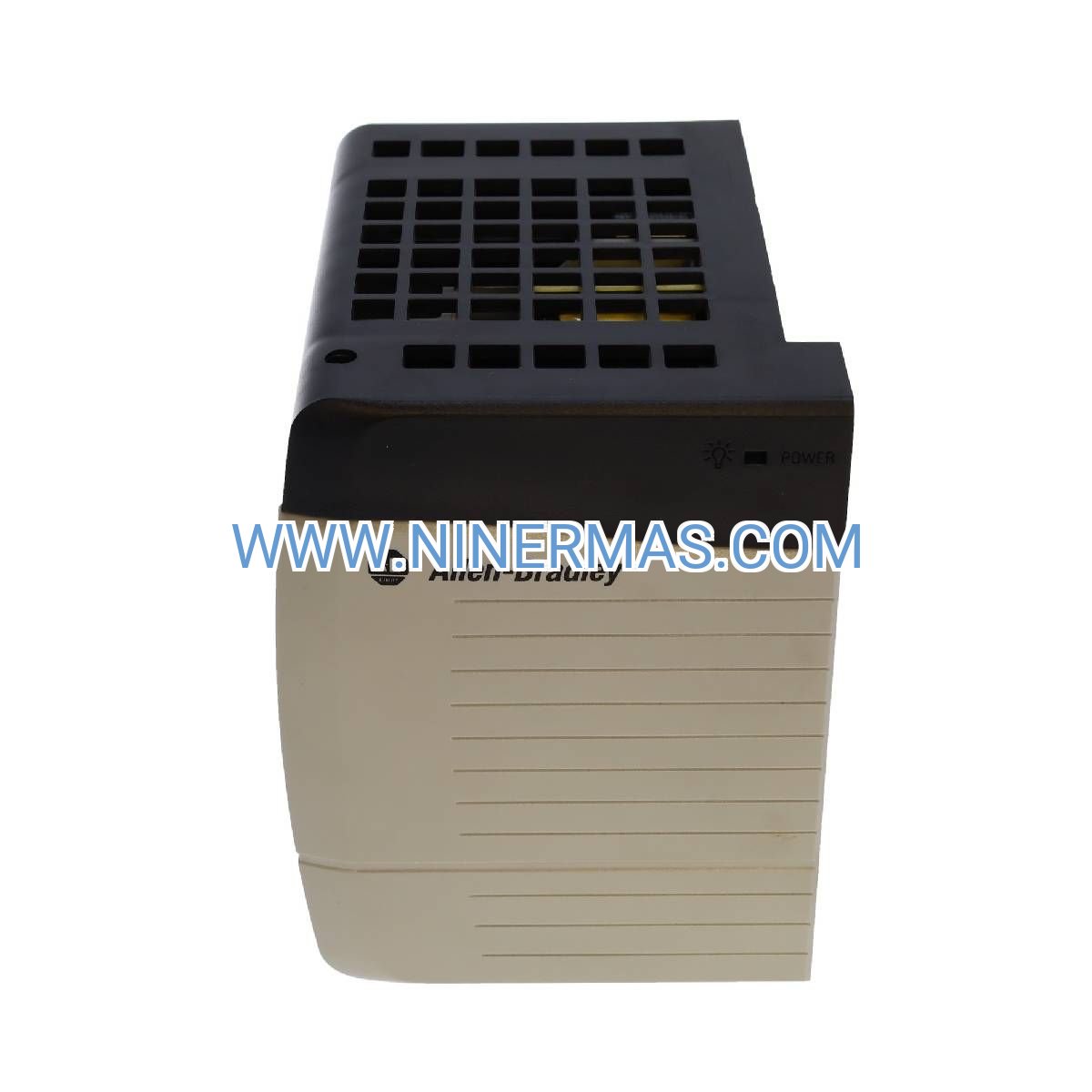

1756-PA75 Power Supply Module (Industrial-Grade ControlLogix Component)

The 1756-PA75 represents a critical infrastructure component for ControlLogix automation architectures, delivering consistent 75-watt power distribution across distributed control networks. This dual-voltage AC power module combines intelligent thermal management with hot-swap capability, enabling zero-downtime maintenance in mission-critical production environments. Engineered for manufacturing facilities, process industries, and infrastructure control systems requiring uninterrupted operation and predictable performance under variable load conditions.

Industrial operators face persistent challenges with power stability in multi-module PLC configurations—voltage fluctuations, thermal shutdowns, and unplanned downtime directly impact production throughput. The 1756-PA75 addresses these pain points through auto-sensing 120/240V input circuitry, 1500V galvanic isolation, and real-time diagnostic feedback via backplane communication protocols. Designed for plant engineers, system integrators, and maintenance teams managing ControlLogix installations across automotive, pharmaceutical, water treatment, and packaging sectors.

Key differentiators include chassis-agnostic compatibility (1756-A4 through A17 series), >80% energy efficiency reducing operational costs, and field-proven reliability with MTBF exceeding 100,000 hours. Factory-calibrated outputs ensure consistent 5V/24V DC rails for I/O modules, processors, and communication adapters—eliminating voltage-related faults that compromise system integrity.

Core Capabilities & Business Value

→ Dual-Voltage Auto-Sensing Input
120/240V AC compatibility with automatic frequency detection (50/60 Hz) eliminates manual configuration errors and supports global deployment without voltage-specific inventory. Reduces procurement complexity and accelerates installation timelines by 30%.

✓ Hot-Swappable Architecture
Replace failed units during live operation without halting production processes or disrupting control logic execution. Minimizes unplanned downtime costs—critical for continuous process industries where shutdown expenses exceed $10,000/hour.

✓ Integrated Diagnostic Intelligence
Real-time status monitoring through tri-color LED indicators and backplane telemetry enables predictive maintenance strategies. Maintenance teams identify degrading components before catastrophic failure, reducing emergency repair incidents by 40%.

→ High-Efficiency Power Conversion
Typical 82% efficiency at rated load translates to lower heat generation, extended component lifespan, and reduced HVAC requirements in control cabinets. Annual energy savings of $150-300 per module in 24/7 operations.

✓ Universal Chassis Compatibility
Backward-compatible design supports legacy ControlLogix platforms (2003-present), protecting capital investments in existing automation infrastructure while enabling incremental modernization without forklift upgrades.

✓ Industrial-Grade Environmental Tolerance
0-60°C operating range with conformal coating protection against humidity, dust, and chemical exposure—proven in harsh environments including foundries, chemical plants, and outdoor enclosures.

Industry Application Scenarios

Automotive Assembly Lines
Powers distributed I/O networks controlling robotic welding cells, conveyor systems, and quality inspection stations. Addresses the challenge of coordinating 50+ I/O modules across 200-meter production lines while maintaining microsecond-level synchronization. Delivers 99.97% uptime through redundant power configurations, preventing line stoppages that cost $25,000 per minute.

Pharmaceutical Batch Processing
Supports validated control systems managing temperature, pressure, and flow parameters in GMP-compliant manufacturing. Solves the pain point of maintaining audit trails during power events—integrated diagnostics log all voltage anomalies for FDA 21 CFR Part 11 compliance. Ensures batch integrity worth $500K-2M per production cycle.

Water Treatment Facilities
Enables SCADA control of pump stations, chemical dosing systems, and filtration processes across multi-site municipal infrastructure. Resolves the challenge of operating in high-humidity environments with corrosive gas exposure—sealed construction prevents premature failure common in standard power supplies. Reduces maintenance callouts by 60% compared to non-industrial alternatives.

Packaging Machinery
Drives high-speed servo control, vision inspection, and material handling systems in food/beverage production. Addresses rapid load fluctuations from intermittent motor starts—regulated output prevents voltage sag that causes product rejects. Improves OEE (Overall Equipment Effectiveness) by 8-12% through stable power delivery.

Critical Infrastructure Control
Provides reliable power for energy management systems, building automation, and emergency response networks. Solves the requirement for 20+ year service life in installations where replacement access is restricted—industrial-grade capacitors and transformers ensure long-term stability without performance degradation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-PA75 when total chassis power consumption is 50-75W. For higher loads (up to 150W), consider dual PA75 modules or upgrade to 1756-PA100. For redundant applications, pair with 1756-PA75R redundant supply. DC input environments require 1756-PB75 variant. Always verify power budget using Rockwell Automation's online calculator—underestimating load causes nuisance shutdowns and diagnostic errors.

Extended Integration Capabilities

Industrial IoT Connectivity: When paired with 1756-EN2T Ethernet modules, enables remote power monitoring through FactoryTalk View HMI or third-party SCADA platforms. Real-time telemetry includes input voltage, output current, and thermal status—supporting Industry 4.0 predictive maintenance initiatives.

Redundancy Configurations: Deploy in N+1 or 1+1 redundant architectures using 1756-PSCA2 redundancy modules. Automatic failover occurs within 20ms, maintaining control continuity during primary supply failure. Critical for pharmaceutical, oil/gas, and utility applications where single-point failures are unacceptable.

Custom Engineering Support: Available with extended temperature ratings (-25°C to 70°C), conformal coating upgrades for marine/offshore environments, and custom labeling for OEM machine builders. Minimum order quantities apply—contact engineering team for specifications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with same-day dispatch for orders placed before 2 PM CST. Express shipping available to major industrial hubs worldwide.

Custom Configuration: 10-15 business days for firmware-specific versions or modified hardware specifications. Engineering consultation included at no additional cost.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Advance replacement available for critical applications—minimize downtime with cross-shipped units.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting assistance, and system optimization recommendations. Phone, email, and remote diagnostic support included.

Documentation Package: Each unit ships with installation manual, wiring diagrams, power budget worksheets, and compliance certificates (UL/CE/CSA). Digital resources include 3D CAD models (STEP/IGES), configuration files, and integration guides.

Frequently Asked Questions

What redundant power supply configurations are compatible with the 1756-PA75 module?
The 1756-PA75 supports redundant operation when paired with a second PA75 unit or the 1756-PA75R redundant-specific model. Use the 1756-PSCA2 redundancy adapter to enable automatic failover—the system seamlessly switches to the backup supply within 20 milliseconds if the primary unit fails. This configuration is essential for applications requiring 99.99%+ uptime, such as pharmaceutical batch control or utility SCADA systems.

How do I calculate the maximum I/O module capacity for a 75-watt power budget?
Total power consumption equals the sum of all installed modules' individual draw ratings. For example: a 1756-L83E processor (8W) + four 1756-IB16 input modules (4 × 2.5W = 10W) + two 1756-OB16E output modules (2 × 4W = 8W) = 26W total, leaving 49W available. Always use Rockwell Automation's online Power Supply Calculator (publication 1756-TD001) to account for inrush current and thermal derating—exceeding 75W causes automatic shutdown and diagnostic fault codes.

Does the power supply require firmware updates or configuration software?
No. The 1756-PA75 is a hardware-only component with no user-accessible firmware or programmable parameters. Installation requires only mechanical mounting and AC wiring—no RSLogix, Studio 5000, or FactoryTalk software interaction needed. Diagnostic status is communicated passively through the ControlLogix backplane and visible via LED indicators on the module faceplate.

Can this power module operate in legacy ControlLogix systems from the early 2000s?
Yes, the 1756-PA75 maintains full backward compatibility with all ControlLogix chassis generations, including first-generation 1756-A4, A7, A10, A13, and A17 models manufactured since 2003. The standardized backplane interface ensures plug-and-play operation without firmware dependencies or compatibility matrices. This protects capital investments in existing infrastructure while enabling incremental upgrades.

What environmental protections are included for harsh industrial conditions?
The module features conformal coating on PCB assemblies to resist humidity, dust, and chemical vapors common in manufacturing environments. Operating temperature range of 0-60°C accommodates most industrial enclosures, though performance derating of 2.5% per degree above 50°C applies. For extreme environments (offshore platforms, foundries, outdoor installations), specify extended-temperature variants with enhanced sealing—contact engineering for custom specifications.

How does the hot-swap capability work during live system operation?
The 1756-PA75 supports removal and installation while the chassis remains energized, provided a redundant power supply maintains backplane voltage. The backplane connector includes staggered pins that disconnect power before signal lines, preventing electrical transients. LED indicators confirm proper seating—green OK light must illuminate within 3 seconds of insertion. Always follow LOTO (Lockout/Tagout) procedures per NFPA 70E when working on energized equipment.

Ready to Optimize Your ControlLogix Power Infrastructure?

Ensure uninterrupted operation of your automation systems with the proven reliability of the 1756-PA75 power module. Our technical team is available to assist with power budget calculations, redundancy design, and application-specific configurations. Contact us today for volume pricing, custom engineering support, or technical consultation—we deliver the expertise and components that keep your production running.
