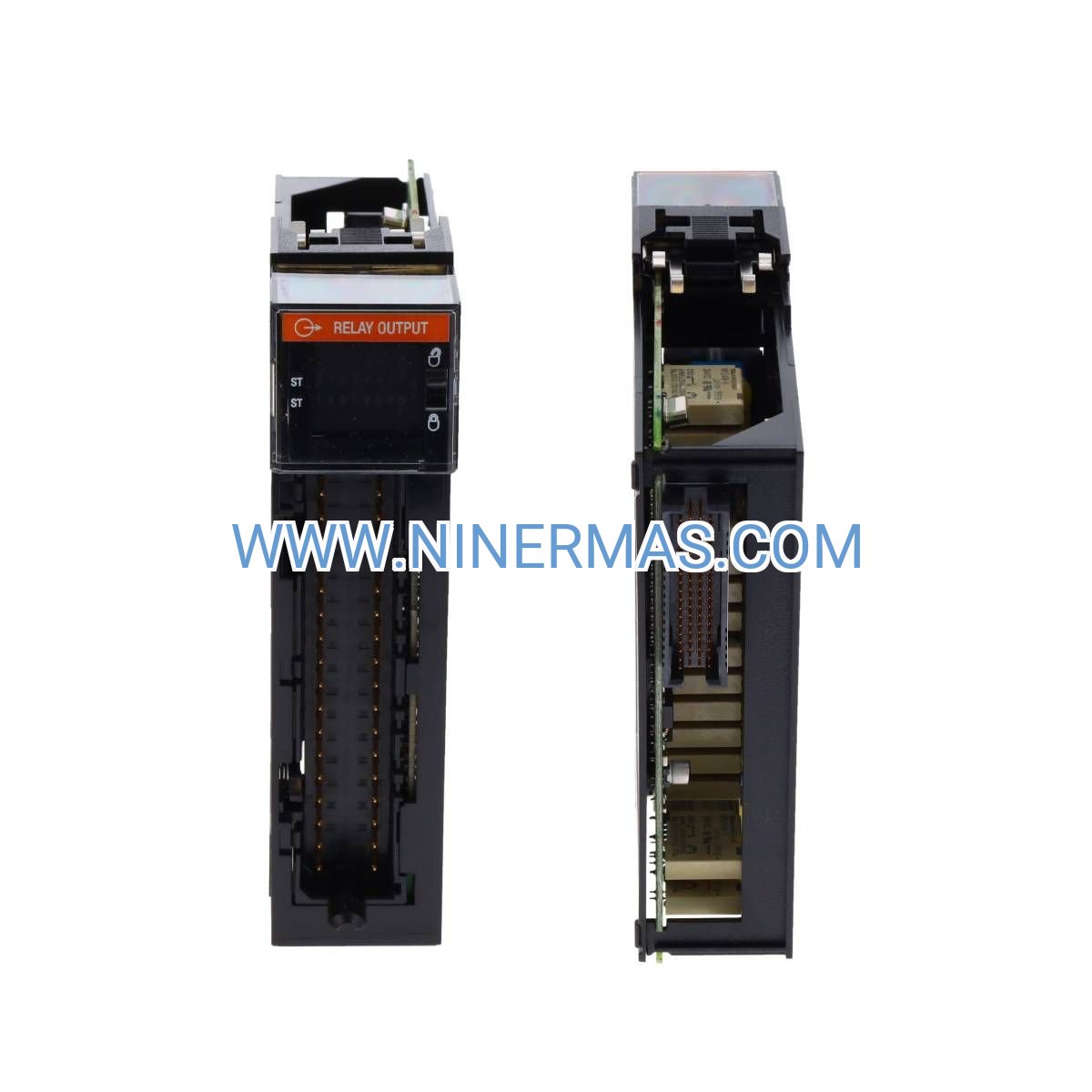

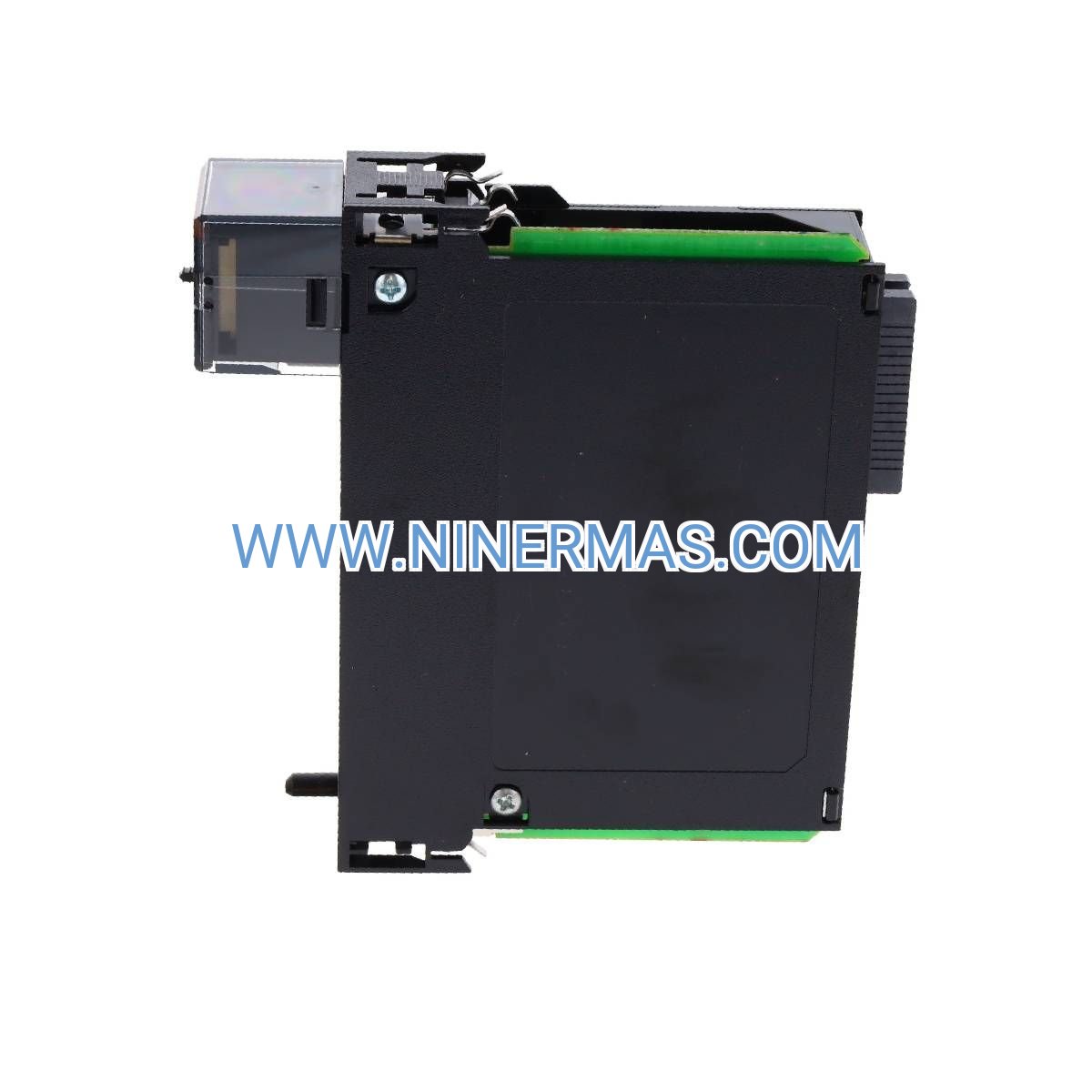

1756-OW16I Industrial Relay Output Module (ControlLogix-Compatible)

The 1756-OW16I represents a field-proven relay output solution for ControlLogix automation architectures, featuring 16 electrically isolated normally-open contacts engineered to switch mixed AC/DC loads across manufacturing, process control, and infrastructure applications. Built for continuous operation in temperature extremes and electrically noisy environments, this module eliminates external relay cabinets while maintaining galvanic isolation between control logic and field devices.

Designed for system integrators and maintenance teams managing multi-vendor equipment, the 1756-OW16I simplifies retrofit projects by providing universal voltage compatibility (24-250V AC/DC) and tool-free terminal block replacement. Each output channel includes visual diagnostics and electronic documentation support through Studio 5000, reducing commissioning time and troubleshooting complexity in distributed control systems.

Whether you're controlling solenoid valves in a packaging line, switching pilot lights in a water treatment SCADA system, or interfacing with legacy relay-based safety circuits, this module delivers mechanical reliability (10M+ operations per contact) and regulatory compliance (UL/CE/RoHS) required for mission-critical industrial installations.

Core Features & Benefits

✓ 16 Independent Relay Channels
Form-A (SPST-NO) contacts rated for 2A continuous current per point, supporting simultaneous control of motors, valves, indicators, and auxiliary equipment without channel interaction or crosstalk.

✓ Universal Load Compatibility
Switches both AC and DC loads from 5V to 250V on the same module, eliminating the need for separate AC/DC output cards and reducing spare parts inventory by 40% in typical installations.

✓ 1500V Optical Isolation
Galvanic separation between backplane logic and field wiring protects ControlLogix processors from ground loops, voltage spikes, and EMI common in motor control centers and high-power distribution panels.

✓ Hot-Swap Serviceability
Replaceable under power with removable terminal blocks (1756-TBCH/TBS6H/TBNH), enabling maintenance without production shutdown—critical for 24/7 operations in pharmaceutical, food processing, and automotive sectors.

✓ Integrated Diagnostics
Per-channel LED indicators and controller-accessible fault data (over-temperature, fuse status, contact wear) enable predictive maintenance and reduce mean-time-to-repair by 60% compared to traditional relay panels.

✓ Conformal Coating Protection
Factory-applied moisture and chemical-resistant coating extends operational life in washdown environments, coastal facilities, and applications with exposure to cutting fluids or cleaning agents.

Application Scenarios

→ Packaging & Material Handling Systems
Direct control of pneumatic actuators, conveyor diverters, and label applicators in high-speed packaging lines. The module's 10ms response time supports cycle rates up to 100 operations/minute while maintaining synchronization with vision systems and servo drives.

→ Water & Wastewater Treatment
Switching of chemical dosing pumps, clarifier scrapers, and UV disinfection lamps in municipal treatment plants. Isolated outputs prevent ground-loop interference with analog pH/ORP sensors sharing the same control cabinet.

→ Automotive Assembly Automation
Interface between ControlLogix PLCs and legacy relay-based tooling (spot welders, torque wrenches, nut runners) during production line upgrades, preserving existing field wiring while adding modern diagnostic capabilities.

→ HVAC & Building Management
Control of rooftop unit damper actuators, boiler ignition sequences, and chiller staging contactors in commercial buildings, with each relay contact providing physical isolation required by electrical codes for life-safety systems.

→ Oil & Gas Wellhead Control
Remote operation of wellhead valves, separator heaters, and flare ignition systems in hazardous area classifications, where relay isolation provides an additional safety barrier between intrinsically-safe control circuits and field devices.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-OW16I when you need maximum point density (16 outputs per slot) for general-purpose switching applications. If your loads exceed 2A, consider the 1756-OW8I (8-point, 3A per contact). For applications requiring faster response (<1ms), evaluate solid-state output modules like the 1756-OB16IS. Always verify that your ControlLogix power supply can support the cumulative backplane current of all installed I/O modules.

Extended Functions

IoT Integration: When paired with 1756-EN2T/EN3TR Ethernet modules, relay status and diagnostic data can be published to MQTT brokers or OPC UA servers for cloud-based condition monitoring and predictive maintenance analytics.

Advanced Diagnostics: Studio 5000 Logix Designer provides real-time contact wear tracking, cumulative switching cycle counters, and thermal monitoring—enabling maintenance teams to schedule relay replacement before failure occurs.

Customization Options: Available with factory-installed terminal blocks (specify 1756-TBCH for horizontal screw terminals, 1756-TBS6H for spring-clamp, or 1756-TBNH for high-density applications). Custom labeling and pre-wiring services available for OEM panel builders (MOQ applies).

Delivery & Service Assurance

Lead Time: Stock items ship within 1-3 business days. Custom configurations (extended temperature, special labeling) require 4-6 weeks from order confirmation.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty excludes contact wear from normal operation or damage from overvoltage/overcurrent conditions.

Technical Support: Pre-sales application engineering assistance available to verify compatibility with existing ControlLogix systems. Post-sales support includes configuration file examples, wiring diagrams, and troubleshooting guidance via email/phone.

Documentation Package: Each module ships with installation instructions, terminal block wiring diagrams, and electronic data sheet (EDS file) for automatic device configuration in Studio 5000. Full user manual and certification documents available for download.

Frequently Asked Questions

Q: Can this module switch both AC and DC loads simultaneously on different channels?
A: Yes, each of the 16 relay contacts operates independently and can switch AC or DC loads up to 250V and 2A. You can control a 120V AC solenoid on channel 1 and a 24V DC indicator light on channel 2 without any interaction between channels.

Q: What is the maximum wire size supported by the terminal blocks?
A: The standard 1756-TBCH terminal block accepts 12-22 AWG (0.25-3.3mm²) copper wire. For larger conductors, use the 1756-TBNH high-density block which supports up to 10 AWG (6mm²) with ferrules.

Q: Does the module provide surge protection for inductive loads like motor starters?
A: The relay contacts themselves do not include built-in snubbers. For inductive loads (motors, solenoids, contactors), install external RC snubber networks or varistor suppressors across the load to extend contact life and prevent EMI.

Q: How do I monitor relay contact health in my HMI or SCADA system?
A: The module exposes diagnostic tags in the ControlLogix controller (fault status, over-temperature warnings, cumulative cycle counts). Map these tags to your HMI using RSLinx/FactoryTalk for real-time monitoring and alarm generation.

Q: Is this module compatible with older ControlLogix chassis from the early 2000s?
A: Yes, the 1756-OW16I is backward-compatible with all ControlLogix chassis (1756-A4 through 1756-A17) and works with controllers running firmware v16 or later. Verify your controller firmware version in Studio 5000 before installation.

Q: What is the difference between the 1756-OW16I and the 1756-OB16I?
A: The 1756-OW16I uses electromechanical relays (10ms response, 2A rating, suitable for AC/DC loads). The 1756-OB16I uses solid-state outputs (1ms response, 0.5A rating, DC-only). Choose relays for higher current capacity and AC compatibility; choose solid-state for faster switching and longer electrical life.

Take the Next Step

Ready to integrate the 1756-OW16I into your ControlLogix system? Contact our application engineers for compatibility verification, terminal block selection guidance, and volume pricing. Request a detailed datasheet or schedule a technical consultation to discuss your specific switching requirements.
