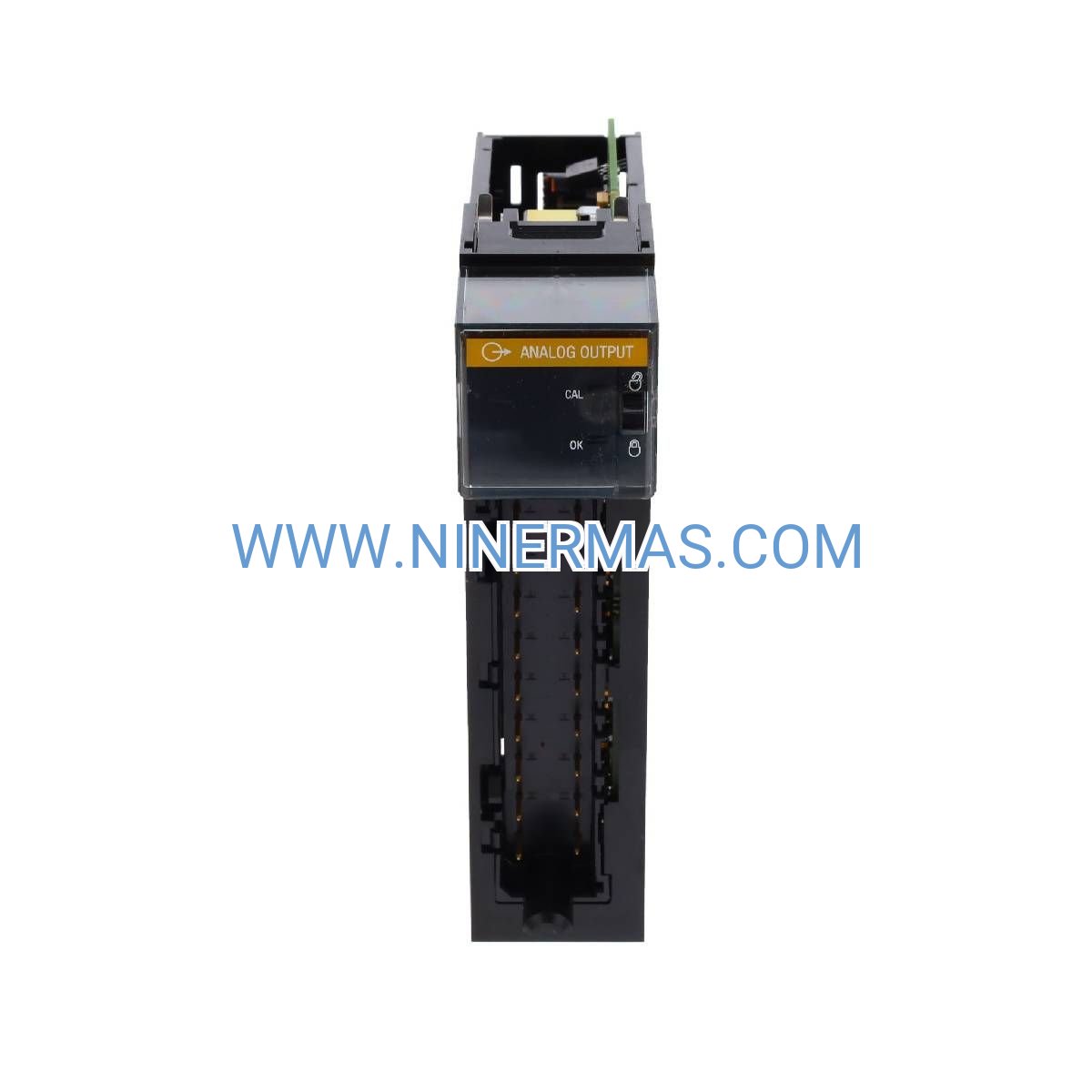

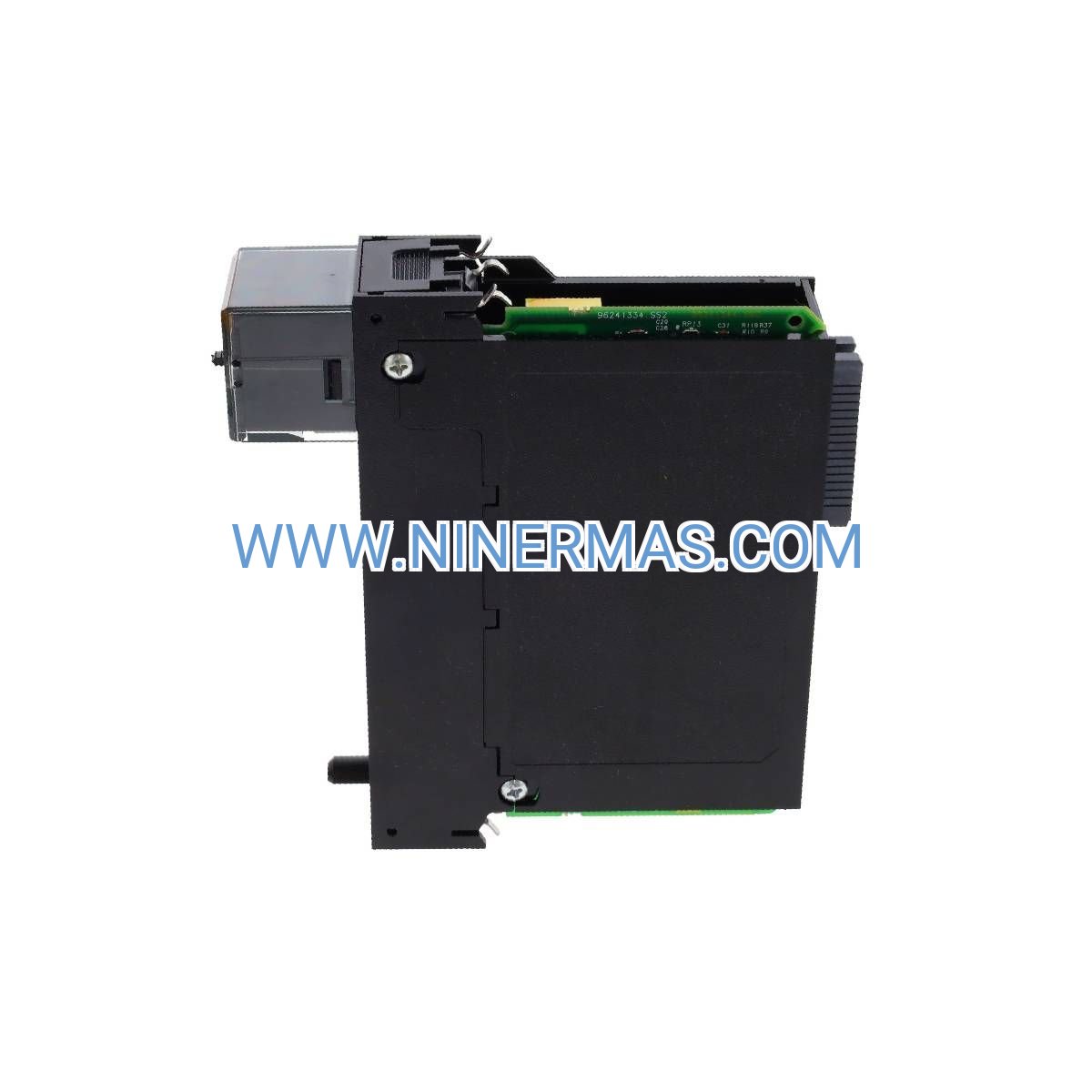

1756-OF4 Analog Output Module (Industrial-Grade 4-Channel Signal Generator)

The 1756-OF4 represents a field-proven analog output solution engineered for ControlLogix architectures, converting digital control logic into precise voltage or current signals that drive actuators, valves, variable frequency drives, and process instrumentation across manufacturing, utilities, and chemical processing environments.

Designed for system integrators and plant engineers managing distributed control systems, this module eliminates signal conversion complexity while maintaining deterministic performance in mission-critical loops. Whether you're retrofitting legacy systems or deploying greenfield automation projects, the 1756-OF4 delivers the reliability and configurability demanded by modern industrial operations.

With four independently configurable output channels, 16-bit resolution, and comprehensive diagnostic capabilities, this module reduces commissioning time, simplifies troubleshooting, and ensures long-term operational stability in harsh industrial environments where precision analog control directly impacts product quality and process efficiency.

Core Features & Benefits

✓ Dual-Mode Output Flexibility
Each channel supports both voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) modes, eliminating the need for multiple module types and reducing spare parts inventory while accommodating diverse field device requirements.

✓ 16-Bit Resolution for Precision Control
Achieve 1-in-65,536 granularity for smooth valve positioning, accurate VFD speed control, and stable process regulation—critical for applications where output stability directly affects product consistency and energy efficiency.

✓ Hot-Swap Capability
Replace modules during operation without system shutdown, minimizing production interruptions and enabling proactive maintenance strategies that reduce unplanned downtime costs by up to 40%.

✓ Built-In Diagnostics & Status Monitoring
Real-time channel health indicators, open-circuit detection, and over-current protection accelerate fault isolation, reducing mean time to repair (MTTR) from hours to minutes during critical production windows.

✓ 250V Channel-to-Backplane Isolation
Protect sensitive controller electronics from field-side electrical noise and ground potential differences, ensuring system integrity in electrically noisy industrial environments with multiple power sources.

✓ Removable Terminal Blocks
Pre-wire terminal assemblies off-site and swap modules without disturbing field wiring, cutting installation time by 60% and eliminating wiring errors during emergency replacements.

Application Scenarios

→ Variable Frequency Drive (VFD) Speed Control
Deliver stable 0-10V or 4-20mA reference signals to motor drives in conveyor systems, pumps, and fans. The module's fast 10ms update rate ensures responsive speed adjustments, while 16-bit resolution enables smooth acceleration/deceleration profiles that extend mechanical component life and reduce energy consumption by 15-25%.

→ Pneumatic & Hydraulic Valve Positioning
Control proportional valves in material handling, press operations, and fluid dispensing systems with repeatable accuracy. High-resolution output prevents valve hunting and oscillation, improving cycle time consistency and reducing compressed air waste in pneumatic systems.

→ Temperature & Pressure Loop Regulation
Interface with SCR power controllers, heating elements, and pressure regulators in pharmaceutical, food processing, and chemical batch operations. Precise analog control maintains tight process windows (±0.5°C, ±0.1 PSI) required for regulatory compliance and quality assurance.

→ Chemical Dosing & Metering Pump Control
Provide accurate setpoints to peristaltic and diaphragm metering pumps in water treatment, coating applications, and chemical injection systems. Linear output characteristics ensure proportional dosing accuracy within ±1%, reducing chemical waste and improving batch-to-batch consistency.

→ HVAC & Building Automation Integration
Regulate damper actuators, chilled water valves, and variable air volume (VAV) boxes in industrial facilities and commercial buildings. The module's wide operating temperature range (0-60°C) supports installation in non-climate-controlled equipment rooms.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 1756-OF4 when you need four or fewer analog outputs per chassis slot. For applications requiring 5-8 outputs, consider the 1756-OF8 to optimize slot utilization. If your process demands differential outputs or higher isolation (500V), evaluate the 1756-OF6CI isolated current output module. Always verify backplane power budget—each 1756-OF4 consumes 4.5W total, requiring adequate power supply capacity in fully populated chassis.

Extended Functions

Advanced Calibration & Scaling
Studio 5000 software provides built-in scaling functions that convert engineering units (PSI, GPM, °F) directly to output signals, eliminating manual calculation errors and simplifying program maintenance. Factory calibration data stored in module EEPROM ensures consistent performance across module replacements.

Alarm & Notification Integration
Configure channel-specific alarms for open-circuit conditions, output saturation, and calibration drift. Integrate with FactoryTalk View HMI systems for real-time operator notifications and historical trending of output performance metrics.

Redundancy & Failover Support
Deploy in ControlLogix redundant controller configurations with automatic output transfer during controller switchover. Bumpless transfer algorithms maintain output continuity within ±0.05% during failover events, preventing process upsets in critical control loops.

Third-Party System Integration
Expose output channel data via EtherNet/IP, Modbus TCP, or OPC-UA protocols for integration with SCADA systems, MES platforms, and cloud-based analytics solutions. Support for CIP Safety enables integration into safety-rated control architectures.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured modules with factory calibration certificates available with 7-10 day lead time. Expedited shipping options available for emergency replacements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond published specifications. Extended warranty programs available for critical applications.

Technical Support: Access to certified ControlLogix specialists for configuration assistance, troubleshooting guidance, and application engineering support. Remote diagnostic services available for complex integration challenges.

Documentation Package: Each module includes installation manual, wiring diagrams, Studio 5000 Add-On Profile (AOP), sample ladder logic, and calibration certificate. Downloadable resources include 3D CAD models, thermal analysis data, and compliance declarations.

Frequently Asked Questions

Q: Can the 1756-OF4 module drive multiple field devices from a single output channel?
A: Yes, in current mode (4-20mA), you can wire multiple devices in series as long as total loop resistance stays below 600Ω. For voltage mode, use signal splitters or distribution amplifiers to maintain signal integrity across parallel loads.

Q: What is the recommended wire gauge for 4-20mA current loop installations?
A: Use 18 AWG shielded twisted-pair cable for runs up to 500 meters. For longer distances or electrically noisy environments, upgrade to 16 AWG with 100% shield coverage and drain wire grounded at the module end only to prevent ground loops.

Q: How does the module perform in high-vibration environments like mobile equipment?
A: The 1756-OF4 is rated for 2G vibration (10-500 Hz) when properly mounted in shock-isolated enclosures. For severe vibration applications (mining, offshore platforms), consider conformal coating and locking terminal block screws to prevent connection loosening.

Q: Is firmware update required when upgrading from older ControlLogix processors?
A: No firmware update needed—the 1756-OF4 is backward compatible with all ControlLogix processor generations. However, updating to the latest Studio 5000 Add-On Profile (AOP) unlocks enhanced diagnostic features and simplified configuration wizards.

Q: Can I mix voltage and current outputs on the same module simultaneously?
A: Absolutely. Each of the four channels is independently configurable via software. You can operate Channel 1 in 4-20mA mode for a valve positioner while Channel 2 outputs 0-10V to a VFD—no hardware jumpers or DIP switches required.

Q: What safety precautions are necessary during hot-swap module replacement?
A: Ensure the replacement module is electronically keyed to match the original configuration. Verify backplane power budget before insertion. Use proper ESD grounding procedures. The ControlLogix backplane automatically disables slot power during extraction/insertion to prevent arc flash hazards.

Take the Next Step

Ready to enhance your control system precision? Contact our application engineers for technical consultation, custom configuration assistance, or volume pricing. Request a detailed datasheet, CAD drawings, or sample ladder logic to accelerate your project timeline.
