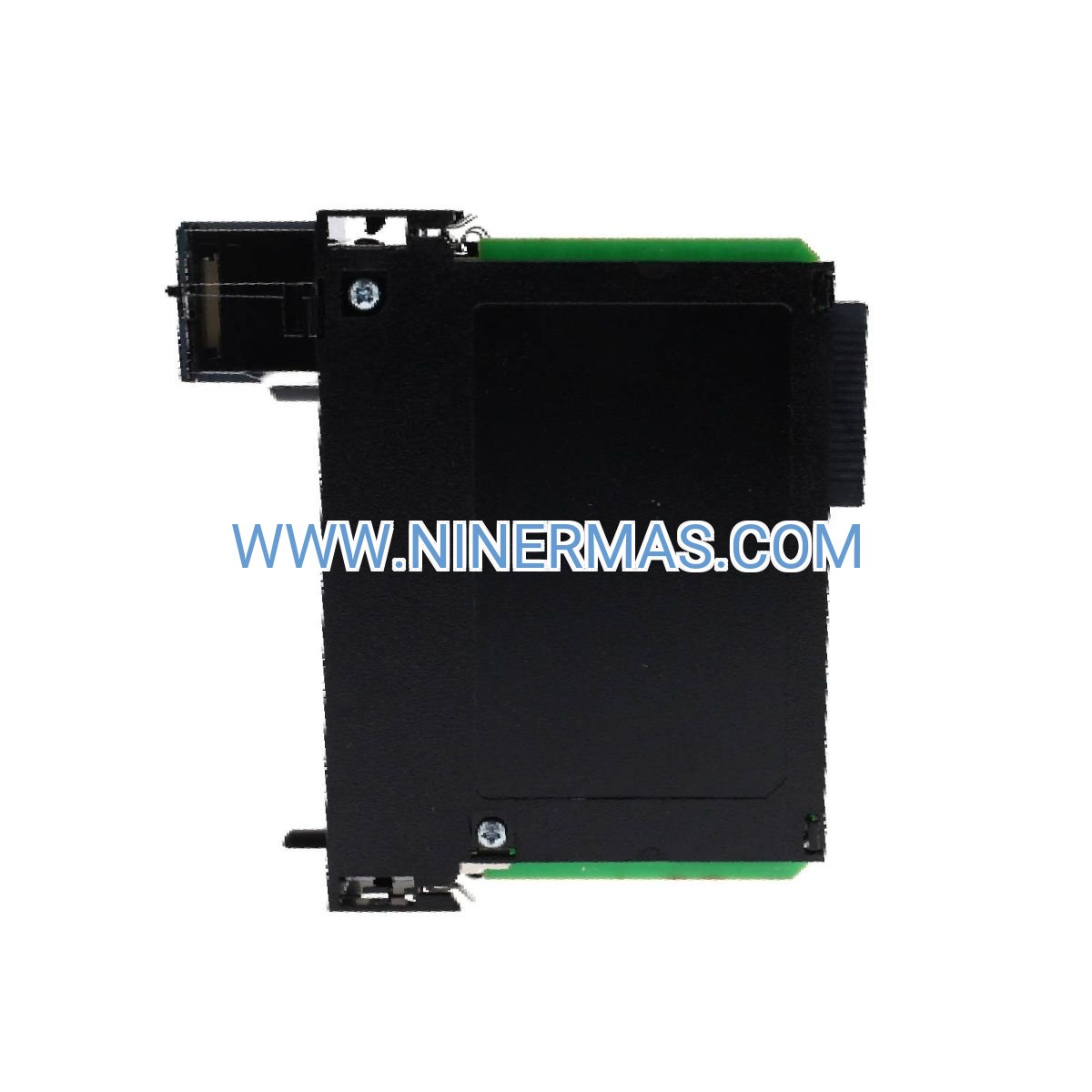

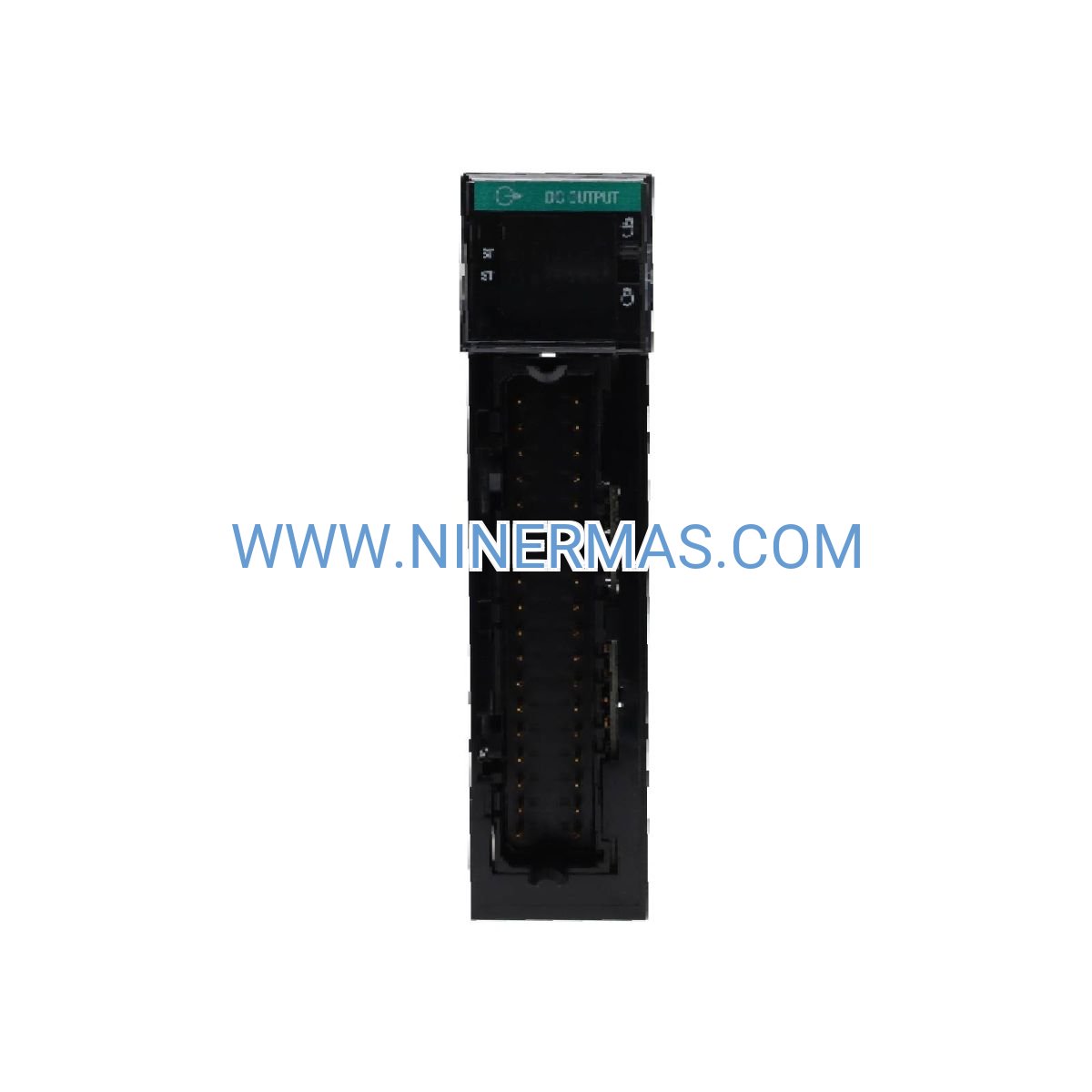

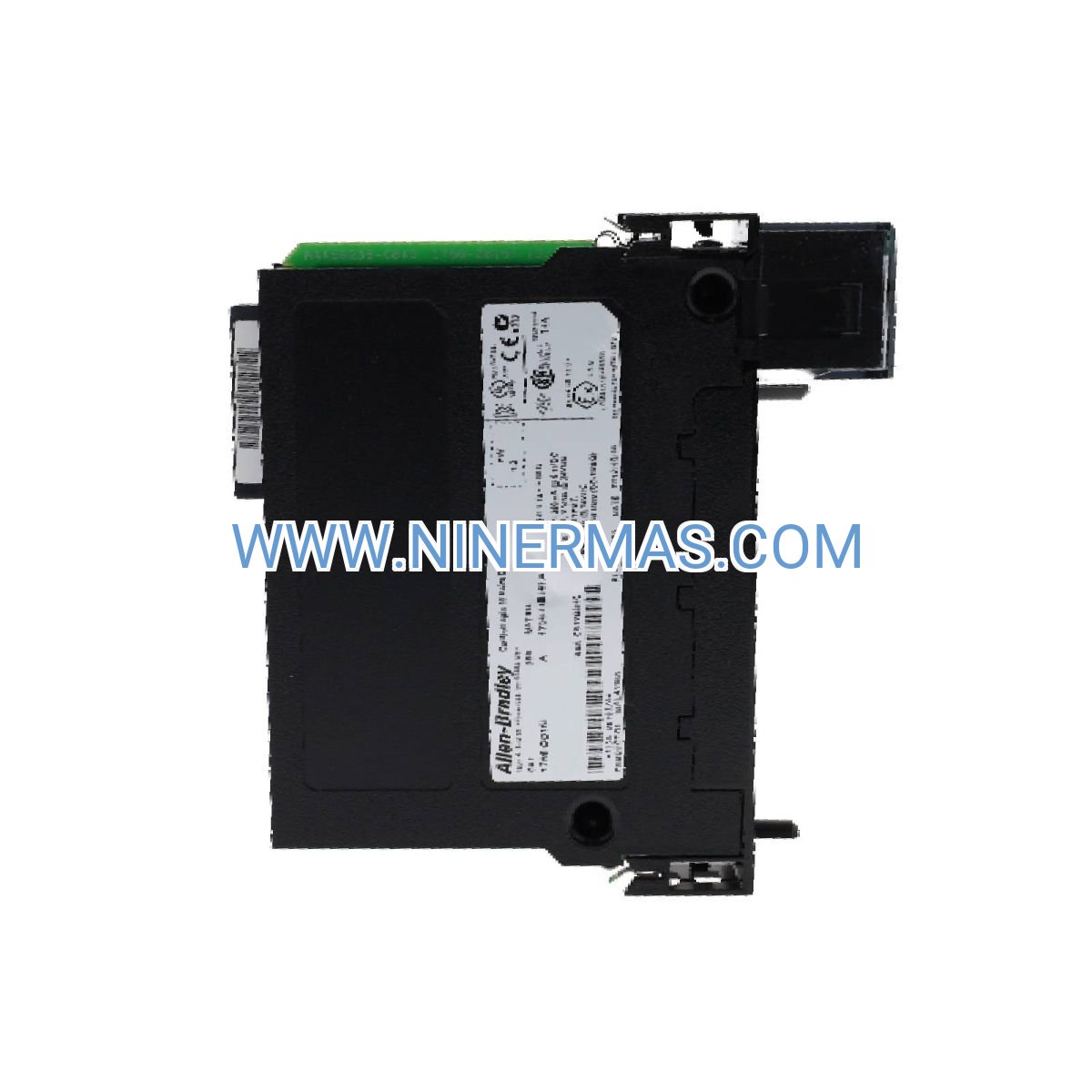

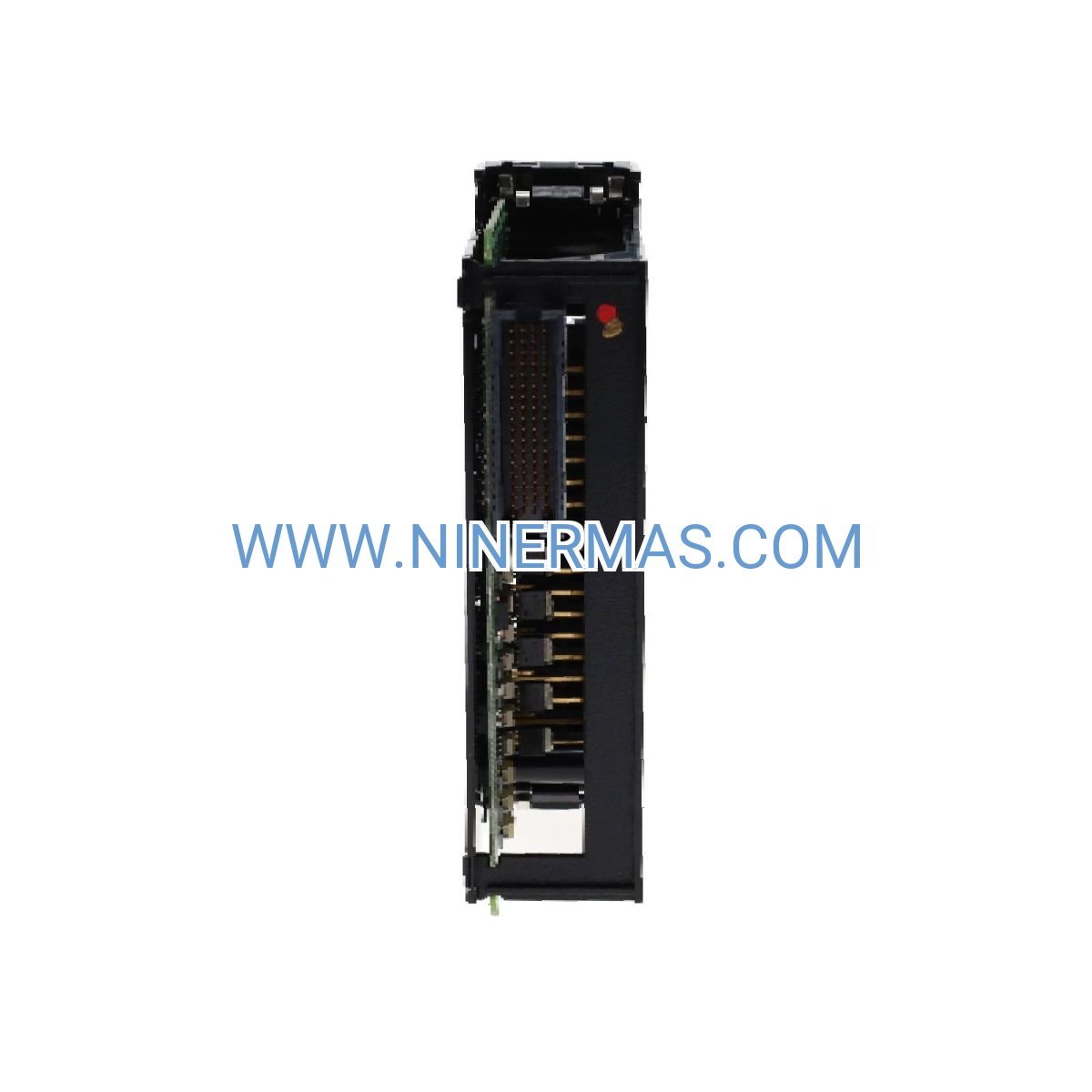

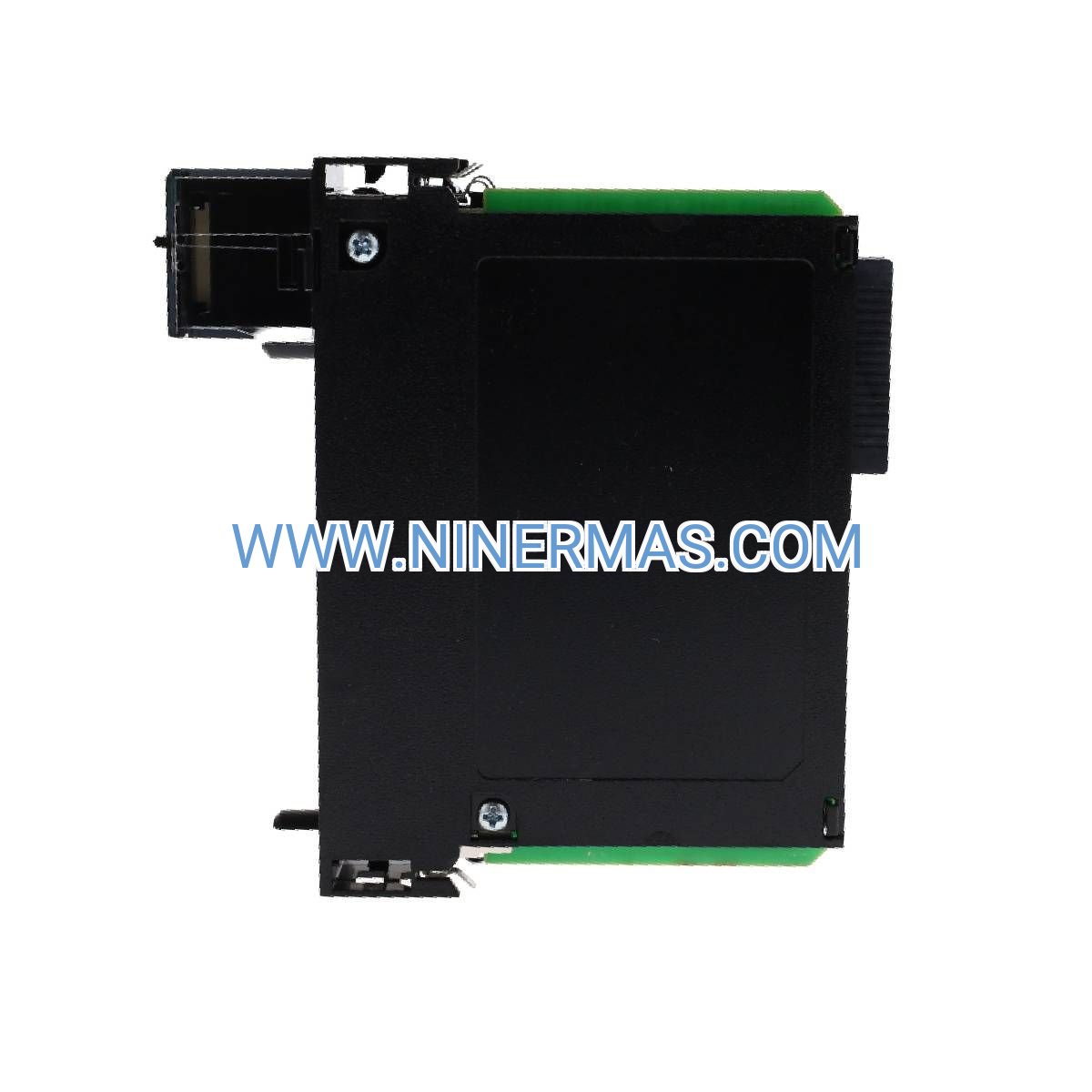

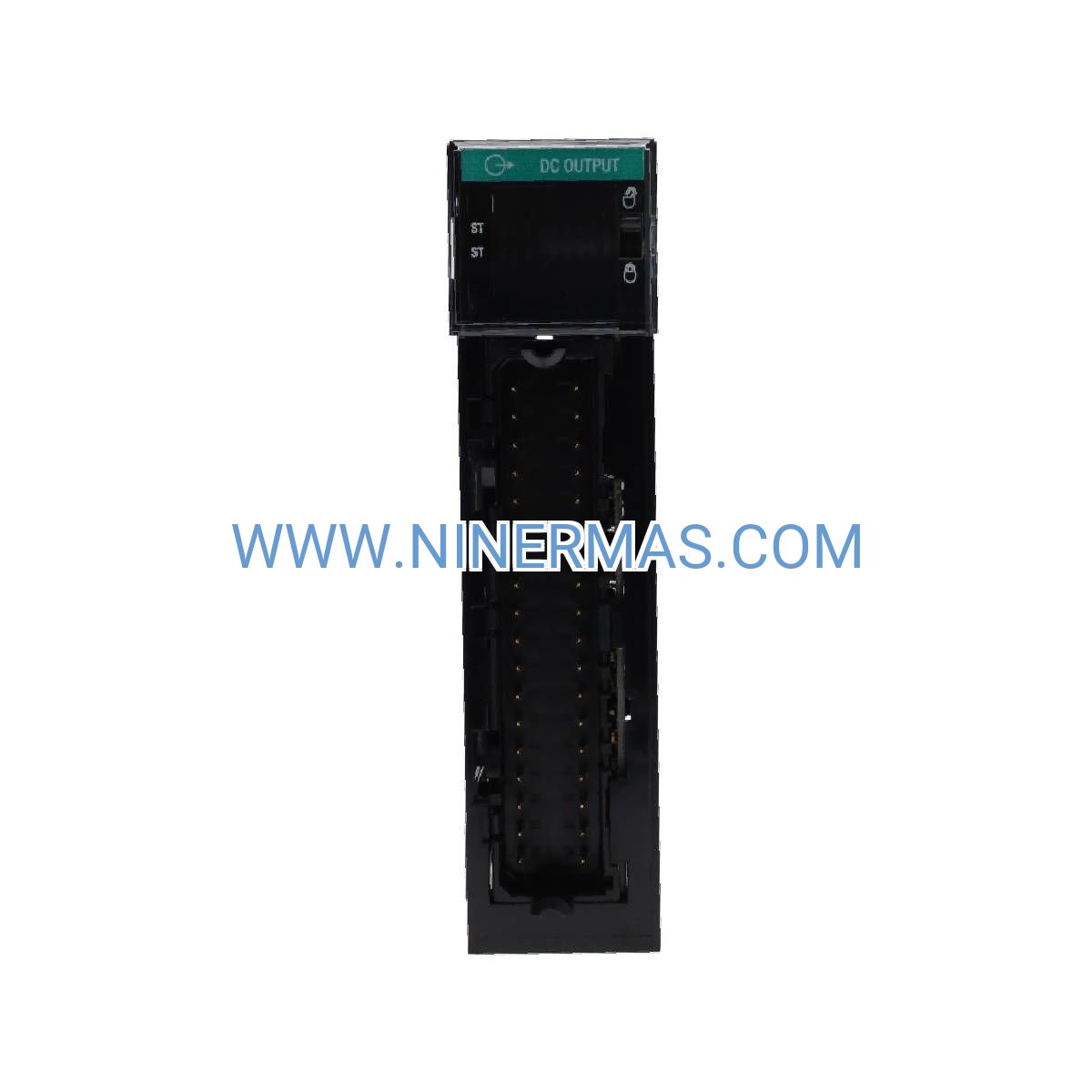

1756-OB16I Industrial-Grade Isolated DC Output Module

The 1756-OB16I represents a critical infrastructure component for ControlLogix-based automation systems where electrical isolation is non-negotiable. This 16-channel isolated DC output module eliminates ground loop interference while delivering robust control signals to field devices across distributed industrial networks. Engineered for process industries, manufacturing automation, and mission-critical applications, it provides channel-to-channel and channel-to-backplane isolation that protects your control system investment from voltage transients and potential differences inherent in multi-grounded installations.

Target users include control engineers designing chemical processing systems, plant maintenance teams managing water/wastewater treatment facilities, and automation integrators deploying oil & gas SCADA networks. The module's isolated architecture ensures signal integrity in electrically noisy environments where conventional output modules fail, making it the preferred choice for applications spanning pharmaceutical manufacturing, power generation substations, and food processing lines requiring FDA-compliant control systems.

Key advantages include hot-swappable installation for zero-downtime maintenance, integrated diagnostics accessible via RSLogix 5000 programming software, and conformal coating options for harsh chemical exposure. With 2A current capacity per channel and sub-millisecond response times, the 1756-OB16I delivers the performance and reliability demanded by continuous process operations running 24/7/365.

Core Features & Business Value

✓ True Channel Isolation Technology: Electrical separation between all 16 outputs and backplane circuitry prevents ground loop currents that cause erratic operation, reducing unplanned downtime by up to 60% in multi-grounded systems.

✓ 2A High-Current Output Capability: Drive solenoid valves, motor starters, and industrial relays directly without external amplification, cutting installation costs by eliminating interface relay panels.

✓ Integrated Flyback Protection: Built-in suppression diodes handle inductive load switching transients, extending contact life of downstream devices and reducing maintenance intervals by 40%.

✓ Advanced Fault Diagnostics: Real-time monitoring detects short circuits, open loads, and over-current conditions with channel-specific status indicators, slashing troubleshooting time from hours to minutes.

✓ Hot-Swap Architecture: Replace modules under power without system shutdown, maintaining production continuity in 24/7 operations where every minute of downtime costs thousands in lost revenue.

→ Conformal Coating Option: Chemical-resistant protective layer withstands corrosive atmospheres in pulp & paper mills, wastewater plants, and marine applications, extending module lifespan beyond 15 years.

Application Scenarios Across Industries

Chemical Processing & Petrochemical Plants: Control pneumatic valve actuators and emergency shutdown systems across tank farms where multiple ground references create potential differences exceeding 50V. The isolated outputs prevent ground loop currents that trigger false trips, ensuring process safety integrity level (SIL) compliance.

Water & Wastewater Treatment Facilities: Operate pump motor starters, chlorination dosing systems, and clarifier mechanisms distributed across acres of infrastructure. Isolation eliminates interference from VFD-generated electrical noise and lightning-induced surges common in outdoor installations.

Oil & Gas Production & Pipeline Systems: Interface with wellhead control panels, compressor station actuators, and pipeline valve operators in hazardous classified areas. Channel isolation provides the electrical separation required for intrinsically safe barrier installations per NEC Article 504.

Pharmaceutical Manufacturing (cGMP Environments): Drive clean-in-place (CIP) valve manifolds, reactor agitator controls, and sterile filtration systems where process validation demands documented isolation resistance testing. Supports 21 CFR Part 11 audit trail requirements through controller-based diagnostics.

Power Generation & Substation Automation: Control circuit breaker trip coils, transformer cooling fans, and auxiliary relay systems in high-voltage environments where ground potential rise during fault conditions can exceed 1000V. Isolation protects low-voltage control circuits from catastrophic damage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-OB16I when your application requires electrical isolation to prevent ground loops, protect against voltage transients, or meet safety standards for hazardous area installations. For non-isolated applications with higher channel density, consider the 1756-OB32 (32-point non-isolated). If electronic overcurrent protection is required instead of isolation, specify the 1756-OB16E electronically-fused variant. Consult publication 1756-IN582 for detailed selection flowcharts and load compatibility matrices.

Extended Functions & Integration Capabilities

FactoryTalk Integration: Seamlessly connects to FactoryTalk View HMI and FactoryTalk Historian for real-time output status visualization and historical trending. Diagnostic data streams directly to FactoryTalk AssetCentre for predictive maintenance analytics, enabling condition-based replacement strategies that reduce spare parts inventory by 30%.

EtherNet/IP Connectivity: When installed in ControlLogix chassis with 1756-EN2T or 1756-EN3TR communication modules, output status and diagnostics are accessible across plant-wide EtherNet/IP networks. Supports CIP Safety protocol for SIL 2/PLd safety-rated applications when paired with GuardLogix controllers.

Customization Options: Available with factory-installed conformal coating (suffix "K") for chemical resistance, or extreme temperature rating (suffix "XT") for -25°C to 70°C operation. Custom terminal block labeling and pre-wired cable assemblies available for OEM panel builders requiring rapid deployment.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 24-48 hours via express courier with full tracking. Standard delivery to major industrial centers typically 3-5 business days.

Custom Configuration: Conformal-coated or pre-tested assemblies require 7-10 business days for factory preparation and quality verification.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-year or 5-year coverage.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and integration support. RSLogix 5000 sample code, AutoCAD panel layout drawings, and EPLAN macros provided at no charge.

Documentation Package: Each module ships with installation instructions (publication 1756-IN016), wiring diagrams, isolation test certificates, and RoHS/REACH compliance declarations. Full technical manual (1756-UM058) available for download.

Frequently Asked Questions

How does isolated output architecture prevent ground loop interference in distributed control systems?
The 1756-OB16I employs optical isolation and DC-DC converter technology to electrically separate each output channel from the ControlLogix backplane and adjacent channels. This breaks the conductive path that allows circulating ground currents caused by potential differences between remote equipment grounds, eliminating the noise and erratic behavior that plague non-isolated modules in multi-grounded installations.

What load types are compatible with the 2A output rating per channel?
Each channel drives resistive loads up to 2A continuous, inductive loads (solenoids, relay coils, contactor coils) up to 1.5A with integrated flyback protection, and lamp loads up to 2A with inrush current limiting. Parallel multiple channels for higher current requirements, or use external solid-state relays for loads exceeding module ratings.

Can the module operate in redundant ControlLogix configurations for high-availability applications?
Yes, the 1756-OB16I fully supports ControlLogix redundancy when installed in 1756-A13, A17, or A18 redundant chassis with 1756-RM or RM2 redundancy modules. Output state transfer occurs automatically during controller switchover with typical bumpless transfer times under 50ms, maintaining process continuity during failover events.

What diagnostic capabilities are available for predictive maintenance programs?
The module provides channel-by-channel diagnostics including short-circuit detection, open-load sensing, over-temperature warnings, and fuse status monitoring. Diagnostic data is accessible via controller tags for integration with FactoryTalk Analytics or third-party CMMS platforms, enabling condition-based maintenance strategies that predict failures 2-4 weeks in advance.

Is conformal coating necessary for outdoor or corrosive environment installations?
Conformal coating (order suffix "K") is strongly recommended for installations exposed to chemical vapors, salt spray, high humidity (>95% RH), or temperature cycling that causes condensation. The coating provides IEC 60721-3-3 Class 3C2 protection against corrosive gases and extends module life from 10 years to 15+ years in harsh environments.

How do I size the ControlLogix power supply for multiple output modules?
The 1756-OB16I draws 150mA from the 5V backplane bus and 5mA from the 24V bus. Sum the backplane current for all modules in your chassis, then select a 1756-PA75 (13A @ 5V) or 1756-PB75 (13A @ 5V) power supply with 20% margin. Use publication 1756-SG001 ControlLogix Selection Guide for detailed power budget calculations including redundant supply configurations.

Ready to Eliminate Ground Loop Issues?

Protect your ControlLogix investment and ensure reliable operation in electrically challenging environments. Contact our application engineering team for technical consultation, custom configuration quotes, or integration support. Request a detailed datasheet, CAD drawings, or sample RSLogix 5000 code to accelerate your project timeline.
