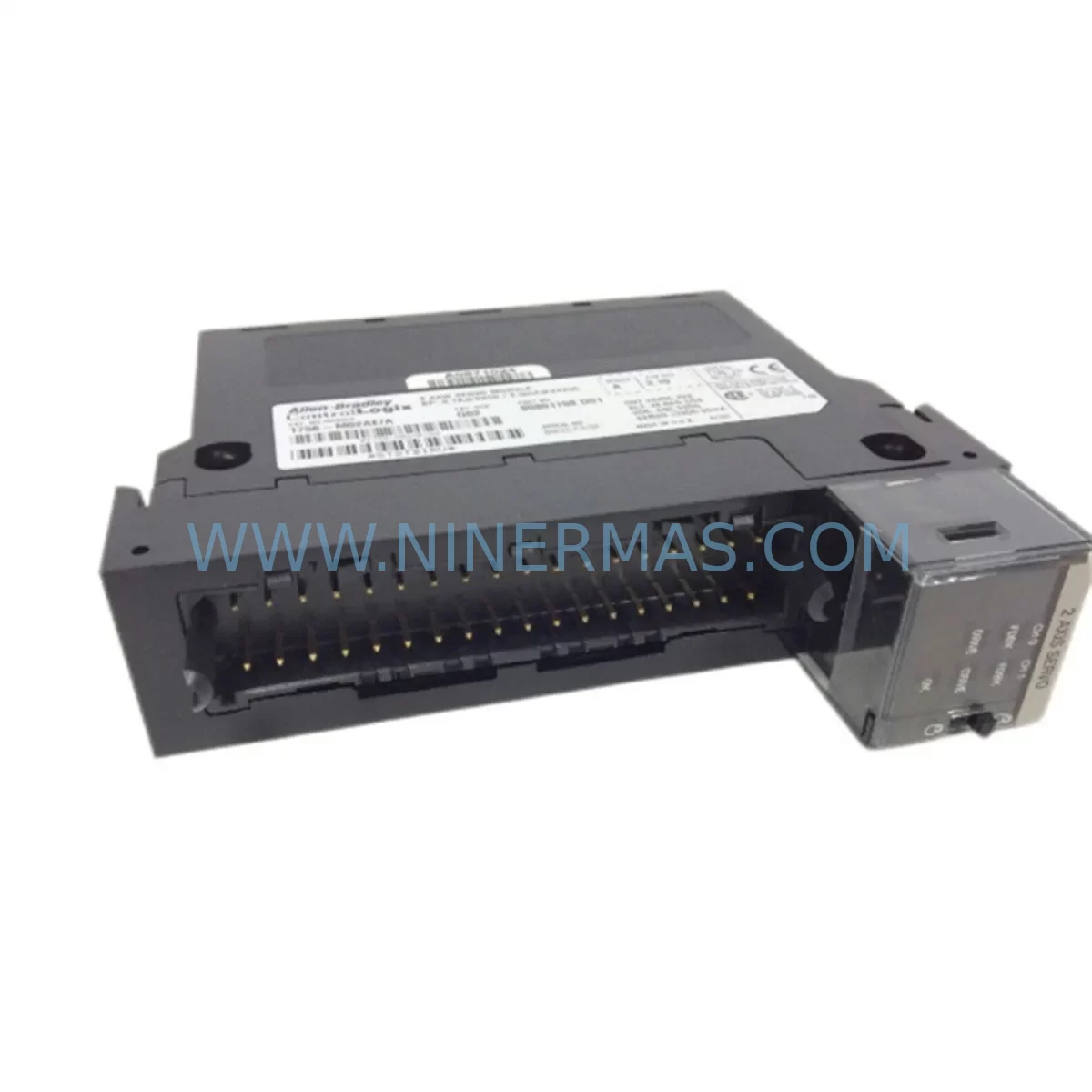

The Allen-Bradley 1756-M02AE is a dual-axis servo drive module designed for use within the Rockwell Automation ControlLogix platform. As a critical motion control component, this module governs servo axis coordination across high-demand manufacturing environments including automotive assembly, packaging lines, material handling systems, and precision machining cells. When this module fails or degrades, the result is immediate production stoppage — making rapid, verified spare part availability a non-negotiable element of any industrial maintenance strategy.

At NINERMAS, we supply the 1756-M02AE as a service-ready spare part, fully tested prior to shipment and backed by a 12-month warranty. Our inventory is maintained to support both emergency breakdown recovery and planned annual maintenance cycles, ensuring that maintenance engineers and procurement teams can source this component without lead-time risk.

For facilities operating ControlLogix-based motion systems, the 1756-M02AE should be treated as a Tier-1 critical spare. Its role in coordinating servo feedback, axis synchronization, and drive communication means that any degradation — whether from thermal stress, connector wear, or firmware incompatibility — can cascade into broader system faults affecting multiple production zones.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-M02AE in a live ControlLogix system is rarely an isolated task. Maintenance engineers performing this replacement should treat it as an opportunity to conduct a broader cabinet inspection and pre-emptive component review. The servo module interfaces directly with the 1756 backplane, meaning that backplane integrity — including the chassis itself and any adjacent I/O modules such as the 1756-IB16 digital input module or 1756-OB16E digital output module — should be verified before and after the swap.

Power delivery to the 1756-M02AE depends on the health of the 1756-PA75 or 1756-PB75 power supply module. A degraded power supply can cause intermittent axis faults that mimic module failure, so confirming stable DC bus voltage and checking the power supply’s status indicators is a mandatory pre-replacement step. If the power supply is approaching its service life, this is the appropriate time to schedule its replacement as well.

The servo drive interface — typically connecting to Kinetix 6000 or Ultra3000 drive units — should also be inspected. Drive feedback cables, encoder connectors, and shielding integrity are common failure points that can cause recurring faults even after a module replacement. Verifying the 2090-series feedback cables and checking for cable abrasion or connector oxidation will prevent repeat downtime events.

From a communication standpoint, the 1756-M02AE operates within the broader ControlLogix communication architecture. If the system uses a 1756-EN2T EtherNet/IP communication module or a 1756-DNB DeviceNet bridge module for coordinating motion commands from the controller, these should be checked for firmware currency and connection health. A communication module fault can prevent the servo module from receiving motion commands even when the module itself is fully functional.

For facilities with HMI-driven motion sequences, the PanelView Plus terminal connected to the ControlLogix system should be reviewed to confirm that motion status tags are mapping correctly after the module replacement. Tag database mismatches following a module swap are a known source of post-maintenance faults that can delay production restart.

Procurement engineers should also consider stocking the 1756-M02AE alongside complementary spares: the 1756-L71 or 1756-L73 ControlLogix controller, terminal blocks and wiring duct for cabinet organization, and surge protection devices on the incoming power rail. A well-structured spare parts inventory that covers the full motion control loop — from controller to drive to feedback device — dramatically reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

When replacing the 1756-M02AE on-site, begin by placing the ControlLogix controller in Program mode to inhibit all active motion tasks. Document the current axis configuration parameters — including axis scaling, feedback device type, and drive model — from the Logix Designer project file before removing the module. This documentation is critical if the replacement module requires re-commissioning.

Power down the chassis following Rockwell Automation lockout/tagout procedures. Remove the faulty 1756-M02AE by releasing the top and bottom locking tabs and sliding the module out of the chassis slot. Inspect the backplane connector on both the module and the chassis for bent pins or contamination before installing the replacement unit.

Insert the new 1756-M02AE into the same chassis slot and secure the locking tabs. Restore power and allow the controller to recognize the module. In Logix Designer, verify that the module properties match the original configuration — particularly the drive model association and axis count. Download the verified project file and transition the controller back to Run mode.

Perform a controlled axis home sequence before resuming production to confirm that encoder feedback, torque limits, and velocity profiles are operating within specification. Log the replacement in the facility’s maintenance management system (CMMS) with the module serial number, installation date, and firmware revision for future reference. This record supports warranty claims and long-term spare parts lifecycle planning.

NINERMAS ships the 1756-M02AE with a pre-shipment functional test report. Each unit is verified for backplane communication, axis initialization response, and drive interface continuity before dispatch, reducing the risk of installing a defective spare during a critical recovery window.

Spare Parts Support FAQ

Q1: Is the 1756-M02AE supplied by NINERMAS an original Allen-Bradley component?
Yes. NINERMAS supplies original Allen-Bradley 1756-M02AE modules sourced through verified industrial channels. Each unit is inspected and tested prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing ControlLogix chassis and firmware?
The 1756-M02AE is compatible with all standard 1756 ControlLogix chassis variants, including 4-slot, 7-slot, 10-slot, and 13-slot configurations. Firmware compatibility should be verified against your Logix Designer project revision. NINERMAS technical support can assist with compatibility confirmation if you provide your controller catalog number and firmware version prior to purchase.

Q3: What is the recommended inventory strategy for the 1756-M02AE in a multi-line facility?
For facilities operating three or more ControlLogix motion systems, maintaining a minimum of one 1756-M02AE per motion zone as a hot spare is recommended. Given the module’s role in axis coordination, a single unplanned failure can halt an entire production line. Pairing this spare with a stocked power supply module and a set of verified feedback cables provides a complete motion recovery kit that can restore operations within a single shift.

Q4: Does NINERMAS offer long-term supply agreements for the 1756-M02AE?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the 1756-M02AE. These agreements include reserved inventory allocation, priority shipment, and fixed pricing for contract periods. This is particularly valuable for facilities managing aging ControlLogix systems where original component availability may become constrained over time. Contact sale@ninermas.com to discuss supply agreement terms.
