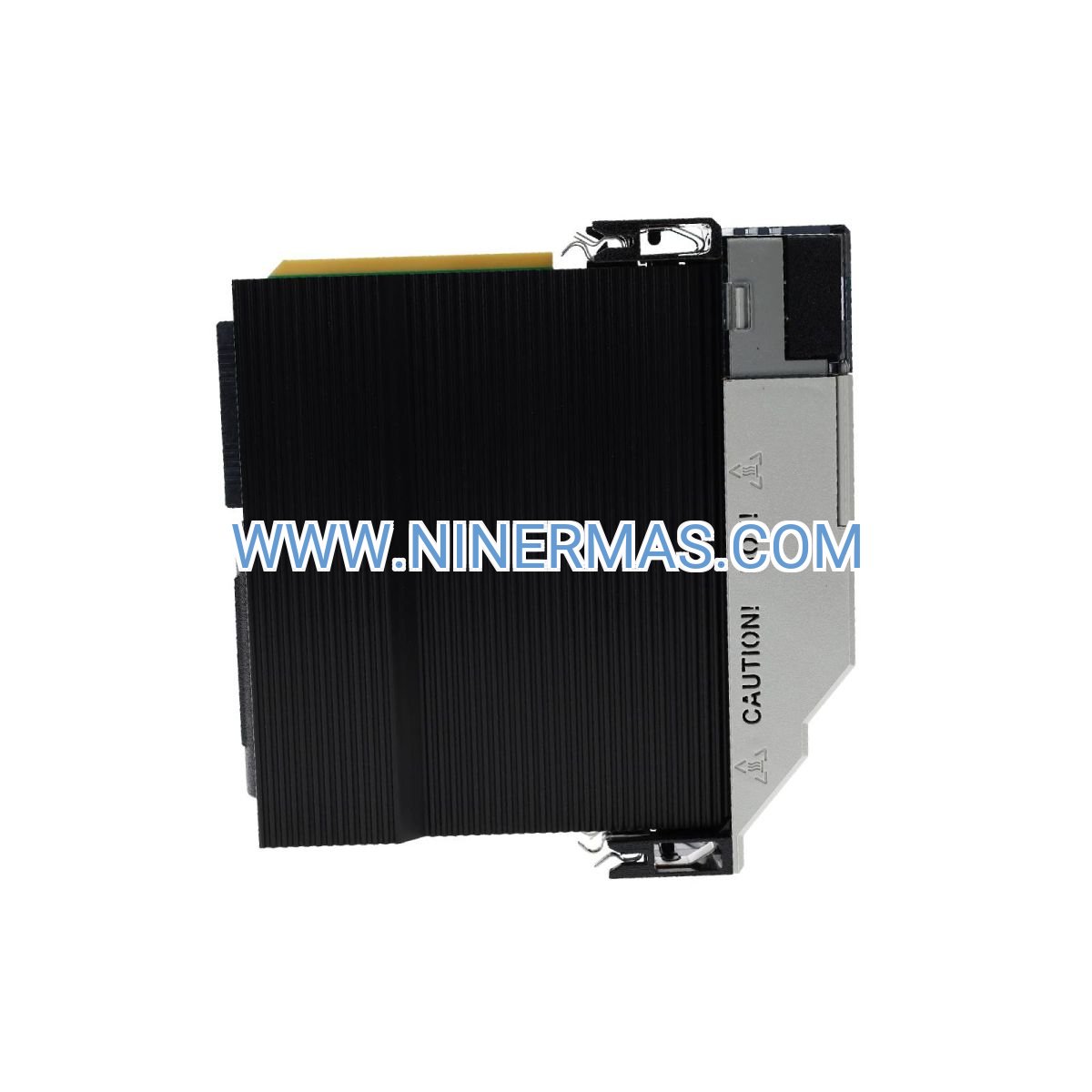

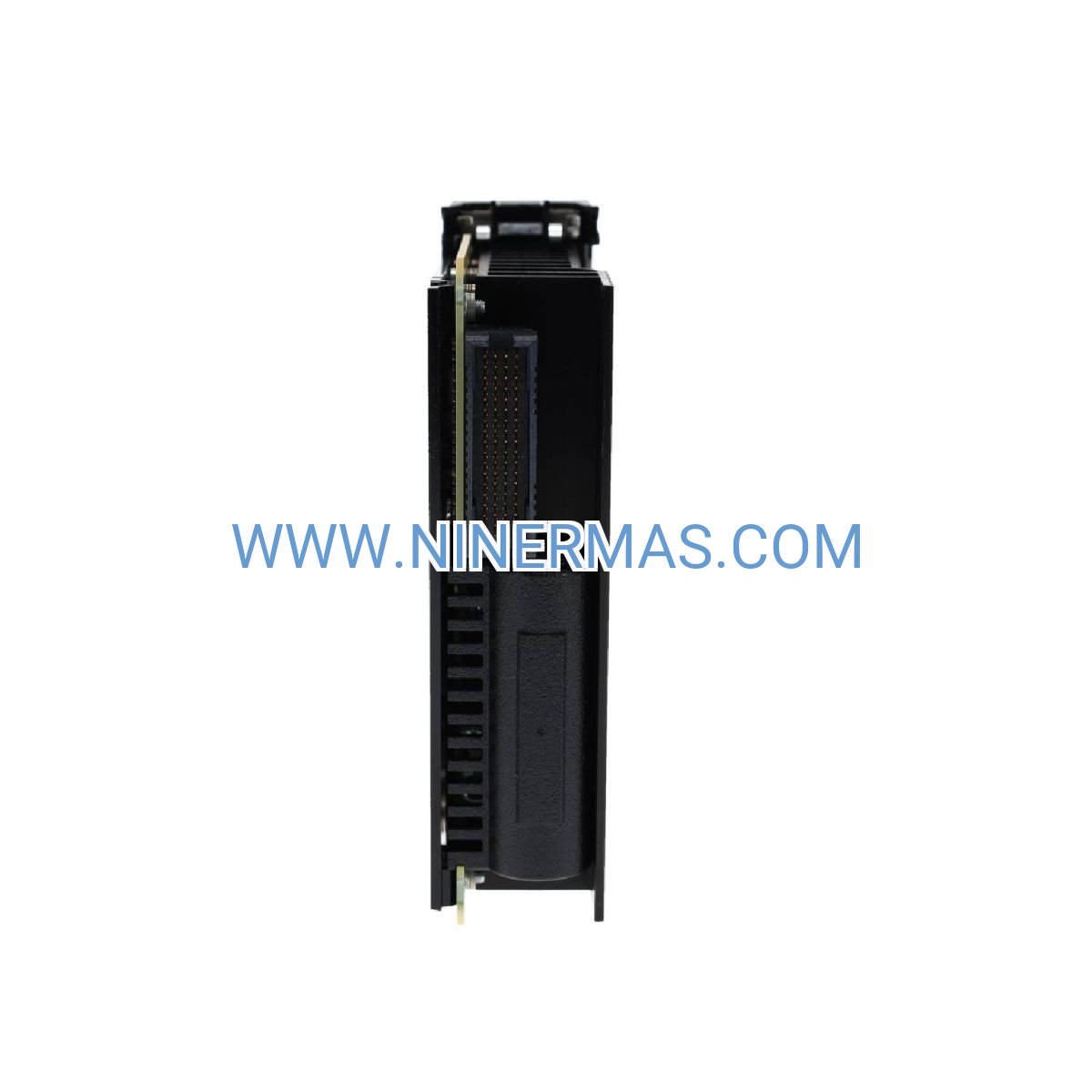

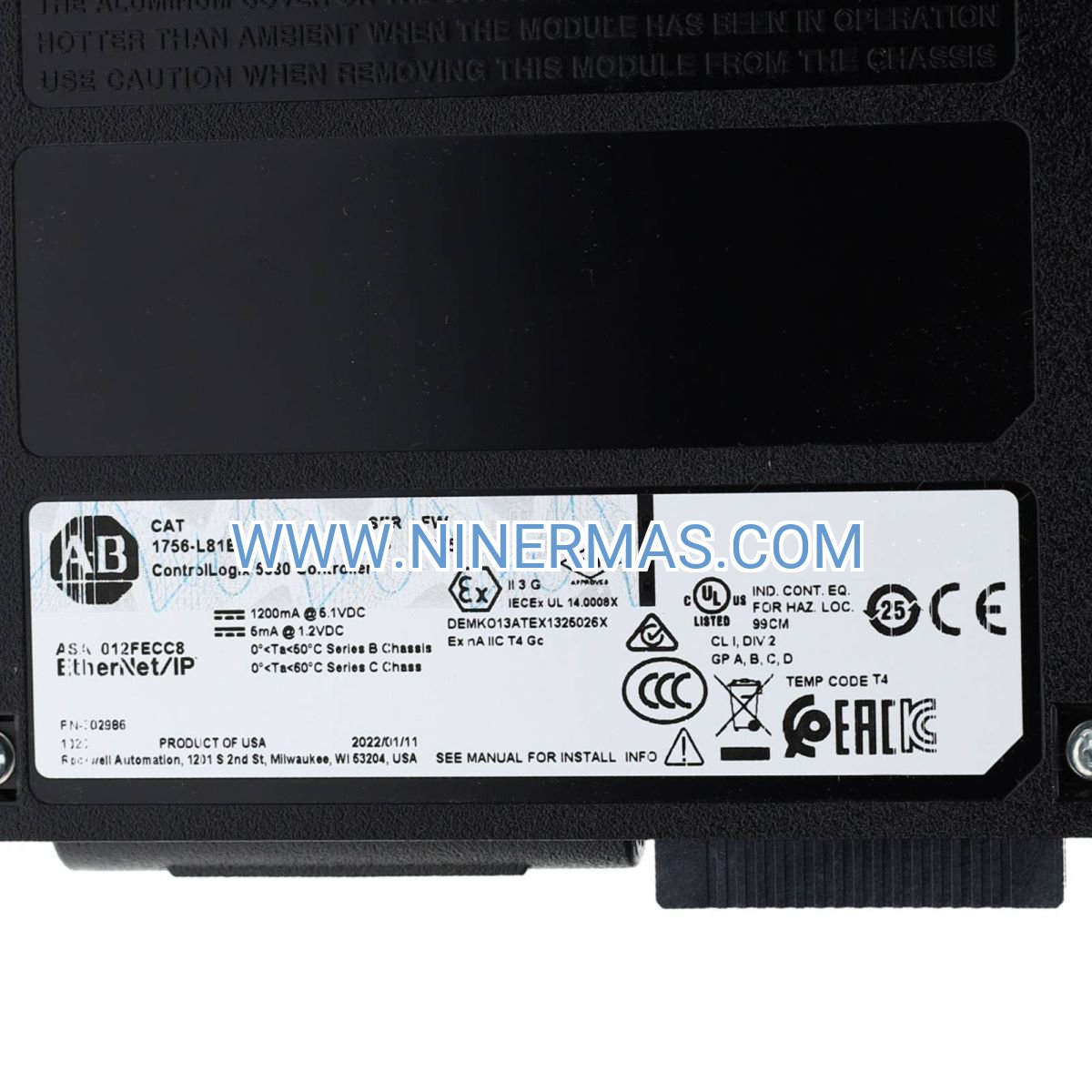

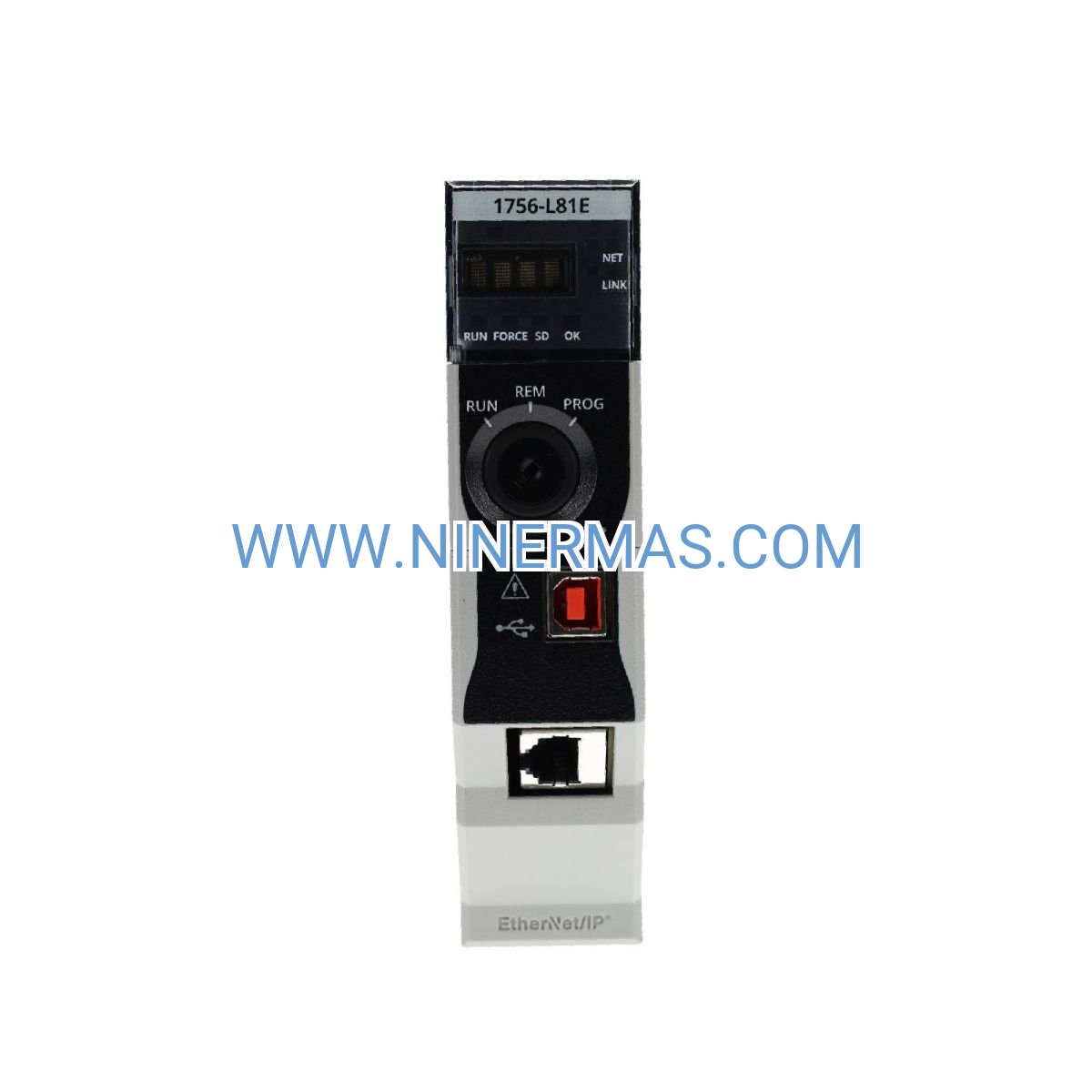

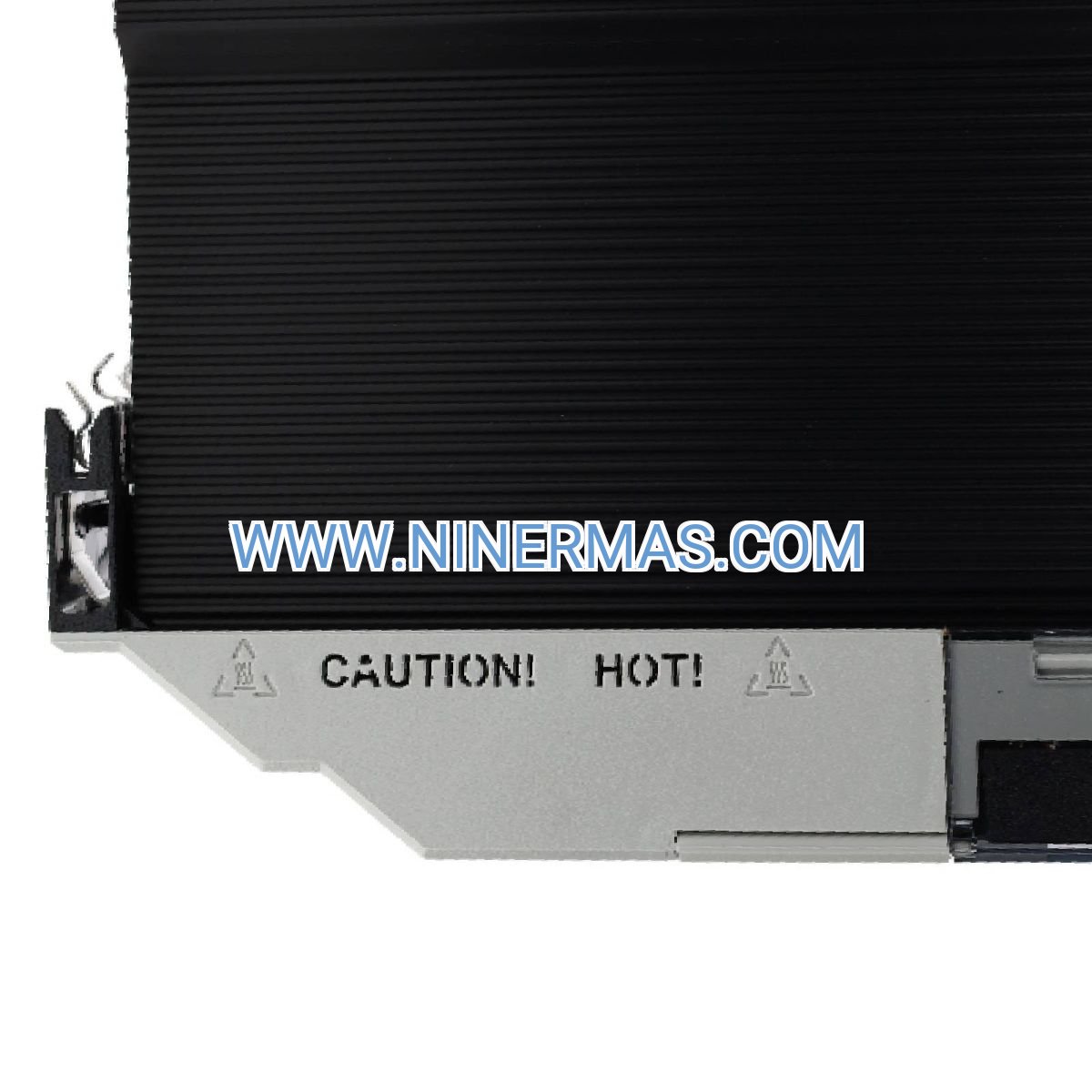

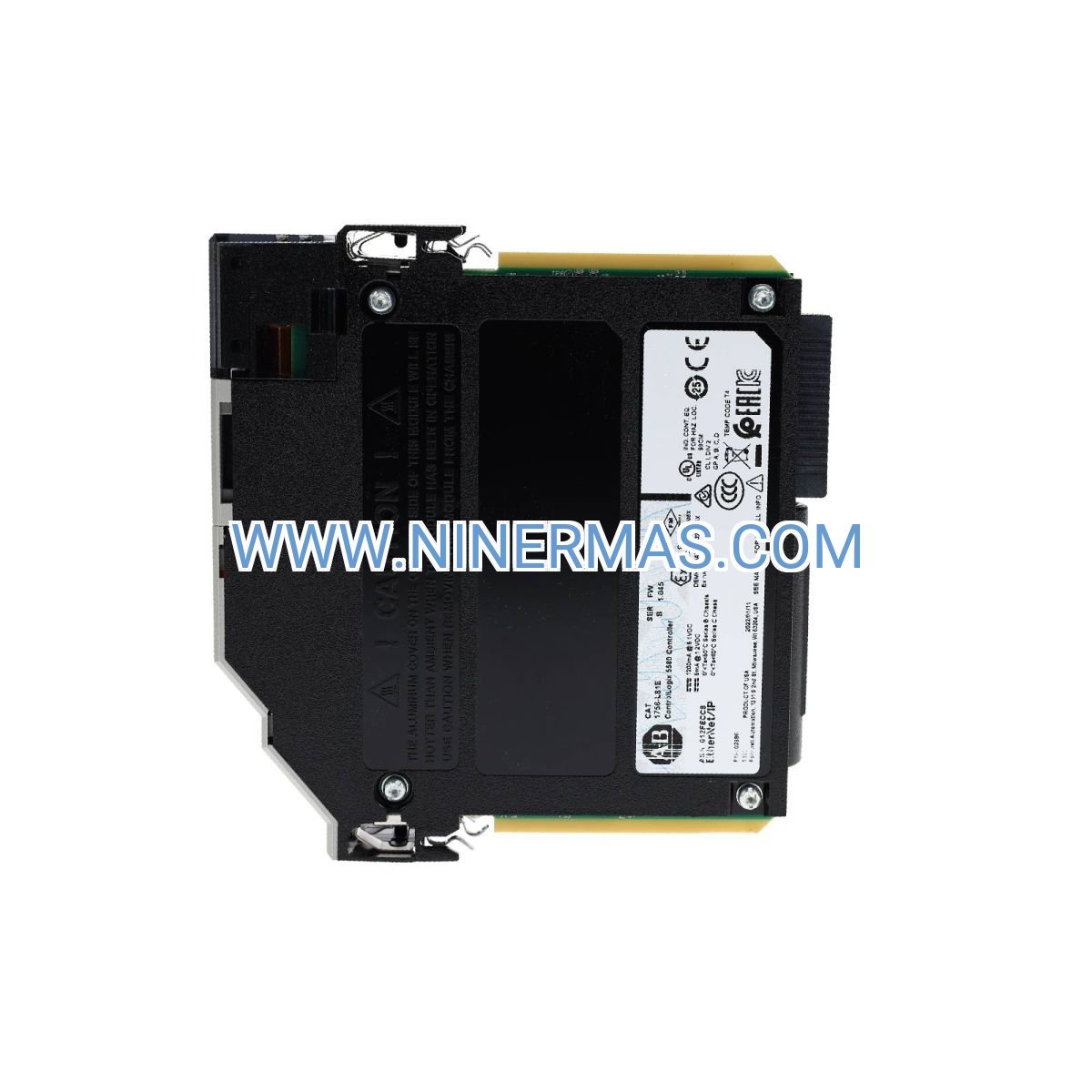

1756-L81E ControlLogix 5580 Controller (Industrial-Grade Automation Platform)

The 1756-L81E is a high-capacity programmable logic controller designed for mission-critical industrial environments where reliability, scalability, and performance are non-negotiable. Built on Rockwell Automation's proven ControlLogix architecture, this controller combines 10MB of user memory with 1GB nonvolatile storage to handle sophisticated control logic, data-intensive applications, and multi-axis motion coordination across manufacturing, energy, and infrastructure sectors.

Engineered for system integrators and plant engineers managing complex automation projects, the 1756-L81E eliminates bottlenecks in high-speed production lines, batch processing systems, and distributed control networks. Its dual-core 1.5 GHz processor delivers deterministic scan times while integrated CIP Motion technology removes the need for standalone motion controllers, reducing hardware costs and simplifying system architecture.

Whether you're retrofitting legacy systems or designing greenfield installations, this controller offers seamless backward compatibility with existing ControlLogix infrastructure while providing a future-proof platform for Industry 4.0 connectivity, advanced diagnostics, and cybersecurity features that protect operational technology assets.

Core Capabilities & Technical Advantages

✓ Exceptional Processing Power
Dual-core 1.5 GHz architecture executes complex ladder logic, function blocks, and structured text programs with microsecond-level precision. Handles up to 128,000 digital I/O points and 4,000 analog channels simultaneously without performance degradation.

✓ Integrated Motion Control
Native CIP Motion support coordinates up to 32 servo axes for packaging, material handling, and robotic applications. Eliminates external motion controllers, reducing panel space requirements by 40% and cutting commissioning time in half.

✓ Redundant Network Architecture
Dual 10/100/1000 Mbps Ethernet/IP ports enable Device Level Ring (DLR) topology for automatic failover protection. Maintains continuous operation even during network cable failures or switch malfunctions, ensuring 99.9% uptime in critical processes.

✓ Massive Data Handling
1GB nonvolatile storage archives historical trends, alarm logs, and recipe databases directly within the controller. Reduces dependency on external historians and enables offline diagnostics without disrupting production.

✓ Hot-Swappable Modularity
Replace I/O modules, communication adapters, and specialty cards without powering down the chassis. Scheduled maintenance windows shrink from hours to minutes, maximizing equipment availability and production throughput.

✓ Enterprise-Grade Security
Role-based access control, encrypted EtherNet/IP communications, and change detection logs prevent unauthorized program modifications. Meets IEC 62443 cybersecurity standards for industrial automation systems.

Industry Applications & Use Cases

→ Automotive Assembly Lines
Orchestrate welding robots, vision inspection systems, and conveyor networks in body-in-white operations. The controller's deterministic performance ensures precise timing for spot welding sequences, while integrated safety I/O interfaces with GuardLogix modules to protect operators in collaborative workspaces.

→ Food & Beverage Processing
Manage multi-stage batch reactors, CIP cleaning cycles, and recipe-driven formulation systems. Built-in PID algorithms maintain temperature, pressure, and flow setpoints within ±0.1% tolerance, ensuring consistent product quality and regulatory compliance for FDA-regulated facilities.

→ Water Treatment Facilities
Monitor pump stations, chemical dosing systems, and filtration processes across distributed sites. Redundant Ethernet ports connect to SCADA systems via fiber optic networks, providing real-time visibility into water quality parameters and equipment health metrics.

→ Oil & Gas Midstream Operations
Control compressor stations, pipeline valves, and custody transfer metering in hazardous locations. API 670 certification ensures compliance with vibration monitoring standards, while nonvolatile memory preserves critical data during power outages in remote installations.

→ Pharmaceutical Manufacturing
Execute 21 CFR Part 11 compliant batch records with electronic signatures and audit trails. The controller's deterministic scan cycle guarantees repeatable process outcomes for validation protocols, while secure communications prevent data tampering during regulatory inspections.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1756-L81E when your application requires 5,000-10,000 logic rungs, moderate motion control (8-32 axes), or integration with 50-100 distributed I/O nodes. For smaller systems under 3,000 rungs, consider the 1756-L73 series. For applications exceeding 15,000 rungs or requiring 64+ motion axes, upgrade to the 1756-L84E with 20MB memory.

Advanced Integration Options

Industrial IoT Connectivity
Leverage FactoryTalk Edge Gateway to stream real-time process data to cloud analytics platforms (AWS, Azure, ThingWorx) without compromising OT network security. Publish OPC UA tags for third-party MES/ERP integration while maintaining firewall protection.

Predictive Maintenance
Enable FactoryTalk Analytics to monitor controller CPU utilization, memory consumption, and I/O health metrics. Receive automated alerts when scan times exceed thresholds or communication errors indicate failing network infrastructure.

Custom Function Blocks
Develop reusable Add-On Instructions (AOIs) in Studio 5000 to standardize control logic across multiple machines. Encapsulate proprietary algorithms while protecting intellectual property through source code encryption.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configuration: 7-10 business days for pre-programmed controllers with customer-specific logic
Warranty Coverage: 12 months against manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and firmware updates
Documentation Package: User manual, wiring diagrams, sample ladder logic programs, and calibration certificates included with every shipment

Frequently Asked Questions

What programming languages does the 1756-L81E support for industrial automation projects?
The controller supports all five IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and Instruction List (IL). Studio 5000 Logix Designer provides a unified environment for mixed-language programming within a single project.

Can this ControlLogix controller interface with legacy PLC-5 or SLC 500 systems?
Yes, through 1756-DHRIO or 1756-CNB communication modules, the 1756-L81E exchanges data with older Allen-Bradley platforms via DH+, Remote I/O, or ControlNet protocols. This enables phased migration strategies without forklift upgrades.

How does the dual Ethernet port configuration improve network reliability?
When configured in Device Level Ring (DLR) topology, the controller automatically reroutes traffic if one network path fails, maintaining communication within 3 milliseconds. This eliminates single points of failure in star or linear network architectures.

What is the maximum distance between the controller and remote I/O modules?
Over standard Ethernet infrastructure, the 1756-L81E communicates with POINT I/O, Flex I/O, and CompactBlock I/O up to 100 meters (328 feet) using copper cabling. Fiber optic media extends this range to 2 kilometers for distributed installations.

Does the controller require battery backup for program retention?
No, the 1756-L81E uses nonvolatile flash memory and an SD card for program storage. User logic, data tables, and configuration files persist through power cycles without batteries, reducing maintenance overhead.

How do I implement redundancy for mission-critical applications?
Pair two 1756-L81E controllers with 1756-RM2XT redundancy modules in a hot-backup configuration. The standby controller synchronizes with the primary in real-time and assumes control within 50 milliseconds if the active unit fails.

Start Your Automation Project Today

Ready to deploy the 1756-L81E in your facility? Our application engineers provide complimentary system architecture reviews to ensure optimal controller sizing, network design, and I/O distribution. Contact our team for project-specific quotations, volume pricing, or technical consultations on complex integration challenges.

Request a quote now or speak with an automation specialist to discuss your control system requirements.
