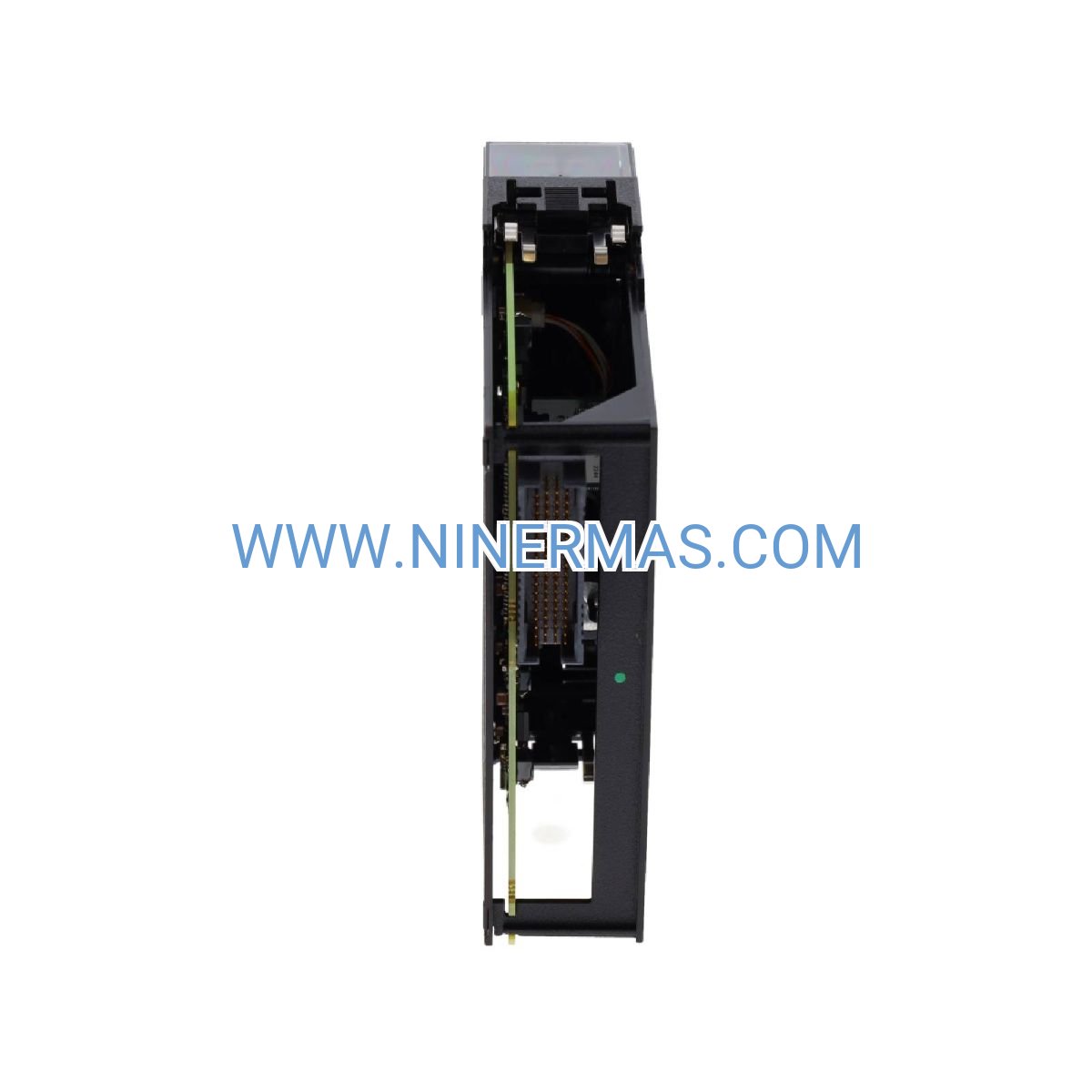

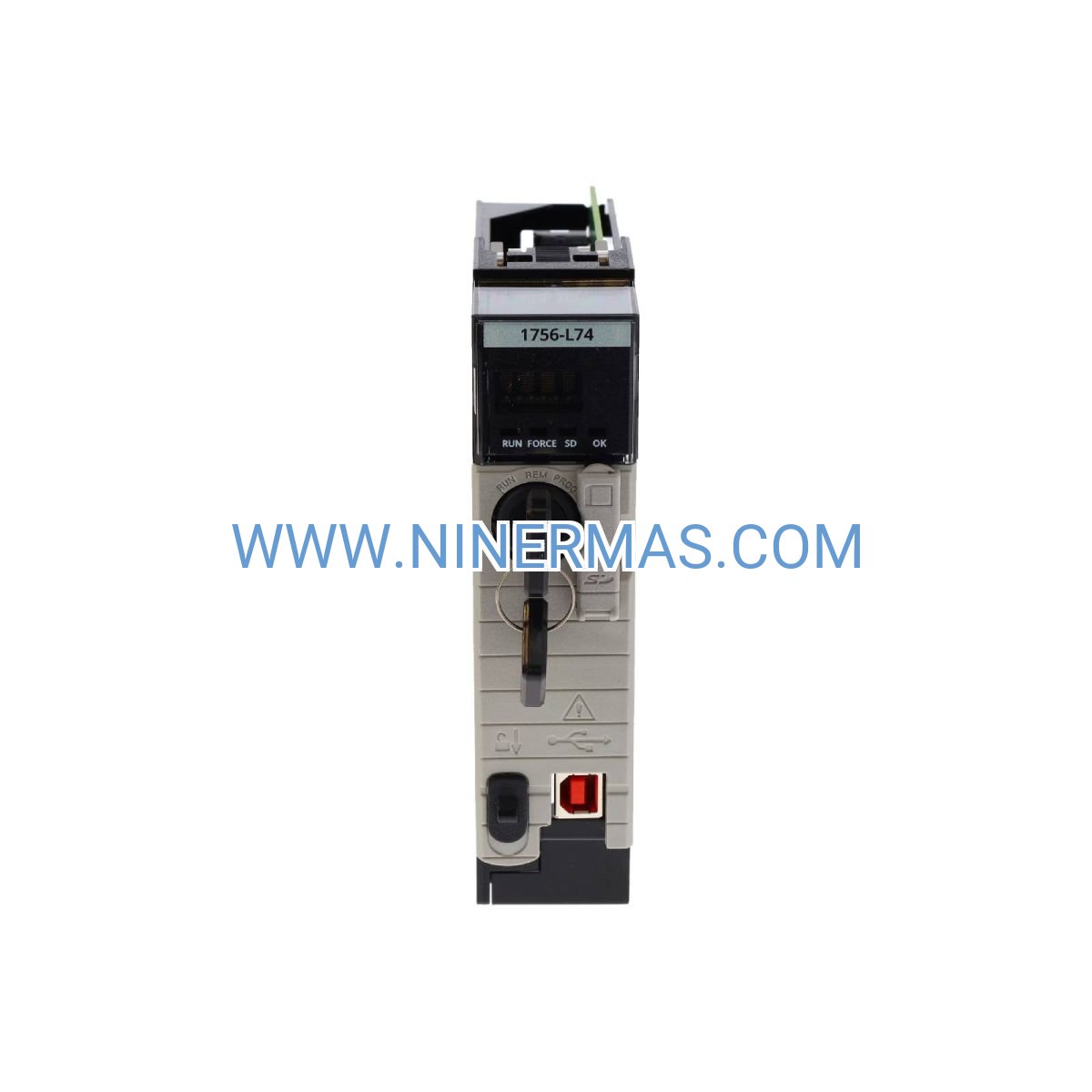

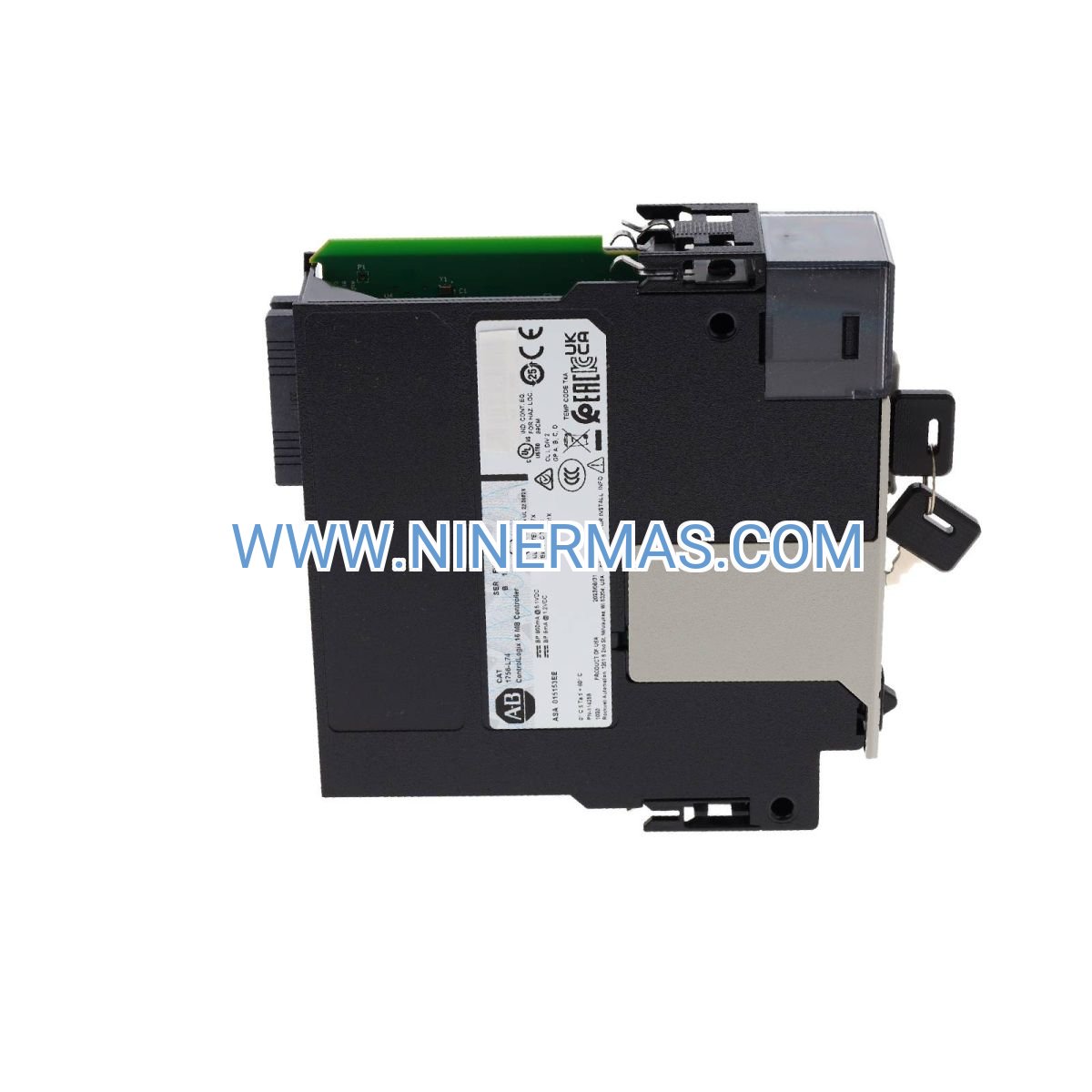

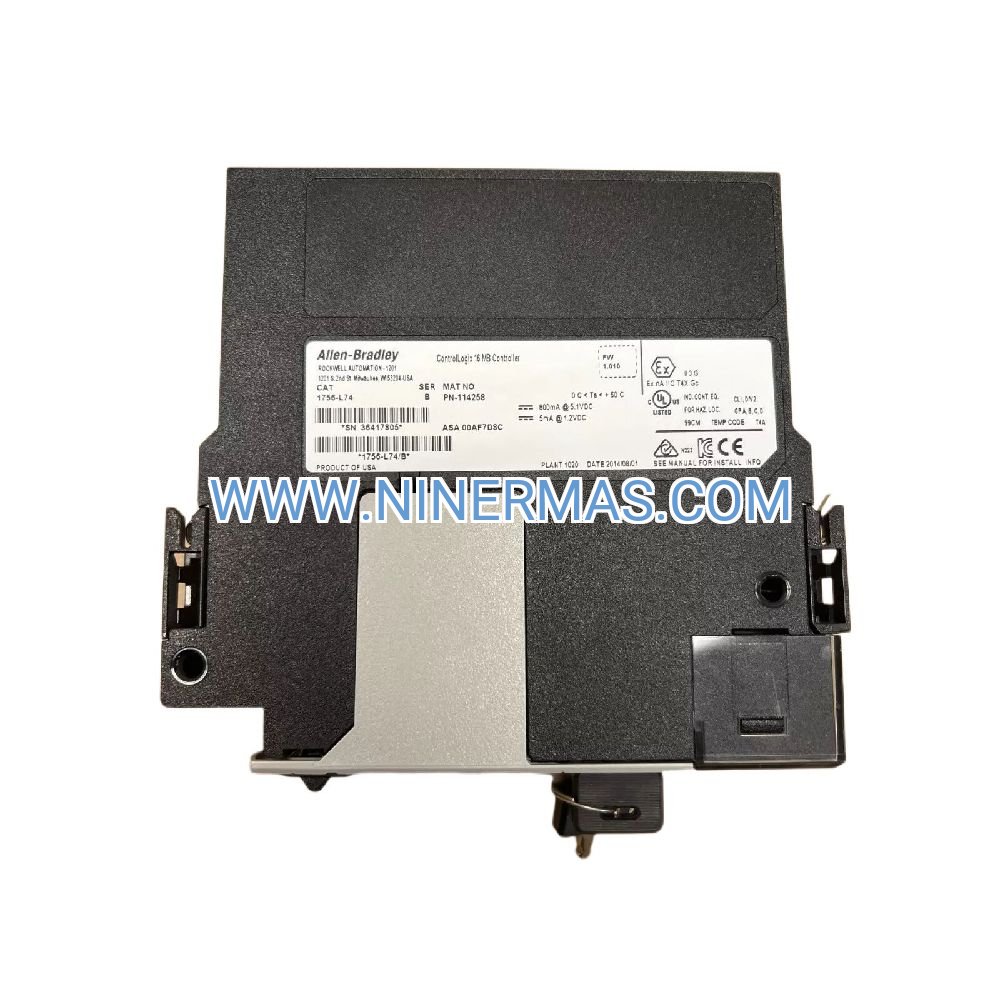

1756-L74 ControlLogix 5570 Processor (Industrial-Grade 8MB Controller)

The 1756-L74 represents Allen-Bradley's proven ControlLogix 5570 platform, delivering robust processing power for mission-critical industrial environments. Engineered with 8MB user memory and dual communication interfaces, this processor module serves as the intelligent backbone for distributed control architectures across manufacturing, process, and infrastructure sectors.

Designed for system integrators and plant engineers who demand reliability under continuous operation, the 1756-L74 addresses complex automation challenges through scalable I/O capacity, deterministic network performance, and seamless integration with Rockwell Automation's Integrated Architecture. Whether retrofitting legacy systems or deploying greenfield projects, this controller provides the computational foundation for coordinated motion, batch sequencing, and real-time data acquisition.

Key differentiators include hot-swap capability for zero-downtime maintenance, built-in USB programming port for rapid commissioning, and compatibility with Studio 5000 Logix Designer—enabling unified development across your automation portfolio. Backed by global technical support and extensive third-party device libraries, the 1756-L74 accelerates time-to-production while future-proofing your control infrastructure.

Core Capabilities & Business Value

✓ High-Density Memory Architecture
8MB user memory + 491KB I/O memory supports complex ladder logic, structured text programs, and recipe management without performance degradation. Reduces controller count in multi-zone applications, lowering hardware costs by 20-30%.

✓ Dual-Port Connectivity
Integrated USB and EtherNet/IP ports enable simultaneous programming and network communication. Eliminates the need for external adapters, cutting commissioning time by 40% compared to single-port alternatives.

✓ Deterministic Scan Performance
Optimized instruction set executes typical 10K-instruction programs in under 5ms. Ensures predictable response times for safety interlocks, quality gates, and synchronized motion profiles.

✓ Hot-Swappable Design
Replace or upgrade processors during operation without halting production lines. Minimizes unplanned downtime costs—critical for 24/7 operations where every minute of stoppage equals $5,000+ in lost revenue.

✓ Scalable I/O Ecosystem
Supports up to 128,000 digital and 4,000 analog I/O points across local and distributed chassis. Accommodates plant expansions without controller replacement, protecting capital investments over 10+ year lifecycles.

✓ Integrated Diagnostics
Real-time fault logging and module health monitoring via embedded web server. Reduces mean-time-to-repair (MTTR) by 50% through proactive alerts and remote troubleshooting capabilities.

Industry Applications & Problem-Solving

→ Automotive Assembly Lines
Coordinates robotic welding cells, conveyor systems, and vision inspection stations in body-in-white operations. Solves synchronization challenges across 50+ servo axes while maintaining ±0.1mm positional accuracy. Delivers 99.7% uptime through redundant network paths and predictive maintenance alerts.

→ Water/Wastewater Treatment
Manages multi-stage filtration, chemical dosing, and SCADA integration for municipal facilities processing 10-100 MGD. Addresses regulatory compliance through timestamped event logs and secure remote access. Reduces chemical waste by 15% via closed-loop pH control algorithms.

→ Food & Beverage Packaging
Orchestrates high-speed filling, capping, and labeling equipment at 600+ bottles/minute. Overcomes recipe changeover complexity with stored parameter sets—switching between SKUs in under 3 minutes versus 20-minute manual adjustments. Ensures FDA 21 CFR Part 11 compliance through audit trails.

→ Pharmaceutical Batch Processing
Executes ISA-88 compliant batch recipes for API synthesis and tablet coating. Solves traceability requirements through integrated historian connectivity and electronic batch records. Validates process repeatability with ±0.5% temperature control across 12-hour cycles.

→ Material Handling & Warehousing
Controls automated storage/retrieval systems (AS/RS) and sortation conveyors in distribution centers. Addresses peak-season throughput demands by managing 200+ motor starters and barcode scanners simultaneously. Cuts order fulfillment time by 35% through optimized routing algorithms.

Technical Specifications & Selection Criteria

Selection Guidelines: The 1756-L74 suits applications requiring 5,000-50,000 I/O points, moderate motion control (up to 32 axes), and standard scan rates (5-50ms). For high-speed packaging (>1,000 CPM) or safety-integrated systems, evaluate the L8xS safety processors. Budget $2,500-3,000 USD for the processor plus $500-1,500 for required communication modules.

Advanced Integration & Connectivity

Leverage the 1756-L74's EtherNet/IP interface to build converged plant-wide networks combining control, safety, and information layers. Native support for CIP Sync enables IEEE 1588 precision time protocol—critical for coordinated motion across distributed servo drives. Integrate third-party devices via Add-On Profiles (AOPs) from 300+ vendors including SEW, Siemens, and Cognex.

Deploy FactoryTalk View SE HMIs for centralized visualization, or connect to cloud platforms (AWS IoT, Azure Industrial IoT) via Kepware OPC servers for predictive analytics. The processor's embedded web server provides mobile-friendly diagnostics accessible from tablets—no additional software required for basic troubleshooting.

For IIoT initiatives, pair with 1756-EWEB modules to publish process data via RESTful APIs or MQTT protocols. This enables condition monitoring dashboards, energy management systems, and MES integration without disrupting real-time control performance.

Delivery, Warranty & Technical Support

Lead Times: Stock units ship within 24-48 hours via DHL/FedEx. Custom configurations (firmware versions, conformal coating) require 5-7 business days. Expedited same-day shipping available for critical outages—contact our emergency support line.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended 36-month service plans available, including advance replacement and on-site commissioning support. All units undergo factory testing per Rockwell Automation quality standards.

Technical Assistance: Complimentary pre-sales engineering consultation to validate compatibility with existing systems. Post-purchase support includes firmware upgrade guidance, program migration assistance, and troubleshooting via phone/email. Access to 500+ page technical manual, sample code libraries, and video tutorials.

Documentation Package: Each shipment includes installation quick-start guide, safety data sheet, calibration certificate (where applicable), and RoHS/REACH compliance declarations. Digital downloads available for wiring diagrams, Logix Designer AOPs, and dimensional CAD files (STEP/DWG formats).

Frequently Asked Questions

How does the 1756-L74 compare to legacy PLC-5 or SLC 500 controllers for retrofit projects?
The L74 offers 10x faster execution, 50x more memory, and native Ethernet connectivity versus PLC-5 systems. Migration tools in Studio 5000 convert 80-90% of PLC-5 logic automatically. Expect 30-40% reduction in panel space due to compact ControlLogix form factor. ROI typically achieved within 18 months through reduced maintenance and energy costs.

What programming software version is required for initial configuration and ongoing edits?
Studio 5000 Logix Designer v21 or later (v33+ recommended for latest features). Requires FactoryTalk Activation for licensing—available as perpetual license ($3,500) or annual subscription ($1,200/year). Free 90-day trial licenses available for evaluation. Backward compatible with RSLogix 5000 v20 projects via import wizard.

Can I implement redundant controller configurations for critical process control applications?
Yes—pair two 1756-L74 processors with 1756-RM/RM2 redundancy modules for hot-standby failover. Achieves <50ms switchover time with bumpless transfer. Requires ControlNet or redundant EtherNet/IP network (DLR topology). Total hardware cost ~$12,000-15,000 for dual-processor setup. Ideal for utilities, oil/gas, and pharmaceutical applications where downtime exceeds $50K/hour.

What is the maximum distributed I/O distance when using EtherNet/IP remote racks?
Standard Cat5e/Cat6 cabling supports 100 meters between switches. Extend to 2km using fiber optic media converters (1756-EN2F modules). Typical installations support 10-15 remote chassis across factory floor. Use managed switches with IGMP snooping and QoS for deterministic performance. Budget 2-5ms additional latency per network hop.

Does this processor support integration with legacy Modbus RTU devices and third-party PLCs?
Yes—via 1756-MVI Modbus interface module or ProSoft gateway cards. Supports Modbus TCP/IP natively through EtherNet/IP. Can poll up to 64 Modbus slaves at 100ms intervals. Also compatible with PROFIBUS-DP, DeviceNet, and serial ASCII protocols using appropriate communication modules. Simplifies brownfield integration without replacing existing field devices.
