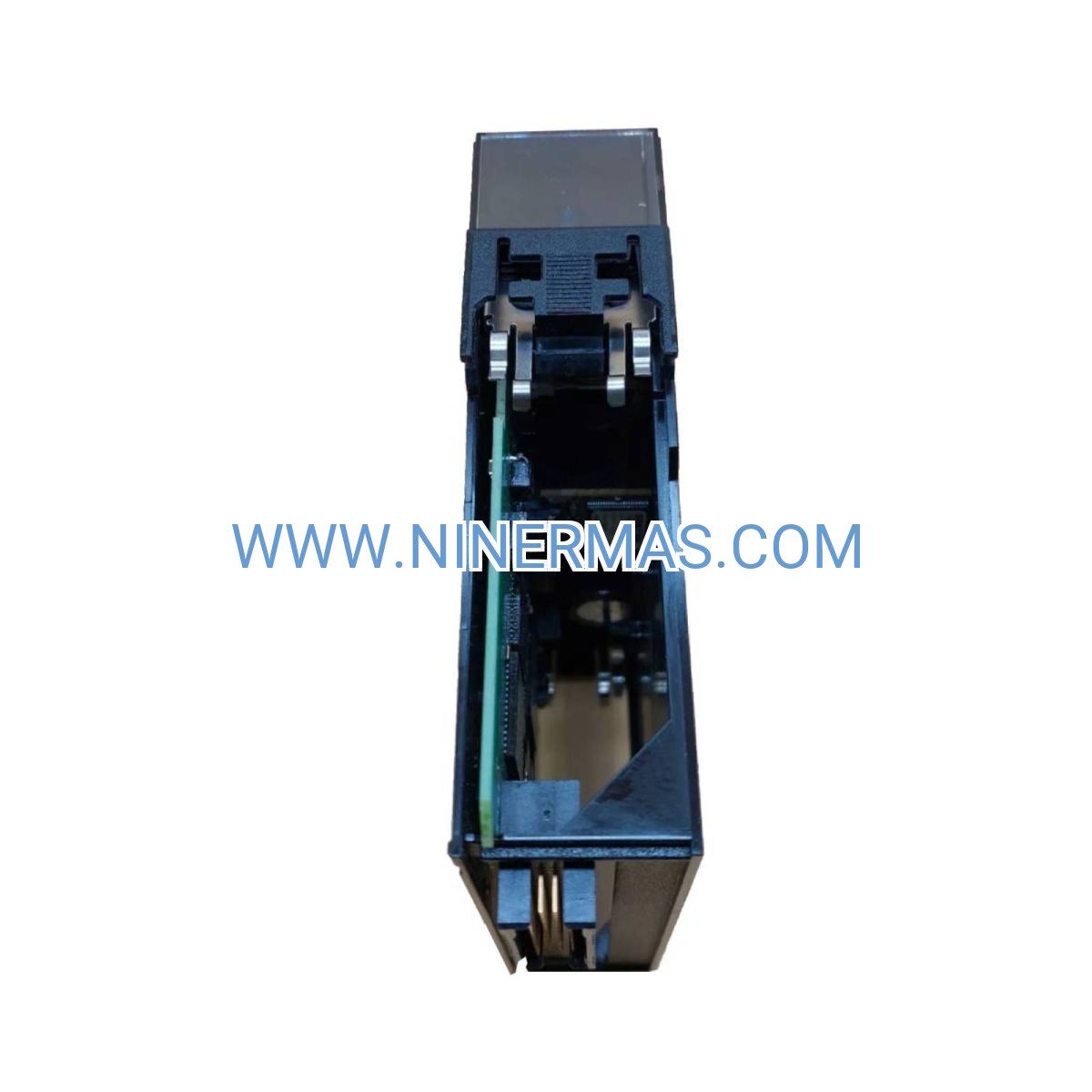

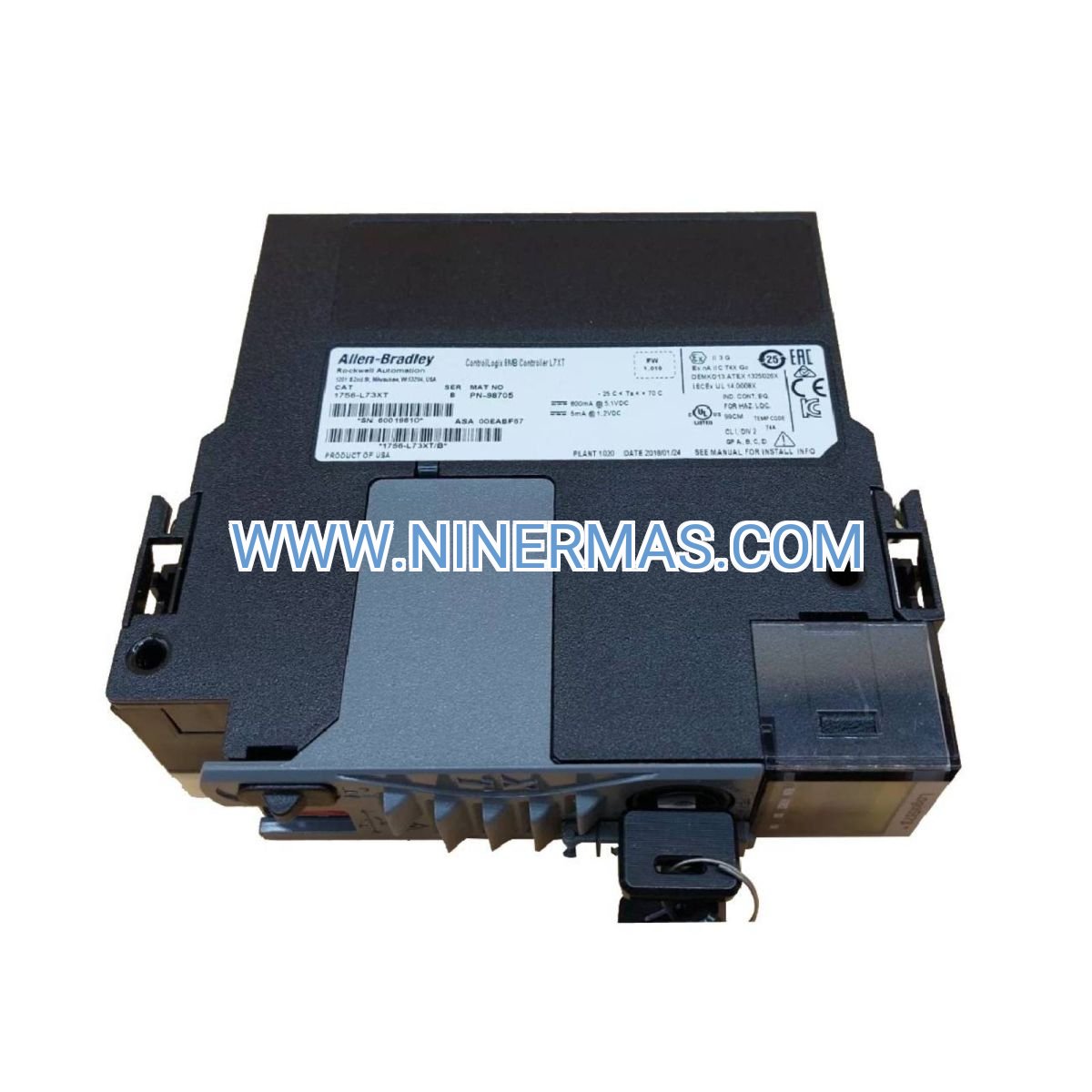

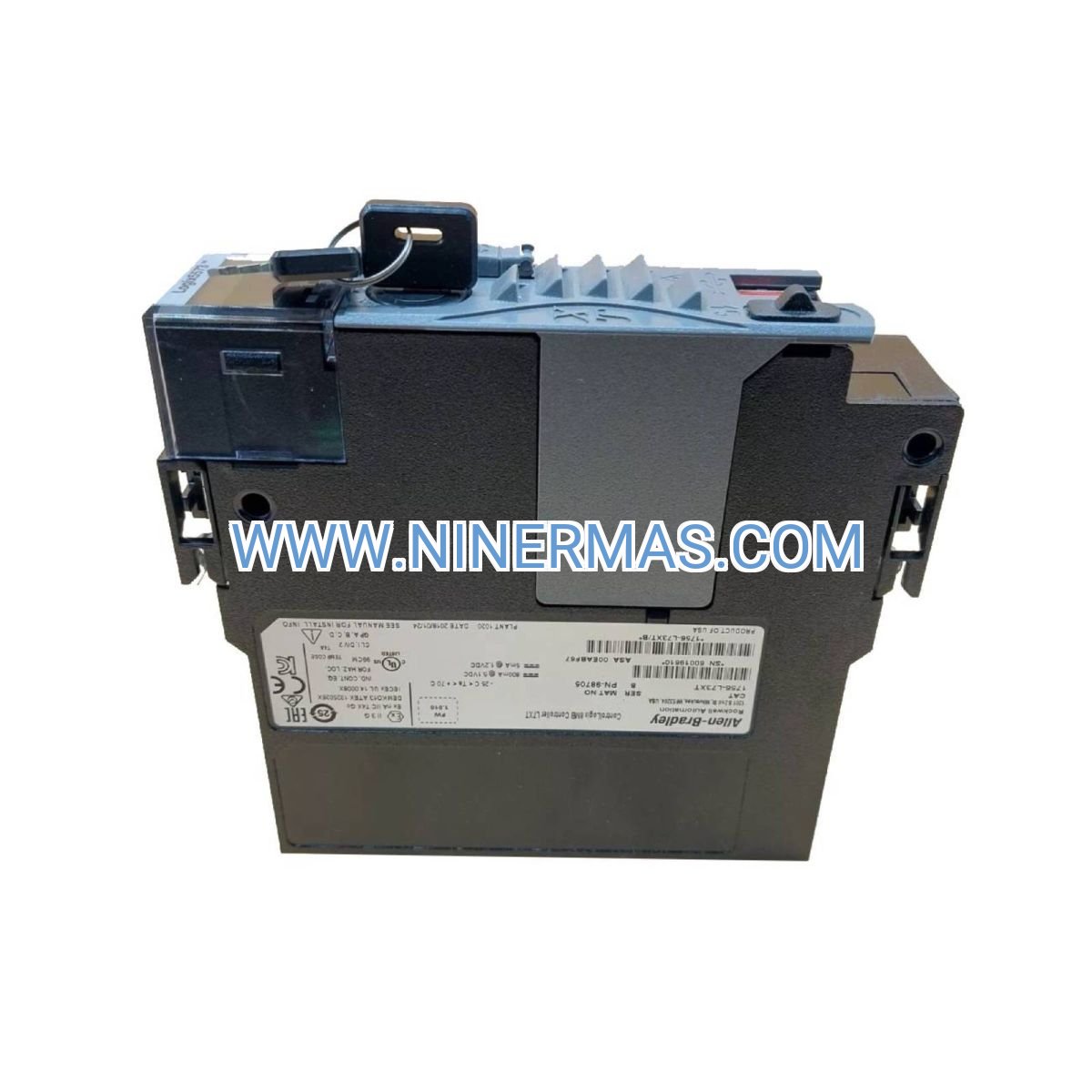

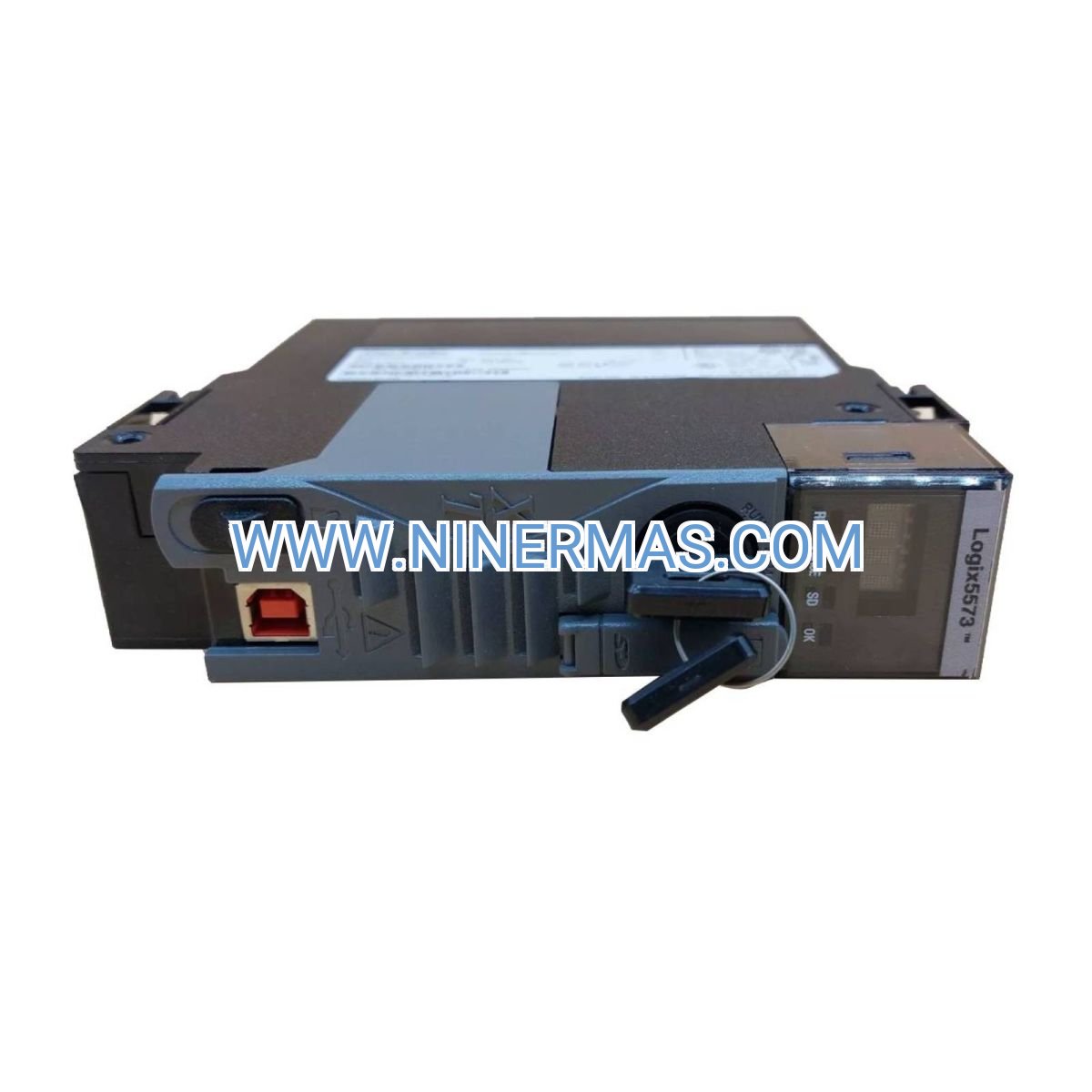

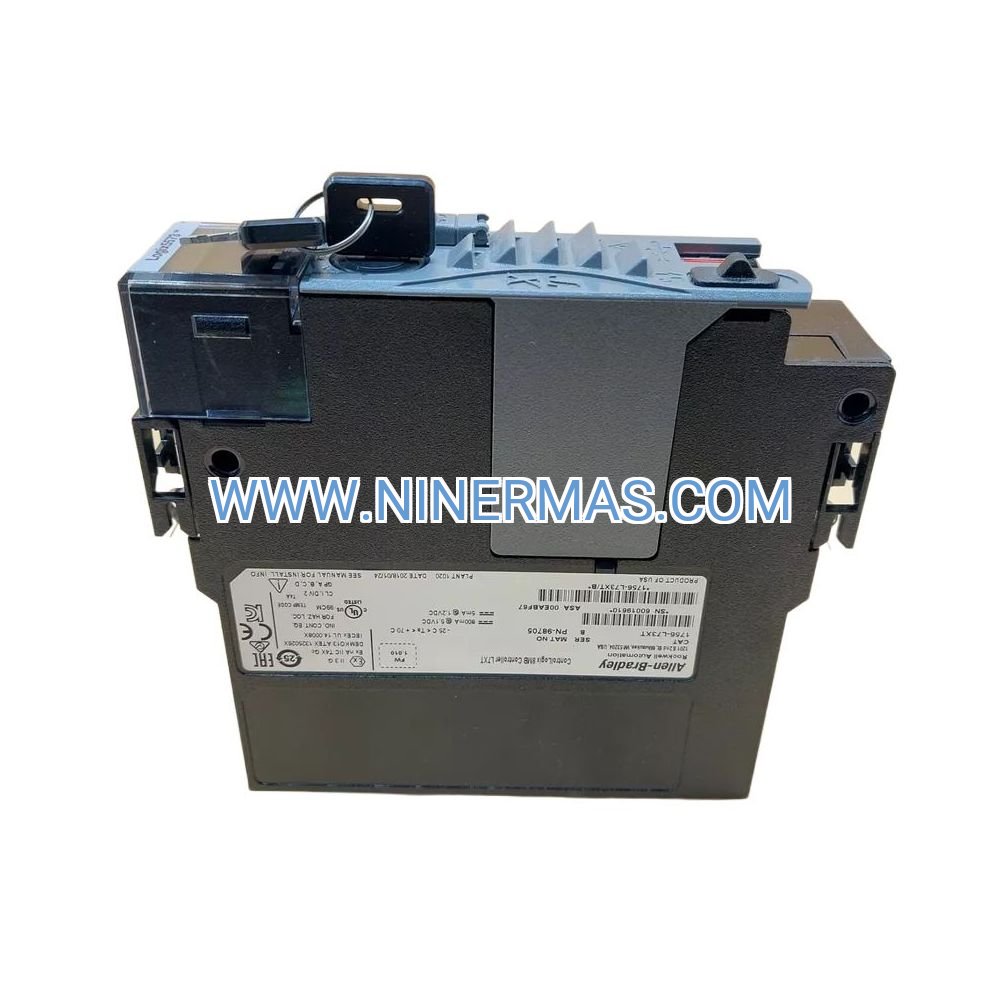

1756-L73XT ControlLogix Processor (Industrial-Grade Automation Controller)

The 1756-L73XT represents Allen-Bradley's advanced solution for mission-critical industrial control applications requiring robust performance in extreme environments. This ControlLogix processor combines 8MB of user memory with integrated USB diagnostics, delivering reliable automation control for complex manufacturing, energy, and process industries. Engineered to withstand extended temperature ranges from -25°C to 70°C, this controller ensures uninterrupted operation where conventional PLCs fail.

Designed for automation engineers and system integrators managing distributed control architectures, the 1756-L73XT addresses the challenge of maintaining consistent performance across harsh industrial conditions. Whether you're upgrading legacy systems or deploying new installations, this processor provides the processing power and environmental resilience demanded by modern industrial operations.

Key advantages include rapid USB-based programming that eliminates the need for external adapters, conformal coating protection against moisture and contaminants, and seamless integration with existing ControlLogix infrastructure. The result: reduced downtime, simplified maintenance, and enhanced system reliability across your automation network.

Core Capabilities & Business Value

→ Extended Environmental Tolerance: Operates reliably in -25°C to 70°C temperature extremes, enabling deployment in outdoor enclosures, unheated facilities, and extreme climate zones without costly environmental controls—reducing installation expenses by up to 40%.

✓ Generous Memory Architecture: 8MB user memory supports complex ladder logic programs, extensive data logging, and multi-axis motion control applications, accommodating future expansion without processor replacement.

→ Integrated USB Connectivity: Direct USB programming port accelerates commissioning, firmware updates, and troubleshooting by 60% compared to traditional serial connections, minimizing production interruptions.

✓ Hot-Swappable Redundancy Support: Compatible with 1756-RM redundancy modules for zero-downtime configurations in critical infrastructure applications where even seconds of interruption carry significant financial impact.

→ Backward Compatibility: Drop-in replacement for earlier L7x series processors, protecting your existing hardware investment while delivering enhanced performance and modern connectivity.

✓ Compliance-Ready Design: Meets API 670 vibration monitoring standards and aligns with ISO 20816 specifications, simplifying certification for oil & gas, power generation, and regulated industries.

Industry Application Scenarios

Oil & Gas Production Facilities: Remote wellhead monitoring and pipeline control systems benefit from the extended temperature rating and redundancy capabilities. The processor maintains stable operation in desert heat and arctic cold, while USB diagnostics enable rapid field service without specialized equipment. Typical deployment reduces unplanned downtime by 35% compared to standard-rated controllers.

Power Generation & Distribution: Turbine control, generator synchronization, and substation automation demand the processing speed and reliability this controller delivers. API 670 compliance streamlines integration with vibration monitoring systems, while redundancy support ensures continuous operation during maintenance windows.

Manufacturing Automation Lines: High-speed packaging, automotive assembly, and material handling systems leverage the 8MB memory for coordinated multi-axis motion control. The processor manages up to 128 I/O modules simultaneously, supporting complex production sequences with microsecond-level precision.

Water & Wastewater Treatment: SCADA systems controlling pumping stations, filtration processes, and chemical dosing require the environmental resilience and long-term reliability this platform provides. Extended temperature tolerance eliminates the need for climate-controlled enclosures in outdoor installations.

Food & Beverage Processing: Recipe management, batch control, and traceability applications utilize the generous memory capacity for storing formulations and production records. Conformal coating protects against moisture in washdown environments common to food production facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-L73XT when your application requires extended temperature operation, USB programming convenience, or when upgrading from L61, L62, or L63 series processors. For applications needing more than 8MB memory, consider the 1756-L74 (16MB) or L75 (32MB) models. If safety-rated control is required, evaluate the 1756-L73K GuardLogix variant instead.

Advanced Integration Capabilities

EtherNet/IP Connectivity: When paired with 1756-EN2T or EN3TR communication modules, the processor supports distributed I/O, HMI connectivity, and enterprise-level data exchange via standard Ethernet infrastructure. Enables real-time production monitoring and integration with MES/ERP systems.

Motion Control Integration: Coordinates up to 32 servo axes through SERCOS or EtherNet/IP motion networks, providing synchronized multi-axis control for packaging, material handling, and assembly applications without requiring separate motion controllers.

Third-Party Device Support: Add-On Profiles (AOP) enable seamless integration of intelligent devices from manufacturers like Siemens, Schneider Electric, and ABB, reducing engineering time and simplifying multi-vendor system architectures.

Cloud Connectivity Options: Compatible with FactoryTalk Edge Gateway for secure IIoT data transmission to cloud analytics platforms, enabling predictive maintenance and remote performance monitoring without compromising control network security.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days (North America/Europe), 5-7 business days (Asia-Pacific), 7-10 business days (other regions).

Custom Configuration: Pre-programmed processors with your application code and firmware version ship within 5-7 business days after program file receipt and validation.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and workmanship issues. Warranty includes free replacement and covers return shipping costs. Extended warranty options available for critical applications.

Technical Support: Complimentary pre-sales application consulting and post-sales technical assistance via email, phone, and remote desktop support. Average response time: 4 hours during business hours, 24-hour maximum for urgent issues.

Documentation Package: Every shipment includes installation quick-start guide, technical specifications datasheet, and links to Studio 5000 programming resources. Full user manuals and firmware files available for download.

Frequently Asked Questions

What programming software version is required for the 1756-L73XT processor?
Studio 5000 Logix Designer version 21 or later is required. For optimal performance and access to latest features, we recommend version 32 or newer. RSLogix 5000 versions 20 and earlier are not compatible with this processor model.

Can this controller operate in outdoor installations without environmental enclosures?
While the extended temperature rating supports -25°C to 70°C operation, the processor still requires NEMA-rated enclosure protection against direct moisture, dust, and physical impact. The conformal coating provides additional protection but does not eliminate the need for proper enclosure selection.

How does memory capacity affect my application development?
8MB user memory typically accommodates 250,000+ ladder logic instructions, 100,000+ data table elements, and extensive recipe/batch data storage. For reference, a complex packaging line with 50 I/O modules and motion control typically consumes 2-3MB, leaving substantial headroom for future expansion.

Is firmware upgrade possible through the USB port?
Yes, firmware updates are performed via USB connection using ControlFLASH utility within Studio 5000 software. The process takes approximately 5-8 minutes and can be performed without removing the processor from the chassis, though we recommend system shutdown during updates.

What redundancy configuration options are available?
The 1756-L73XT supports hot-backup redundancy when paired with a second identical processor and 1756-RM redundancy module. This configuration provides automatic failover with bumpless transfer, maintaining process control during primary processor failure or maintenance.

Does this processor support remote monitoring and diagnostics?
Yes, when connected to EtherNet/IP networks, the processor provides comprehensive diagnostic data accessible via FactoryTalk View HMI, web browser interface, or mobile applications. Real-time monitoring includes CPU utilization, memory usage, I/O health, and communication statistics.

Ready to Upgrade Your Control System?

Contact our automation specialists for application-specific recommendations, compatibility verification with your existing infrastructure, or technical consultation on system architecture. We provide detailed quotations within 4 business hours and can arrange expedited shipping for urgent replacement needs.

Request a quote: Email your system requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Our team is ready to help you select the optimal controller configuration for your application.
