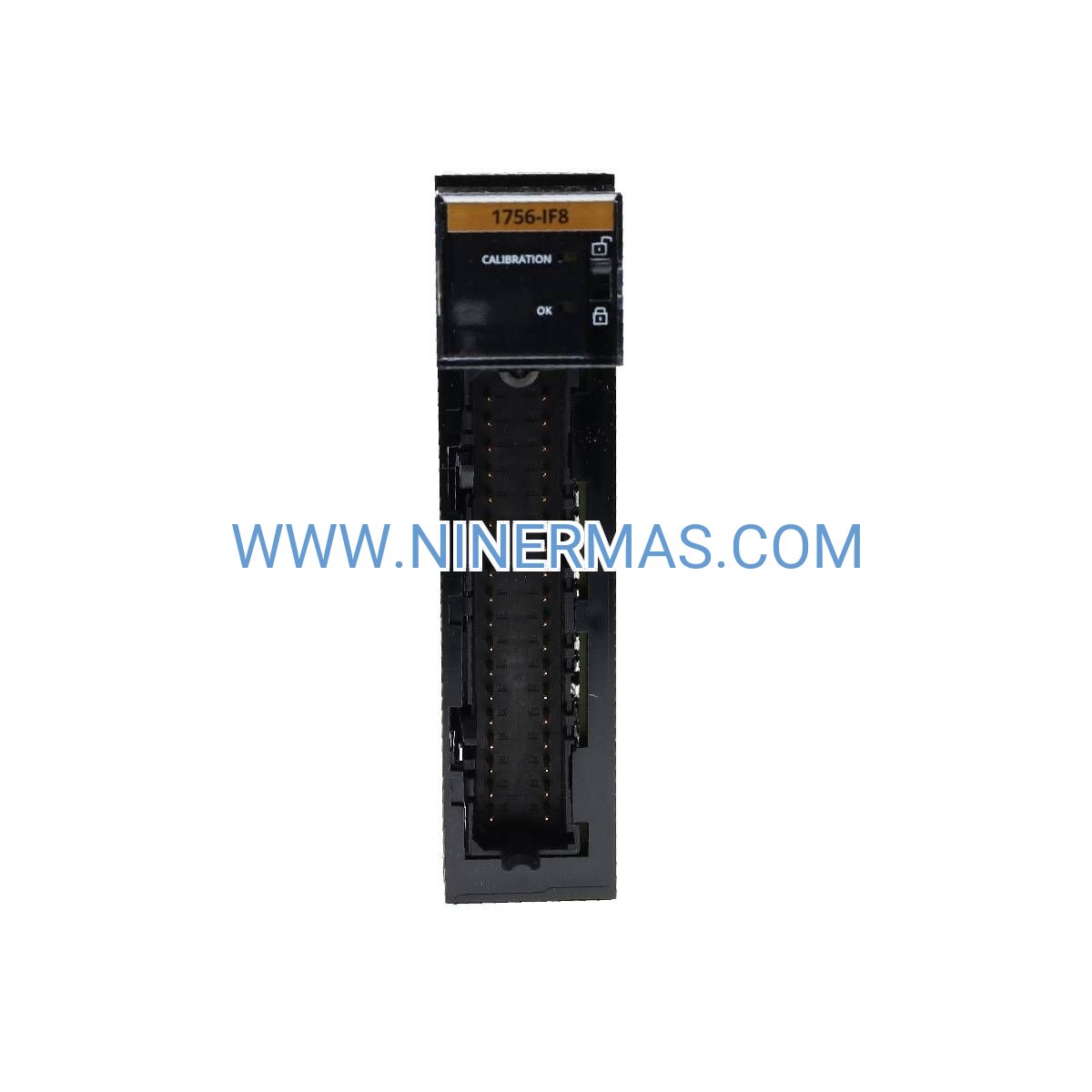

1756-IF8 Analog Input Module (Industrial-Grade 8-Channel ControlLogix Interface)

The 1756-IF8 represents a professional-tier analog signal acquisition solution within the Allen-Bradley ControlLogix platform. This 8-channel differential input module transforms real-world process variables—temperature, pressure, flow, level—into actionable digital data for your automation controller. Built for continuous operation in harsh industrial settings, it serves as the critical bridge between field instrumentation and your control logic.

Process engineers and automation specialists deploy the 1756-IF8 when precision matters. Whether you're monitoring reactor temperatures in pharmaceutical manufacturing, tracking hydraulic pressures in metal forming presses, or measuring flow rates in water distribution networks, this module delivers consistent, reliable data acquisition. Its 16-bit resolution captures subtle process variations that 12-bit modules miss, enabling tighter control loops and improved product quality.

What sets the 1756-IF8 apart is its operational flexibility combined with diagnostic intelligence. Each channel operates independently—configure Channel 1 for 4-20mA while Channel 5 reads ±10V DC—without cross-talk or performance degradation. Built-in open-wire detection alerts you to sensor failures before they impact production, while over-range indicators prevent data corruption during transient conditions.

Core Features & Benefits

→ Multi-Signal Compatibility: Accepts six standard industrial signal types (±10V, 0-10V, 0-5V, 1-5V, 0-20mA, 4-20mA) with software-selectable configuration per channel. Eliminates the need for multiple specialized modules, reducing spare parts inventory by up to 60%.

→ 16-Bit Resolution Precision: Delivers 1:65,536 measurement granularity with ±0.1% full-scale accuracy at calibrated temperature. Enables detection of 0.015% process changes—critical for pharmaceutical batch consistency and aerospace component testing.

→ Hot-Swap Capability: Replace modules during live operation without halting production or disrupting adjacent I/O. Removable terminal block (RTB) design allows pre-wiring of replacement units, cutting maintenance downtime from 45 minutes to under 5 minutes.

✓ Channel-to-Backplane Isolation: 250V continuous isolation protects your ControlLogix chassis from ground loops and electrical noise. Maintains signal integrity in electrically noisy environments like welding cells and VFD-heavy facilities.

✓ Configurable Update Rates: Adjust scan times from 10ms to 1000ms per channel to balance response speed against network bandwidth. Fast channels capture rapid process dynamics; slower channels reduce ControlNet/EtherNet/IP traffic by 40%.

✓ HART Pass-Through Support: Access smart transmitter diagnostics, configuration parameters, and secondary process variables without additional HART multiplexers. Reduces instrumentation infrastructure costs while improving predictive maintenance capabilities.

Typical Application Scenarios

Chemical Process Control: In batch reactor systems, the 1756-IF8 monitors multiple temperature zones, jacket pressures, and reagent flow rates simultaneously. A specialty chemicals manufacturer reduced batch-to-batch variation by 23% after upgrading from 12-bit to 16-bit analog inputs, directly improving yield and reducing waste disposal costs.

Water & Wastewater Treatment: Municipal treatment plants use the module to track influent flow, pH levels, dissolved oxygen, and chlorine residuals across multiple treatment stages. The high input impedance (10MΩ) prevents loading errors with high-impedance pH electrodes, ensuring regulatory compliance with EPA discharge limits.

Food & Beverage Production: Dairy processing facilities rely on the 1756-IF8 for pasteurization temperature profiling and CIP (clean-in-place) system monitoring. The module's 0-60°C operating range and conformal coating withstand washdown environments, while HART integration provides early warning of transmitter drift before product contamination occurs.

Oil & Gas Upstream: Wellhead monitoring systems in remote locations leverage the module's wide temperature tolerance and diagnostic capabilities. One operator reduced false alarms by 67% using the open-wire detection feature, which distinguishes between actual sensor failures and transient communication errors.

Building Automation & HVAC: Commercial facilities integrate the 1756-IF8 into central plant control systems for chiller optimization, boiler sequencing, and air handler monitoring. The ability to mix voltage and current inputs in one module simplifies panel design when interfacing with diverse sensor types (0-10V damper actuators, 4-20mA pressure transducers).

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-IF8 when your application requires more than 4 analog inputs but doesn't justify the cost of dual modules. If you need isolated outputs or thermocouple inputs, consider the 1756-OF8I or 1756-IT6I respectively. For applications with fewer than 50 I/O points total, evaluate the CompactLogix 1769-IF8 as a cost-effective alternative with identical signal specifications.

Extended Functions

Advanced Filtering & Scaling: Studio 5000 Logix Designer provides built-in scaling functions that convert raw counts to engineering units (PSI, °C, GPM) within the controller. Apply first-order lag filters or moving averages to dampen sensor noise without external signal conditioners.

Alarm & Notification Integration: Configure high/low alarm thresholds directly in the module properties. Trigger email notifications, SMS alerts, or HMI pop-ups when process variables exceed safe operating limits—no additional programming required.

Redundancy Support: Deploy the 1756-IF8 in ControlLogix redundant systems (1756-L7x controllers with 1756-RM/RM2 modules). Automatic failover ensures continuous data acquisition even during controller switchover events, critical for utilities and continuous process industries.

Third-Party Integration: OPC-UA and EtherNet/IP connectivity enable seamless data sharing with SCADA systems (Ignition, Wonderware), MES platforms (Rockwell FactoryTalk), and cloud analytics services (Azure IoT, AWS IoT Core) for Industry 4.0 initiatives.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx Express. Custom-configured modules with factory programming require 7-10 business days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended 36-month coverage available through our Premium Support program, including advance replacement and on-site commissioning assistance.

Technical Support: Lifetime application engineering support via phone, email, and remote desktop. Our certified ControlLogix specialists assist with module configuration, troubleshooting, and integration challenges. Average response time: under 4 hours during business hours.

Documentation Package: Each module includes installation instructions, wiring diagrams, and quick-start guide. Download the complete user manual (publication 1756-UM009), sample ladder logic, and CAD drawings (DXF/STEP formats) from our technical library.

Frequently Asked Questions

Can I mix 4-20mA and 0-10V signals on the same 1756-IF8 module?
Absolutely. Each of the 8 channels is independently configurable through Studio 5000 software. Channel 0 might read a 4-20mA pressure transmitter while Channel 3 monitors a 0-10V humidity sensor—no hardware jumpers or DIP switches required. Configuration changes take effect immediately upon download.

What maximum cable distance is supported for current loop signals?
For 4-20mA inputs, you can reliably run shielded twisted-pair cable up to 300 meters (1000 feet) using 18 AWG wire. Voltage inputs tolerate shorter runs—typically 100 meters—due to higher susceptibility to noise pickup. Always use shielded cable with 360° shield termination at the module end for optimal noise rejection.

Does the 1756-IF8 provide loop power for 2-wire transmitters?
No, this module does not supply excitation voltage. You'll need an external 24V DC power supply for 2-wire (loop-powered) transmitters. Four-wire transmitters use their own power source and simply provide a current or voltage signal to the module. Consider the 1756-IF16 if you need integrated loop power for multiple 2-wire devices.

How do I calibrate the module for maximum accuracy?
The 1756-IF8 ships factory-calibrated and typically doesn't require field calibration. If you need to verify accuracy, use a precision calibrator (Fluke 725 or equivalent) to inject known signals and compare against the controller's raw data. Studio 5000 allows offset and gain adjustments if recalibration becomes necessary after several years of service.

Is the module compatible with ControlLogix redundant systems?
Yes, the 1756-IF8 fully supports redundant ControlLogix configurations. When used with 1756-L7x redundant controllers and 1756-RM/RM2 redundancy modules, the I/O module automatically synchronizes data between primary and backup controllers. Failover occurs in under 50ms with zero data loss.

What's the difference between the 1756-IF8 and the 1756-IF8I?
The "I" suffix denotes individual channel isolation. The standard 1756-IF8 provides channel-to-backplane isolation (250V) but channels share a common ground. The 1756-IF8I offers channel-to-channel isolation (250V), essential when sensors operate at different ground potentials—common in multi-building facilities or systems with long cable runs.

Ready to Optimize Your Process Control?

The 1756-IF8 analog input module delivers the precision, reliability, and flexibility your critical applications demand. Whether you're upgrading aging PLC-5 systems, expanding existing ControlLogix installations, or designing new automation projects, this module provides proven performance backed by decades of Allen-Bradley engineering excellence.

Request a quote today or contact our application engineers to discuss your specific signal acquisition requirements. Volume discounts available for orders of 5+ modules. Need integration support? Ask about our turnkey panel building and commissioning services.
