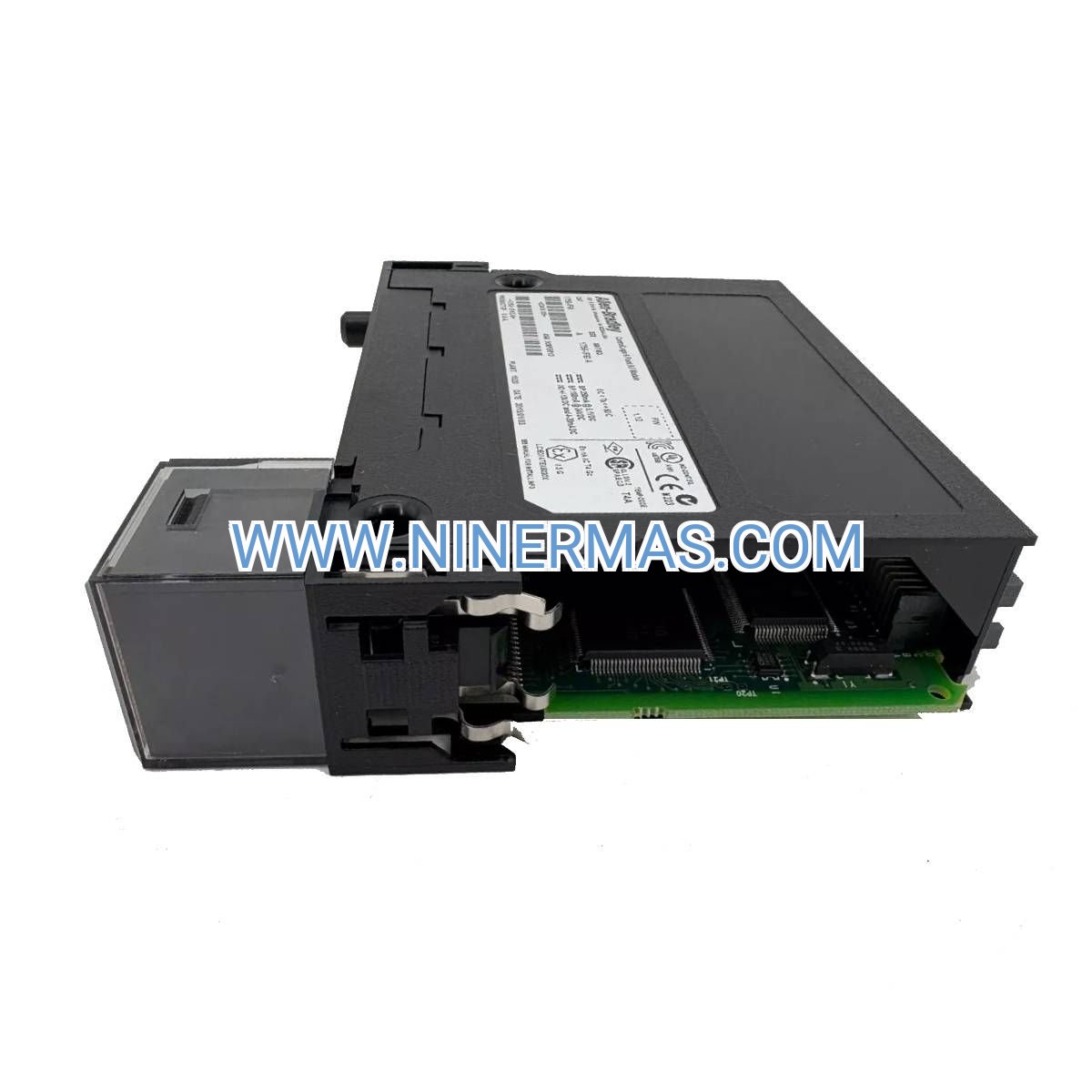

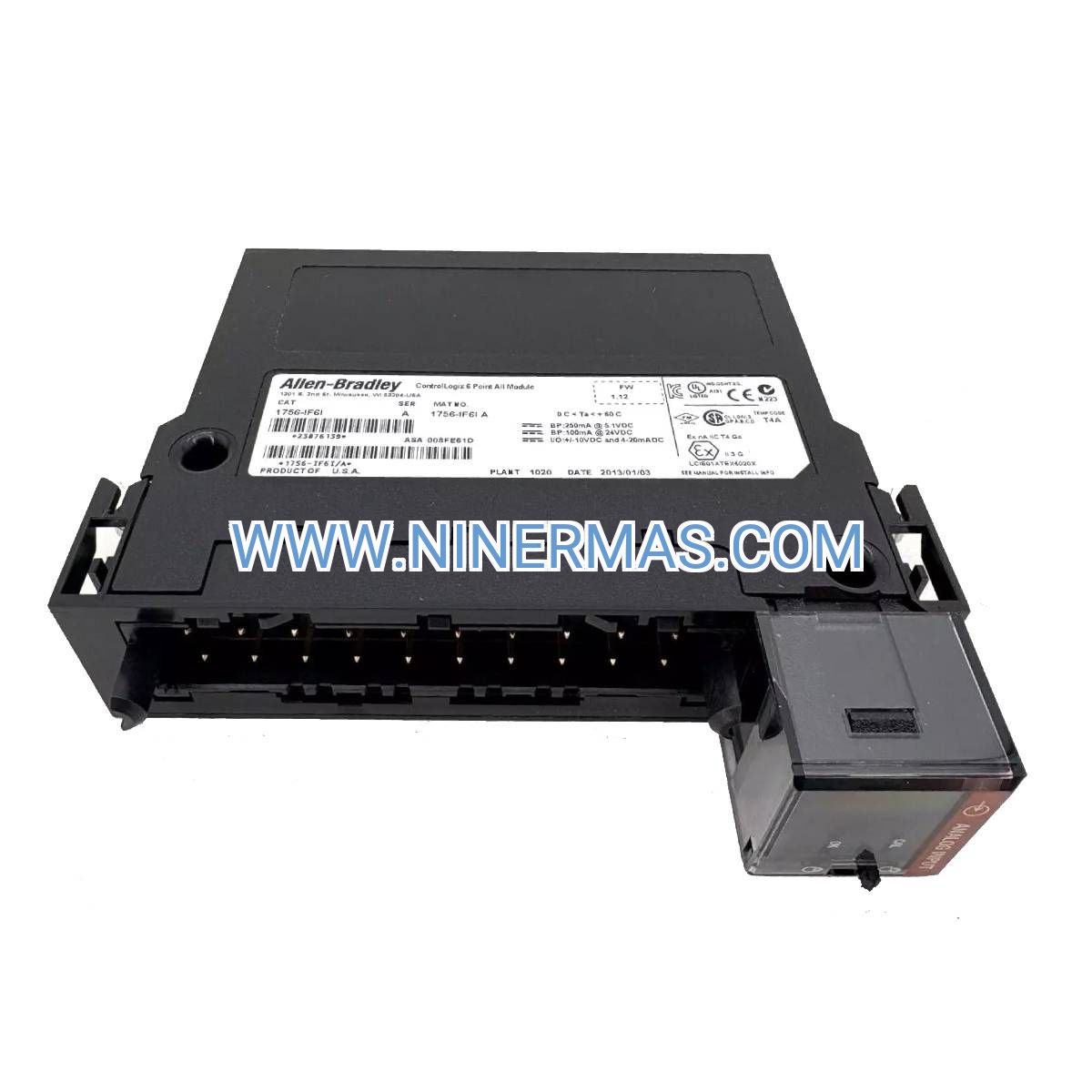

1756-IF6I ControlLogix Isolated Analog Input Module (Industrial-Grade 6-Channel Solution)

The 1756-IF6I represents a breakthrough in industrial signal acquisition technology, delivering six independently isolated analog input channels designed for mission-critical applications where electrical noise, ground loops, and voltage transients threaten measurement accuracy. Built for ControlLogix automation platforms, this module transforms unreliable sensor data into precision-grade process intelligence.

Manufacturing facilities, power generation plants, and process industries face a common challenge: maintaining signal integrity when sensors operate at different ground potentials or in electromagnetically hostile environments. The 1756-IF6I solves this through galvanic isolation architecture—each channel features 250V continuous isolation from the backplane and adjacent channels, eliminating cross-talk and ground-induced errors that plague conventional input modules.

Whether you're monitoring turbine vibration per API 670 standards, acquiring temperature data from distributed RTDs, or interfacing with 4-20mA transmitters across a chemical plant, this module delivers consistent 16-bit resolution with ±0.1% accuracy. Factory-calibrated and hot-swappable, it minimizes commissioning time while maximizing uptime in 24/7 operations.

Core Features & Benefits

→ Six Independently Isolated Channels
Each input operates in complete electrical isolation (250V continuous), preventing ground loops and protecting sensitive instrumentation from voltage spikes. Critical for multi-zone installations where sensors reference different ground planes.

→ Universal Input Flexibility
Software-configurable per channel: ±10V DC, 0-20mA, or 4-20mA. Eliminate inventory complexity by standardizing on one module type while supporting diverse sensor types—thermocouples, RTDs, pressure transmitters, and proximity probes.

→ API 670 Compliance for Rotating Machinery
Meets stringent requirements for vibration monitoring systems in turbines, compressors, and generators. Certified accuracy and isolation specifications ensure regulatory compliance in power generation and petrochemical facilities.

→ 16-Bit Resolution with NIST-Traceable Calibration
Capture subtle process variations with 1-in-65,536 granularity. Every module ships with calibration certificates stored in onboard memory—replacement units auto-configure without manual calibration procedures.

→ Hot-Swap Capability for Zero-Downtime Maintenance
Replace failed modules under power without halting production. Electronic keying prevents incorrect module insertion, while automatic configuration restoration eliminates programming errors during emergency repairs.

→ Integrated Channel Diagnostics
Real-time fault detection identifies open circuits, short circuits, and out-of-range conditions. Status data integrates directly into RSLogix 5000 for predictive maintenance strategies and rapid troubleshooting.

Application Scenarios

✓ Turbomachinery Vibration Surveillance
Interface Bently Nevada proximity probes and accelerometers to monitor bearing health in steam turbines, gas compressors, and centrifugal pumps. Isolation prevents electrical noise from VFDs and motor drives from corrupting vibration signatures, enabling early detection of imbalance, misalignment, and bearing wear.

✓ Multi-Zone Process Control in Chemical Plants
Acquire temperature, pressure, and flow signals from field transmitters distributed across reactor vessels, distillation columns, and storage tanks. Isolated inputs eliminate ground loop currents when sensors span multiple electrical zones, ensuring PID loop stability and product quality.

✓ Power Plant Generator Protection Systems
Monitor bearing metal temperatures and shaft eccentricity in compliance with NERC reliability standards. The module's API 670 certification and isolation specifications meet utility-grade requirements for critical machinery protection relays.

✓ Water & Wastewater Treatment SCADA
Collect pH, ORP, conductivity, and level measurements from sensors in electrically isolated clarifiers, aeration basins, and chemical dosing systems. Prevent measurement drift caused by stray currents in grounded metal tanks and piping.

✓ Automated Assembly Line Quality Control
Interface load cells, LVDT position sensors, and torque transducers in high-speed manufacturing. Isolation protects precision measurements from servo drive switching noise and welding equipment EMI, reducing false rejects and improving first-pass yield.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1756-IF6I when your application requires electrical isolation between input channels or when sensors operate at different ground potentials. For non-isolated applications with higher channel density, consider the 1756-IF8 (8 channels, non-isolated). If HART protocol communication is required, specify the 1756-IF8IH variant.

Extended Functions

EtherNet/IP Integration: Seamlessly integrates with ControlLogix EtherNet/IP networks for distributed I/O architectures. Supports producer/consumer data exchange and CIP Safety protocols when paired with GuardLogix controllers.

Advanced Scaling & Linearization: RSLogix 5000 provides built-in scaling functions to convert raw counts into engineering units (PSI, °C, GPM). Supports custom linearization tables for non-linear sensors like thermocouples and RTDs.

Redundancy Support: Compatible with ControlLogix redundant controller configurations (1756-L7xR series). Automatic failover ensures continuous data acquisition during controller switchover events.

Custom Alarm Thresholds: Configure high/high-high and low/low-low alarm limits per channel with programmable deadbands. Alarm states trigger discrete outputs or HMI notifications for operator intervention.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom-configured modules with special calibration ranges require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Lifetime access to application engineering support for configuration assistance, troubleshooting, and system integration guidance. Phone and email support available during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, RSLogix 5000 sample code, and NIST-traceable calibration certificate. Downloadable firmware updates and technical bulletins available via product support portal.

Frequently Asked Questions

Q: How does isolated analog input improve measurement accuracy in industrial environments?
A: Isolation breaks ground loops that occur when sensors and controllers reference different ground potentials. Without isolation, circulating ground currents create voltage offsets that appear as measurement errors—often 1-5% of span in electrically noisy plants. The 1756-IF6I's 250V isolation eliminates these errors, maintaining ±0.1% accuracy even when sensors are hundreds of meters from the controller.

Q: Can I connect 2-wire transmitters directly to the 1756-IF6I current inputs?
A: Yes, the module provides loop power for 2-wire 4-20mA transmitters. Configure the channel for current input mode, and the module supplies the necessary excitation voltage. For 3-wire and 4-wire transmitters, use external power supplies and connect only the signal wires to the module terminals.

Q: What cable specifications are recommended for field wiring to minimize noise pickup?
A: Use shielded twisted-pair cable (Belden 9501, Alpha 6412, or equivalent) with 18-22 AWG stranded copper conductors. Ground the shield at the module end only—never at both ends, as this creates a ground loop. For runs exceeding 300 meters, consider 4-20mA current signals instead of voltage to improve noise immunity.

Q: Is the 1756-IF6I compatible with legacy ControlLogix systems installed before 2015?
A: Yes, the module is backward compatible with all 1756 chassis generations (1756-A4, A7, A10, A13, A17) provided the controller firmware is revision 16 or later. Older firmware versions may require updates available free from Rockwell Automation's support website.

Q: How do I verify channel isolation integrity during commissioning or troubleshooting?
A: Use a megohmmeter to measure resistance between channel terminals and chassis ground—readings should exceed 10MΩ. Also verify isolation between adjacent channels. If readings fall below 1MΩ, the module may have sustained damage from voltage transients and should be replaced.

Q: What is the maximum cable capacitance allowed for voltage input signals?
A: The module tolerates up to 0.1µF cable capacitance per channel without affecting accuracy or response time. Typical shielded twisted-pair cables exhibit 50-100pF per meter, allowing cable runs up to 1000 meters for voltage inputs. Current inputs are unaffected by cable capacitance.

Ready to Upgrade Your Signal Acquisition System?

Contact our application engineers to discuss your specific requirements. We provide pre-sales technical consultation, custom configuration services, and integration support to ensure seamless deployment in your ControlLogix architecture.
