Allen-Bradley 1756-IF4XOF2F Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1756-IF4XOF2F Service-Ready Spare Part for Industrial Maintenance

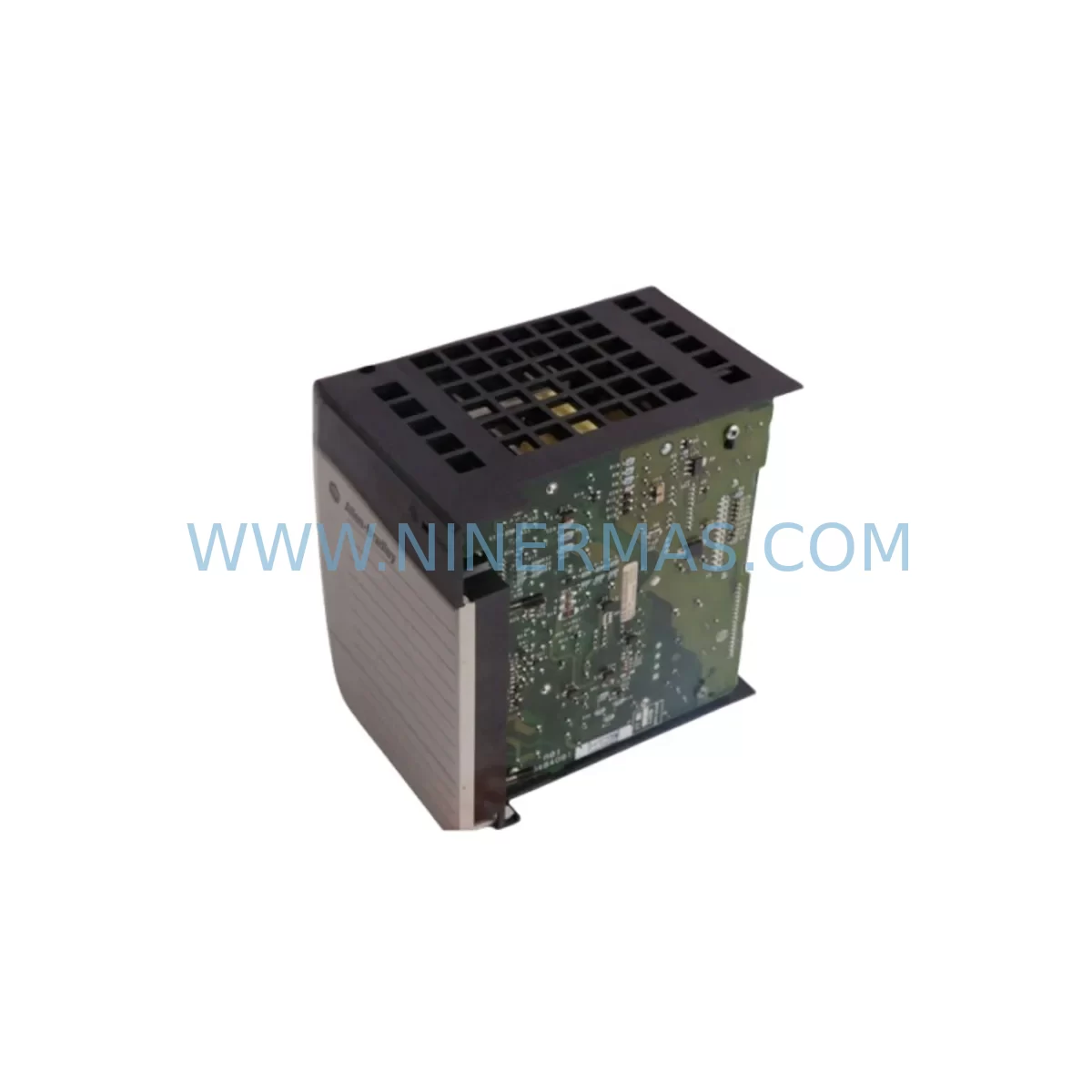

The Allen-Bradley 1756-IF4XOF2F is a combination analog input/output module designed for the Rockwell Automation ControlLogix 1756 platform. Featuring four analog current/voltage inputs and two analog current/voltage outputs in a single chassis slot, this module is a critical component in process control, motion coordination, and closed-loop regulation applications across manufacturing, oil & gas, water treatment, and power generation facilities. As legacy ControlLogix systems continue to operate well beyond their original design life, maintaining a verified stock of the 1756-IF4XOF2F is essential to preventing unplanned downtime and protecting production continuity.

NINERMAS supplies original Allen-Bradley 1756-IF4XOF2F modules sourced through authorized industrial channels. Every unit undergoes pre-shipment functional verification, including channel-level signal integrity checks, backplane communication confirmation, and firmware revision inspection. Orders are fulfilled with full traceability documentation and backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-IF4XOF2F in a live ControlLogix system is rarely an isolated task. Maintenance engineers and procurement teams working on ControlLogix 1756 cabinets should treat this module replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures.

Begin with the 1756-PA75 or 1756-PB75 chassis power supply — an aging or undersized power supply is one of the most common root causes of analog module instability and erratic signal behavior. Verify output voltage rails are within specification before reinstalling any I/O module. Alongside the power supply, inspect the 1756-ENBT or 1756-EN2T EtherNet/IP communication module for firmware currency and network health; a degraded communication module can cause false diagnostics that mask genuine analog channel faults.

For signal integrity, review the field wiring terminations at the 1492-IFM series interface modules or equivalent terminal blocks connected to the 1756-IF4XOF2F. Loose or corroded terminations introduce noise that degrades 16-bit resolution and causes process deviations. If the application involves 4–20 mA transmitters, confirm that signal isolators or loop-powered barriers are functioning correctly — these components protect the analog module from ground loops and transient surges originating in field instrumentation.

During the same maintenance window, check the 1756-OB16E or 1756-OA16 digital output modules in adjacent slots for signs of thermal stress or contact wear, particularly in high-cycle applications. Inspect the 1756-IM16I digital input module for proper filter time settings and input voltage thresholds. If the cabinet includes a 1756-DNB DeviceNet Bridge module or 1756-DHRIO Data Highway Plus/Remote I/O Bridge, verify that network scan rates and node configurations remain consistent with the controller program.

For systems using redundancy, confirm that the 1756-RM2 or 1756-SRM redundancy module is synchronized and that the partner chassis contains a matching 1756-IF4XOF2F with identical firmware. Mismatched firmware revisions between primary and secondary chassis are a known source of redundancy switchover failures. Finally, inspect the 1756-L73 or 1756-L75 ControlLogix controller battery status and memory backup integrity — a controller with a depleted battery risks losing the program configuration that governs the analog module’s channel scaling and alarm setpoints.

Site Replacement Workflow

Replacing the 1756-IF4XOF2F on-site follows a structured sequence designed to minimize control system disruption and ensure full signal restoration within the shortest possible maintenance window.

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s catalog number, series letter, and firmware revision match or are compatible with the existing module. Document the current channel configuration, scaling parameters, and alarm setpoints from the RSLogix 5000 / Studio 5000 project file before any hardware change.

Step 2 — Safe Isolation: Place the controller in Program mode or coordinate with the control room to inhibit the affected module in the I/O tree. This prevents false outputs from being driven to field devices during the swap. For safety-critical loops, follow site-specific lock-out/tag-out (LOTO) procedures.

Step 3 — Module Removal and Installation: Remove the existing 1756-IF4XOF2F by pressing the top and bottom locking tabs and sliding the module from the chassis slot. Insert the replacement module firmly until the locking tabs engage. The ControlLogix backplane will automatically recognize the module and begin communication.

Step 4 — Configuration Restore: If the replacement module has a different firmware revision, download the project file and verify that channel configurations are correctly applied. Use the Module Properties dialog in Studio 5000 to confirm input/output ranges, filter frequencies, and diagnostic alarm thresholds match the original settings.

Step 5 — Signal Commissioning: Return the controller to Run mode and verify live process values on all four input channels and both output channels against known reference signals or field transmitter readings. Confirm that analog values are within expected engineering unit ranges before releasing the system to production.

This workflow supports rapid replacement of end-of-life or failed 1756-IF4XOF2F modules while maintaining system compatibility and minimizing the risk of configuration errors that could extend downtime beyond the physical replacement time.

Spare Parts Support FAQ

Q1: Is the 1756-IF4XOF2F still available as a new original part, and what is its lifecycle status?
The 1756-IF4XOF2F has been in the Rockwell Automation ControlLogix portfolio for an extended period and may be subject to product lifecycle transitions. NINERMAS maintains stock of original, genuine units sourced through verified industrial supply channels. Each unit is inspected for authenticity and operational condition prior to shipment. Customers are advised to confirm firmware revision requirements with their engineering team before ordering to ensure compatibility with their existing Studio 5000 project.

Q2: How do I verify compatibility between the replacement 1756-IF4XOF2F and my existing ControlLogix chassis and controller?
The 1756-IF4XOF2F is compatible with all standard 1756 chassis sizes (A4 through A17) and all ControlLogix L6x, L7x, and L8x series controllers. Compatibility is determined by the module’s catalog number and series letter. NINERMAS provides the series letter and firmware revision with each shipment. If your application uses a specific firmware-dependent feature such as Produced/Consumed tags or advanced diagnostics, share your Studio 5000 project version with our technical team for pre-shipment confirmation.

Q3: What testing is performed before the module is shipped, and what does the 12-month warranty cover?
Every 1756-IF4XOF2F shipped by NINERMAS undergoes pre-shipment functional testing including backplane communication verification, channel signal integrity checks across all input and output ranges, and LED status confirmation. The 12-month warranty covers manufacturing defects and operational failures arising under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed through our technical support team at sale@ninermas.com.

Q4: Can NINERMAS support long-term supply agreements for the 1756-IF4XOF2F and related ControlLogix spare parts?
Yes. NINERMAS specializes in long-term spare parts supply for legacy and active industrial control systems. We support annual blanket orders, consignment stock arrangements, and multi-year supply agreements for the 1756-IF4XOF2F and related ControlLogix components. This service is particularly valuable for facilities operating aging ControlLogix systems where original manufacturer support has been reduced or discontinued. Contact our procurement team to discuss inventory reservation and supply continuity planning tailored to your maintenance schedule.
