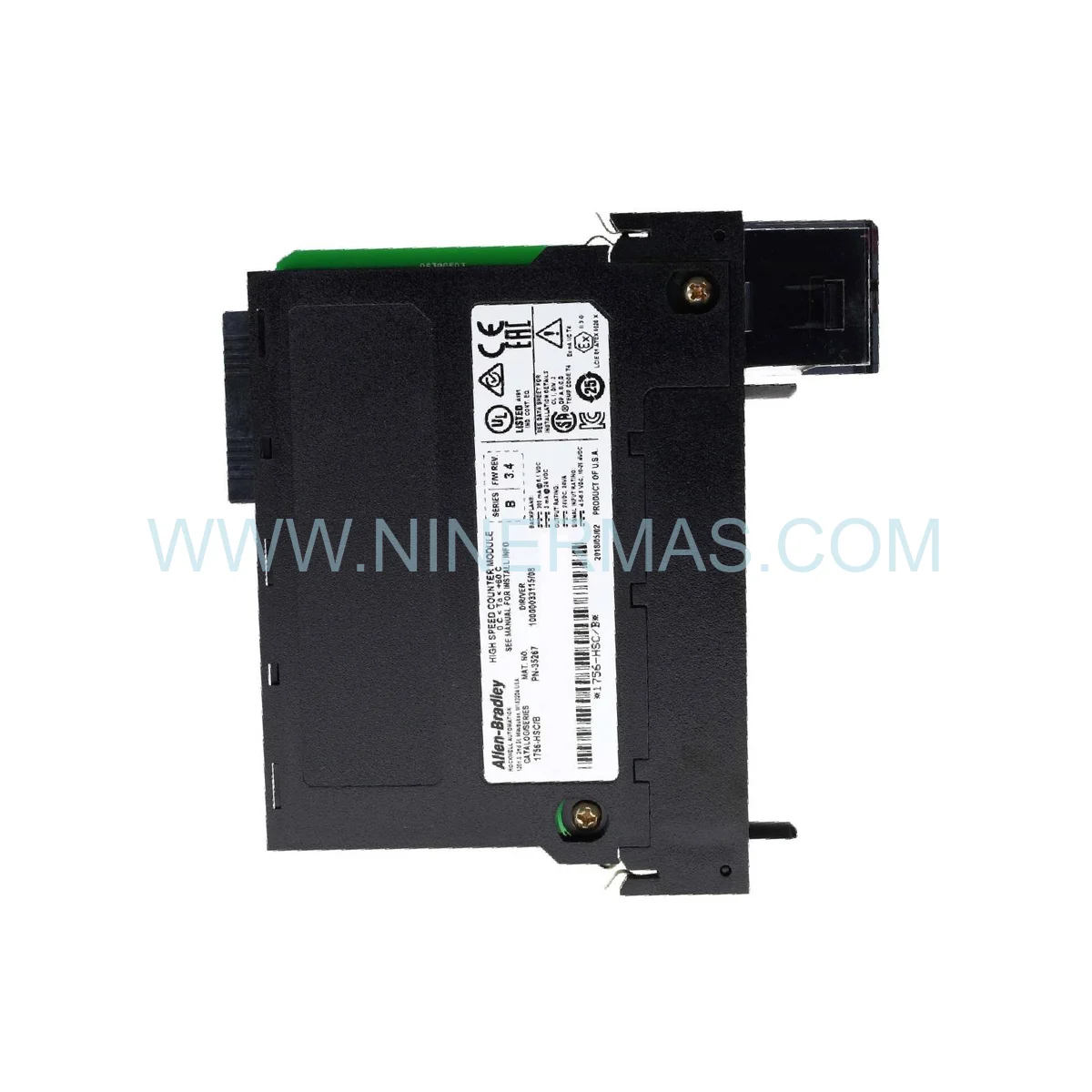

Allen-Bradley 1756-HSC/B High-Speed Counter Module | ControlLogix Retrofit

Allen-Bradley 1756-HSC/B — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Allen-Bradley 1756-HSC/B stands out as a mission-critical enabler in any ControlLogix modernization initiative. This high-speed counter module bridges the performance gap between aging pulse-counting hardware and today’s demand for real-time, high-frequency data acquisition — delivering up to 250 kHz per channel without requiring a full platform overhaul. Its role in extending the operational lifespan of existing ControlLogix chassis makes the Allen-Bradley 1756-HSC/B an indispensable asset in phased migration strategies.

Legacy systems built on older Rockwell platforms often struggle with encoder feedback accuracy and frequency measurement limitations. The 1756-HSC/B addresses these pain points directly through its dual-channel architecture and support for differential line driver (RS-422), single-ended TTL, and pulse/direction input types — ensuring backward compatibility with a wide range of installed field devices. This Legacy Compatibility eliminates the need for costly sensor replacements during system migration, dramatically reducing project scope and risk.

From a total cost of migration perspective, deploying the 1756-HSC/B as a drop-in retrofit component within an existing ControlLogix chassis reduces engineering hours, minimizes production downtime, and preserves existing wiring infrastructure. The result is a lower-risk, higher-ROI upgrade path that keeps critical operations running while the broader modernization roadmap is executed in stages.

Upgrade Highlights & Compatibility

✅ Dual-Channel High-Speed Counting: Two independent channels operating at up to 250 kHz each — a direct Performance Enhancement over single-channel legacy counters.
Universal Input Compatibility: Supports differential encoder, single-ended, and pulse/direction inputs for seamless integration with existing field instrumentation.
? 32-Bit Signed Counter Range: Eliminates rollover errors common in older 16-bit counter modules, ensuring data integrity across long production runs.
4 Configurable Digital Outputs: Programmable output triggers replace external relay logic, simplifying panel design during Hardware Upgrade projects.
? RIUP (Removal and Insertion Under Power): Hot-swap capability with Electronic Keying support minimizes downtime during module replacement or system expansion.
Studio 5000 / RSLogix 5000 Native Integration: Full Add-On Instruction (AOI) support accelerates commissioning and reduces programming effort in retrofit deployments.
? Future-Proof Architecture: Compatible with EtherNet/IP, ControlNet, and DeviceNet — enabling a clear upgrade path toward fully networked IIoT-ready control architectures.

Modernization Use Cases & Success Stories

DCS-to-ControlLogix Migration in Process Plants: Facilities transitioning from legacy Distributed Control Systems (DCS) to ControlLogix platforms frequently encounter gaps in high-speed pulse counting capability. The 1756-HSC/B fills this gap precisely — replacing obsolete DCS counter cards with a module that integrates natively into the ControlLogix backplane. In chemical processing plants, this retrofit has enabled accurate turbine flowmeter totalization and batch control without replacing field transmitters, achieving a Performance Enhancement of over 40% in measurement resolution.

Turbine Supervisory Instrumentation (TSI) System Upgrades: In power generation facilities, TSI systems monitor critical rotating machinery parameters including shaft speed, eccentricity, and vibration. When upgrading from standalone TSI hardware to integrated ControlLogix-based monitoring, the 1756-HSC/B serves as the high-frequency pulse input backbone. Its 250 kHz capability captures shaft encoder signals from high-speed turbines with the precision required for overspeed protection and predictive maintenance analytics — a Retrofit Solution that has reduced unplanned outages at multiple power stations.

Packaging Line Modernization: Aging packaging machinery with proprietary counter PLCs presents significant maintenance and spare parts challenges. By migrating counting functions to the 1756-HSC/B within a ControlLogix platform, manufacturers gain centralized programming, standardized diagnostics, and Seamless Integration with existing SCADA and MES systems — eliminating isolated legacy controllers and reducing spare parts inventory complexity.

CNC and Machine Tool Retrofit: Precision machining centers requiring spindle speed feedback and tool position tracking benefit from the 1756-HSC/B’s encoder input flexibility. Replacing outdated motion feedback modules with this unit as part of a broader Hardware Upgrade delivers improved positioning accuracy and enables integration with modern servo drive networks.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1756-HSC/B unit is sourced through verified supply channels and shipped in original manufacturer packaging with full traceability documentation — critical for regulated industries and quality-audited retrofit projects.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Expedited shipping to manufacturing hubs across Asia, Europe, the Americas, and the Middle East ensures your production line is never held up by parts availability. DDP (Delivered Duty Paid) options are available for simplified customs clearance.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy system compatibility analysis. Whether you are replacing an end-of-life counter module or integrating the 1756-HSC/B into a mixed-generation ControlLogix rack, we provide pre-sales configuration guidance, wiring diagram review, and post-installation commissioning support to ensure your retrofit project succeeds on schedule.

Retrofit FAQ — Upgrade Guide

Q: Will the 1756-HSC/B fit in my existing ControlLogix chassis without mechanical modifications?
A: Yes. The 1756-HSC/B occupies a single slot in any standard ControlLogix chassis (1756-Axx series). No mechanical modifications are required, making it an ideal drop-in Hardware Upgrade for space-constrained panels. Verify chassis power supply capacity (800 mA @ 5V DC) before installation.

Q: How does the 1756-HSC/B communicate with older ControlLogix processors during a phased migration?
A: The module communicates exclusively via the ControlLogix backplane using the standard chassis communication protocol. It is compatible with all ControlLogix processors from the 1756-L55 series onward. During phased System Migration, it can coexist with legacy I/O modules in the same chassis, allowing incremental upgrades without full system replacement.

Q: Can this module replace my existing third-party or proprietary counter hardware?
A: In most cases, yes. The 1756-HSC/B supports the three most common industrial encoder and pulse input standards (RS-422 differential, TTL single-ended, pulse/direction), covering the majority of legacy field device interfaces. A signal compatibility review is recommended for non-standard output devices. Our technical team can assist with interface analysis as part of your Retrofit Solution planning.

Q: What is the recommended spare parts strategy for legacy ControlLogix counter modules?
A: For facilities running older 1756-HSC/A revision modules, we recommend maintaining a minimum of one 1756-HSC/B as a cross-compatible spare. The /B revision is backward compatible with /A revision configurations in most applications, simplifying spare parts consolidation and reducing inventory carrying costs.

Q: Is the 1756-HSC/B compatible with IIoT and cloud-connected architectures?
A: Yes. When paired with an EtherNet/IP-capable ControlLogix processor, counter data from the 1756-HSC/B can be published to SCADA, MES, and cloud analytics platforms via standard OPC-UA or MQTT gateways. This makes it a viable component in Performance Enhancement projects targeting Industry 4.0 and digital twin implementations.

Q: What documentation is available to support the retrofit installation?
A: Rockwell Automation provides the official 1756-HSC/B User Manual (Publication 1756-UM007) covering installation, wiring, configuration, and programming. Our team supplements this with application-specific wiring guides and Studio 5000 AOI templates upon request for qualified retrofit projects.
