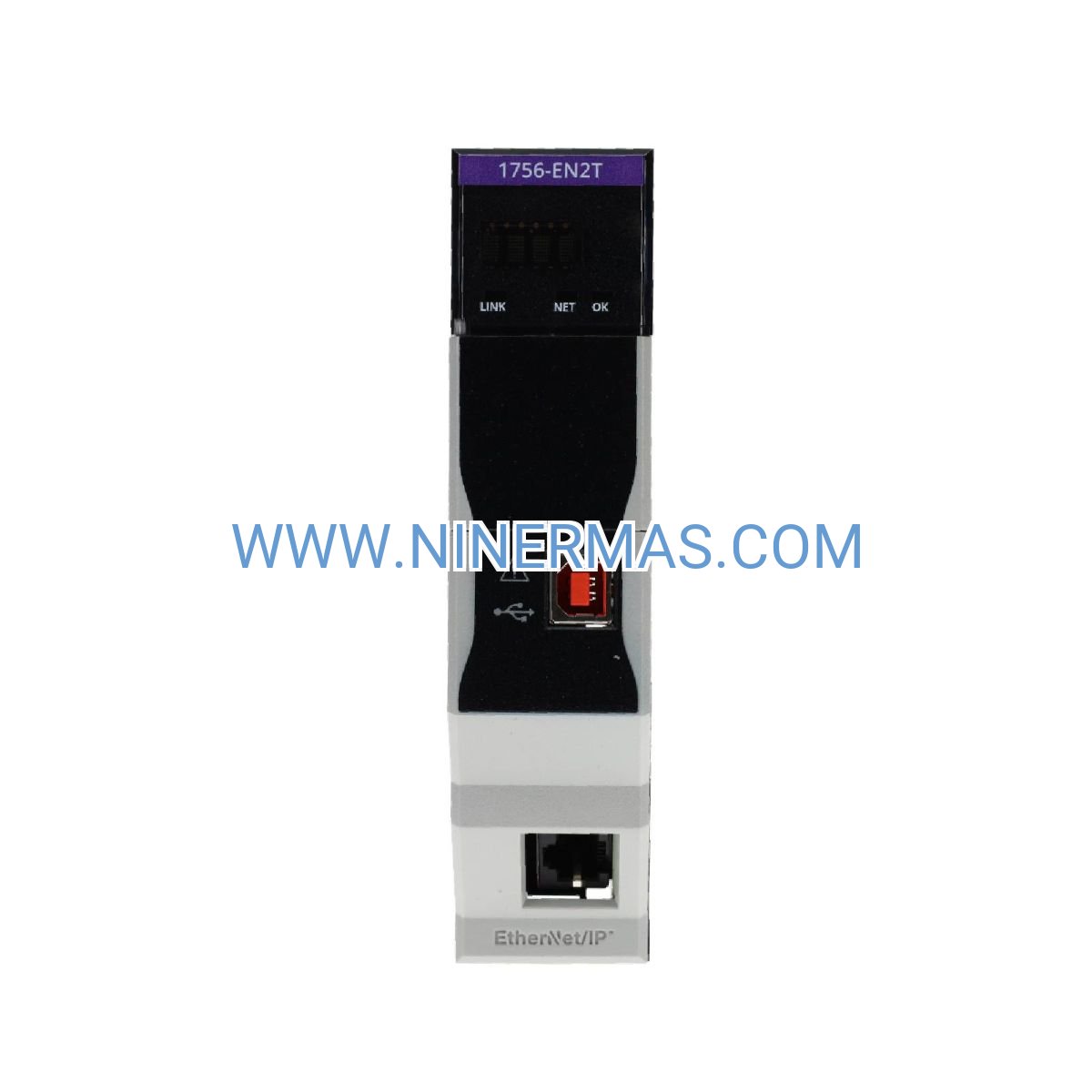

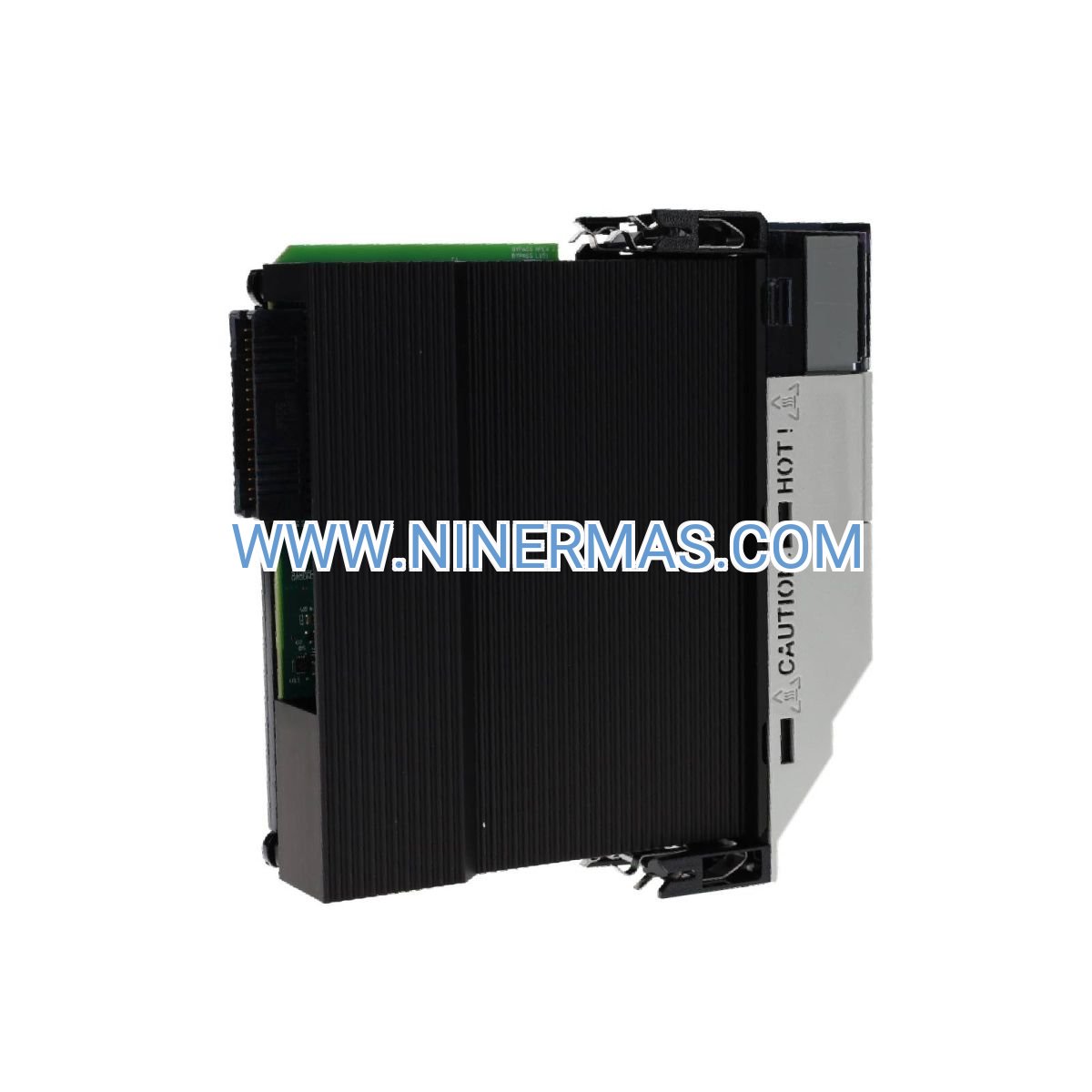

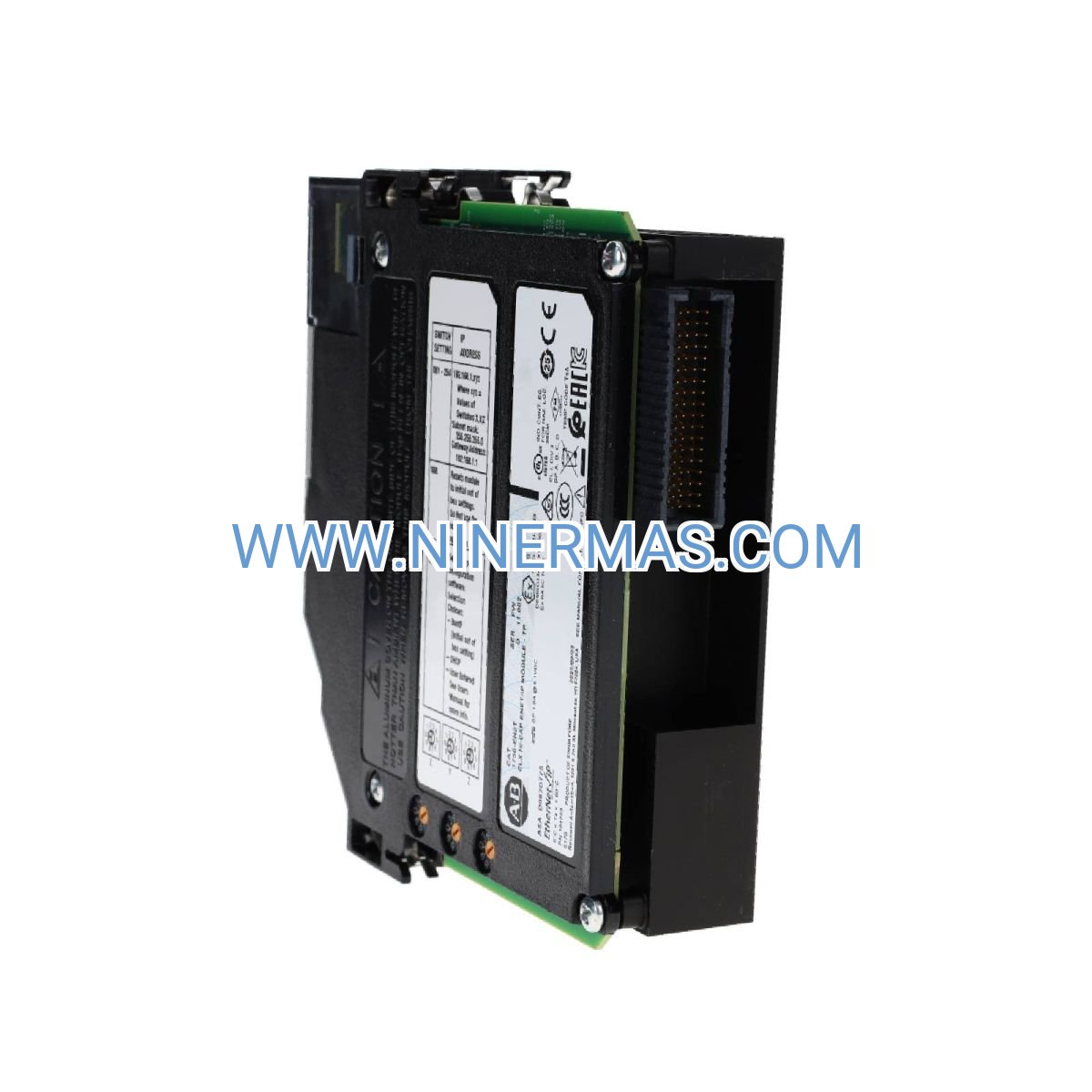

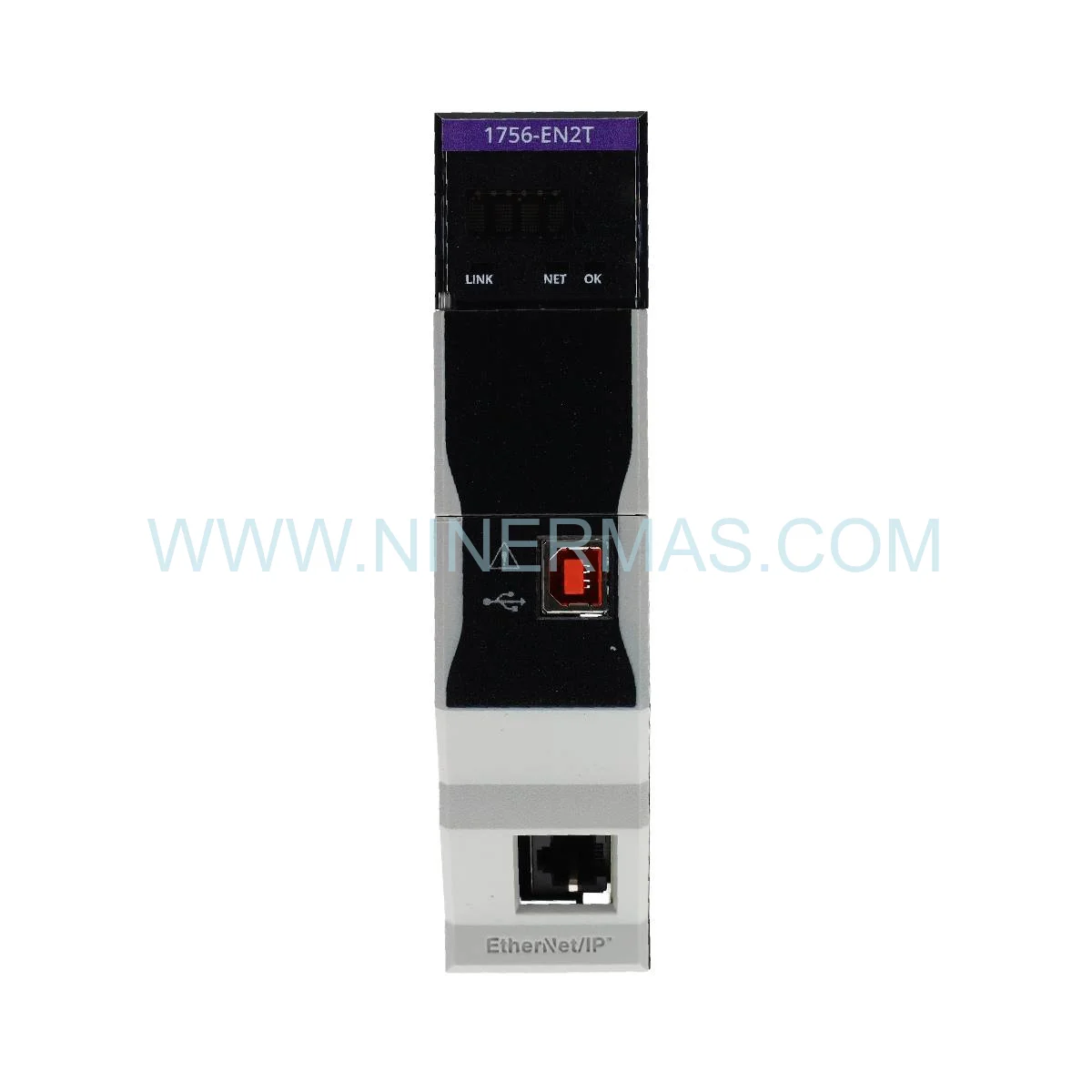

1756-EN2T Industrial-Grade Ethernet/IP Communication Bridge

The 1756-EN2T represents a critical infrastructure component for modern ControlLogix automation architectures, delivering enterprise-grade network connectivity with industrial resilience. This dual-port communication bridge transforms your control system into a fully networked intelligent platform, enabling seamless data flow between field devices, supervisory systems, and enterprise applications while maintaining microsecond-level determinism.

Designed for mission-critical manufacturing environments where network downtime translates directly to production losses, this module addresses the fundamental challenge of reliable industrial communication. Whether you're managing a single production cell or coordinating plant-wide automation across multiple zones, the 1756-EN2T provides the bandwidth, redundancy, and diagnostic intelligence required for Industry 4.0 readiness.

With built-in switch functionality and support for advanced topologies, this bridge module eliminates traditional network bottlenecks while reducing infrastructure complexity. Deploy with confidence knowing that every connection is monitored, every configuration change is tracked, and every diagnostic parameter is accessible through intuitive web-based interfaces.

Core Capabilities & Business Value

→ Dual-Port Embedded Switch Architecture
Integrated 10/100 Mbps Ethernet switch eliminates external hardware requirements, reducing cabinet footprint by up to 40% while enabling flexible linear, star, or Device Level Ring topologies. Direct cost savings on network infrastructure plus simplified troubleshooting through unified diagnostics.

→ Enterprise-Scale Connection Capacity
Simultaneously manages 256 TCP and 128 CIP connections, supporting complex multi-vendor integrations without performance degradation. Scale your automation architecture without network redesign—add HMIs, SCADA nodes, and third-party devices as your operation grows.

✓ Hot-Swap Serviceability
Replace or upgrade modules during live operation without chassis power-down, achieving 99.9%+ system availability. Maintenance windows shrink from hours to minutes, protecting production schedules and revenue targets.

✓ Integrated Security & Change Detection
Change Detection and Report (CDR) technology provides real-time alerts on unauthorized configuration modifications, meeting compliance requirements for FDA 21 CFR Part 11, ISA-95, and cybersecurity frameworks. Protect intellectual property and maintain audit trails automatically.

✓ Web-Based Diagnostics Dashboard
Access module status, connection health, bandwidth utilization, and error logs through any standard browser—no proprietary software required. Reduce mean time to repair (MTTR) by 60% through instant visibility into network performance metrics.

✓ Conformal Coating Option
Available with protective coating for deployment in high-humidity, chemical exposure, or extreme temperature environments (0°C to 60°C operational range). Extend module lifespan in harsh conditions while maintaining full performance specifications.

Industry Applications & Problem Resolution

Automotive Assembly Lines
Challenge: Coordinating 50+ robotic welding cells with central quality management systems while maintaining cycle times under 45 seconds.
Solution: DLR topology ensures network redundancy; if one cable fails, communication reroutes automatically within 3ms. Real-time position data from all robots flows to MES systems without latency spikes, enabling predictive maintenance and zero-defect initiatives.

Pharmaceutical Batch Processing
Challenge: Meeting 21 CFR Part 11 electronic record requirements while integrating legacy equipment with modern SCADA platforms.
Solution: CDR security features log every parameter change with timestamp and user credentials. The module's multi-protocol support bridges older DH+ networks to modern Ethernet/IP infrastructure, protecting capital investments while achieving compliance.

Food & Beverage Packaging
Challenge: Synchronizing high-speed filling lines (600 units/minute) with upstream mixing and downstream palletizing systems across 200-meter distances.
Solution: Dual-port architecture supports extended linear topologies without signal degradation. CIP Sync capabilities (when paired with compatible controllers) deliver sub-millisecond synchronization for coordinated motion control, eliminating product waste from timing errors.

Water Treatment Facilities
Challenge: Remote monitoring of distributed pump stations and chemical dosing systems across 15-kilometer municipal infrastructure.
Solution: VLAN segmentation isolates critical control traffic from administrative networks, enhancing cybersecurity posture. Web server enables secure remote diagnostics, reducing truck rolls by 75% and improving response times to alarm conditions.

Warehouse Automation
Challenge: Integrating conveyor controls, automated storage/retrieval systems (AS/RS), and warehouse management software (WMS) from multiple vendors.
Solution: Open EtherNet/IP protocol ensures interoperability with third-party devices. The module's 256 TCP connection capacity accommodates future expansion as fulfillment volumes grow, protecting technology investments during scaling phases.

Technical Specifications & Selection Criteria

Selection Recommendations:

• For systems requiring <128 connections: Consider single-port 1756-EN2TR as cost-optimized alternative
• For safety-rated networks: Pair with 1756-EN3TR CIP Safety module
• For fiber optic backbones: Use with 1756-EN2F fiber variant for EMI immunity
• For outdoor installations: Specify conformal coating option (suffix "K")

Advanced Integration Features

Studio 5000 Unified Environment
Configure, program, and diagnose the entire ControlLogix system—including network parameters—within a single software platform. Tag-based programming eliminates manual address mapping, reducing commissioning time by 50% compared to legacy systems.

FactoryTalk Integration
Native compatibility with FactoryTalk View SE, FactoryTalk Historian, and FactoryTalk AssetCentre enables seamless data flow from shop floor to top floor. Leverage existing Rockwell Automation ecosystem investments without middleware complexity.

Third-Party Device Support
ODVA-certified EtherNet/IP implementation ensures interoperability with 1,000+ vendor products including drives, sensors, vision systems, and robotics. Build best-of-breed solutions without vendor lock-in concerns.

IoT Gateway Capabilities
When combined with FactoryTalk Edge Gateway software, the module enables secure cloud connectivity for remote monitoring, predictive analytics, and digital twin applications—bridging OT and IT domains while maintaining industrial security standards.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configurations: 10-15 business days for conformal coating or special firmware versions
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects and performance deviations
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and optimization guidance
Documentation Package: Installation manual, quick-start guide, sample ladder logic, and network topology templates included with every order

All modules ship with factory-sealed packaging, Certificate of Conformity, and traceability documentation for quality assurance programs. Expedited processing available for emergency shutdowns and critical path projects.

Frequently Asked Questions

How does the 1756-EN2T improve network resilience compared to single-port modules?
The dual-port design enables Device Level Ring (DLR) topology, which automatically reroutes traffic within 3 milliseconds if a cable or device fails. This eliminates single points of failure in your network architecture, achieving 99.9%+ uptime versus 95-98% for non-redundant configurations. For critical processes where every minute of downtime costs thousands in lost production, DLR topology delivers measurable ROI through reduced unplanned outages.

Can I upgrade firmware remotely without production interruption?
Yes—the module supports online firmware updates via ControlFLASH utility or Studio 5000 software over the network. The update process takes approximately 2-3 minutes and does not require chassis power-down or communication interruption to other modules. Schedule updates during planned maintenance windows or low-production periods to maintain continuous operation.

What cable specifications are required for optimal performance?
Use Cat5e or Cat6 shielded twisted-pair (STP) cable for industrial environments to minimize EMI susceptibility. Maximum cable run between devices is 100 meters (328 feet) per IEEE 802.3 standards. For longer distances, deploy industrial Ethernet switches with fiber uplinks. Always terminate cables with industrial-grade RJ45 connectors rated for vibration and temperature extremes.

Does this module support network segmentation for cybersecurity?
Absolutely—the 1756-EN2T supports IEEE 802.1Q VLAN tagging, allowing you to isolate control traffic from enterprise IT networks. Configure separate VLANs for HMI access, SCADA communications, and device-level I/O to implement defense-in-depth security strategies. Combine with managed industrial switches and firewall appliances for comprehensive ICS security architectures aligned with IEC 62443 standards.

How many I/O points can a single module support?
The module itself doesn't directly limit I/O count—that's determined by your ControlLogix controller's memory and processing capacity. However, the 128 CIP connection limit means you can theoretically connect 128 distributed I/O modules (each module = 1 connection). In practice, most systems use 40-80 connections, reserving capacity for HMIs, drives, and future expansion. Consult your controller's specifications for exact I/O capacity.

Is the module compatible with older ControlLogix chassis?
Yes—the 1756-EN2T is backward compatible with all ControlLogix chassis generations (1756-A4 through 1756-A17). It occupies a single slot and communicates via the standard ControlLogix backplane. Verify your chassis power supply can provide the required 800 mA @ 5V DC; older power supplies may need upgrading if running multiple high-current modules.

Take the Next Step Toward Network Modernization

Ready to eliminate network bottlenecks and future-proof your ControlLogix infrastructure? Our application engineers are standing by to review your system architecture, recommend optimal configurations, and provide detailed ROI analysis based on your specific production requirements.
