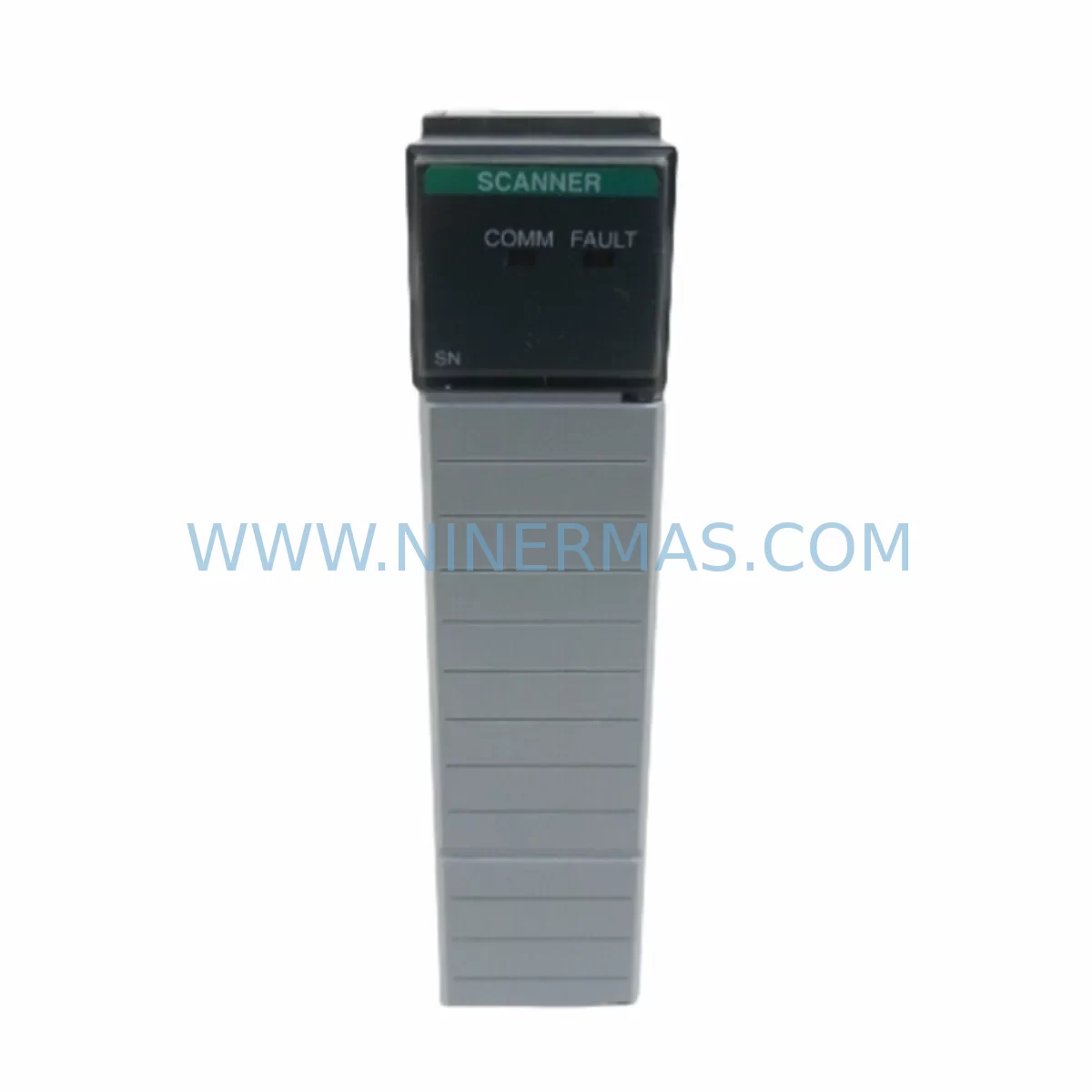

Allen-Bradley 1747-SN Safety-Reliable Remote I/O Scanner

Allen-Bradley 1747-SN Safety-Reliable Remote I/O Scanner for Critical Control Sites

The Allen-Bradley 1747-SN Remote I/O Scanner Module is engineered for mission-critical industrial automation environments where control continuity, signal integrity, and operational safety are non-negotiable. Designed for integration within the SLC 500 programmable controller platform, the 1747-SN serves as the backbone of distributed I/O architectures across continuous production lines, critical interlock systems, and high-demand control cabinets. Whether deployed in petrochemical processing, power generation, mining extraction, or heavy metallurgical operations, this module delivers the deterministic scan performance and robust communication reliability that safety-critical field sites demand.

At NINERMAS, every 1747-SN unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support both planned maintenance cycles and emergency replacement scenarios, ensuring your production line is never held hostage by component lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered SLC 500 control cabinet, the 1747-SN scanner module does not operate in isolation — it functions as the communication hub that ties together the entire distributed I/O architecture. Its reliable RIO bus scanning directly reduces the risk of control loop interruption caused by communication timeouts, node dropouts, or scan cycle overruns that can trigger unplanned shutdowns in continuous process environments.

To maximize system uptime and safety margin, the 1747-SN is typically paired with a 1747-L553 SLC 5/05 CPU or 1747-L543 SLC 5/04 processor, which provides the deterministic ladder logic execution needed for safety-critical sequences. Power integrity is maintained through a dedicated 1746-P4 power supply module, which delivers regulated 5 VDC and 24 VDC rails to the backplane — preventing voltage sag events that could cause the scanner to drop I/O nodes mid-scan.

On the field side, the 1747-SN communicates with remote I/O adapter modules such as the 1771-ASB Remote I/O Adapter, which interfaces with legacy 1771 I/O chassis in distributed rack configurations. For digital field devices, 1746-IB16 DC input modules and 1746-OB16 DC output modules provide the discrete signal interface layer, while 1746-NI4 analog input modules handle process variable acquisition from transmitters and sensors in the field.

In environments with significant electromagnetic interference — such as variable frequency drive (VFD) panels, arc furnace control rooms, or high-voltage switchgear enclosures — the RIO cable shielding and grounding discipline become critical. Supplementing the 1747-SN installation with 1770-CD RIO coaxial cable and proper termination resistors at both ends of the RIO trunk ensures signal integrity is maintained even under severe EMI loading. Additionally, surge protection devices installed on the 24 VDC field power rails protect the I/O modules from transient voltage spikes generated by inductive load switching, motor starts, and lightning-induced surges on field cable runs.

For facilities implementing safety instrumented systems (SIS) alongside standard process control, the 1747-SN can coexist in the same control cabinet as Allen-Bradley GuardLogix safety controllers and 1791DS CompactBlock Guard I/O modules, provided proper segregation of safety and standard I/O is maintained per IEC 61511 and IEC 62061 guidelines. This layered architecture — combining the 1747-SN’s reliable RIO scanning with dedicated safety I/O — provides the defense-in-depth approach required for SIL-rated control loops in hazardous area applications.

Critical Industrial Safety Applications

The Allen-Bradley 1747-SN has earned its place in some of the most demanding industrial environments across multiple sectors:

Petrochemical & Refinery Operations: In continuous distillation, catalytic cracking, and pipeline compression stations, the 1747-SN manages distributed I/O across remote rack locations separated by hundreds of meters of RIO cable. Its deterministic scan cycle ensures that emergency shutdown (ESD) signals from field-mounted pressure switches, temperature transmitters, and flame detectors are processed within the required response time windows — a non-negotiable requirement for HAZOP-compliant process safety management.

Electric Power Generation & Substation Control: Turbine control panels, generator excitation systems, and high-voltage switchgear automation rely on the 1747-SN’s noise immunity to maintain reliable I/O communication in environments saturated with electromagnetic interference from power transformers, bus bars, and high-current switching equipment. Control interruptions in these environments can cascade into grid instability events, making the scanner’s robust RIO communication architecture a critical reliability asset.

Mining & Mineral Processing: Underground conveyor systems, crusher control panels, and flotation cell automation in mining operations subject control hardware to extreme vibration, dust ingress, and humidity cycling. The 1747-SN’s industrial-grade construction and wide operating temperature range make it suitable for these harsh conditions, where replacement logistics are complex and unplanned downtime carries significant safety and financial consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1747-SN to coordinate remote I/O across pump stations, chemical dosing systems, and filtration control panels. The module’s ability to maintain reliable communication across geographically distributed rack locations — without requiring fiber optic infrastructure — makes it a cost-effective solution for large treatment plant automation upgrades.

Metallurgy & Steel Production: Rolling mill drives, ladle furnace controls, and continuous casting machine automation demand I/O scanner modules that can withstand the thermal radiation, vibration, and electrical noise characteristic of steelmaking environments. The 1747-SN’s proven performance in these conditions, combined with readily available spare inventory from NINERMAS, supports the rapid replacement strategies that metallurgical operations require to minimize costly production interruptions.

Port & Marine Automation: Ship-to-shore crane control systems, bulk material handling conveyors, and vessel loading automation at port facilities operate in salt-air, high-humidity environments with significant vibration from heavy machinery. The 1747-SN’s robust design supports reliable operation in these coastal industrial environments, where corrosion resistance and communication stability are essential for safe cargo handling operations.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the Allen-Bradley 1747-SN?
Every 1747-SN supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes technical support for installation and commissioning queries. Our warranty commitment reflects our confidence in the quality of our sourcing and pre-shipment testing processes.

Q2: What pre-shipment testing is performed on the 1747-SN before dispatch?
Each unit undergoes a comprehensive functional verification process prior to shipment, including backplane communication checks, RIO port integrity testing, and visual inspection for physical damage or counterfeit indicators. This testing protocol ensures that the module you receive is ready for immediate installation in your control system without the risk of infant mortality failures that can occur with untested surplus components.

Q3: Is the 1747-SN compatible with all SLC 500 processor series and existing 1771 I/O infrastructure?
Yes. The 1747-SN is designed for use with the full range of SLC 500 processors, including the SLC 5/03, SLC 5/04, and SLC 5/05 series. It is fully compatible with existing 1771 I/O chassis and adapter modules via the standard Remote I/O protocol, making it an ideal replacement module for system upgrades and maintenance without requiring changes to the existing I/O infrastructure or application program.

Q4: Can NINERMAS support long-term supply and emergency replacement requirements for the 1747-SN?
