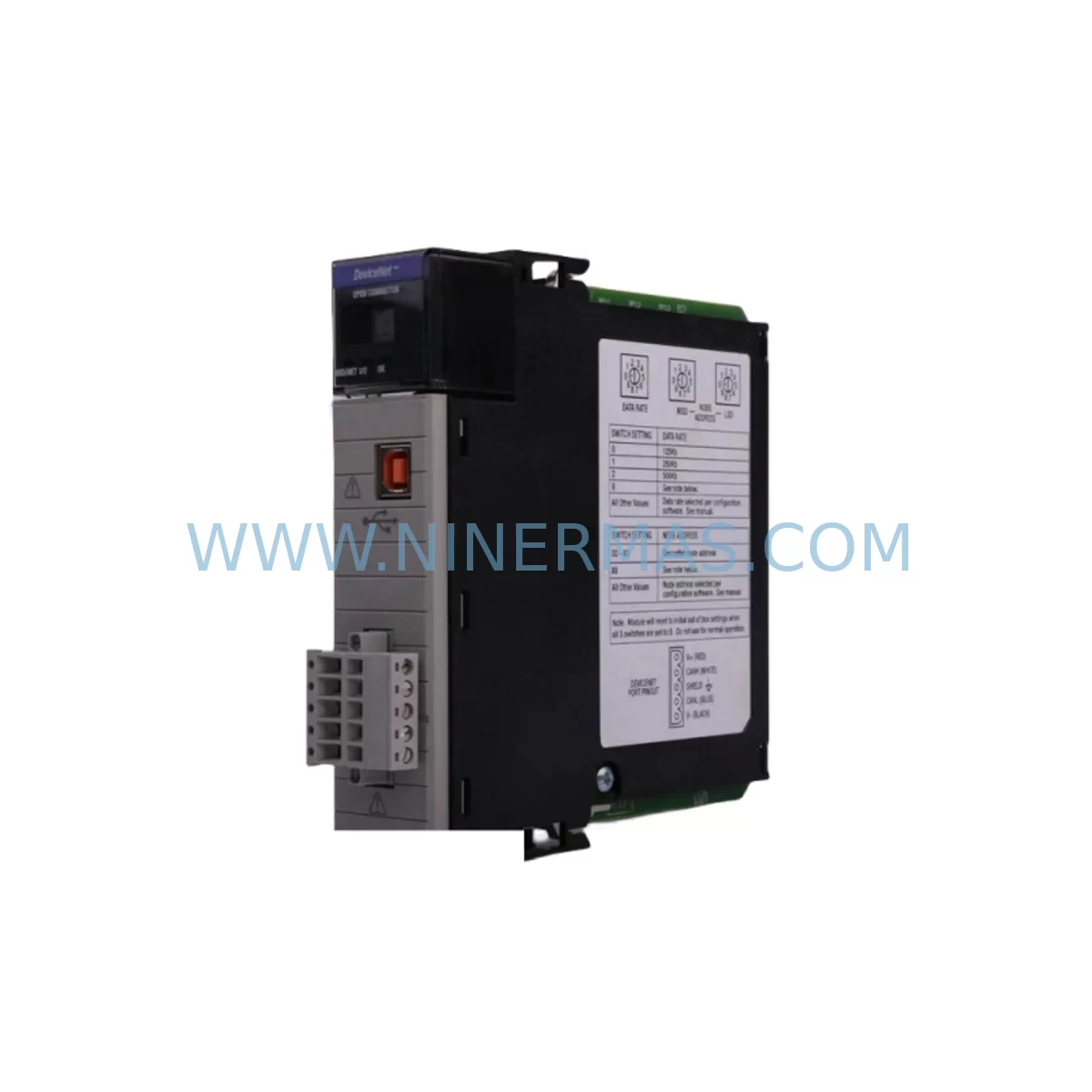

Allen-Bradley 1747-L553/C Retrofit-Compatible Processor for Legacy SLC 500 Systems

The Allen-Bradley 1747-L553/C is a SLC 5/05 processor module designed for the SLC 500 programmable controller platform. As a retrofit-compatible replacement for aging or discontinued SLC 5/05 units, the 1747-L553/C delivers Ethernet/IP connectivity, 64K user memory, and full backward compatibility with existing SLC 500 chassis, I/O modules, and ladder logic programs. For facilities managing legacy automation infrastructure — including process lines, conveyor systems, packaging equipment, and discrete manufacturing cells — this processor provides a reliable, cost-effective path to extend system life without a full control system overhaul.

NINERMAS maintains verified stock of the 1747-L553/C with pre-shipment functional testing, 12-month warranty coverage, and documented traceability. Each unit is inspected against Allen-Bradley factory specifications before dispatch, ensuring field-ready condition upon arrival.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life SLC 5/05 processor in an operating facility requires careful pre-migration planning. The 1747-L553/C slots directly into any SLC 500 chassis — including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 — without mechanical modification. Before removal of the existing processor, engineers should archive the current program using RSLogix 500, document all data file values (particularly N, F, and B files), and record the processor’s Ethernet IP address and subnet configuration for re-entry after replacement.

Power supply capacity is a critical checkpoint. The 1746-P2 and 1746-P3 power supplies are typically sufficient for mid-size chassis configurations, while the 1746-P1 should be evaluated against the total chassis load before proceeding. If the existing chassis is running a full complement of 1746-IB16 digital input modules, 1746-OB16 digital output modules, and analog I/O such as the 1746-NI4 or 1746-NO4I, a power audit is recommended prior to processor swap.

For systems that previously used a SLC 5/03 or SLC 5/04 processor communicating over DH+ or DH-485, migration to the 1747-L553/C introduces Ethernet/IP as the primary network. This requires updating RSLinx Classic driver configurations and, where applicable, revising HMI communication paths. PanelView terminals connected via DH-485 using a 1747-PIC or 1747-AIC link coupler will need driver reconfiguration or replacement with an Ethernet-capable HMI such as the PanelView Plus 6 or PanelView Plus 7 series.

I/O module addresses are preserved during processor replacement, so no rewiring of field terminals is required. However, if the system includes specialty modules such as the 1746-HSCE high-speed counter, 1746-QS stepper controller, or 1746-BAS BASIC module, compatibility with the 1747-L553/C firmware version should be confirmed before go-live. Signal isolators installed between field devices and I/O terminals remain unaffected by the processor swap.

For facilities running multiple SLC 500 racks linked via a 1747-SN remote I/O scanner or 1747-ASB adapter, the network topology and scanner configuration files should be reviewed to ensure the replacement processor correctly re-establishes remote I/O communication after restart. Programming cables such as the 1747-UIC USB-to-DH-485 adapter are recommended for on-site program verification and online monitoring during commissioning.

Downtime Control During System Migration

Minimizing production downtime during a processor replacement is the primary operational concern for maintenance teams. The 1747-L553/C supports a structured hot-swap preparation process: with the program archived and all data file values documented, the physical swap can typically be completed in under 30 minutes for an experienced technician.

Before powering down the chassis, capture a full data table snapshot using RSLogix 500’s data monitor or export function. This preserves counter presets, timer accumulated values, PID tuning parameters, and recipe data stored in integer and float files. Upon installing the 1747-L553/C, restore the program file, re-enter the Ethernet IP configuration, and verify communication with all networked devices — including SCADA systems, historian servers, and upstream PLCs — before returning the system to automatic mode.

Where a brief controlled shutdown is unavoidable, coordinating the switchover during a scheduled maintenance window or shift change reduces impact on production throughput. For critical continuous-process applications, a parallel test rack using a spare 1746-A4 chassis, a 1747-L553/C, and representative I/O modules allows full program validation offline before the live cutover. This approach protects original program logic, eliminates risk of configuration errors under time pressure, and provides a documented rollback path if unexpected issues arise during commissioning.

NINERMAS ships the 1747-L553/C with a pre-loaded functional test report, confirming processor boot, memory integrity, communication port operation, and I/O bus handshake. This documentation supports site acceptance testing and internal quality records without requiring additional bench testing upon receipt.

Retrofit Support FAQ

Q1: Is the 1747-L553/C a direct drop-in replacement for the 1747-L552 or 1747-L551?
Yes. The 1747-L553/C is physically and electrically compatible with the SLC 500 chassis and replaces earlier SLC 5/05 revisions including the 1747-L551 and 1747-L552. The /C firmware revision includes enhanced Ethernet diagnostics. Existing ladder logic programs compiled for earlier SLC 5/05 processors are fully compatible without modification.

Q2: What commissioning steps are required after installing the 1747-L553/C?
After physical installation, assign the Ethernet IP address via RSLinx Classic or the processor’s built-in BOOTP/DHCP client. Download the archived program using RSLogix 500, verify all I/O module status indicators, confirm remote I/O scanner communication if applicable, and perform a controlled test run in program mode before switching to run mode. HMI communication paths should be verified last.

Q3: Does NINERMAS provide pre-shipment testing for the 1747-L553/C?
Yes. Every 1747-L553/C unit shipped by NINERMAS undergoes functional testing covering processor boot sequence, user memory read/write, Ethernet port connectivity, and RS-232 DH-485 port operation. A test certificate is included with each shipment. Units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains stock of the 1747-L553/C for immediate dispatch. Standard orders ship within 1–3 business days. For bulk procurement or long-term supply agreements supporting spare parts lifecycle programs, contact our sales team to discuss committed inventory arrangements and extended supply terms.
