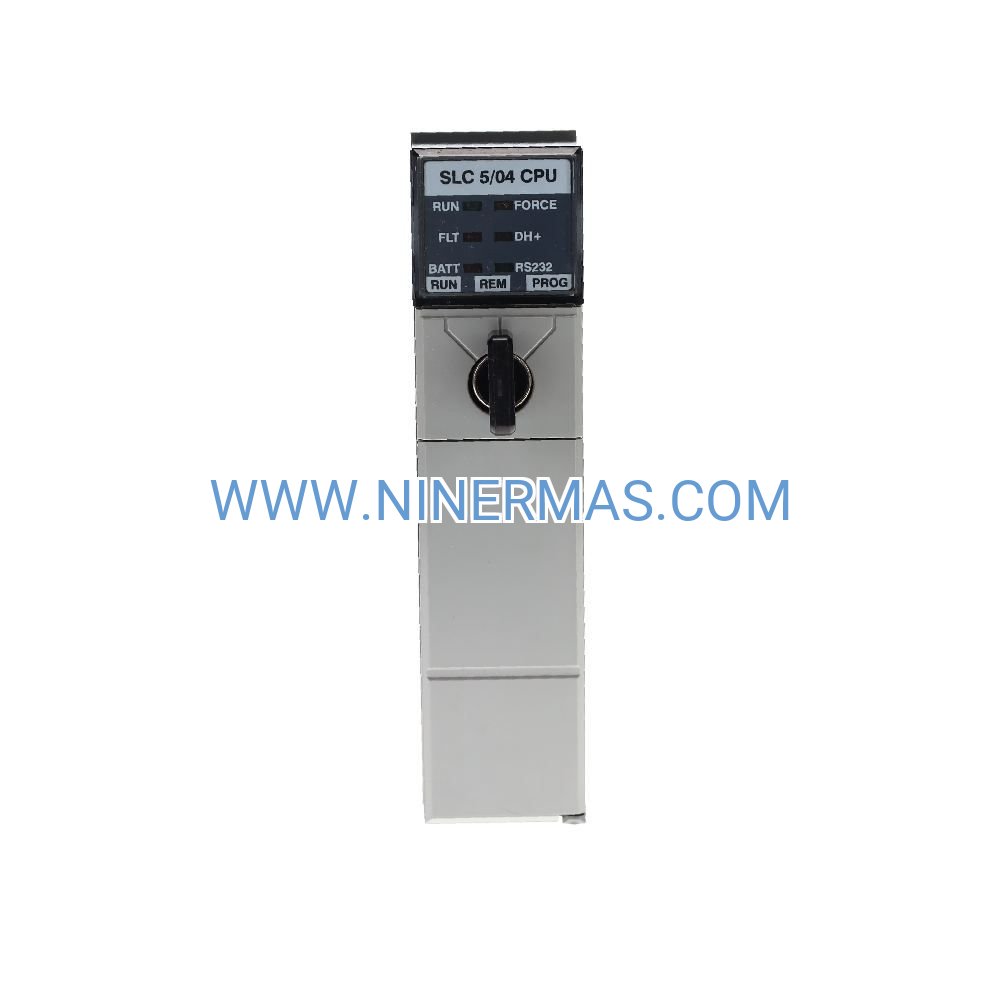

1747-L543 SLC 5/04 Processor (Industrial-Grade Modular Controller)

The 1747-L543 represents Allen-Bradley's proven SLC 5/04 platform, delivering dependable programmable logic control for mid-scale manufacturing, infrastructure monitoring, and process automation. Equipped with 64K words of user memory and dual communication ports, this processor handles complex control logic while maintaining deterministic scan performance across 4096 I/O points.

Designed for system integrators and plant engineers managing multi-zone production lines, batch processing operations, or distributed control networks, the 1747-L543 bridges legacy SLC 500 architectures with modern supervisory systems. Its field-proven reliability reduces unplanned downtime in mission-critical applications where consistent uptime directly impacts operational efficiency.

Whether you're retrofitting aging control panels, expanding existing SLC networks, or standardizing on Allen-Bradley ecosystems, this processor provides the computational capacity and I/O flexibility needed for demanding industrial environments—backed by comprehensive technical documentation and global spare parts availability.

Core Capabilities & Technical Advantages

✓ Expanded Memory Architecture
64K words of user memory supports sophisticated ladder logic programs, data tables, and recipe management—ideal for applications requiring extensive sequencing, PID loops, or batch tracking without memory constraints.

✓ High-Density I/O Handling
Manages up to 4096 discrete I/O and 480 analog channels, enabling centralized control of large-scale systems while maintaining sub-10ms scan times for time-sensitive processes.

✓ Dual Communication Interfaces
Integrated DH-485 and RS-232C ports facilitate simultaneous HMI connectivity, peer-to-peer messaging, and remote diagnostics—eliminating the need for external communication adapters in most installations.

→ Deterministic Performance
Optimized instruction set and priority-based task scheduling ensure predictable response times for safety interlocks, alarm handling, and coordinated motion sequences across distributed I/O racks.

→ Hot-Swap Programming Capability
Online editing via RSLogix 500 allows logic modifications during operation, reducing production interruptions during commissioning, troubleshooting, or seasonal changeovers.

→ Industrial Environmental Ratings
Operates reliably in 0-60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical exposure—meeting UL508A panel shop requirements and CE industrial machinery directives.

Application Scenarios Across Industries

Automated Assembly & Packaging Lines
Controls multi-station assembly cells with coordinated conveyor systems, robotic pick-and-place operations, and vision inspection integration. Handles product tracking, reject sorting, and line balancing for throughput rates exceeding 120 units/minute.

Water & Wastewater Treatment Facilities
Manages pump sequencing, chemical dosing, filtration cycles, and SCADA telemetry for municipal treatment plants. Supports remote monitoring via DH-485 networks spanning multiple process areas with centralized alarm management.

HVAC & Building Automation Systems
Orchestrates chiller plants, air handling units, and energy recovery systems in commercial facilities. Executes demand-based control strategies, occupancy scheduling, and utility load shedding to optimize energy consumption.

Material Handling & Warehouse Logistics
Directs sortation conveyors, automated storage/retrieval systems, and barcode tracking networks. Interfaces with warehouse management systems via serial protocols for real-time inventory updates and order fulfillment routing.

Food & Beverage Processing
Regulates mixing, cooking, filling, and CIP (clean-in-place) sequences with recipe-driven batch control. Maintains FDA 21 CFR Part 11 audit trails through integrated data logging and timestamp functions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1747-L543 when your application requires more than 32K memory (vs. 1747-L542) but doesn't justify ControlLogix migration costs. Ideal for systems with 500-3000 I/O points where DH-485 network speeds suffice for HMI refresh rates under 1 second. Pair with 1746-A13 or larger chassis for adequate slot capacity and future expansion.

Advanced Integration & Connectivity Options

SCADA & HMI Connectivity
Native DF1 protocol support enables direct connection to PanelView terminals, FactoryTalk View SE, and third-party HMI platforms. DH-485 multi-drop networks allow up to 32 nodes for distributed operator interfaces without additional gateways.

Remote I/O Expansion
Supports 1747-ASB remote I/O adapters for extending control to satellite equipment rooms or process areas up to 10,000 feet away, reducing copper wiring costs in large facilities.

Data Logging & Historian Integration
Serial ASCII messaging functions facilitate data export to SQL databases, CSV files, or OPC servers for production reporting, SPC analysis, and regulatory compliance documentation.

Custom Protocol Development
RS-232 port supports user-defined messaging for interfacing with barcode scanners, weigh scales, printers, and legacy equipment using ASCII or proprietary protocols via MSG instructions.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Express Shipping: Next-day delivery available for critical downtime situations
Custom Configuration: 7-10 business days for pre-programmed or tested assemblies

Warranty Coverage: 12-month comprehensive warranty covering hardware defects, firmware issues, and component failures under normal operating conditions.

Technical Support: Unlimited phone/email assistance for installation planning, I/O configuration, network troubleshooting, and RSLogix 500 programming guidance—staffed by certified Allen-Bradley technicians.

Documentation Package: Includes installation manual, wiring diagrams, communication setup guides, and sample ladder logic routines for common applications.

Frequently Asked Questions

What chassis models are compatible with the 1747-L543 processor?
The processor installs in any 1746-series SLC 500 chassis (A4, A7, A10, A13) and occupies slot 0. Minimum 4-slot chassis recommended for basic I/O configurations; 10+ slots advised for complex systems.

Can I upgrade from a 1747-L542 without reprogramming?
Yes—the L543 maintains full backward compatibility with L542 programs. Simply transfer your RSLogix 500 project file and download to the new processor. Memory-intensive applications will benefit from the expanded 64K capacity.

How do I connect to RSLogix 500 for programming?
Use a 1747-CP3 or 1761-CBL-PM02 cable connected to the RS-232 port. Configure RSLogix driver for DF1 Full-Duplex at 19200 baud. USB-to-serial adapters require proper driver installation for Windows 10/11 compatibility.

Does this processor support Ethernet communication?
Not natively—add a 1747-AENTR EtherNet/IP adapter module to the chassis for Ethernet connectivity to ControlLogix systems, managed switches, or cloud-based monitoring platforms.

What is the maximum DH-485 network distance?
Up to 10,000 feet (3,048 meters) using Belden 9842 or equivalent shielded twisted-pair cable. Networks exceeding 4,000 feet require 1747-AIC isolator/repeaters every 2,000 feet to maintain signal integrity.

Is battery backup required for program retention?
The processor includes non-volatile memory for program storage. Optional 1747-M1/M2 EEPROM modules provide additional backup for critical applications or environments with frequent power interruptions.

Ready to Optimize Your Control System?

Contact our automation specialists for application-specific recommendations, volume pricing, or technical pre-sales consultation. We assist with I/O mapping, network architecture design, and migration planning from legacy relay logic or competing PLC platforms.

Request a quote today or speak with our team about integration services, startup assistance, and preventive maintenance programs tailored to your operational requirements.
