Allen-Bradley 1747-L542 Series C | SLC 5/04 Retrofit & Upgrade Processor

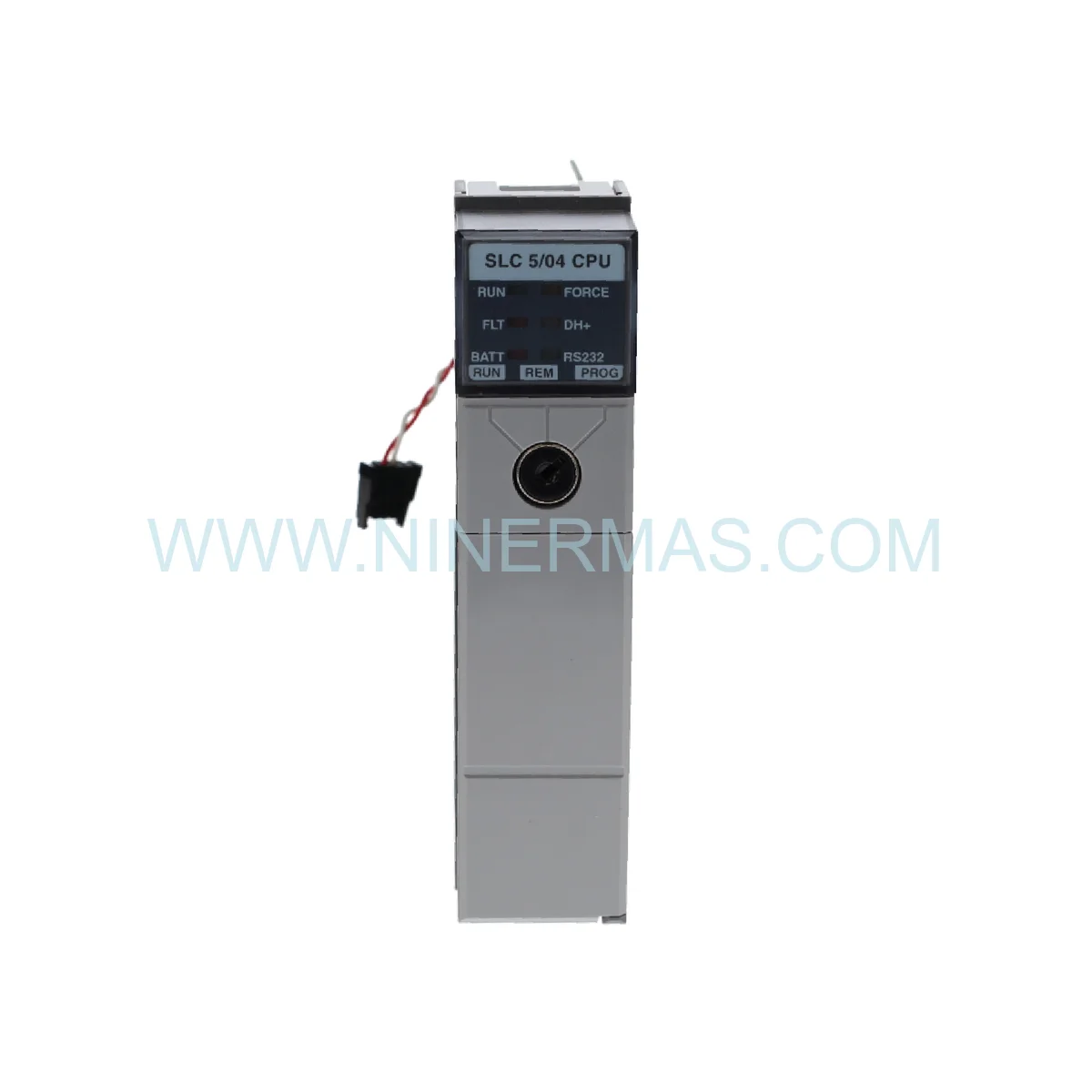

Allen-Bradley 1747-L542 Series C – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, the Allen-Bradley 1747-L542 Series C stands out as a cornerstone component in any SLC 5/04 modernization initiative. Its 32K words of user memory and support for up to 4096 I/O points make it a high-value asset for extending the operational lifespan of existing control architectures — delivering measurable Performance Enhancement without the capital expenditure of a full platform replacement. Whether you are managing a phased migration or executing an emergency hardware swap, this processor provides the processing headroom and communication flexibility that modern retrofit projects demand.

A defining advantage of the Allen-Bradley 1747-L542 Series C is its exceptional Legacy Compatibility within the SLC 500 modular ecosystem. It serves as a direct upgrade path from lower-memory predecessors such as the 1747-L541 (16K), offering pin-for-pin physical compatibility that eliminates costly re-wiring or chassis replacement. For facilities operating aging SLC 500 backplanes, this processor functions as the critical bridge component in a Retrofit Solution — preserving existing I/O infrastructure while injecting modern processing capability into the control layer.

From a migration risk and cost perspective, deploying the 1747-L542 Series C dramatically reduces the uncertainty associated with System Migration. By maintaining full backward compatibility with RSLogix 500 programming environments and existing DH+ network topologies, engineering teams can execute program transfers and commissioning with minimal downtime. This translates directly into lower migration budgets, reduced production interruption, and a faster return to full operational capacity — the hallmarks of a well-executed Hardware Upgrade strategy.

Upgrade Highlights & Compatibility

• ✅ Double Memory Capacity: 32K words vs. 16K in predecessor models — supports larger, more complex ladder logic programs without architectural redesign
• Seamless Integration: Pin-compatible with SLC 500 chassis; no backplane or wiring modifications required for direct swap-in deployment
• ✅ DH+ & RS-232 Dual Communication: Maintains connectivity with existing Data Highway Plus networks and serial SCADA interfaces — zero network reconfiguration
• Series C Firmware Advantage: Enhanced instruction set stability and expanded compatibility with RSLogix 500 v8.0+ for Seamless Integration into modern programming workflows
• ✅ Future-Proofing via I/O Scalability: 4096-point I/O capacity accommodates system expansion without processor replacement, protecting your retrofit investment
• Broad Module Ecosystem: Compatible with the full SLC 500 digital, analog, specialty, and communication module library — maximizing Legacy Compatibility across mixed-generation installations

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: In distributed control system (DCS) modernization projects, aging SLC 5/03 processors frequently become the bottleneck limiting throughput and diagnostic capability. Replacing them with the 1747-L542 Series C delivers immediate Performance Enhancement — the expanded 32K memory accommodates advanced PID loop libraries and alarm management routines that were previously impossible to implement. Facilities report up to 40% reduction in unplanned downtime following this targeted processor upgrade, achieved without disrupting the existing I/O wiring infrastructure.

Turbine Supervisory Instrumentation (TSI) System Upgrades: Power generation facilities operating legacy turbine monitoring systems built on SLC 500 platforms face increasing pressure to extend equipment life while meeting modern safety and reporting standards. The 1747-L542 Series C enables a phased System Migration approach: the processor is upgraded first to unlock expanded memory for new safety interlock logic, while the existing analog input modules and DH+ SCADA connections remain fully operational. This strategy has been successfully deployed in gas turbine control panels across multiple power plants, delivering enhanced diagnostic resolution and compliance-ready data logging without a full system replacement.

Automotive Assembly Line Retrofit: High-cycle manufacturing environments demand processors that can handle dense I/O polling and rapid scan times. Retrofit teams replacing end-of-life SLC 5/02 and 5/03 units with the 1747-L542 Series C achieve a Hardware Upgrade that supports expanded vision system integration, servo drive coordination, and real-time OEE data collection — all within the existing SLC 500 chassis footprint.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every Allen-Bradley 1747-L542 Series C unit we supply is sourced from authorized distribution channels or verified surplus inventories, inspected for authenticity, and shipped in original or equivalent protective packaging. Counterfeit risk is eliminated through our rigorous supplier qualification process.

Expedited Global Logistics: We understand that unplanned processor failures in critical production environments cannot wait. Our global logistics network supports priority air freight to manufacturing sites across North America, Europe, Southeast Asia, and the Middle East — with typical lead times of 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in SLC 500 platform retrofit and migration projects. We provide pre-shipment configuration consultation, firmware version guidance, and post-installation troubleshooting assistance — ensuring your 1747-L542 Series C deployment proceeds without costly delays.

Retrofit FAQ (Upgrade Guide)

Q1: Is the Allen-Bradley 1747-L542 Series C physically compatible with my existing SLC 500 chassis and slot configuration?
A: Yes. The 1747-L542 Series C is designed for direct installation into any SLC 500 modular chassis (4, 7, 10, or 13-slot configurations). No chassis replacement, backplane modification, or re-wiring is required. Simply remove the existing processor module and install the 1747-L542 Series C in the same slot — making it the lowest-disruption Retrofit Solution available for SLC 5/04 platform upgrades.

Q2: How does the 1747-L542 Series C communicate with newer HMI and SCADA systems during a phased migration?
A: The processor’s RS-232 serial port supports DF1 Full-Duplex and Half-Duplex protocols, enabling direct connection to modern HMI panels and SCADA gateways. The DH+ port maintains compatibility with existing PanelView terminals and legacy SCADA nodes. For Ethernet-based SCADA integration, a 1761-NET-ENI or equivalent Ethernet interface module can be added without replacing the processor — supporting a true System Migration without full platform replacement.

Q3: Can the 1747-L542 Series C serve as a direct replacement for end-of-life SLC 5/03 or SLC 5/02 processors?
A: While the 1747-L542 Series C is a SLC 5/04 platform processor and not pin-identical to SLC 5/02 or 5/03 units, it is fully compatible with the same SLC 500 chassis and I/O modules. Program migration from RSLogix 500 projects developed on earlier processors is straightforward, with most instruction sets fully supported. Our technical team can advise on any instruction-level differences that may require minor program adjustments during the Hardware Upgrade process.

Q4: What is the recommended spare parts strategy for facilities running multiple SLC 5/04 systems?
A: For facilities with 3 or more SLC 5/04-based control panels, we recommend maintaining at least one Allen-Bradley 1747-L542 Series C as a hot-spare. Given the mature lifecycle status of this platform, sourcing lead times from standard distribution channels can be unpredictable. Stocking a verified spare eliminates the risk of extended production downtime caused by processor failure — a critical element of any Legacy Compatibility and business continuity strategy.

Q5: Is it possible to transfer an existing program from a 1747-L541 (16K) to the 1747-L542 Series C (32K) without rewriting logic?
A: Yes. The 1747-L542 Series C is fully backward-compatible with programs developed for the 1747-L541. Using RSLogix 500, you can upload the existing program from the 1747-L541, save the project file, and download it directly to the 1747-L542 Series C. The expanded 32K memory capacity means your existing program will occupy less than half the available memory, leaving substantial headroom for future Performance Enhancement additions such as advanced diagnostics, data logging routines, or expanded alarm management.

Q6: What documentation and certifications are available to support our retrofit project engineering package?
A: The Allen-Bradley 1747-L542 Series C is supported by Rockwell Automation’s full technical documentation library, including the SLC 500 Modular Hardware Style User Manual (Publication 1747-UM011), the SLC 500 Instruction Set Reference Manual, and applicable UL/CE certification records. Our team can assist in sourcing the relevant documentation versions aligned with your Series C unit’s firmware revision to ensure full compliance with your facility’s engineering change management process.
