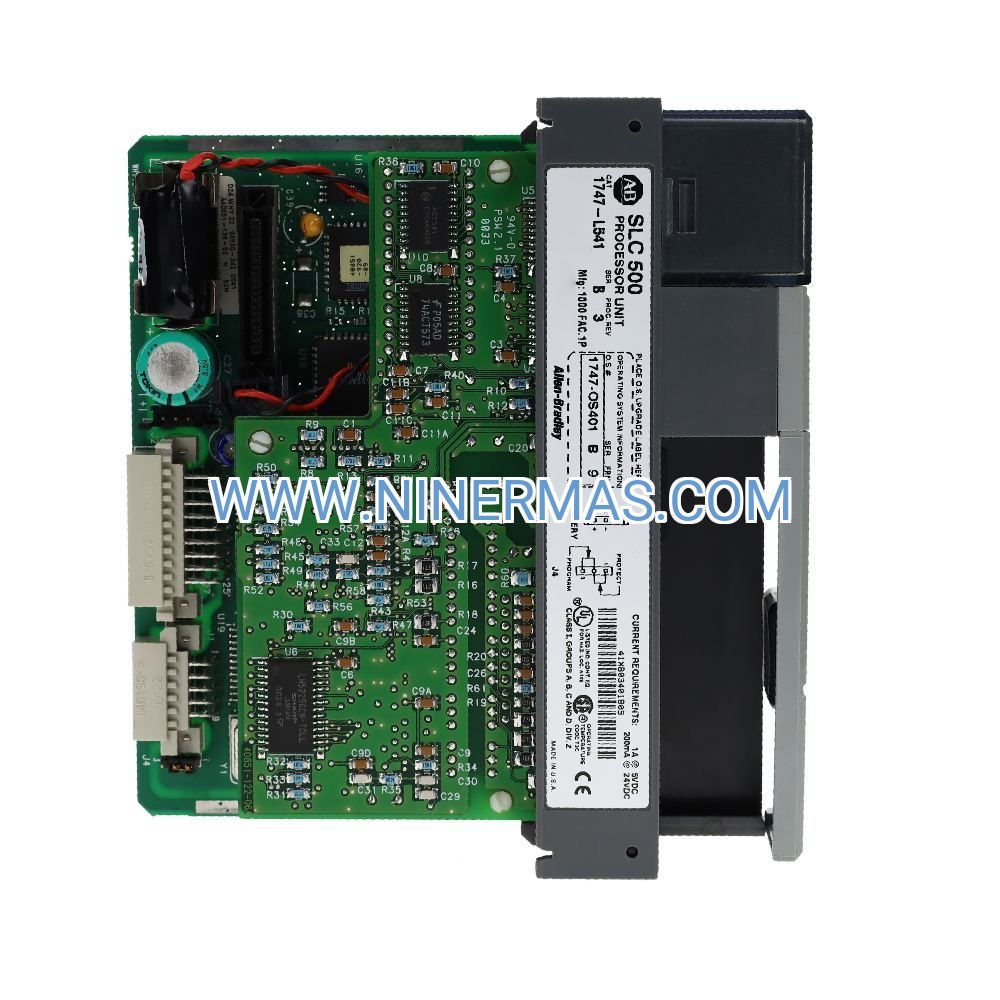

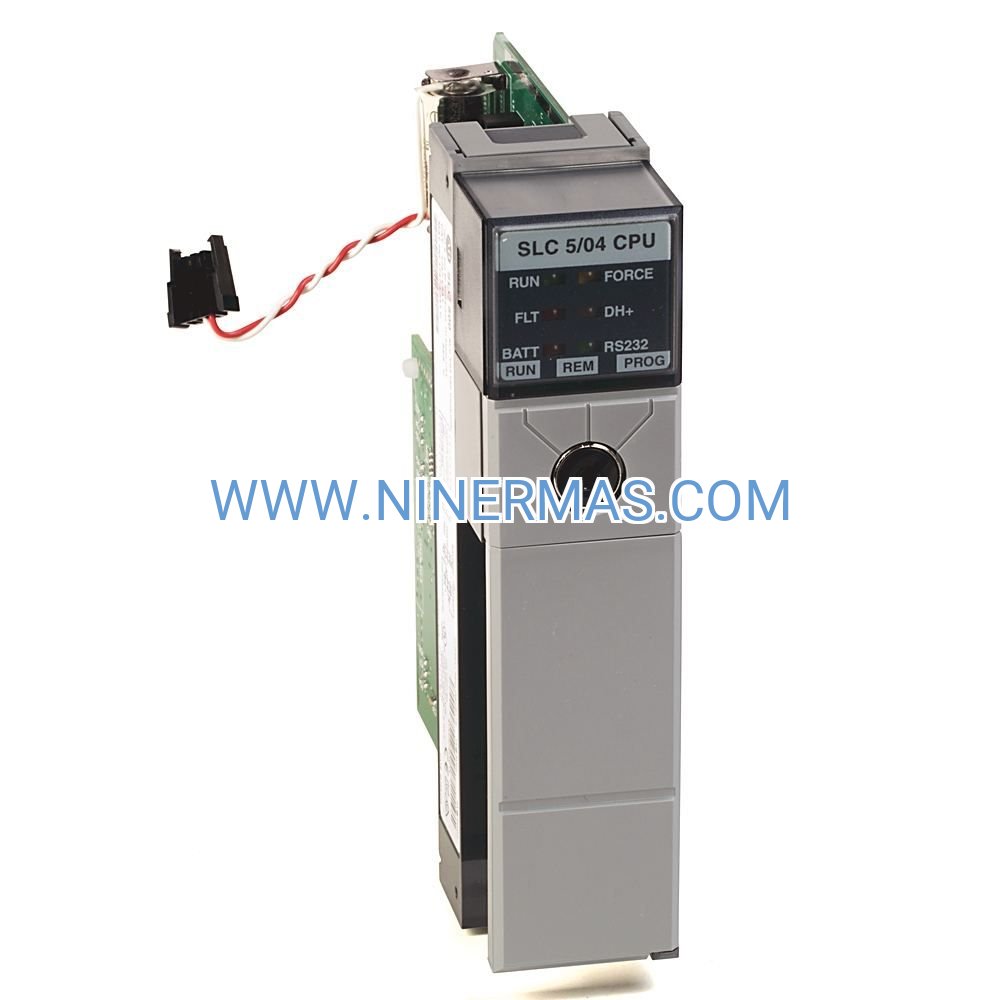

1747-L541 SLC 5/04 Programmable Logic Controller (Industrial-Grade Modular Processor)

The 1747-L541 represents Allen-Bradley's proven SLC 5/04 architecture, delivering reliable programmable control for mid-scale industrial automation systems. Engineered with 16K word memory and 4096-point I/O capacity, this modular processor handles complex logic execution across manufacturing, process control, and infrastructure applications where uptime and deterministic performance are non-negotiable.

Designed for system integrators and plant engineers managing legacy SLC 500 networks or hybrid control environments, the 1747-L541 bridges proven ladder logic programming with modern diagnostic capabilities. Its 0.9 ms/K scan time and 107 instruction set enable precise sequencing, motion coordination, and data handling in time-critical operations.

Whether you're retrofitting aging control panels, expanding existing SLC chassis configurations, or maintaining mission-critical production lines, this processor delivers the performance consistency and environmental resilience required for 24/7 industrial operation. Factory-tested units ship with comprehensive technical documentation and backed by expert integration support.

Core Capabilities & Technical Advantages

→ High-Density I/O Architecture
4096 discrete inputs and 4096 discrete outputs support complex machine control and process monitoring without external expansion modules. Accommodates up to 3 chassis with 30 total slots for scalable system growth.

→ Deterministic Scan Performance
Typical 0.9 ms/K scan time with 0.37 µs bit execution (XIC instruction) ensures predictable cycle times for synchronized motion control, batch sequencing, and safety-interlocked operations.

✓ Hazardous Location Certified
UL Listed for Class I, Division 2 environments (Groups A, B, C, D) enables deployment in chemical processing, oil & gas, and pharmaceutical facilities without additional enclosure modifications.

✓ Extended Environmental Tolerance
Operates reliably across 0-60°C (32-140°F) with 5-95% humidity resistance and 2.5g vibration immunity. NEMA ICS 2-230 noise immunity protects against electrical interference in high-EMI industrial settings.

✓ Flexible Power Integration
Dual voltage compatibility (5V DC @ 1.0A, 24V DC @ 0mA for SLC 5/04) with 20ms-3s scan hold-up time maintains program integrity during momentary power disturbances.

✓ Legacy System Compatibility
Full backward compatibility with SLC 5/03 programming software and existing 1747-series I/O modules protects capital investment while enabling phased modernization strategies.

Industrial Application Scenarios

Automotive Assembly Line Control
Coordinates robotic welding stations, conveyor indexing, and quality inspection gates across multi-zone production cells. High I/O density eliminates need for remote racks while 0.9ms scan time synchronizes 12+ servo axes for precision part positioning. Reduces integration costs by 30% versus distributed control alternatives.

Water Treatment SCADA Integration
Manages pump sequencing, chemical dosing, and filtration cycles across municipal treatment plants. Hazardous location certification permits installation in chlorine storage areas. Built-in diagnostics enable predictive maintenance scheduling, reducing unplanned downtime by 40%.

Food & Beverage Batch Processing
Executes recipe-driven mixing, heating, and packaging sequences with FDA-compliant audit trails. Temperature cycling tolerance (0-60°C) handles steam cleaning protocols. 107-instruction set supports complex formula calculations and ingredient tracking.

Material Handling & Warehousing
Controls automated storage/retrieval systems (AS/RS), sortation conveyors, and palletizing robots. 30-slot expansion capacity scales with facility growth. Vibration immunity (2.5g) withstands forklift traffic and heavy machinery operation.

Oil & Gas Pipeline Monitoring
Monitors flow meters, pressure transmitters, and valve actuators across remote pump stations. Class I Div 2 certification meets API RP 500 requirements. Extended storage range (-40 to 85°C) supports outdoor enclosure installations in extreme climates.

Technical Specifications & Selection Guide

Selection Criteria:

• Choose 1747-L541 for systems requiring 1,000-4,000 I/O points with moderate processing demands
• Upgrade from SLC 5/03 when scan time <1.5ms/K is critical for motion synchronization
• Specify for Class I Div 2 environments where ControlLogix certification costs are prohibitive
• Pair with 1747-BA battery for program retention during extended power outages (>3 seconds)

Advanced Integration Features

EtherNet/IP Connectivity (via 1747-AENTR adapter)
Integrate with modern HMI systems, MES platforms, and cloud-based analytics without replacing existing I/O infrastructure. Enables real-time production monitoring and remote diagnostics.

Data Logging & Trending
Built-in data file capabilities store up to 1,000 process values for quality traceability and regulatory compliance. Export via RSLinx for Excel-based analysis or historian integration.

Custom Firmware Options
Factory-configurable boot sequences, password protection levels, and communication timeouts available for OEM machine builders requiring standardized configurations across product lines.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days (in-stock units) | 15-20 days (factory-sealed configurations)
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime email/phone support for programming assistance, troubleshooting, and system optimization
Documentation Package: User manual, wiring diagrams, instruction set reference, sample ladder logic programs

Value-Added Services:

• Pre-programmed startup routines for common applications (conveyor control, tank filling, HVAC sequencing)
• On-site commissioning support available (minimum 2-day engagement)
• Spare parts kits with critical components (battery, communication cables, terminal blocks)

Frequently Asked Questions

Q: Can the 1747-L541 processor communicate with newer ControlLogix systems?
A: Yes, via EtherNet/IP using a 1747-AENTR communication adapter. This enables data exchange with 1756-series controllers, PanelView HMIs, and third-party SCADA systems while maintaining your existing SLC I/O investment.

Q: What is the maximum program size this 16K memory supports?
A: Approximately 10,000-12,000 rungs of ladder logic, depending on instruction complexity. For reference, a typical packaging machine requires 3,000-5,000 rungs, leaving ample capacity for future modifications.

Q: Does this processor reduce energy consumption compared to older SLC models?
A: The SLC 5/04 draws 1.0A @ 5V DC (versus 500mA for 5/03), but eliminates the 175mA @ 24V DC requirement—resulting in 15-20% lower total power consumption in typical configurations. Ideal for solar-powered remote sites.

Q: What are the physical installation requirements for panel mounting?
A: Requires standard 1747 chassis with DIN rail or panel-mount brackets. Minimum clearances: 2" top/bottom for convection cooling, 4" front for cable access. Operates without forced-air cooling up to 50°C ambient.

Q: Can I monitor this processor remotely for predictive maintenance?
A: Yes, when networked via EtherNet/IP or DH-485. Monitor scan time trends, battery voltage, I/O fault counters, and communication errors through RSLogix software or third-party OPC servers for condition-based maintenance scheduling.

Q: Is this processor suitable for outdoor installations in extreme climates?
A: With proper NEMA 4X enclosure and environmental sealing, yes. Storage rating of -40 to 85°C covers Arctic to desert conditions. Specify conformal coating for high-humidity coastal or chemical exposure environments.

Ready to Optimize Your Control System?

Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. Our team provides same-day quotations and can expedite delivery for urgent retrofit projects.

Request a detailed integration proposal including I/O mapping, panel layout recommendations, and programming estimates tailored to your process requirements.
