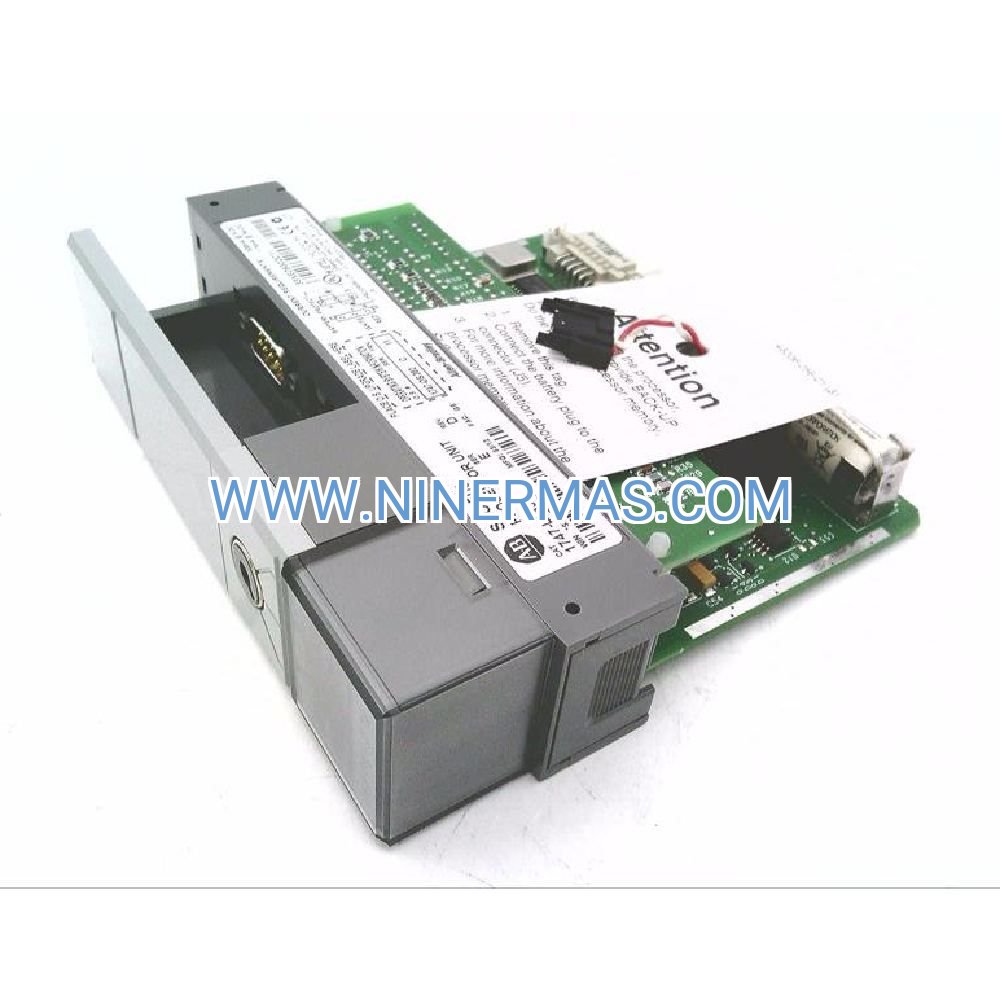

1747-L533 Modular Controller (Industrial-Grade SLC 5/03 Platform)

The 1747-L533 represents a proven control solution engineered for demanding industrial environments where reliability and scalability drive operational success. Built on the SLC 5/03 architecture, this modular processor combines 32K words of user memory with support for up to 4,096 discrete I/O points, making it an ideal choice for mid-to-large scale manufacturing operations, process automation, and material handling systems.

Designed for system integrators and plant engineers facing complex control challenges, the 1747-L533 addresses critical needs in legacy system modernization, capacity expansion, and multi-zone coordination. Whether you're retrofitting aging equipment or building new production lines, this processor delivers deterministic performance with the flexibility to adapt as your operation grows.

Key advantages include proven compatibility with the extensive SLC 500 ecosystem, straightforward programming through RSLogix 500, and dual communication ports (RS-232/DH-485) that enable both local configuration and network integration. With operating temperature tolerance from 0°C to 60°C and standard chassis mounting, the 1747-L533 fits seamlessly into existing infrastructure while providing the headroom for future expansion.

Core Capabilities & Business Value

✓ 32K Memory Architecture – Double the program storage of entry-level models enables complex logic sequences, recipe management, and advanced diagnostics without performance compromise. Reduces the need for external data handling and supports larger application codebases.

✓ 4,096 I/O Point Capacity – Accommodates extensive sensor networks, actuator arrays, and distributed control nodes across multiple production zones. Eliminates bottlenecks in high-density installations and supports phased expansion without processor replacement.

✓ Dual Protocol Communication – RS-232 port facilitates direct HMI connection and local programming, while DH-485 networking enables peer-to-peer messaging and remote I/O coordination. Supports hybrid architectures combining legacy and modern communication standards.

✓ Optimized Scan Performance – Fast execution cycles ensure real-time response to process changes, critical for high-speed packaging, precision assembly, and time-sensitive batch operations. Minimizes latency in closed-loop control applications.

✓ SLC 500 Ecosystem Compatibility – Leverages decades of proven I/O modules, specialty cards, and third-party integration tools. Protects existing investments while providing access to a mature support network and extensive documentation library.

✓ Industrial Temperature Rating – 0°C to 60°C operational range suits factory floors, outdoor enclosures, and non-climate-controlled environments. Reduces cooling infrastructure costs and improves installation flexibility.

Application Scenarios

→ Automotive Assembly Lines
Coordinates robotic welding stations, conveyor systems, and quality inspection gates across multi-stage production cells. The 1747-L533's I/O capacity handles hundreds of sensors and actuators while maintaining cycle times under 50ms. Solves the challenge of synchronizing legacy equipment with newer automation components through flexible communication options.

→ Packaging & Material Handling
Manages high-speed filling lines, case packers, and palletizing systems where precise timing and recipe switching are critical. 32K memory supports multiple product configurations and changeover sequences without external storage. Addresses downtime reduction through built-in diagnostics and fault isolation capabilities.

→ Process Control & Batch Operations
Executes sequential function charts for chemical mixing, food processing, and pharmaceutical manufacturing where regulatory compliance demands audit trails and repeatable processes. Enables integration with SCADA systems via DH-485 or protocol gateways for centralized monitoring.

→ Water/Wastewater Treatment
Controls pump stations, filtration systems, and chemical dosing across distributed facilities. Supports remote I/O configurations over DH-485 networks, reducing wiring costs in geographically dispersed installations. Provides reliable operation in harsh environments with temperature extremes and electrical noise.

→ Legacy System Modernization
Replaces obsolete controllers while maintaining compatibility with existing I/O racks, operator interfaces, and field wiring. Reduces migration risk and project timelines compared to complete platform changes. Extends equipment lifespan and defers capital expenditure on full system replacements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1747-L533 when your application requires 16K-32K words of logic (approximately 8,000-16,000 rungs of ladder code), supports 512-4,096 I/O points, and benefits from DH-485 networking without requiring Ethernet connectivity. For applications exceeding 32K memory or needing native Ethernet, consider the 1747-L553 (SLC 5/05) upgrade path. If analog control is minimal and budget is constrained, the 1747-L532 (16K) may suffice for smaller installations.

Extended Integration Options

Network Expansion: Add Ethernet/IP connectivity using 1761-NET-ENI interface modules or third-party protocol gateways (Modbus TCP, PROFINET). Enables integration with modern SCADA platforms, cloud-based analytics, and mobile HMI applications without replacing the core processor.

Data Logging & Historian Integration: Connect to industrial data historians (OSIsoft PI, Wonderware, Ignition) via OPC servers or direct DH-485 polling. Supports predictive maintenance initiatives and production analytics by streaming real-time process variables to enterprise systems.

Redundancy & Backup: Implement hot-standby configurations using 1747-M1/M2 EEPROM memory modules for program backup and rapid recovery. Pair with redundant power supplies and I/O modules in critical applications where downtime costs exceed $10,000/hour.

Custom Programming Services: Available for complex motion control, recipe management, and multi-line coordination. Our engineering team provides ladder logic optimization, HMI integration, and commissioning support to accelerate project timelines.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (North America/Asia). Express shipping available for urgent replacements.
Custom Configuration: 7-10 business days for pre-programmed processors with customer-specific logic and I/O mapping.
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended service plans available.
Technical Support: Lifetime phone/email support for installation guidance, troubleshooting, and programming assistance. Remote diagnostics available via TeamViewer/AnyDesk.
Documentation Package: Includes user manual, wiring diagrams, RSLogix 500 sample code, and quick-start guide in PDF format.

Frequently Asked Questions

How does the 1747-L533 memory capacity compare to other SLC 5/03 models?
The L533 provides 32K words—twice the capacity of the 1747-L532 (16K) and four times the 1747-L531 (8K). This translates to approximately 16,000 rungs of ladder logic, sufficient for complex batch recipes, alarm management, and multi-zone coordination without external memory cards.

Can I retrofit this processor into an existing SLC 500 chassis without rewiring?
Yes. The 1747-L533 uses the same backplane connector and slot position as other SLC 5/03 processors. Simply power down the system, swap the processor module, and restore your program from EEPROM or laptop. No I/O wiring changes required unless upgrading communication protocols.

What programming software version is compatible with the 1747-L533?
RSLogix 500 version 8.0 or later (current version 12.0 recommended). Older versions (6.x/7.x) may lack support for advanced instructions. Software licenses are perpetual—no subscription fees—and include free firmware updates for the processor.

Does the 1747-L533 support remote I/O over Ethernet networks?
Natively, no—the processor uses RS-232 and DH-485 protocols. However, you can add Ethernet connectivity via 1761-NET-ENI adapters or third-party gateways (ProSoft, Moxa) to bridge DH-485 networks to Ethernet/IP or Modbus TCP. This approach preserves your investment while enabling modern network integration.

What is the typical power consumption and heat dissipation?
The 1747-L533 draws approximately 1.5A at 5V DC from the backplane (7.5W). Heat dissipation is minimal—no forced cooling required in standard industrial enclosures. Ensure chassis power supply can deliver 10A+ total when fully populated with I/O modules.

Is the 1747-L533 suitable for safety-critical applications (SIL-rated)?
No. The SLC 5/03 platform is designed for standard industrial control, not functional safety (SIL 2/3). For safety applications, use Allen-Bradley GuardLogix or SmartGuard controllers with certified safety I/O. The 1747-L533 can interface with safety systems via hardwired interlocks or safety relays.

Ready to Optimize Your Control System?

Contact our automation specialists for application-specific guidance, pricing, and delivery options. Whether you're replacing a failed processor, expanding an existing line, or designing a new installation, we'll help you configure the right solution. Request a quote today or schedule a technical consultation to discuss your project requirements.
