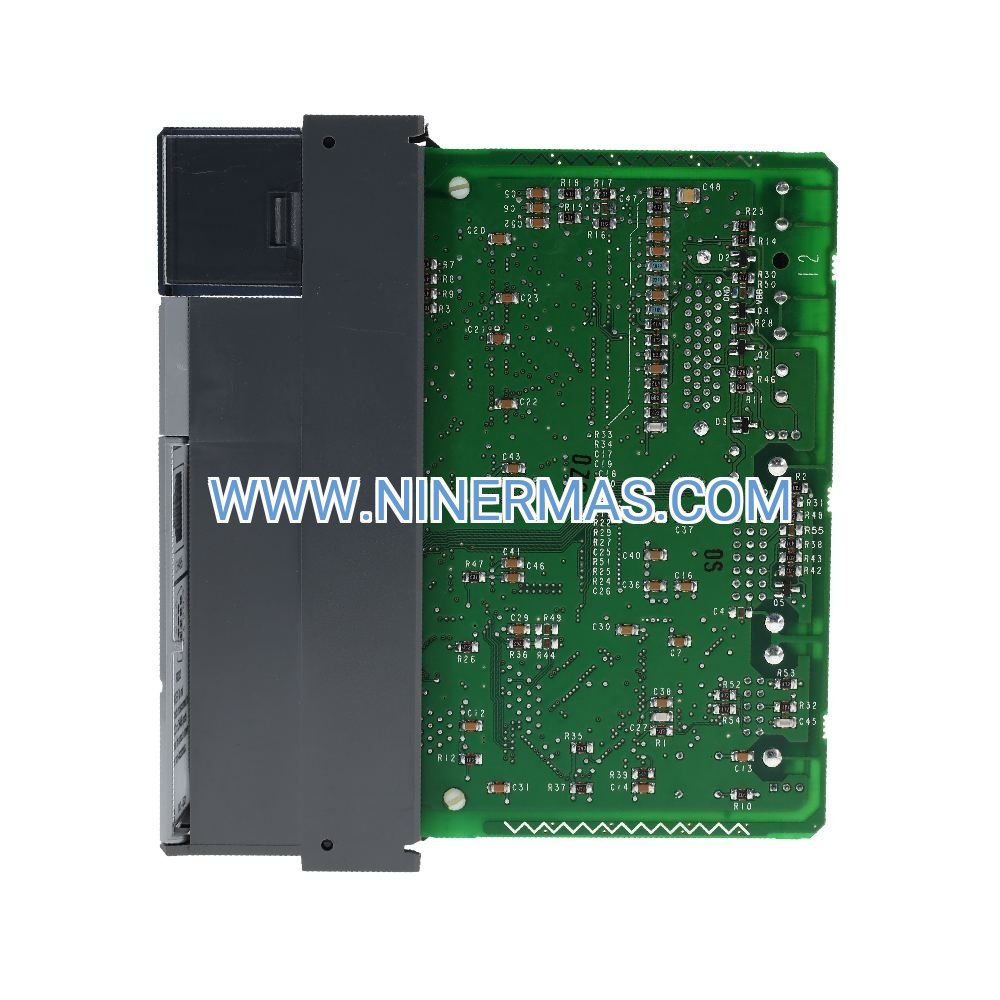

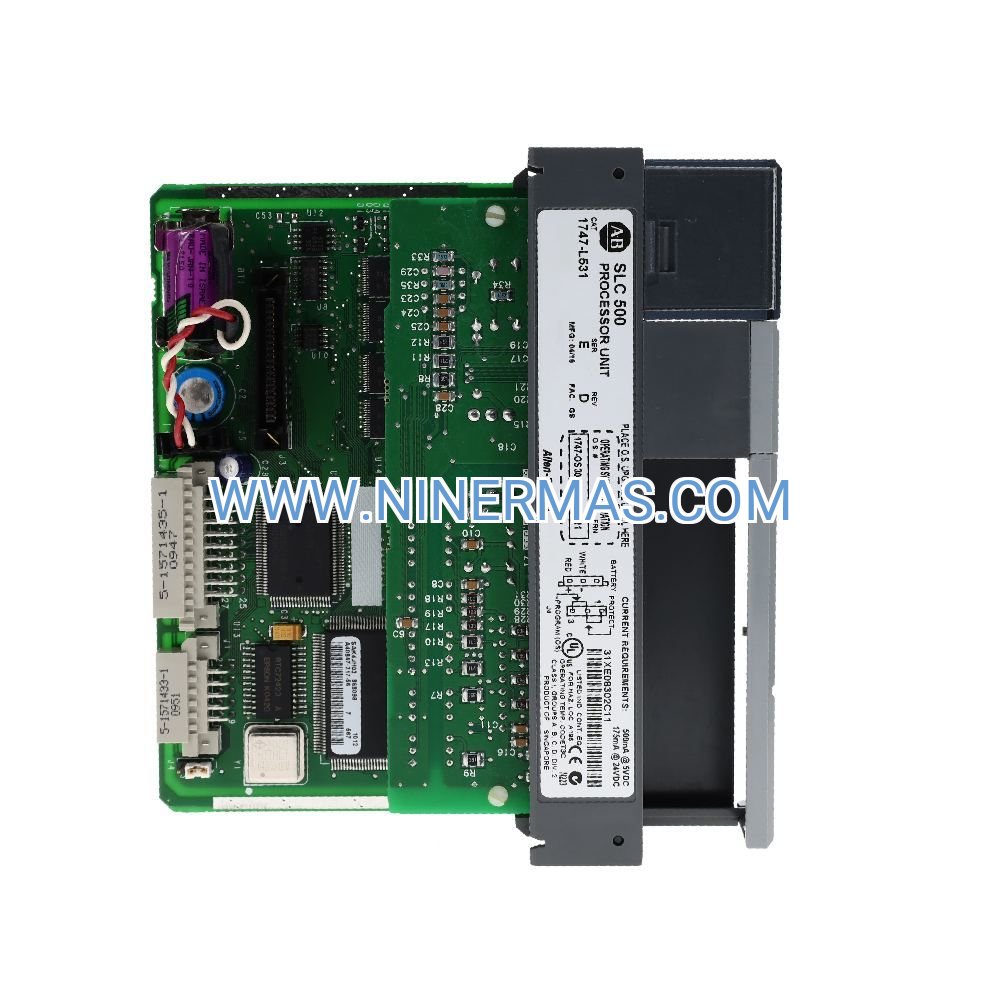

1747-L531 SLC 5/03 Modular Controller (Industrial-Grade Automation Processor)

The 1747-L531 represents Allen-Bradley's proven solution for mid-range industrial control applications requiring robust performance and flexible I/O expansion. Engineered with 8K words of user memory and comprehensive communication capabilities, this SLC 5/03 processor serves as the central intelligence for manufacturing lines, process systems, and automated machinery across diverse industrial sectors. Built on decades of field-proven architecture, it delivers the reliability and scalability that production environments demand.

Production managers and automation engineers choose the 1747-L531 when they need dependable control without the complexity of larger PAC systems. Whether you're modernizing legacy equipment, expanding existing SLC networks, or building new control panels, this processor integrates seamlessly into 1746-series chassis while maintaining compatibility with your established programming workflows and I/O infrastructure.

Key advantages include rapid scan execution (typically 1ms per K of logic), extensive I/O addressing up to 4096 discrete points, and native DH-485 networking for distributed control architectures. The processor's compact footprint and straightforward configuration reduce installation time while its diagnostic capabilities accelerate troubleshooting and minimize unplanned downtime.

Core Capabilities & Technical Advantages

→ 8K User Memory Architecture
Provides ample program storage for complex ladder logic, sequencing routines, and data handling operations. Expandable via EEPROM modules when application requirements grow beyond base capacity.

→ Extensive I/O Addressing Capacity
Supports up to 4096 discrete I/O points and 480 analog channels, enabling comprehensive sensor integration and actuator control across multi-zone production systems without processor bottlenecks.

→ Dual Communication Interfaces
Built-in DH-485 port facilitates peer-to-peer messaging and HMI connectivity across 32-node networks. RS-232 DF1 full-duplex channel enables programming, data collection, and SCADA integration simultaneously.

→ Deterministic Scan Performance
Consistent 1ms/K scan times ensure predictable response to input changes, critical for high-speed packaging, material handling, and synchronized motion applications where timing precision affects product quality.

→ RSLogix 500 Programming Environment
Leverages familiar ladder logic development tools with extensive instruction sets including timers, counters, math functions, and PID control blocks. Offline simulation capabilities reduce commissioning risks.

→ Integrated Diagnostics & Fault Management
Real-time status monitoring, fault logging, and error code reporting accelerate troubleshooting. Battery-backed memory retention preserves programs and data during power interruptions.

Industrial Application Scenarios

✓ Packaging & Material Handling Systems
Controls conveyor sequencing, product sorting, and case packing operations in food processing, pharmaceutical, and consumer goods facilities. Addresses the challenge of coordinating multiple motor drives and sensors while maintaining precise timing for quality packaging output. Delivers consistent throughput rates with minimal reject rates through reliable I/O scanning.

✓ Batch Process Control
Manages recipe-based manufacturing in chemical mixing, paint formulation, and beverage production environments. Solves the complexity of sequencing valve operations, monitoring tank levels, and controlling temperature loops across multi-stage processes. Ensures repeatable batch quality through accurate setpoint control and data logging.

✓ Machine Tool & CNC Integration
Provides auxiliary control for machining centers, lathes, and milling equipment where the processor handles tool changers, coolant systems, and part loading mechanisms. Eliminates coordination issues between machine cycles and material flow by synchronizing upstream/downstream equipment through network messaging.

✓ Water & Wastewater Treatment
Operates pump stations, filtration systems, and chemical dosing equipment in municipal and industrial treatment facilities. Addresses the need for reliable 24/7 operation in harsh environments while enabling remote monitoring and alarm notification through communication networks.

✓ Building Automation & HVAC
Regulates air handling units, chiller plants, and energy management systems in commercial and institutional buildings. Provides cost-effective control for multi-zone climate systems while supporting integration with building management platforms via serial protocols.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1747-L531 when your application requires 8K memory capacity and you need cost-effective expansion within the SLC 500 platform. If your system demands Ethernet connectivity or advanced motion control, consider upgrading to ControlLogix or CompactLogix platforms. For applications under 4K memory requirements, the 1747-L524 SLC 5/02 offers a budget-friendly alternative. Verify total I/O count and communication requirements before finalizing processor selection to ensure adequate capacity for future expansion.

Extended Integration & Connectivity Options

Network Expansion Modules: Add 1747-KE or 1761-NET-ENI modules to enable Ethernet/IP connectivity for integration with modern SCADA systems, cloud-based monitoring platforms, and enterprise MES networks. These adapters bridge legacy DH-485 networks to contemporary IT infrastructure without replacing existing field devices.

Memory Expansion: Install 1747-M1 (16K), M2 (32K), or M11 (48K) EEPROM modules to increase program storage capacity for complex applications involving extensive data tables, recipe management, or advanced sequencing logic. Memory modules also provide non-volatile program backup independent of battery status.

Remote I/O Configuration: Deploy 1747-ASB adapter modules to distribute I/O across multiple locations using Remote I/O scanner functionality. This architecture reduces wiring costs in large facilities while maintaining centralized control logic and simplified troubleshooting.

Custom Programming Services: Our engineering team offers application development, PLC programming migration, and system integration services for customers requiring turnkey solutions or technical assistance with complex control strategies.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 1-2 business days via express courier services. Typical transit time 3-7 days depending on destination. Expedited shipping options available for urgent requirements.

Custom Configuration: Pre-programmed processors with customer-specific logic and I/O configuration ship within 5-7 business days after program approval. Includes documentation package and configuration backup files.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during claim processing.

Technical Support: Access to application engineers for installation guidance, programming assistance, and troubleshooting support via email and phone. Response within 4 business hours for technical inquiries.

Documentation Included: Each processor ships with installation quick-start guide, wiring diagrams, and links to complete technical manuals, instruction sets, and programming examples from Allen-Bradley documentation library.

Frequently Asked Questions

Q: Which SLC 500 chassis models are compatible with the 1747-L531 processor?
A: The processor fits all 1746-series modular chassis including 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot) configurations. It occupies slot 0 and requires a 1746-P1, P2, or P4 power supply in the chassis.

Q: Can I network multiple 1747-L531 processors for distributed control applications?
A: Yes, the DH-485 network supports up to 32 nodes including processors, HMIs, and communication adapters. Use MSG instructions for peer-to-peer data exchange between processors. Maximum network cable length is 10,000 feet (3048 meters) using 1747-C11 cable.

Q: What is the maximum program size I can develop for this processor?
A: Base configuration provides 8K words of user memory. With a 1747-M11 EEPROM module installed, total capacity expands to 48K words, sufficient for programs exceeding 10,000 rungs of ladder logic depending on instruction complexity.

Q: How does scan time performance compare to newer ControlLogix processors?
A: The 1747-L531 delivers approximately 1ms scan time per 1K of logic, suitable for most discrete manufacturing and process control applications. ControlLogix processors offer faster execution (0.5ms/K or better) and are recommended for high-speed motion control or applications requiring sub-millisecond response times.

Q: Is the processor compatible with existing SLC 5/01 and 5/02 I/O modules in my system?
A: Yes, the 1747-L531 maintains full backward compatibility with all 1746-series I/O modules including legacy 5/01 and 5/02 cards. You can mix different I/O module generations within the same chassis without compatibility issues.

Q: What programming software version do I need for optimal compatibility?
A: RSLogix 500 version 8.40 or later is recommended for full feature support and Windows 10/11 compatibility. Earlier versions (7.x and above) will function but may lack newer diagnostic tools and instruction set enhancements.

Take the Next Step

Ready to integrate the 1747-L531 into your automation system? Our technical team is available to discuss your specific application requirements, verify compatibility with existing infrastructure, and provide detailed quotations including recommended accessories and support services. Contact us today to ensure your project stays on schedule with reliable, factory-tested components backed by comprehensive warranty coverage.
