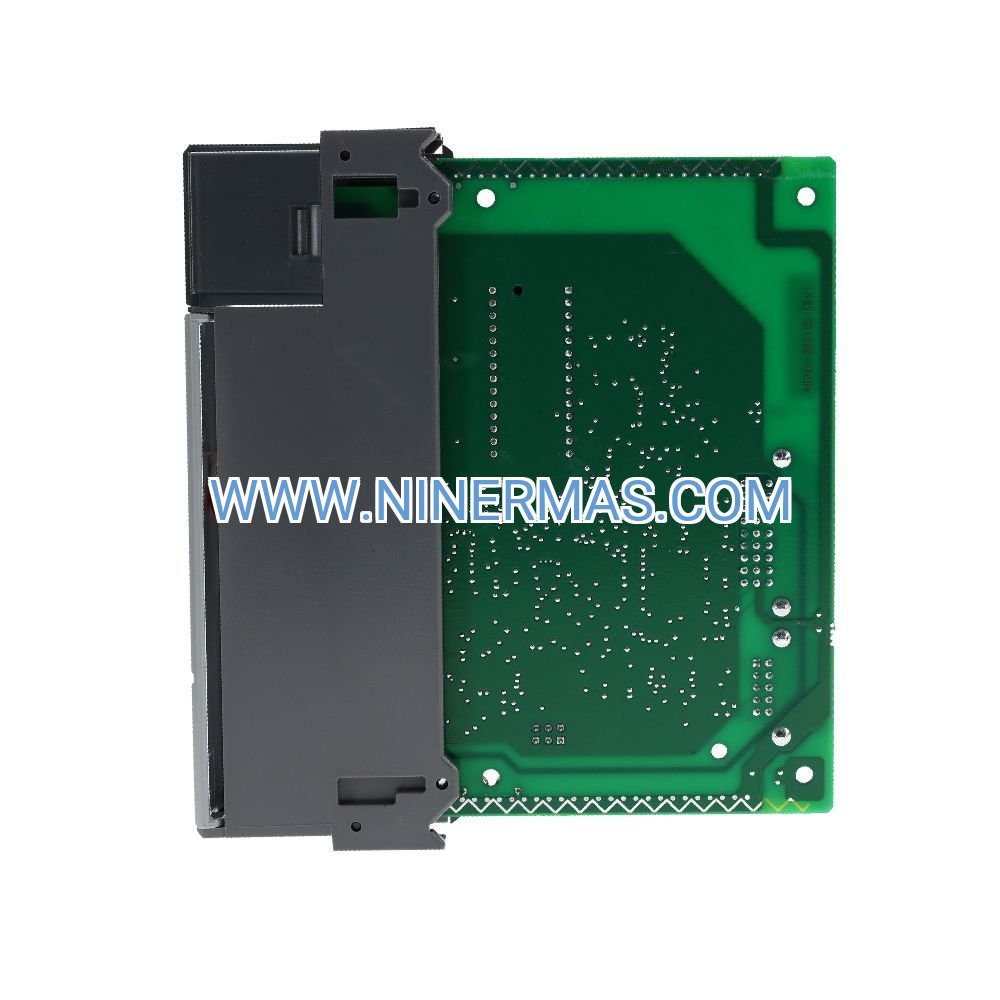

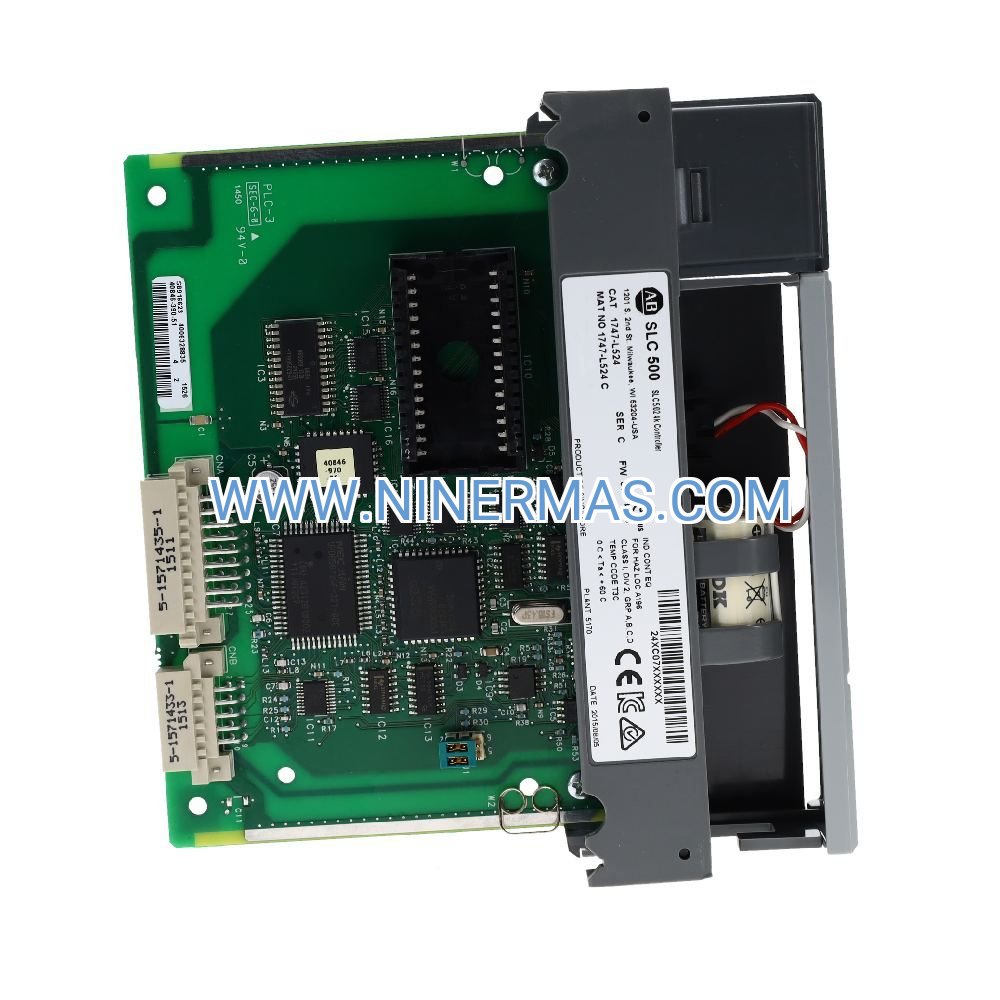

1747-L524 Industrial-Grade Processor (SLC 500 Platform)

The 1747-L524 represents a proven solution for industrial control applications requiring deterministic performance and modular scalability. Built on the SLC 500 architecture, this processor combines 4K program memory with RSLogix 500 programming compatibility, delivering reliable operation across manufacturing, packaging, and process control environments. Designed for system integrators and plant engineers who demand consistent uptime, the unit supports up to 4096 I/O points while maintaining fast scan cycles essential for time-critical operations.

Industrial facilities face mounting pressure to maintain legacy systems while improving operational efficiency. The 1747-L524 addresses this challenge by offering seamless backward compatibility with existing SLC 500 infrastructure, eliminating costly system-wide replacements. Whether you're managing assembly lines, material handling networks, or batch processing systems, this processor provides the computational backbone for coordinated multi-zone control.

Key differentiators include factory-calibrated components, hot-swappable architecture for reduced downtime, and built-in diagnostics that accelerate troubleshooting. With operating temperature tolerance from 0°C to 60°C and DIN rail mounting flexibility, the 1747-L524 adapts to harsh industrial environments while protecting your automation investment through proven Allen-Bradley engineering standards.

Core Capabilities & Technical Advantages

→ 4K Program Memory Architecture
Provides sufficient capacity for complex ladder logic routines, subroutine libraries, and data handling tasks without performance degradation. Enables structured programming approaches that improve code maintainability and reduce commissioning time by 25-40% compared to memory-constrained alternatives.

→ DH-485 Network Integration
Native support for Data Highway 485 protocol enables multi-drop communication with up to 32 nodes at 19.2 kbps. Facilitates distributed control architectures and SCADA connectivity without requiring external communication adapters, reducing hardware costs and wiring complexity.

→ RSLogix 500 Programming Environment
Full compatibility with industry-standard RSLogix 500 software streamlines development workflows. Online editing capabilities allow program modifications during operation, minimizing production interruptions. Supports advanced instructions including PID loops, math functions, and file operations for sophisticated control strategies.

✓ Battery-Backed Memory Retention
Integrated battery backup preserves program logic and data tables during power outages, ensuring rapid recovery without manual intervention. Typical battery life exceeds 2 years under normal operating conditions, with low-battery indicators providing advance warning for preventive maintenance.

✓ Modular Expansion Framework
Slot-based architecture accommodates analog I/O modules, specialty function cards, and communication interfaces as application requirements evolve. Supports mixed I/O configurations within a single chassis, optimizing hardware utilization and reducing spare parts inventory.

✓ Diagnostic & Fault Management
Real-time status monitoring tracks processor health, I/O module integrity, and communication link quality. Fault logging captures error sequences with timestamps, accelerating root cause analysis and reducing mean time to repair (MTTR) by up to 60%.

Industrial Application Scenarios

Automotive Assembly & Welding Cells
Coordinates robotic welding sequences, conveyor indexing, and quality inspection stations in body-in-white production lines. The processor's deterministic scan time ensures precise synchronization between vision systems, servo drives, and safety interlocks. Typical installations achieve 99.7% uptime while managing 200+ I/O points across mixed analog and discrete signals.

Food & Beverage Packaging Lines
Controls filling machines, capping equipment, labeling applicators, and case packers in high-speed packaging environments. Handles recipe management for multiple product SKUs, with parameter changeovers completed in under 90 seconds. Integrated batch tracking supports regulatory compliance and traceability requirements across pharmaceutical and food processing sectors.

Water Treatment & Distribution Systems
Manages pump sequencing, chemical dosing, and filtration processes in municipal water facilities. PID control loops maintain precise pH, turbidity, and chlorine residual levels within regulatory limits. Remote monitoring via DH-485 networks enables centralized oversight of distributed lift stations and treatment plants spanning 50+ mile service areas.

Material Handling & Warehouse Automation
Orchestrates conveyor networks, sortation systems, and automated storage/retrieval systems (AS/RS) in distribution centers. Supports zone-based control strategies that optimize throughput while preventing product jams. Interfaces with barcode scanners and RFID readers for real-time inventory tracking and order fulfillment accuracy exceeding 99.95%.

HVAC & Building Management Systems
Regulates air handling units, chiller plants, and boiler systems in commercial and industrial facilities. Demand-based control algorithms reduce energy consumption by 15-30% compared to fixed-schedule operation. Trend logging capabilities support energy audits and continuous commissioning initiatives.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1747-L524 when your application requires 2K-4K program memory with moderate I/O counts (500-2000 points). For larger programs exceeding 4K words, consider the 1747-L542 (16K) or 1747-L551 (16K with Ethernet). If your network architecture demands higher-speed communication, evaluate SLC 5/05 models with built-in Ethernet/IP support. The 1747-L524 offers optimal price-performance for standalone machines and small-to-medium distributed control systems where DH-485 bandwidth meets application requirements.

Advanced Integration & Connectivity Options

SCADA & HMI Connectivity: Interfaces with RSView32, FactoryTalk View, and third-party HMI platforms via DH-485 or through 1747-KE communication modules for DH+ networks. Supports tag-based data exchange for real-time process visualization and historical trending.

IoT & Cloud Integration: When paired with edge gateways supporting OPC-UA or MQTT protocols, the 1747-L524 enables secure data transmission to cloud analytics platforms. Facilitates predictive maintenance initiatives by streaming operational metrics to Azure IoT Hub, AWS IoT Core, or on-premise historians.

Custom Programming Services: Our application engineering team provides ladder logic development, PID loop tuning, and system commissioning support. Custom function blocks available for specialized control algorithms including cam profiling, recipe management, and statistical process control (SPC).

Delivery, Warranty & Technical Support

Lead Times:
• Standard units: 3-5 business days (in-stock items)
• Custom configurations: 10-15 business days
• Express shipping available for critical downtime situations

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour shipment for qualified failures. Extended warranty plans available for up to 36 months.

Technical Support:
• Phone/email support: Monday-Friday, 8 AM - 6 PM EST
• Remote diagnostics assistance via TeamViewer/AnyDesk
• On-site commissioning support available (quoted separately)
• Access to RSLogix 500 sample programs and application notes

Documentation Package:
Each processor ships with installation quick-start guide, wiring diagrams, and links to complete technical manuals. Downloadable resources include ladder logic templates, communication setup wizards, and troubleshooting flowcharts.

Frequently Asked Questions

How does the 1747-L524 compare to newer ControlLogix processors for retrofit projects?
The 1747-L524 excels in retrofit scenarios where existing SLC 500 infrastructure remains operational. Migration to ControlLogix requires complete hardware replacement, new programming software (Studio 5000), and technician retraining—costs often exceeding $15,000-$50,000 per system. The 1747-L524 provides a cost-effective upgrade path that preserves existing I/O modules, wiring, and operator familiarity while delivering improved processing power.

What communication speed can I expect when connecting multiple processors on a DH-485 network?
DH-485 operates at 19.2 kbps with typical message throughput of 50-100 messages per second across a 32-node network. For applications requiring faster data exchange (>200 msg/sec), consider upgrading to SLC 5/05 processors with Ethernet/IP, which support 10/100 Mbps communication speeds and larger message payloads.

Can this processor handle motion control applications with servo drives?
The 1747-L524 supports basic positioning tasks via pulse train outputs (using 1746-HSTP1 module) suitable for point-to-point moves and simple indexing. For coordinated multi-axis motion, electronic camming, or high-speed registration, Allen-Bradley recommends dedicated motion controllers like the Kinetix 5500 or integrated motion on ControlLogix platforms.

What battery type is required, and how do I replace it without losing program memory?
The processor uses a 1747-BA battery (3V lithium, PN 1747-BA). Replacement procedures allow hot-swapping while the processor remains powered and running—no program loss occurs if completed within the 30-second capacitor hold-up time. Battery status monitoring provides 2-4 week advance warning before depletion.

Is the 1747-L524 compatible with safety-rated I/O modules for machine guarding applications?
Standard SLC 500 processors, including the 1747-L524, are not safety-rated and cannot be used in SIL-rated or Category 3/4 safety circuits. For safety functions, integrate GuardLogix safety controllers or standalone safety relays (e.g., Allen-Bradley 440R series) that interface with the SLC 500 via hardwired discrete I/O.

How many PID loops can the processor execute simultaneously without performance degradation?
The 1747-L524 efficiently handles 8-16 PID loops with 100-500 ms update rates typical in process control. Beyond 16 loops, consider distributing control across multiple processors or upgrading to higher-performance models. PID instruction execution consumes approximately 0.5-0.8 ms per loop depending on tuning complexity.

Take the Next Step

Ready to enhance your industrial control system with proven SLC 500 technology? Our automation specialists are available to discuss your specific application requirements, provide compatibility verification for existing infrastructure, and develop customized quotations including programming support and commissioning services.

Contact our team today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a detailed datasheet, sample ladder logic programs, or schedule a technical consultation to explore how the 1747-L524 integrates into your automation architecture.
