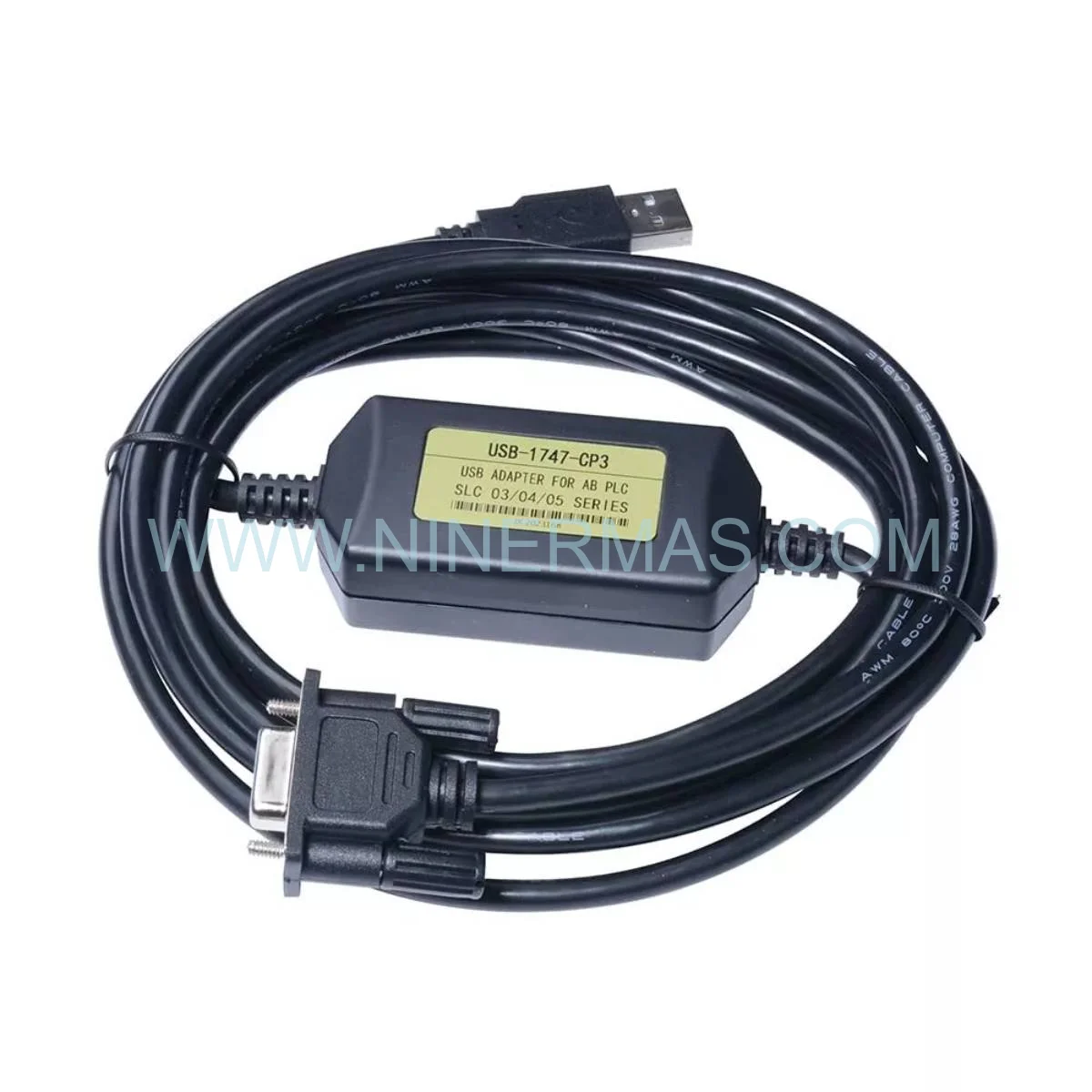

Allen-Bradley 1747-CP3 Programming Cable | SLC 500 DH-485 Serial Interface

Allen-Bradley 1747-CP3 Programming Cable – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components are as operationally critical — yet as frequently overlooked — as the programming interface cable. The Allen-Bradley 1747-CP3 is precisely that kind of essential legacy component: a purpose-built RS-232 to DH-485 serial programming cable that bridges a standard PC COM port to the channel 0 port of Allen-Bradley SLC 500 family processors. In Distributed Control System (DCS) and Process Control environments where SLC 500 racks remain the backbone of production, the Allen-Bradley 1747-CP3 is not optional — it is the only certified direct-connect programming interface for this platform.

What distinguishes this cable from generic third-party alternatives is its full protocol-level compatibility with the DH-485 Fieldbus network. Unlike passive RS-232 adapters, the 1747-CP3 incorporates active signal conversion circuitry, ensuring reliable communication at all supported baud rates without data corruption — a non-negotiable requirement when uploading or downloading logic to a live SLC 5/03, 5/04, or 5/05 processor. Its technical compatibility extends to RSLogix 500, RSLinx Classic, and legacy A.I. Series software, making it the definitive interface for both new installations and Legacy Components maintenance workflows.

Original factory-sealed units of the 1747-CP3 are increasingly scarce. As Rockwell Automation has transitioned its programming ecosystem toward USB and Ethernet-based interfaces, genuine sealed stock of this cable has become a critical procurement target for maintenance engineers managing aging SLC 500 infrastructure. Securing an original unit now is a proactive measure against unplanned downtime.

Key Technical Highlights

Protocol: Active RS-232 (DB9 Female) to DH-485 Fieldbus conversion — not a passive adapter
Cable Length: 3 meters (9.8 ft) — sufficient reach for panel-mounted processors without signal degradation
Baud Rate Support: Up to 19,200 bps — full DH-485 specification compliance
Processor Compatibility: SLC 5/01, 5/02, 5/03, 5/04, 5/05 (1747-L5xx series) — complete SLC 500 family coverage
Connector: DB9 Female (PC side) / 8-pin Mini-DIN (processor Channel 0)
Power: Bus-powered from processor — no external power supply required
Redundancy Ready: Supports online programming in RUN mode for non-critical logic changes, enabling zero-downtime maintenance
Certifications: UL Listed, CE Marked — compliant with global industrial safety standards
Operating Range: 0°C to 60°C (32°F to 140°F) — rated for industrial floor environments

Vertical Industry Applications

The 1747-CP3 is deployed across high-stakes industrial verticals where SLC 500 controllers remain embedded in critical infrastructure:

Petrochemical & Refining: SLC 500 systems govern valve sequencing, pump control, and safety interlock logic in refineries. The 1747-CP3 enables on-site engineers to perform emergency logic modifications during turnaround maintenance, directly reducing system downtime from hours to minutes.

Mining & Mineral Processing: Conveyor control, crusher sequencing, and ore processing lines built on SLC 500 platforms require periodic logic updates. The 1747-CP3 provides the only direct programming path without network infrastructure dependencies — critical in remote mine sites.

Marine & Offshore: Vessel automation systems and offshore platform control panels using SLC 500 hardware depend on this cable for commissioning and fault diagnosis in environments where wireless connectivity is restricted or unavailable.

Food & Beverage Manufacturing: Packaging lines, filling stations, and batch processing systems running SLC 500 logic require validated programming interfaces. The 1747-CP3’s certified compatibility ensures audit-trail integrity during program changes in FDA-regulated facilities.

Water & Wastewater Treatment: Municipal SCADA systems integrating SLC 500 PLCs for pump station and filtration control rely on the 1747-CP3 for field programming during infrastructure upgrades, minimizing service interruption to critical public utilities.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 1747-CP3 supplied through our inventory is 100% Original Allen-Bradley — sourced directly from authorized distribution channels and verified against Rockwell Automation’s genuine part specifications. We do not supply refurbished, remanufactured, or counterfeit components. Each cable ships in its Factory Sealed Condition, with original packaging and labeling intact, providing full traceability for your procurement and quality records.

Our 12-Month Comprehensive Warranty covers all defects in materials, workmanship, and factory-certified functionality. Should any unit fail to perform to specification within the warranty period, we provide immediate replacement — no lengthy RMA processes.

For Emergency Repair scenarios — where a production line is down and every hour represents measurable financial loss — we offer priority emergency delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation, with tracking provided immediately upon dispatch. We serve maintenance teams across North America, Europe, Southeast Asia, and the Middle East.

This is a Critical Part for Industry Safety. In SLC 500-based Safety Instrumented Systems (SIS), the ability to access and verify processor logic is a regulatory requirement. Do not allow your facility to operate without a verified programming interface in your maintenance toolkit.

Buyer’s FAQ — Selection & Sourcing Guide

Q: How do I verify that a 1747-CP3 unit is genuinely original and not a counterfeit?
A: Authentic Allen-Bradley 1747-CP3 cables feature a molded Rockwell Automation logo on the DB9 connector housing, a catalog label with a traceable date code, and consistent cable jacket markings. The Mini-DIN connector should have a precision-machined metal shell — not a plastic housing. We provide photo documentation of the actual unit upon request before shipment.

Q: Where can I obtain the official datasheet and wiring diagram for the 1747-CP3?
A: The official product documentation is published by Rockwell Automation under Publication 1747-IN009. Contact our technical team and we will provide the relevant documentation alongside your order to support your engineering records.

Q: Is the 1747-CP3 compatible with all SLC 500 processor firmware versions?
A: Yes. The 1747-CP3 operates at the hardware protocol level (DH-485 physical layer) and is firmware-agnostic. It is compatible with all SLC 5/01 through SLC 5/05 processors regardless of firmware revision, as long as Channel 0 is configured for DH-485 or DF1 Full-Duplex communication in RSLinx.

Q: My PC does not have a DB9 serial port. Can I still use this cable?
A: Yes. A USB-to-RS-232 adapter (such as the Moxa UPort 1110 or Keyspan USA-19HS) will provide the required COM port. Ensure the adapter uses a chipset supported by RSLinx Classic (FTDI or Prolific PL2303 chipsets are generally recommended). Avoid generic no-brand adapters, which can cause intermittent communication errors.

Q: Is this cable suitable for use in a Legacy Upgrade project where we are migrating from SLC 500 to a newer platform?
A: Absolutely. During a Legacy Upgrade, the 1747-CP3 is essential for extracting the existing ladder logic from the SLC 500 processor before decommissioning. It allows engineers to perform a full program backup, document the existing control logic, and validate the migrated program against the original — a critical step in any responsible system migration.

Q: What is the lead time for orders outside of standard stock availability?
A: For in-stock units, shipment occurs within 24 hours. For sourced units, our global supply chain network typically delivers within 3-7 business days for most regions. Emergency procurement for critical plant shutdowns can be escalated — contact us directly for expedited sourcing commitments.
