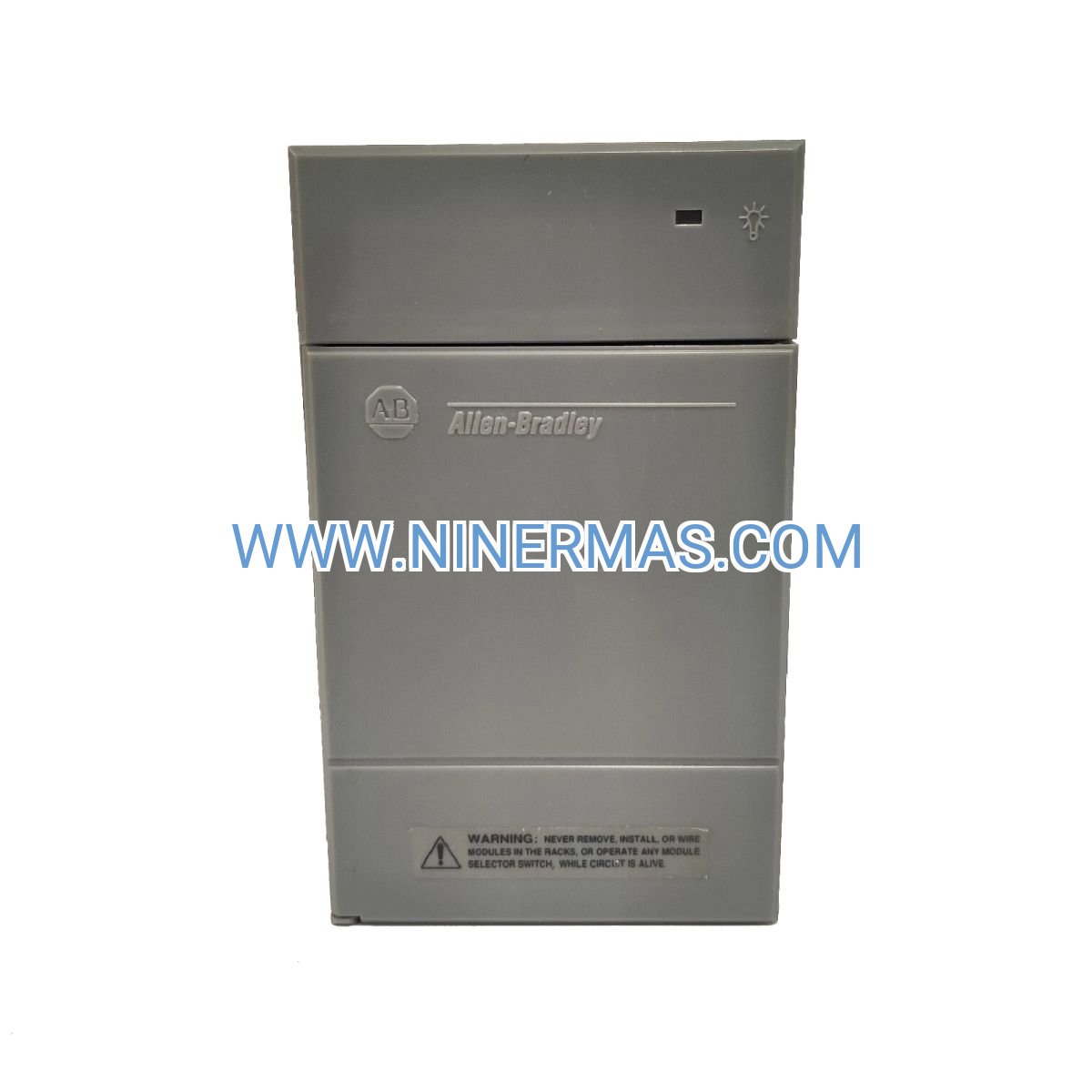

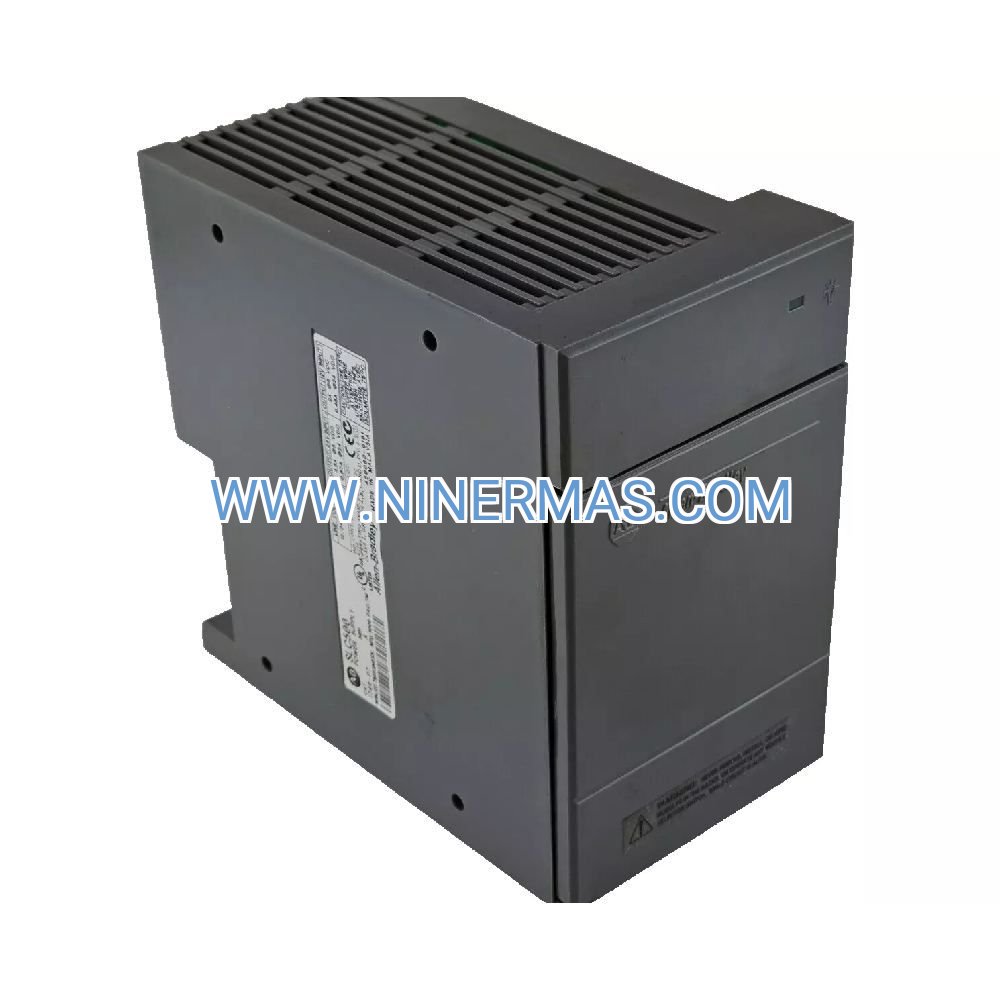

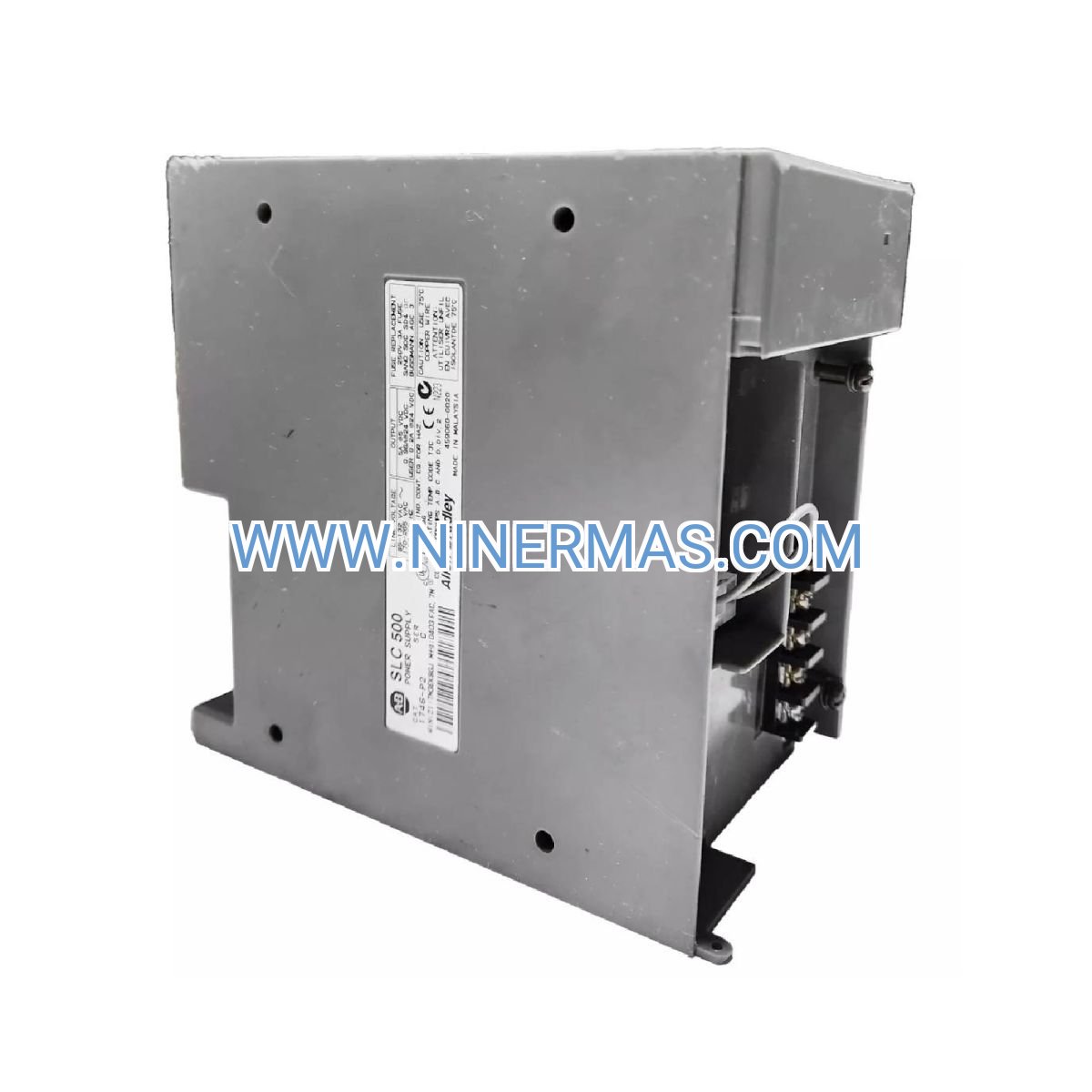

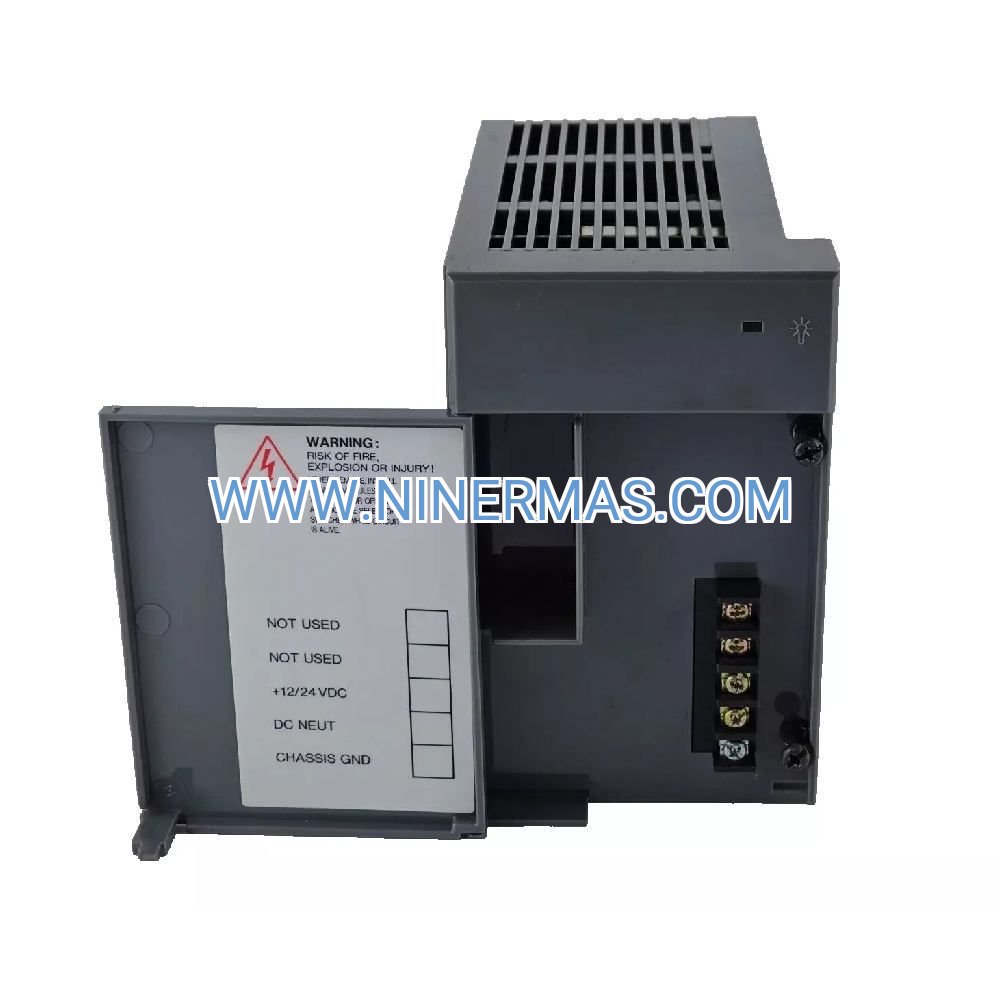

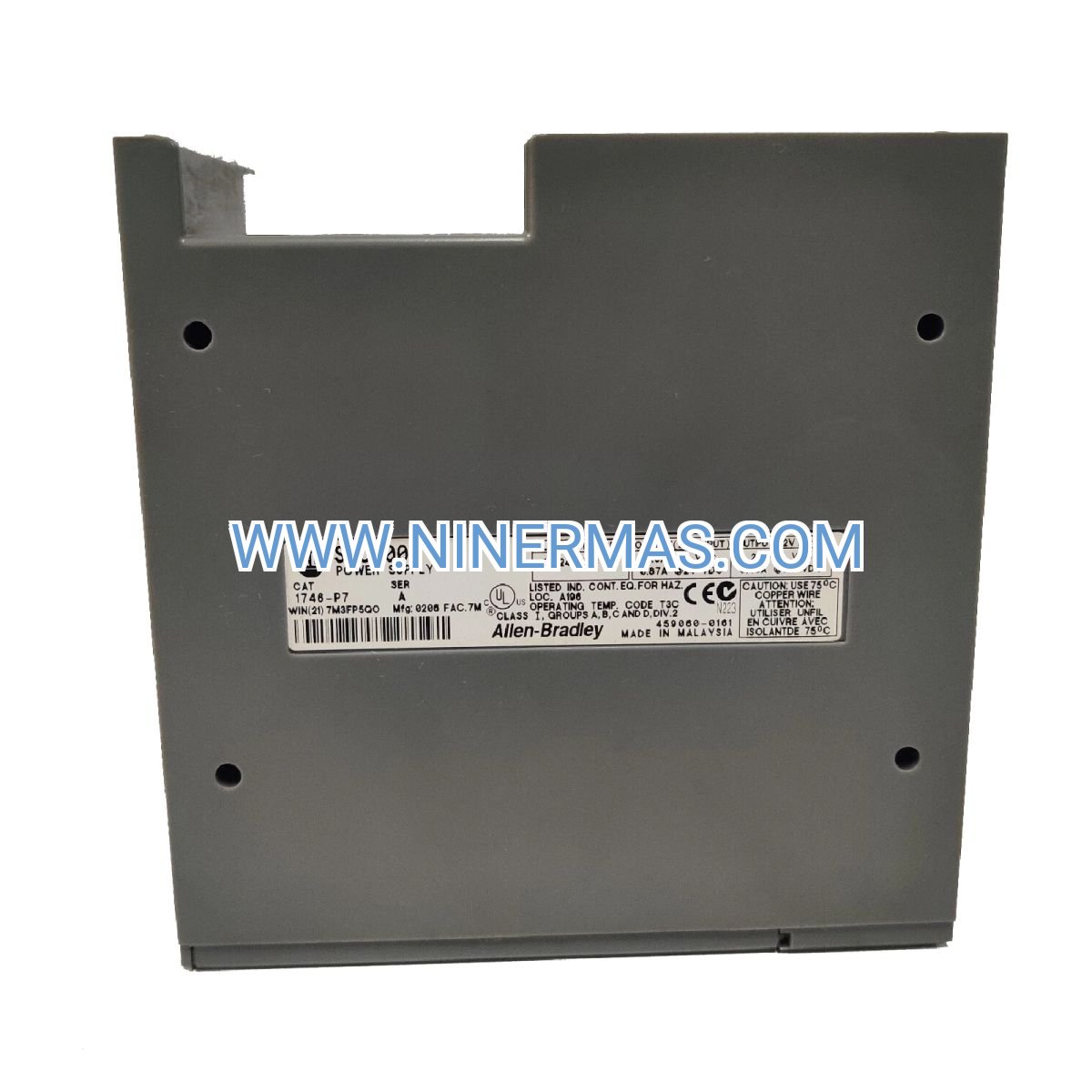

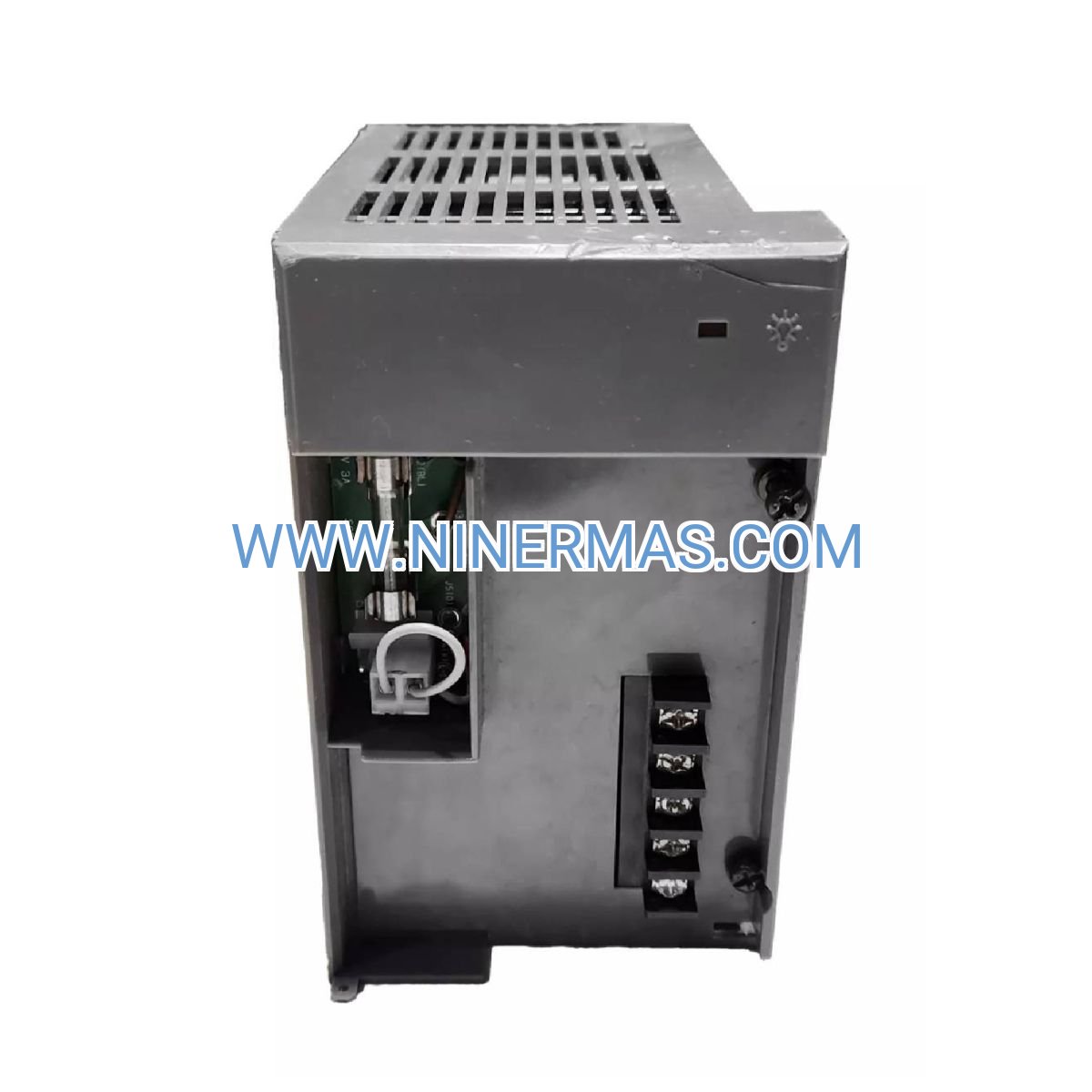

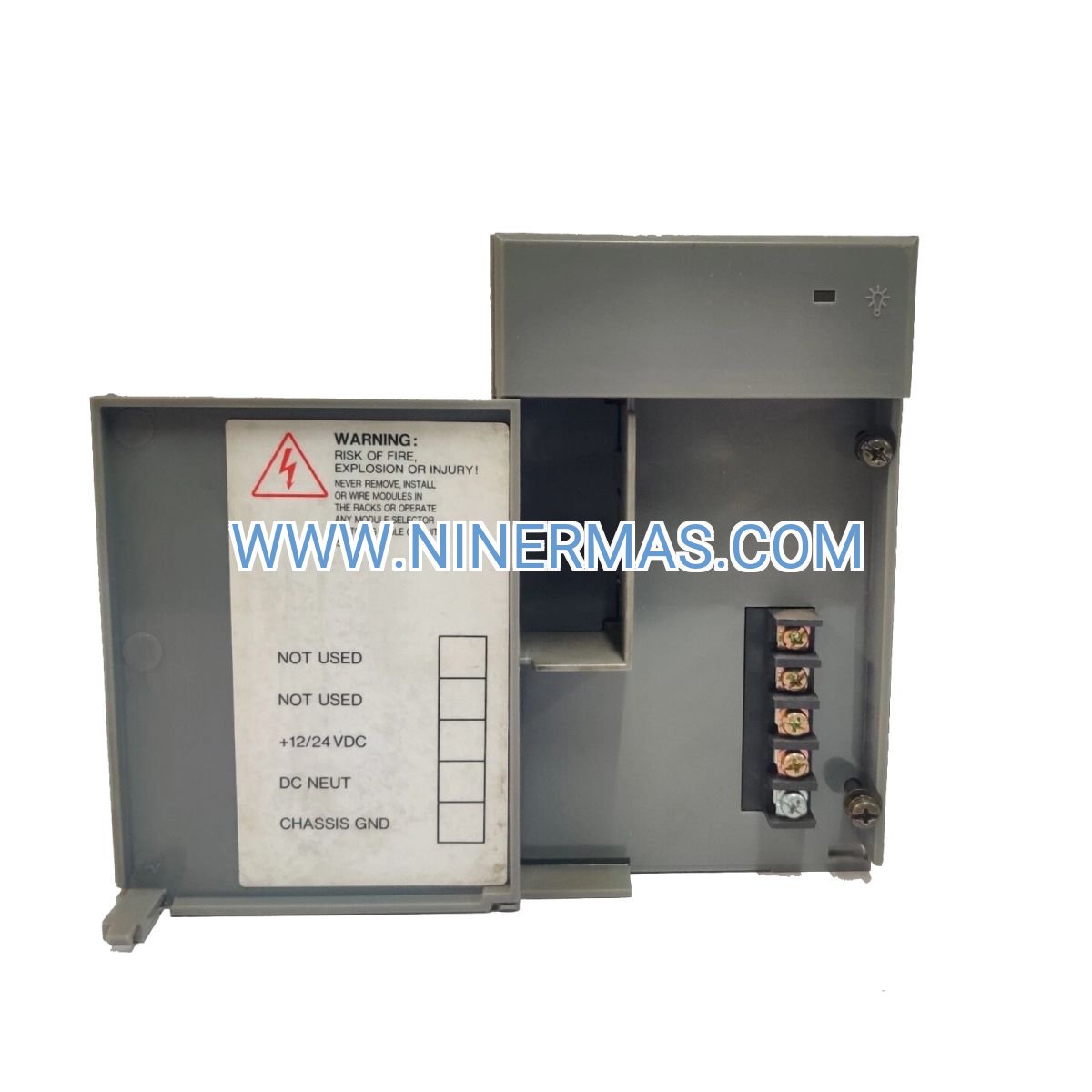

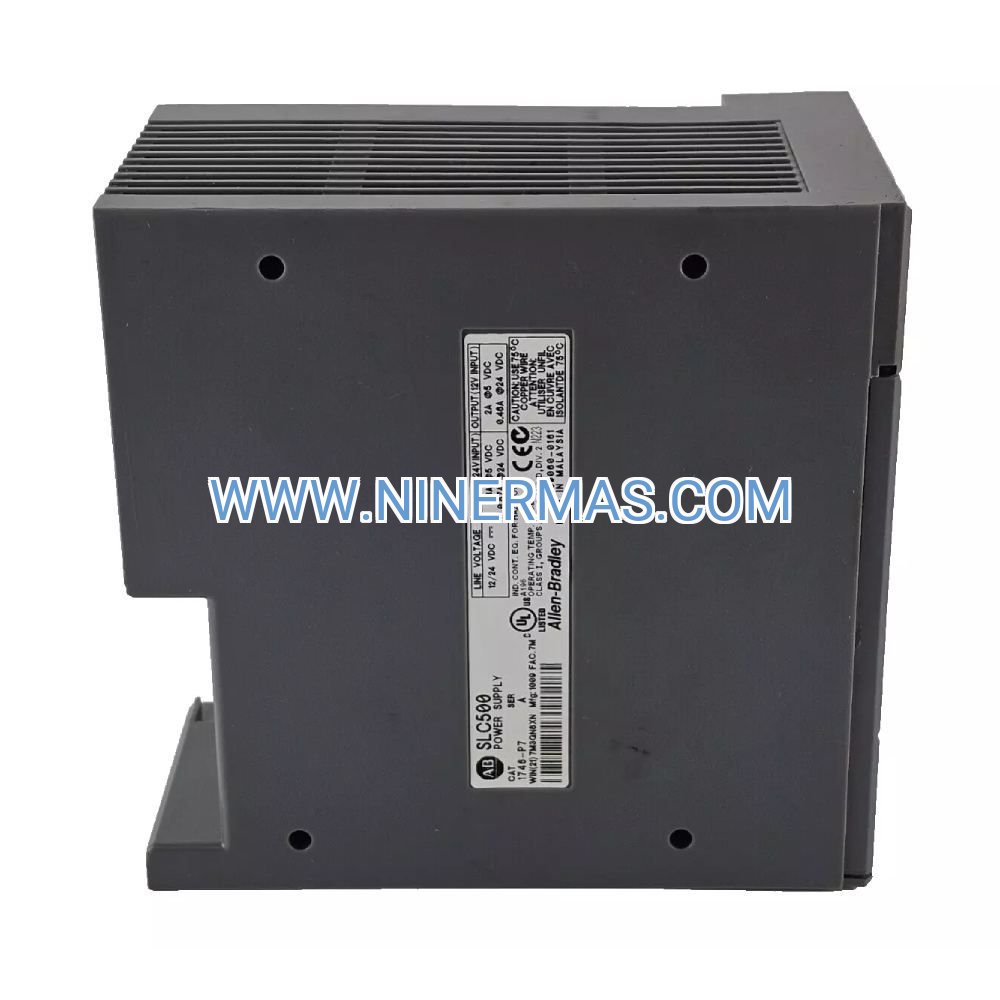

1746-P7 Industrial DC Power Module (SLC 500 Automation Platform)

The 1746-P7 represents a critical infrastructure component for SLC 500 programmable logic controller ecosystems, delivering regulated dual-voltage DC power through a compact rack-mountable architecture. Engineered for continuous-duty industrial environments, this power module converts variable 10-30V DC input sources into stable 12V and 24V outputs, ensuring consistent operation of processors, I/O cards, and communication interfaces across manufacturing, process control, and material handling installations.

Designed for system integrators and maintenance teams managing legacy automation infrastructure, the 1746-P7 addresses power distribution challenges in facilities requiring reliable SLC 500 platform support. Its hot-swappable capability and backplane integration minimize downtime during service operations, while built-in diagnostics accelerate troubleshooting in mission-critical applications.

With UL and CE certifications validating compliance to international safety standards, this power supply module delivers the performance consistency demanded by automotive assembly lines, pharmaceutical packaging systems, food processing equipment, and chemical batch control installations where unplanned outages translate directly to production losses.

Core Capabilities & Business Impact

→ Wide-Range Input Acceptance (10-30V DC)
Accommodates diverse facility power infrastructures without requiring dedicated regulated sources, reducing installation complexity and enabling flexible deployment across multi-vendor equipment environments. Eliminates need for intermediate voltage conversion stages.

→ Simultaneous Dual-Voltage Output Delivery
Provides independent 12V and 24V DC rails from single module, supporting mixed-voltage I/O configurations and reducing chassis slot consumption. Enables consolidated power architecture for systems requiring multiple voltage domains.

→ Backplane-Integrated Power Distribution
Delivers power directly through SLC 500 chassis backplane, eliminating external wiring harnesses and associated failure points. Streamlines installation procedures and improves system reliability through reduced interconnection complexity.

✓ Visual Diagnostic Indicators
Front-panel LED status displays provide immediate operational feedback for output voltage presence and fault conditions, enabling rapid assessment during commissioning and maintenance activities without requiring test equipment.

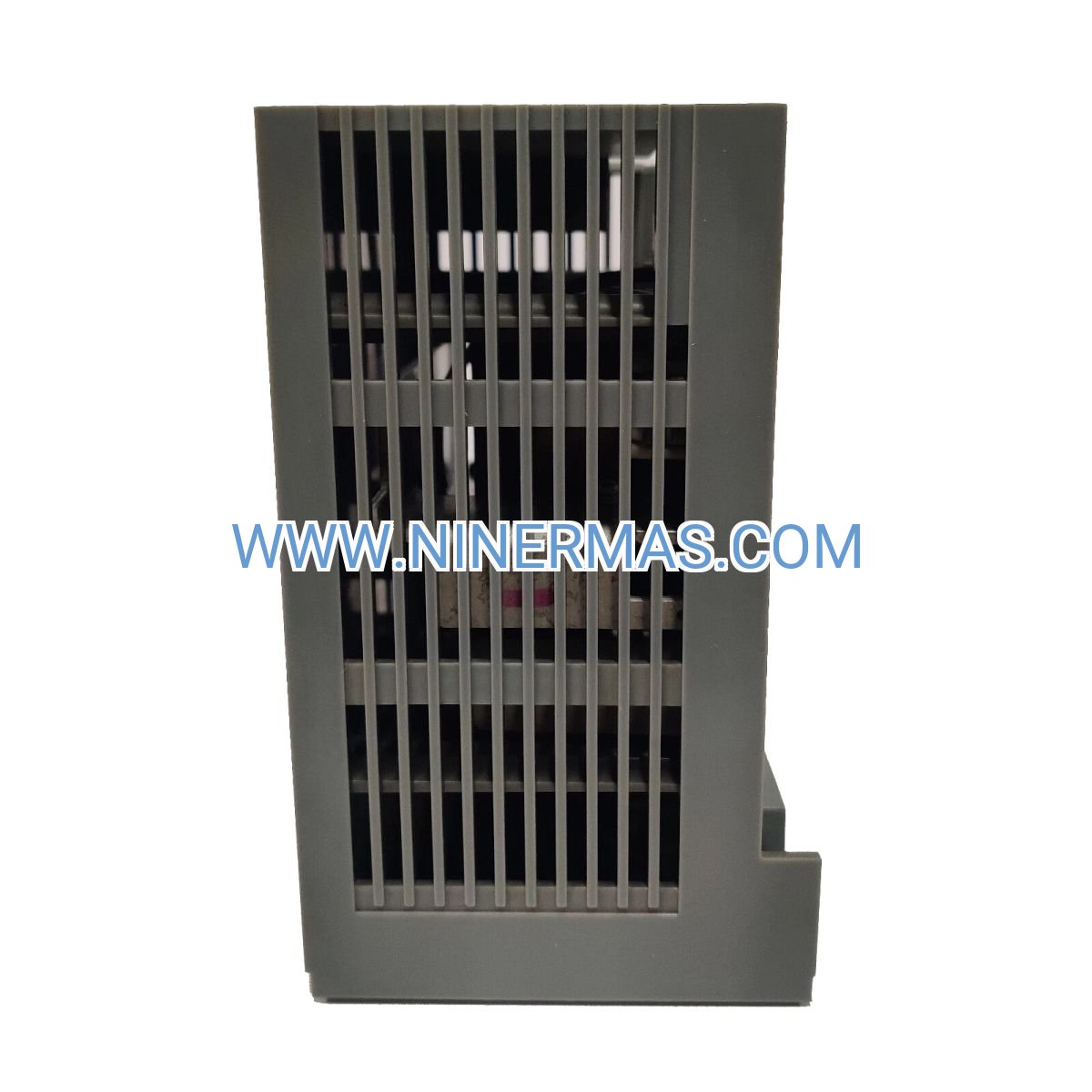

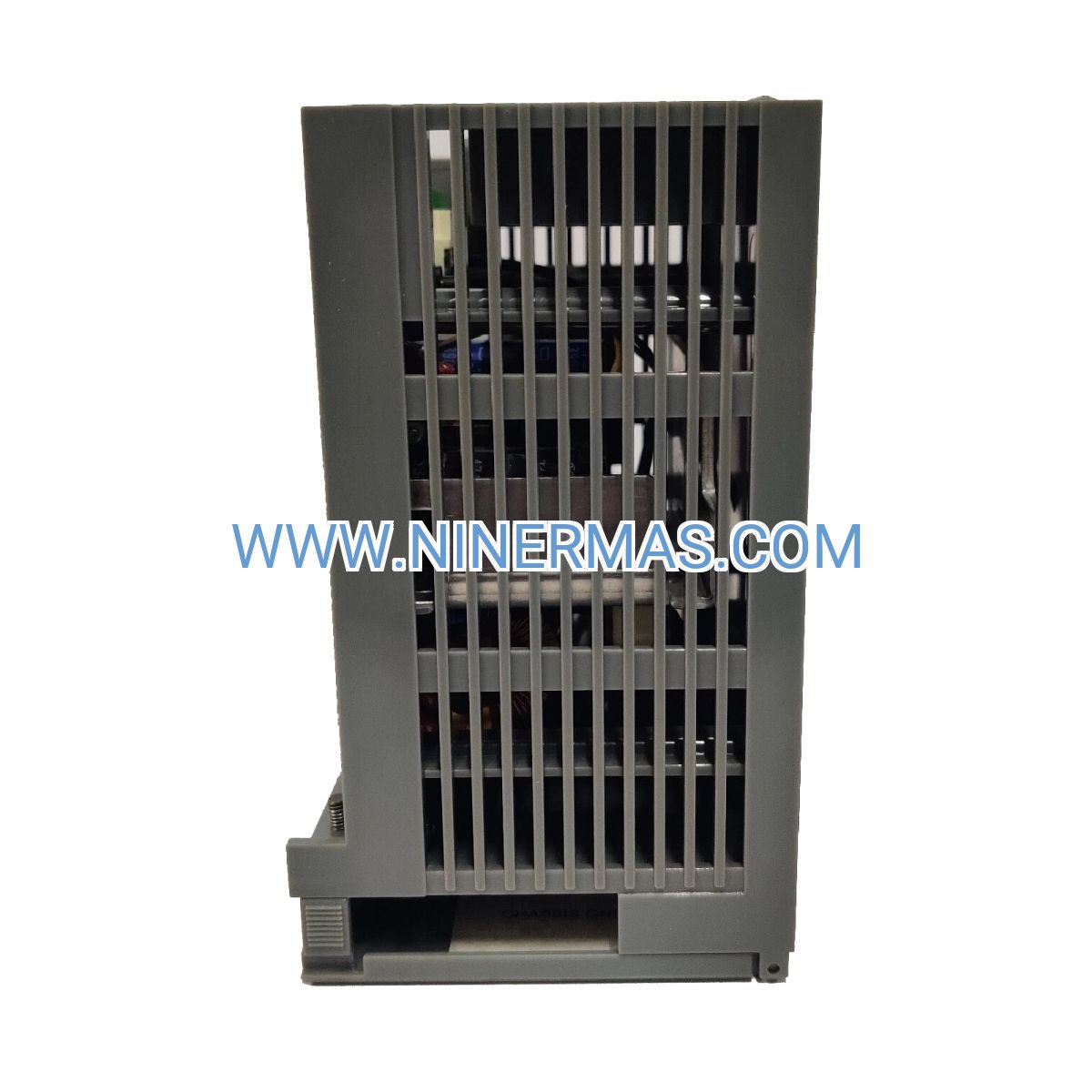

✓ Thermal Management Design
Convection-cooled construction operates reliably across 0-60°C ambient range without forced airflow requirements, supporting installation in sealed enclosures and temperature-variable production environments common to industrial facilities.

✓ Overcurrent Protection Circuitry
Integrated current-limiting safeguards automatically protect against short-circuit conditions and overload scenarios, preventing cascading failures and protecting downstream I/O modules during fault events.

Industrial Application Environments

Automotive Manufacturing Systems
Powers SLC 500 controllers managing robotic welding cells, conveyor sequencing, and parts tracking systems in assembly plants. Addresses need for reliable power delivery in high-EMI environments with variable input voltage conditions from facility distribution systems.

Food & Beverage Processing Lines
Supports packaging machinery, filling equipment, and batch control systems requiring washdown-rated enclosures. Solves power stability challenges in facilities with motor-driven loads causing voltage fluctuations on common DC bus infrastructure.

Pharmaceutical Production Equipment
Enables validated automation systems for tablet presses, coating machines, and material handling in GMP-regulated facilities. Provides documented power quality for systems requiring traceability and change control procedures.

Chemical Batch Control Installations
Integrates with SLC 500 platforms managing reactor sequencing, valve control, and recipe execution in process industries. Delivers consistent performance in environments with corrosive atmospheres and temperature cycling.

Material Handling & Distribution Centers
Powers sortation systems, conveyor networks, and warehouse automation equipment operating 24/7 schedules. Addresses uptime requirements through hot-swap capability enabling maintenance without production interruption.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total system current draw including processor (typically 800mA), I/O modules (50-200mA each), and communication cards before specifying. For systems exceeding 3A total load, implement redundant power configuration using dual 1746-P7 modules in supported chassis. Verify input voltage stability remains within 10-30V range under worst-case facility conditions including motor starting transients.

Advanced Integration Options

Redundant Power Architectures: Deploy dual 1746-P7 modules in chassis supporting redundant configurations (1746-A10, A13) to achieve N+1 availability for critical control systems. Automatic load sharing and failover occurs without processor interruption.

Remote Monitoring Integration: Output status signals interface with supervisory systems via discrete I/O modules, enabling SCADA-level power supply health monitoring and predictive maintenance scheduling based on operating hours and thermal cycling.

Custom Voltage Configurations: For applications requiring non-standard output voltages or higher current capacity, consult factory engineering for modified specifications supporting specialized industrial equipment interfaces.

Delivery Timelines & Service Framework

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 4-6 weeks for factory-modified specifications
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Application engineering assistance for system design, troubleshooting, and integration guidance
Documentation Package: Installation manual, wiring diagrams, dimensional drawings, and compliance certificates included with shipment

Frequently Asked Questions

What is the maximum I/O module count supported by a single 1746-P7 power supply?
Typical configurations support 8-10 standard I/O modules plus processor, depending on module types. High-density analog modules and specialty cards consume more current; calculate total system draw against 3A @ 5V budget to determine exact capacity.

Can the 1746-P7 operate from solar panel or battery backup systems?
Yes, the wide 10-30V input range accommodates renewable energy sources and UPS systems. Ensure voltage regulation maintains input within specification during charge/discharge cycles and implement appropriate filtering for switching noise.

How does hot-swap capability work during power supply replacement?
In redundant configurations, the secondary 1746-P7 automatically assumes full load when primary unit is removed. Replace failed module and restore to chassis; automatic load balancing resumes without manual intervention or processor reset.

What diagnostic capabilities are available for troubleshooting power issues?
Front-panel LEDs indicate DC OK status and fault conditions. For detailed analysis, measure backplane voltages at test points using multimeter, or monitor processor diagnostic registers for power supply status flags via programming software.

Is the 1746-P7 compatible with newer ControlLogix or CompactLogix platforms?
No, this module is SLC 500-specific. ControlLogix systems require 1756-series power supplies, while CompactLogix uses integrated power or 1769-series modules. Platform migration requires complete power architecture redesign.

What environmental conditions affect power supply lifespan and reliability?
Operating continuously at upper temperature limits (55-60°C) and maximum load reduces MTBF. Maintain adequate enclosure ventilation, avoid dust accumulation on cooling fins, and operate at 70-80% of rated capacity for optimal service life exceeding 10 years.

Request Technical Consultation

Our application engineering team provides complimentary system design review, power budget analysis, and integration planning for SLC 500 modernization projects. Contact us with your chassis configuration, I/O module list, and facility power specifications to receive customized recommendations and formal quotations.
