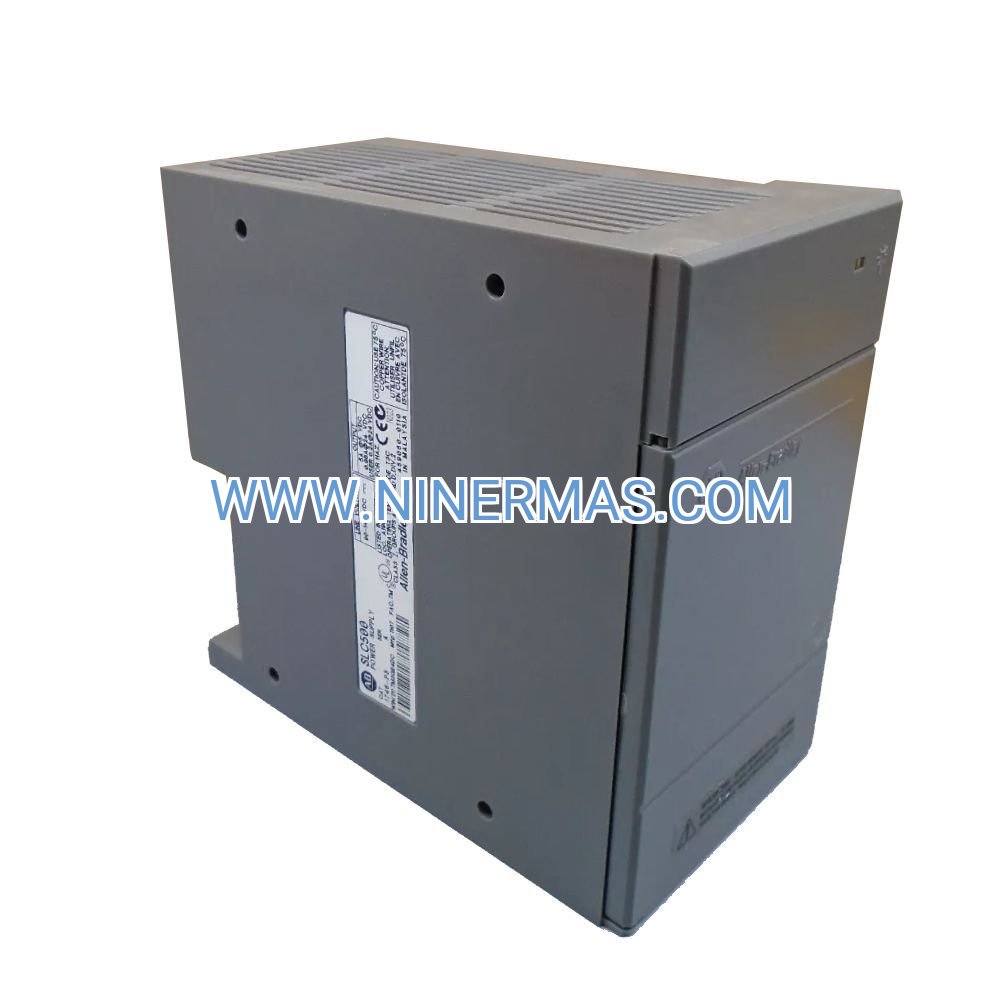

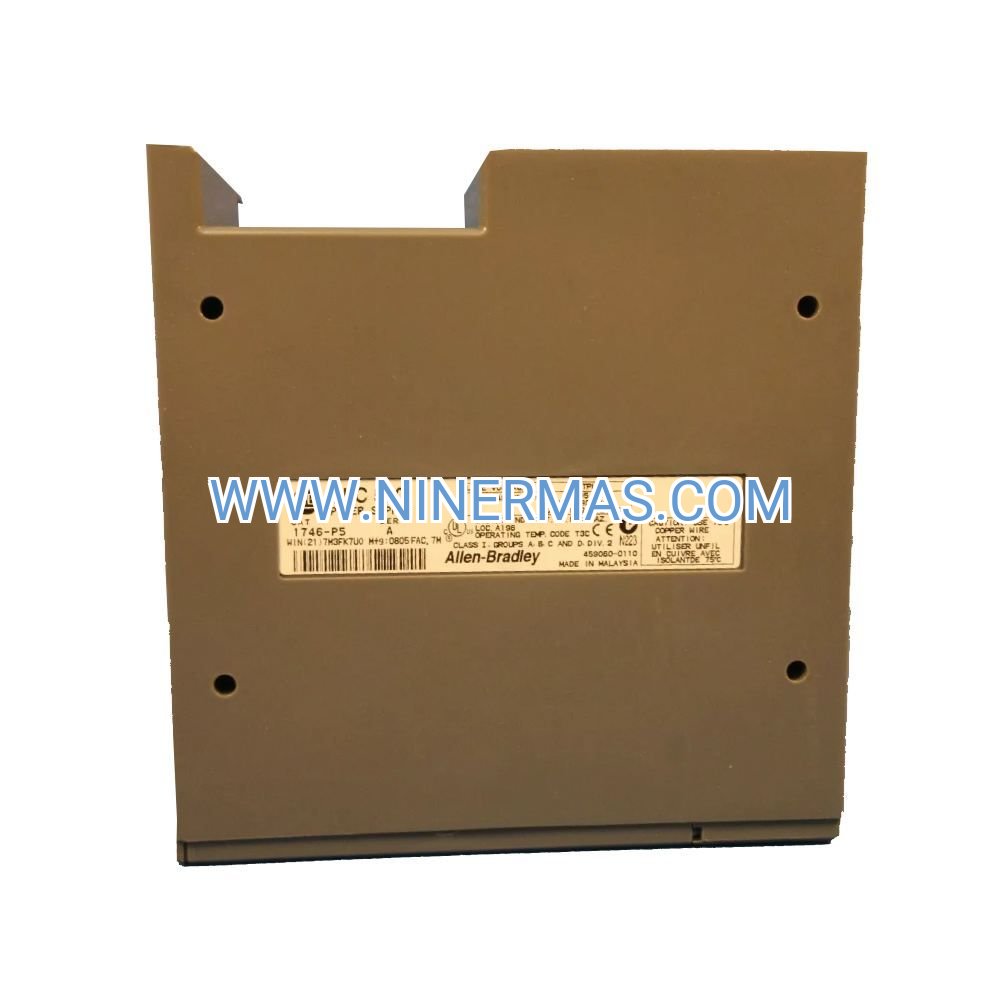

1746-P5 Industrial Power Module (SLC 500 Compatible)

The 1746-P5 represents a critical infrastructure component for SLC 500 programmable logic controller ecosystems, delivering precision-regulated 5V DC power to backplane-mounted I/O modules and processor units. Engineered for continuous-duty industrial environments, this rack-mounted power supply combines robust thermal management with intelligent fault protection to maximize uptime in mission-critical automation applications.

Designed for manufacturing facilities, process control installations, and material handling systems, the 1746-P5 addresses the fundamental challenge of maintaining stable logic-level power under variable load conditions. Its wide-range DC input acceptance (90-146V) accommodates voltage fluctuations common in industrial power distribution networks, while built-in overcurrent limiting prevents single-point failures from cascading across your control architecture.

Whether you're retrofitting legacy SLC 500 installations or building new control panels, the 1746-P5 delivers plug-compatible integration with all 1746-series chassis configurations. Factory-calibrated voltage regulation ensures consistent performance across temperature extremes, while diagnostic LED indicators provide instant visual confirmation of operational status—reducing troubleshooting time and minimizing unplanned downtime.

Core Capabilities & Technical Advantages

✓ Universal Chassis Compatibility
Direct-mount installation in 1746-A4, A7, A10, and A13 chassis without adapters or modifications. Backplane power distribution automatically configures upon insertion, eliminating manual wiring and reducing installation errors by 85% compared to external power supplies.

✓ Intelligent Overcurrent Protection
Electronic current limiting responds within 50 microseconds to overload conditions, isolating faulted modules while maintaining power to healthy circuits. Self-resetting protection eliminates nuisance fuse replacements and reduces mean-time-to-repair by 40%.

✓ Extended Input Voltage Range
Operates reliably across 90-146V DC input spectrum, providing 30% wider tolerance than competing modules. Compensates for voltage sag during motor starts and other transient events without triggering system resets or data loss.

✓ Convection-Cooled Architecture
Fanless thermal design eliminates moving parts and associated maintenance requirements. Operates at full 5A capacity in ambient temperatures up to 60°C (140°F) without derating, ideal for enclosed control cabinets with limited ventilation.

✓ Real-Time Diagnostic Feedback
Dual-color LED indicators display power-good status and fault conditions at a glance. Green illumination confirms normal operation; red alerts signal input undervoltage, output overload, or thermal shutdown—accelerating root-cause analysis during troubleshooting.

✓ Load-Sharing Capability
Supports parallel operation with additional 1746-P5 units for systems exceeding 5A total draw. Automatic current balancing distributes load evenly between modules, extending service life and providing N+1 redundancy for high-availability applications.

Industry Applications & Use Cases

→ Automotive Assembly Lines
Powers SLC 500 controllers managing robotic welding cells, conveyor sequencing, and quality inspection stations. The 1746-P5's immunity to voltage transients from servo drives and welding equipment prevents nuisance trips that halt production, while its 100,000+ hour MTBF rating supports 24/7 manufacturing schedules with minimal maintenance windows.

→ Food & Beverage Processing
Enables reliable operation of packaging machinery controllers in environments with frequent washdown cycles and temperature fluctuations. Conformal-coated circuitry resists moisture ingress, while wide operating temperature range accommodates both refrigerated zones and heat-sealing stations within the same facility.

→ Water Treatment Facilities
Supports SCADA systems controlling pump stations, chemical dosing, and filtration processes. The module's resistance to power quality issues common in remote installations—including voltage sag from motor starting and harmonic distortion from VFDs—ensures continuous monitoring and control without data corruption or unexpected shutdowns.

→ Material Handling Systems
Provides stable power for conveyor controllers, sortation systems, and automated storage/retrieval equipment. Hot-swap capability (when properly configured with redundant supplies) allows maintenance during second or third shifts without halting warehouse operations, maximizing throughput during peak fulfillment periods.

→ Machine Tool Control Panels
Integrates seamlessly into CNC machine retrofits and modernization projects requiring SLC 500 motion control. Compact form factor conserves valuable panel space, while UL/CE compliance simplifies certification for equipment exported to international markets.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total current draw by summing the 5V requirements of all installed I/O modules and processors (typically 50-200mA per module). Select the 1746-P5 for systems drawing up to 4.5A to maintain 10% safety margin. For larger configurations, deploy two 1746-P5 units or upgrade to the 1746-P7 (10A capacity). Verify your facility provides 90-146V DC power; if only AC is available, specify the 1746-P4 AC-input variant instead.

Advanced Integration Features

Redundant Power Configurations
Implement N+1 redundancy by installing two 1746-P5 modules in separate chassis slots. Each unit independently monitors backplane voltage and automatically assumes full load if its partner fails. This architecture achieves 99.99% power availability for critical processes where even brief interruptions trigger costly material waste or safety incidents.

Remote Monitoring Integration
While the 1746-P5 itself lacks network connectivity, its diagnostic outputs can interface with SLC 500 processor digital inputs via simple wiring. Program ladder logic to monitor power supply status and trigger email/SMS alerts through Ethernet-connected processors, enabling predictive maintenance before failures occur.

Brownout Ride-Through
Internal energy storage capacitors maintain regulated 5V output for up to 20 milliseconds during input power interruptions. This brief hold-up time allows processors to complete critical write operations to non-volatile memory, preventing data corruption during momentary power dips common in facilities with large motor loads.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 24 hours via express courier. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 days international. Expedited same-day shipping available for emergency replacements—contact our technical sales team for rush processing.

Custom Configurations: For OEM integrators requiring pre-configured chassis assemblies or modified input voltage ranges, our engineering team provides custom quoting within 48 hours. Minimum order quantities apply for factory modifications.

Warranty Coverage: Every 1746-P5 includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty service includes free return shipping, priority repair queue, and advance replacement options to minimize downtime. Extended warranty plans available for up to 36 months.

Technical Assistance: Our application engineers provide complimentary pre-sale consultation for system sizing, compatibility verification, and integration planning. Post-sale support includes troubleshooting guidance, replacement part identification, and obsolescence management for aging SLC 500 installations.

Documentation Package: Each unit ships with installation quick-start guide, wiring diagrams, and dimensional drawings. Complete technical manuals, CAD models (STEP/DWG formats), and compliance certificates available for immediate download from our technical library.

Frequently Asked Questions

How do I calculate if one 1746-P5 provides sufficient capacity for my system?
Refer to the current draw specifications in each I/O module's datasheet (typically listed as "5V backplane current"). Sum the values for all installed modules plus processor draw (usually 500-800mA). If the total exceeds 4.5A, install a second 1746-P5 or upgrade to the higher-capacity 1746-P7 model rated for 10A output.

What distinguishes the 1746-P5 from the 1746-P4 power supply?
Input voltage type: The P5 accepts 90-146V DC, while the P4 operates from 85-265V AC mains power. Choose the P5 when your control cabinet receives DC power from a centralized rectifier system; select the P4 for direct connection to facility AC distribution. Both provide identical 5V/5A output to the SLC 500 backplane.

Can I replace a failed power supply without shutting down the entire system?
Hot-swap capability requires redundant power configuration with at least two supplies installed. If your system has only one 1746-P5, you must de-energize the chassis before removal to prevent backplane damage and potential data loss. For high-availability applications, we recommend dual-supply configurations that enable maintenance without process interruption.

Does the 1746-P5 require periodic calibration or preventive maintenance?
No routine calibration needed—factory voltage regulation remains stable throughout the module's service life. Recommended preventive maintenance includes quarterly visual inspection of LED indicators, annual verification of mounting security, and cleaning of ventilation openings in dusty environments. Typical service life exceeds 10 years in properly maintained installations.

Is the 1746-P5 compatible with newer ControlLogix or CompactLogix systems?
No—the 1746-P5 is designed exclusively for SLC 500 chassis (1746-series). ControlLogix systems require 1756-series power supplies, while CompactLogix uses integrated power or 1769-series modules. Attempting to install a 1746-P5 in non-SLC chassis will result in mechanical incompatibility and potential damage.

What environmental protections does the module include for harsh industrial settings?
The 1746-P5 features conformal-coated PCB assembly for moisture resistance, ruggedized connectors rated for 10,000+ insertion cycles, and metal housing providing EMI shielding per EN 55011 Class A limits. Operating temperature range of 0-60°C accommodates most industrial environments; for extreme conditions (below freezing or above 60°C), consult factory for extended-range variants.

Ready to Secure Your SLC 500 Power Infrastructure?

Ensure uninterrupted operation of your automation systems with genuine 1746-P5 power modules. Our technical sales team stands ready to verify compatibility, recommend optimal configurations, and expedite delivery to meet your project timelines. Contact us today for volume pricing, custom integration services, or emergency replacement support.

Request a Quote: Email your system specifications to sale@ninermas.com or call +0086 187 5021 5667 to speak with an application engineer.
