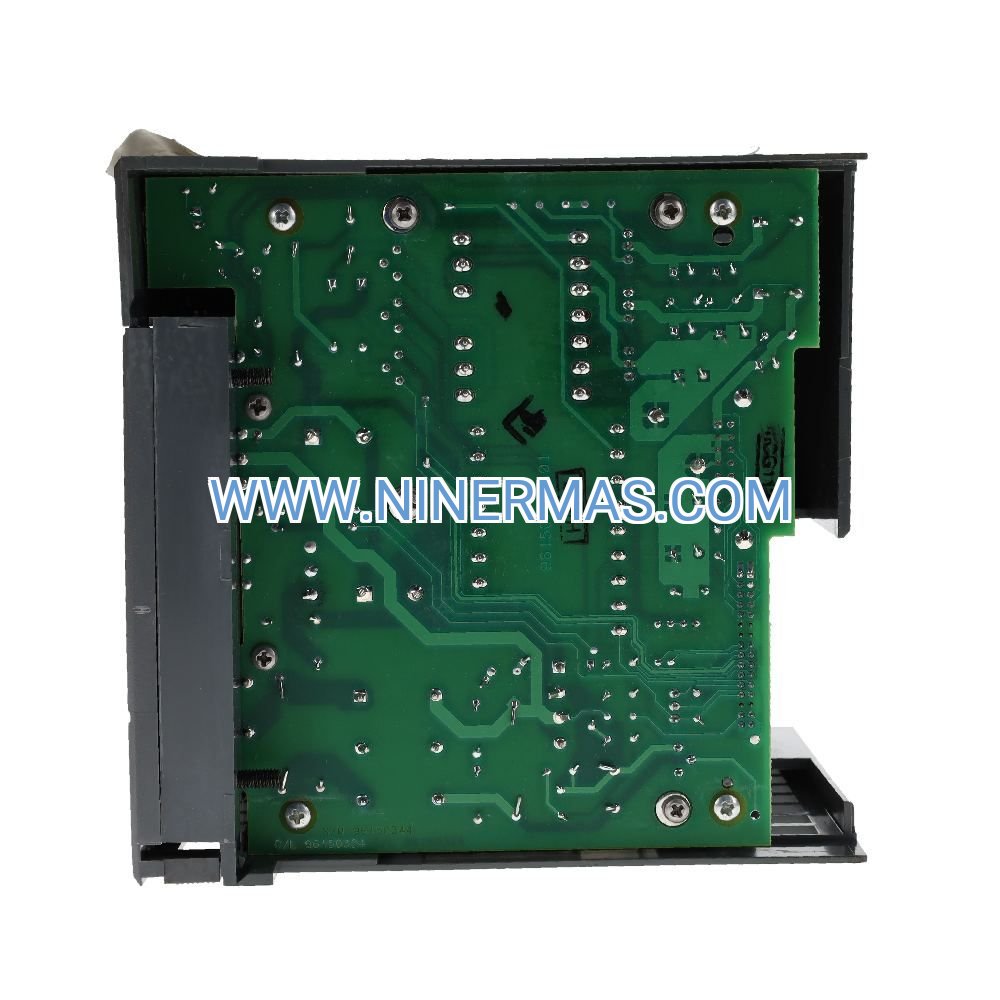

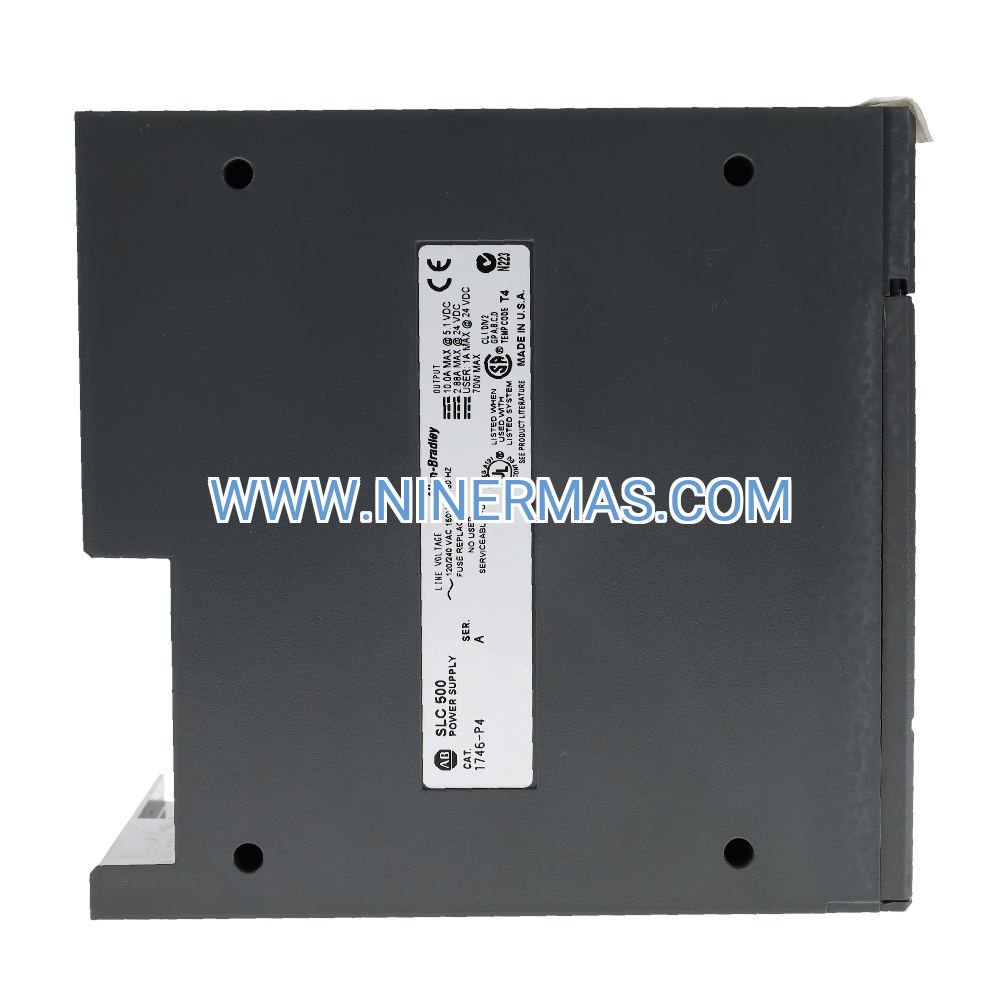

1746-P4 Universal Input Power Module (Industrial-Grade SLC 500 Solution)

The 1746-P4 represents a critical infrastructure component for SLC 500 programmable logic controller deployments, delivering dual-voltage power distribution through a single-slot rack-mount architecture. This universal input power module eliminates voltage-specific inventory requirements while providing simultaneous 5V logic and 24V field device power across global industrial installations.

Designed for mission-critical automation environments where power reliability directly impacts production uptime, this module integrates overcurrent protection, wide environmental tolerance, and hot-swap capability into a compact form factor. Target applications span discrete manufacturing, continuous process control, and legacy system modernization projects requiring drop-in compatibility with existing SLC 500 infrastructure.

With factory-verified calibration, comprehensive safety certifications, and proven performance in demanding industrial conditions, the 1746-P4 serves as the foundation for reliable PLC operation in facilities ranging from automotive assembly plants to municipal water treatment systems.

Core Features & Benefits

→ Universal Voltage Compatibility: 85-250V AC input range (47-63 Hz) supports global deployment without region-specific models, reducing spare parts inventory and simplifying international project specifications.

→ Dual-Output Architecture: Delivers 10A at 5V DC for backplane logic circuits plus 2.88A at 24V DC for sensor/actuator field wiring, eliminating the need for external 24V supplies in many configurations.

→ Enhanced Protection Circuitry: Integrated overcurrent, overvoltage, and thermal shutdown mechanisms safeguard connected I/O modules and processors from electrical faults, extending system lifespan.

→ Diagnostic LED Array: Real-time visual indicators for AC input status, 5V DC output, and 24V DC output enable rapid fault isolation during commissioning and maintenance procedures.

→ 1500V Galvanic Isolation: Input-to-output electrical isolation protects sensitive logic circuits from ground loops and industrial electrical noise, critical for reliable operation in high-EMI environments.

→ Tool-Free Installation: Slide-lock backplane connector and integrated retention clip allow module replacement in under 60 seconds without specialized tools or chassis disassembly.

Typical Application Scenarios

Automotive Manufacturing Lines: Powers SLC 500 controllers managing robotic welding cells, conveyor systems, and quality inspection stations where 24/7 operation demands and millisecond-level response times require ultra-reliable power distribution across 10-13 slot chassis configurations.

Water & Wastewater Treatment: Supports SCADA-integrated PLC systems controlling pump stations, chemical dosing, and filtration processes in corrosive, high-humidity environments where the module's conformal coating and wide operating temperature range prevent premature failure.

Food & Beverage Processing: Enables compliance-critical control systems in packaging lines, pasteurization units, and CIP (clean-in-place) systems where the universal input voltage accommodates facility power variations and the 24V output directly powers hygienic sensors.

Legacy System Upgrades: Provides exact form-fit-function replacement for aging 1746-P4 units in 15-25 year old installations, restoring original performance specifications without PLC reprogramming or I/O reconfiguration, minimizing retrofit costs and downtime.

Distributed Control Networks: Supports multi-chassis SLC 500 architectures in large facilities where independent power supplies per chassis improve fault tolerance and allow staged maintenance without complete system shutdown.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total 5V DC current draw by summing all installed modules' backplane current requirements (found in individual module datasheets). For systems exceeding 8A continuous draw or requiring N+1 redundancy, consider dual 1746-P4 configuration or upgrade to 1746-P7 model. Verify 24V DC output capacity meets connected sensor/actuator load; external 24V supply may be needed for high-density discrete I/O applications.

Extended Functions

Redundant Power Configuration: When paired with a second 1746-P4 in supported chassis, the modules provide automatic load sharing and failover capability, allowing hot-swap replacement without system interruption—critical for continuous process industries.

Remote Monitoring Integration: Output status signals can be wired to discrete input modules for SCADA alarm integration, enabling predictive maintenance alerts when output voltages drift outside nominal ranges before complete failure occurs.

Custom Voltage Variants: For specialized applications requiring non-standard input voltages (e.g., 48V DC telecom power), consult factory engineering for custom-configured modules with identical mechanical and output specifications.

Delivery & Service Assurance

Lead Time: Stock units ship within 1-2 business days via express courier; custom-configured or high-volume orders (10+ units) typically require 7-14 business days for factory preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty from ship date covers manufacturing defects, component failures, and calibration drift. Extended 24/36-month warranty plans available for critical infrastructure applications.

Technical Support: Unlimited phone and email support includes installation guidance, load calculation assistance, troubleshooting diagnostics, and compatibility verification with third-party components. Average response time: <4 hours during business hours.

Documentation Package: Each module ships with printed quick-start guide, full technical manual (PDF), wiring diagrams, certification documents (UL/CE/RoHS), and calibration test report with serial number traceability.

Frequently Asked Questions

What is the maximum I/O module count this power supply supports in a single chassis?
The 1746-P4's 10A capacity typically supports 8-12 I/O modules depending on type. High-density analog modules (1746-NI8, 1746-NO8) consume 400-800mA each, while discrete I/O (1746-IB16, 1746-OB16) uses 150-300mA. Always calculate total backplane current from module specifications before finalizing system design.

Can this module operate on generator power or unstable grid conditions?
Yes, the 85-250V input range and 47-63 Hz frequency tolerance accommodate voltage sags, swells, and frequency variations common in generator-backed or rural grid installations. For extreme power quality issues, consider adding an upstream UPS or line conditioner.

How does the 1746-P4 compare to the discontinued 1746-P1 and P2 models?
The P4 supersedes both legacy models with universal input voltage (P1/P2 required 120V or 240V selection), identical output specifications, and improved efficiency. It's a direct retrofit requiring no wiring changes beyond AC input connections.

Is the 24V DC output isolated from the 5V DC backplane supply?
No, both outputs share a common ground reference. The 1500V isolation applies between AC input and DC outputs collectively. For applications requiring isolated 24V (e.g., long cable runs or ground loop prevention), use an external isolated DC-DC converter.

What maintenance procedures are recommended for long-term reliability?
Inspect terminal connections annually for tightness, verify LED indicators during routine PLC maintenance, and measure output voltages every 2-3 years (should be 5.0V ±0.25V and 24V ±1.2V). Clean chassis air vents quarterly in dusty environments to maintain thermal performance.

Does this power supply support SLC 5/05 processors with Ethernet communication?
Absolutely. The 1746-P4 powers all SLC 500 processor variants (5/01 through 5/05) including Ethernet-equipped models. The 5/05 processor's communication modules draw power from the backplane 5V supply, well within the P4's 10A capacity.

Request a Quote

Contact our industrial automation specialists for volume pricing, custom configuration options, or technical consultation on your SLC 500 power system design. We provide detailed load calculations, compatibility verification, and application engineering support at no charge.
