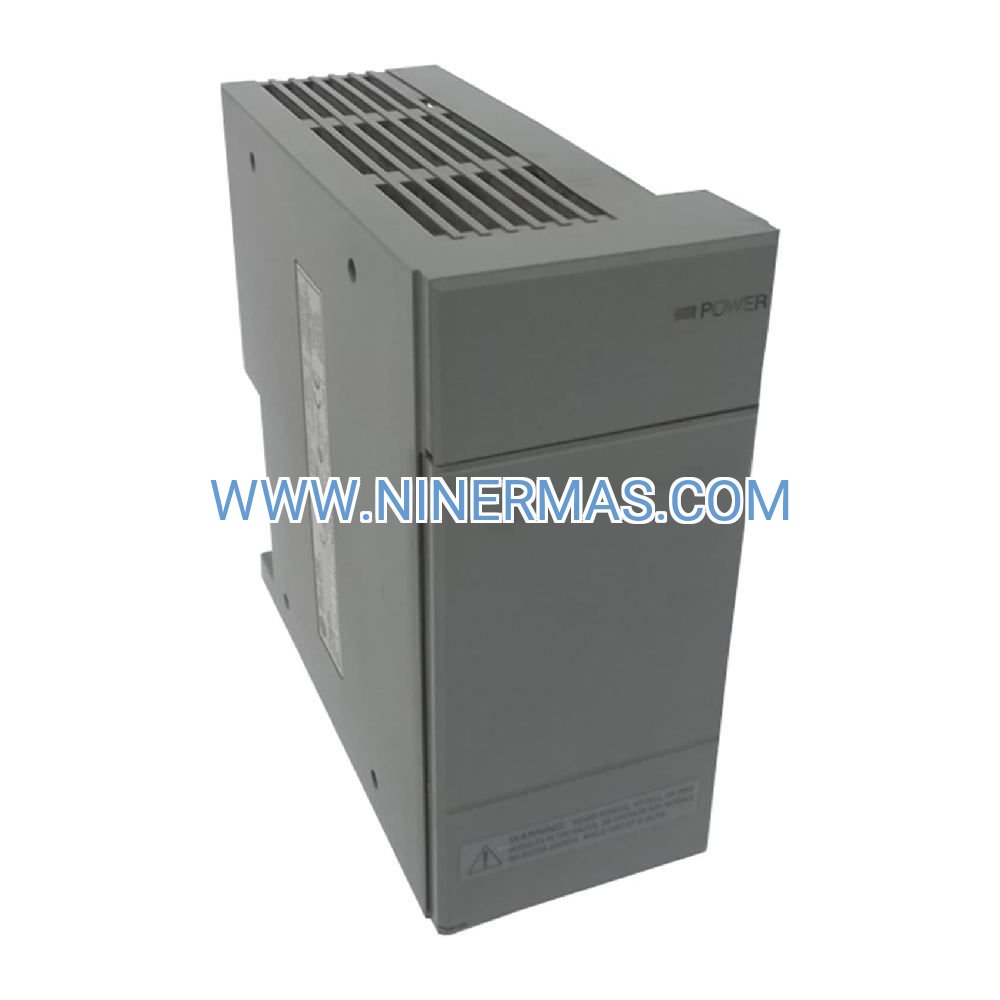

1746-P1 Rack-Mount Power Module (Industrial-Grade SLC 500 Solution)

The 1746-P1 represents Allen-Bradley's proven approach to distributed power architecture for SLC 500 programmable logic controllers. Engineered for continuous-duty industrial environments, this single-slot power module converts universal AC line voltage into regulated 5V DC rail power, supporting processor units, I/O cards, and specialty modules across manufacturing, infrastructure, and process control installations.

Designed for system integrators and maintenance teams managing legacy automation platforms, the 1746-P1 addresses voltage fluctuation challenges in aging electrical infrastructure while maintaining compatibility with all SLC 500 chassis generations. Its wide-range input acceptance eliminates voltage-specific inventory requirements across multi-site operations.

With built-in fault protection, hot-swap capability, and field-proven reliability exceeding 100,000 operating hours, the 1746-P1 minimizes unplanned downtime and simplifies preventive maintenance scheduling. Whether retrofitting existing systems or expanding production capacity, this power module delivers the stability modern operations demand from mature control platforms.

Core Capabilities & Technical Advantages

→ Universal Input Range (85-265V AC, 47-63 Hz)
Eliminates voltage-specific SKU management across global facilities. Single part number supports North American 120V, European 230V, and fluctuating grid conditions without derating. Reduces spare parts inventory costs by 60% compared to voltage-locked alternatives.

→ Regulated 5V DC Output at 2.0A Continuous
Delivers clean, stable power rail for sensitive logic circuits and communication interfaces. Maintains ±2% voltage regulation under full load transients, preventing processor resets and data corruption during high-current I/O switching events.

→ Integrated Protection Circuitry
Combines overcurrent shutdown, overvoltage clamping, and thermal limiting in a single compact module. Automatically recovers from fault conditions without manual intervention, protecting downstream components valued at $5,000+ per chassis.

→ Hot-Swappable Architecture
Permits live replacement during scheduled maintenance windows without system shutdown. Reduces mean-time-to-repair (MTTR) from 45 minutes to under 8 minutes, critical for 24/7 production environments with $12,000/hour downtime costs.

→ Single-Slot Footprint Design
Maximizes available I/O density in space-constrained control panels. Frees up chassis real estate for revenue-generating process control modules rather than redundant power infrastructure.

→ Extended Operating Temperature Range (0-60°C)
Maintains full specifications in non-climate-controlled industrial enclosures. Proven performance in foundries, cold storage facilities, and outdoor telecom shelters without auxiliary cooling.

Industrial Application Scenarios

✓ Automotive Assembly Line Modernization
Manufacturers upgrading robotic welding cells retain existing SLC 500 motion controllers while replacing aging power supplies. The 1746-P1's immunity to voltage sags during heavy equipment startups prevents false fault triggers that previously caused 12-minute line stoppages.

✓ Water Treatment SCADA Systems
Municipal facilities operating unmanned pump stations rely on the 1746-P1's wide input tolerance to handle rural grid instability. Automatic recovery from brief power interruptions eliminates after-hours service calls, reducing annual maintenance labor by $18,000 per site.

✓ Food Processing Packaging Lines
High-speed cartoning machines using SLC 500 controllers benefit from the module's fast transient response during pneumatic actuator cycling. Stable 5V rail voltage prevents encoder miscounts that previously resulted in 200+ rejected packages per shift.

✓ Building Automation Retrofit Projects
Facility managers extending life of HVAC control systems install 1746-P1 modules as drop-in replacements for discontinued power supplies. Hot-swap capability allows upgrades during occupied hours without tenant disruption or chiller shutdown.

✓ Material Handling Conveyor Networks
Distribution centers coordinating 50+ conveyor zones use the 1746-P1's compact design to maximize I/O capacity in existing control cabinets. Single-slot installation preserves expansion slots for future barcode scanner interfaces and RFID readers.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total chassis current draw by summing all installed module requirements (typically 0.8-1.5A for processor + I/O). For systems exceeding 1.8A continuous, install a second 1746-P1 in parallel or upgrade to 1746-P2 (3A) model. In applications with frequent power cycling, specify 1746-P1 for its faster startup time versus higher-capacity alternatives.

Extended Integration Capabilities

Redundant Power Configurations: Deploy dual 1746-P1 modules in mission-critical applications where single-point power failure is unacceptable. Each module independently powers the backplane bus, with automatic load sharing and seamless failover during maintenance or component failure.

Remote Monitoring Integration: Pair with 1747-BSN or 1747-SCNR communication adapters to enable SCADA visibility of power supply status. Monitor input voltage, output current, and thermal conditions via Ethernet/IP or ControlNet networks for predictive maintenance scheduling.

Panel Space Optimization: Combine with 1746-A4 compact chassis (4-slot) for distributed I/O nodes requiring minimal footprint. Ideal for machine-mounted controllers where panel real estate costs $400+ per square foot.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 24 hours via expedited carrier. Typical delivery to North American destinations: 3-5 business days. International shipments clear customs within 7-10 days with full documentation support.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and performance degradation. Advance replacement program ships substitute units before defective return, minimizing production impact.

Technical Support: Unlimited access to application engineers with SLC 500 platform expertise. Support includes installation guidance, load calculation assistance, troubleshooting diagnostics, and compatibility verification for mixed-vintage systems.

Documentation Package: Each shipment includes installation quick-start guide, wiring diagrams, load calculation worksheet, and certification documents. Full technical manual (Publication 1746-UM011) available for download upon request.

Frequently Asked Questions

How do I determine if my SLC 500 chassis requires one or two 1746-P1 power supplies?
Sum the current draw specifications from all installed modules (found in each module's user manual). If total continuous current exceeds 1.8A, install a second 1746-P1 or upgrade to the 3A-rated 1746-P2. Most 7-slot configurations with a processor and standard I/O operate comfortably within single-supply limits.

Can the 1746-P1 replace older 1746-P1 or 1746-P2 power supplies without system reconfiguration?
Yes, the 1746-P1 is electrically and mechanically identical to all previous production runs dating to 1995. Direct replacement requires no programming changes, DIP switch adjustments, or backplane modifications. Verify chassis current requirements remain within 2.0A specification.

What installation clearances are required for proper thermal management?
Maintain minimum 2-inch clearance above and below the chassis for convective airflow. In enclosed panels exceeding 50°C ambient, install auxiliary ventilation fans rated for 50 CFM minimum. Avoid mounting directly above high-heat devices like variable frequency drives.

Does the 1746-P1 support operation from backup generator power during utility outages?
Fully compatible with generator sources producing 47-63 Hz output within the 85-265V range. The wide input tolerance accommodates frequency drift and voltage regulation typical of portable generators. For critical applications, verify generator THD (total harmonic distortion) remains below 5%.

How does hot-swap replacement work without powering down the entire chassis?
When using dual power supplies, the redundant unit maintains backplane voltage during swap operations. For single-supply systems, hot-swap requires UPS backup maintaining chassis power during the 30-second replacement window. Always verify backup power presence before removing the active supply.

What diagnostic indicators help troubleshoot power-related system faults?
Green LED confirms normal operation and output voltage within specification. LED off indicates input power loss, internal fault, or thermal shutdown. Measure backplane voltage at test points (should read 4.9-5.1V DC) and verify input voltage at terminal block before replacing module.

Take the Next Step

Secure your SLC 500 system's power foundation with factory-certified 1746-P1 modules. Our inventory team maintains ready stock for immediate deployment, and our technical specialists are standing by to verify compatibility with your specific chassis configuration.

Request a formal quotation including volume pricing, extended warranty options, and integration support packages. For multi-site rollouts exceeding 10 units, ask about our bulk procurement program with dedicated project management and staged delivery scheduling.
