Allen-Bradley 1746-OB16E Service-Ready Spare Part

Allen-Bradley 1746-OB16E Service-Ready Spare Part for Industrial Maintenance

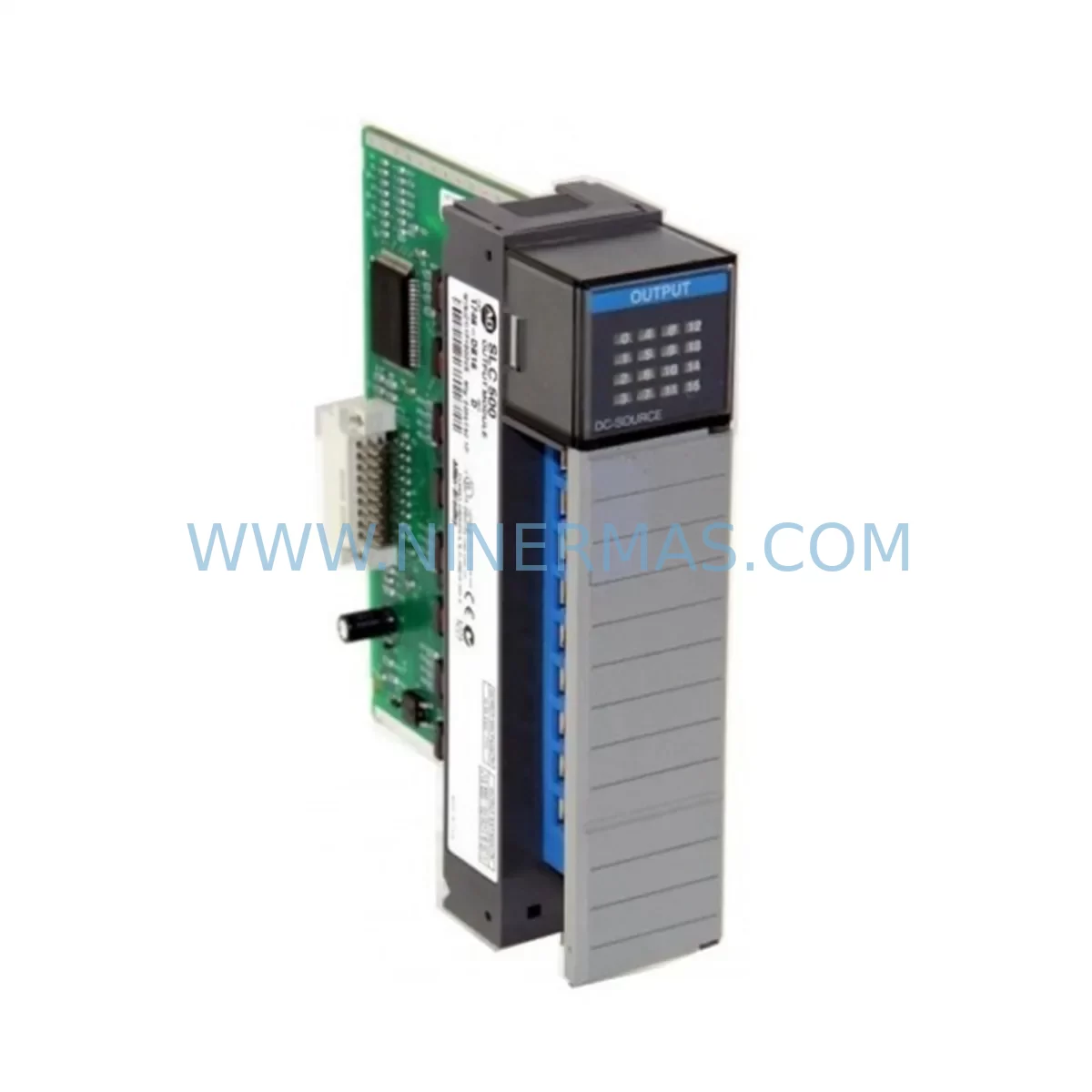

The Allen-Bradley 1746-OB16E is a ruggedized, isolated 16-point DC output module designed for the SLC 500 modular I/O system. As a critical field-replaceable unit in discrete output control circuits, this module is widely deployed across manufacturing lines, process automation panels, and machine control cabinets where reliable 24 VDC output switching is essential. For maintenance engineers managing aging SLC 500 systems, keeping a verified spare of the 1746-OB16E on the shelf is a fundamental risk-reduction strategy — unplanned output module failures can halt production lines within minutes, and sourcing delays compound downtime costs rapidly.

NINERMAS supplies the 1746-OB16E as a tested, service-ready spare part backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm output channel integrity, isolation performance, and backplane communication before dispatch. Whether you are replenishing a depleted MRO inventory, responding to an emergency shutdown, or executing a planned annual overhaul, this module ships promptly with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1746-OB16E output module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A systematic approach to the surrounding electrical circuit dramatically reduces the risk of repeat failures and secondary damage.

Begin by inspecting the 1746-P4 or 1746-P7 power supply module that feeds the chassis. Degraded capacitors or marginal output voltage on the 24 VDC rail can stress output transistors over time, accelerating module wear. Verify the power supply’s output under load before reinstalling a new 1746-OB16E. Similarly, check the 1746-A10 or 1746-A13 chassis backplane for bent connector pins or corrosion at the module slot — a damaged backplane slot will destroy a replacement module within weeks.

On the field wiring side, inspect all terminal blocks and wiring harnesses connected to the output commons and load circuits. Loose terminations at the 1492-IFM series interface modules or pre-wired cable assemblies are a common source of intermittent output faults that are misdiagnosed as module failures. Verify that load-side fuse holders and 1492-FB fuse blocks are intact and that fuse ratings match the connected actuator loads — oversized fuses mask overload conditions that damage output channels.

For systems using 1746-OW16 relay output modules in adjacent slots to switch higher-current or AC loads, confirm that relay contact wear has not introduced noise or voltage spikes onto the shared DC bus. Installing surge suppressors or RC snubber circuits across inductive loads (solenoids, contactors, motor starters) protects the 1746-OB16E output transistors from back-EMF damage — a step frequently overlooked during rapid emergency replacements.

If the SLC 500 system includes a 1747-SDN DeviceNet Scanner or 1747-KE RS-232/DH-485 Interface Module for communication with field devices, verify that communication integrity is maintained after the I/O module swap. A module replacement that shifts slot addressing can disrupt I/O mapping if the processor program references physical slot numbers. Coordinate with the controls engineer to confirm the RSLogix 500 program I/O configuration matches the new module’s slot position.

For facilities running PanelView 550 or PanelView 600 HMI terminals connected to the SLC 500 via DH-485, test all output-related screen indicators after replacement to confirm that the HMI correctly reflects the restored output states. Stale or incorrect output status on the operator interface can lead to unsafe manual interventions during the post-maintenance restart sequence.

Finally, document the replacement in the equipment maintenance log and update the site’s MRO spare parts inventory. A single 1746-OB16E failure is a strong signal to stock at least one additional unit on-site, particularly for production lines where this module controls critical actuators such as pneumatic valve banks, conveyor drives, or safety interlocks.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO (Lockout/Tagout) procedures. Remove power from the 1746 chassis before extracting the failed module. Confirm zero voltage on the output commons using a calibrated multimeter.

Step 2 — Document the existing configuration: Before removal, photograph or record the field wiring terminations at the module’s output connector. Note the slot number and verify it against the RSLogix 500 I/O configuration tree to avoid post-replacement addressing errors.

Step 3 — Inspect the slot and backplane: Examine the vacated chassis slot for debris, corrosion, or bent backplane pins. Clean with dry compressed air if necessary. A damaged slot must be repaired or the module relocated to a spare slot before proceeding.

Step 4 — Install the replacement 1746-OB16E: Seat the new module firmly until the locking tab engages. Reconnect the field wiring connector, verifying each termination against the documented wiring record. Torque terminal screws to specification to prevent loose connections.

Step 5 — Power-up and verify: Restore chassis power and observe the module’s status LED. A solid green RUN indicator confirms successful backplane communication. Force individual output points from the RSLogix 500 online monitor to verify each of the 16 channels activates the corresponding field device correctly.

Step 6 — Return to service: Clear any latched faults in the SLC processor, confirm the HMI displays correct output states, and resume normal production. Update the maintenance record with the replacement date, module serial number, and technician sign-off.

The 1746-OB16E is a direct form-fit-function replacement for earlier SLC 500 DC output modules, including the standard (non-E) 1746-OB16, making it a compatible upgrade path for systems where the original non-isolated variant has reached end of reliable service life.

Spare Parts Support FAQ

Q1: Is the 1746-OB16E compatible with all SLC 500 chassis and processors?
Yes. The 1746-OB16E is compatible with all 1746-series chassis (1746-A4, A7, A10, A13) and all SLC 500 processor families (SLC 5/01 through SLC 5/05). No firmware or configuration changes are required when replacing a like-for-like module in the same chassis slot. If replacing the older 1746-OB16 (non-isolated), verify that your load wiring is compatible with the grouped isolation architecture of the OB16E before installation.

Q2: What pre-shipment testing does NINERMAS perform on the 1746-OB16E?
Every 1746-OB16E supplied by NINERMAS undergoes functional output channel verification, backplane communication testing, and isolation resistance checks prior to dispatch. Units that do not meet Allen-Bradley original performance specifications are rejected. A test report is available upon request for critical infrastructure procurement.

Q3: How should I manage long-term spare parts inventory for SLC 500 systems?
For production lines with high output module utilization, we recommend maintaining a minimum of two 1746-OB16E units on-site. Given that Rockwell Automation has announced end-of-life timelines for portions of the SLC 500 product line, proactive buffer stocking of 3–5 units is advisable for facilities planning to operate existing systems beyond 2028. NINERMAS supports long-term supply agreements and can reserve allocated stock for repeat customers.

Q4: What is covered under the 12-month warranty?
NINERMAS provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by replacement or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or failure to follow Allen-Bradley’s published installation and wiring guidelines. Contact sale@ninermas.com to initiate any warranty claim.
