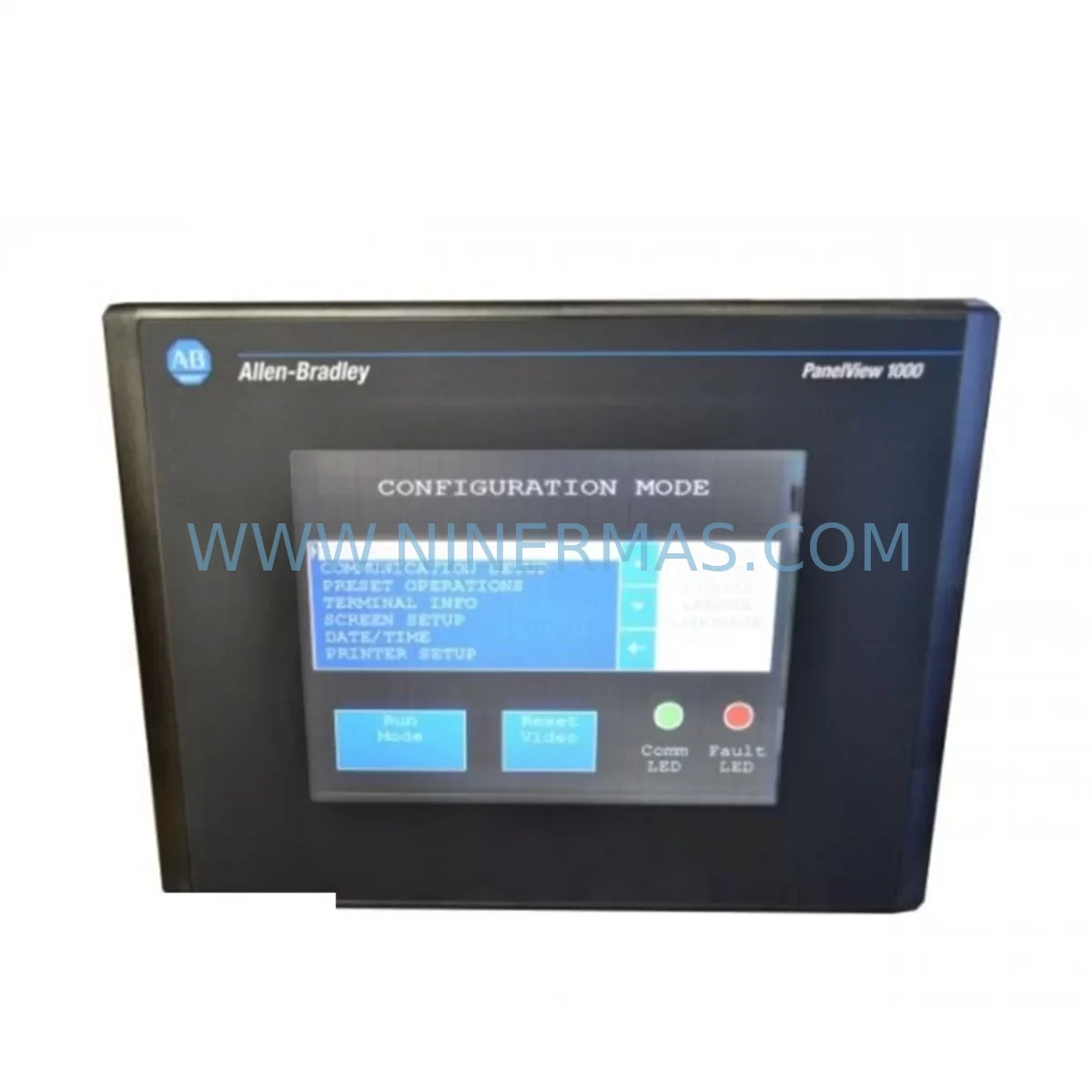

The Allen-Bradley 2711-T10C8X is a 10.4-inch color touch screen terminal from the PanelView 1000 series, designed for operator interface applications in industrial automation environments. As a critical HMI component in legacy control systems, this unit is widely deployed across manufacturing lines, process control panels, and machine automation cabinets. When the 2711-T10C8X fails or reaches end-of-service life, rapid replacement is essential to minimize production downtime and restore operator visibility over the control system.

NINERMAS maintains ready stock of the 2711-T10C8X to support maintenance engineers and procurement teams who require fast, reliable spare part sourcing. Each unit is tested prior to shipment and backed by a 12-month warranty, giving your maintenance team confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2711-T10C8X in an active production environment, maintenance engineers must approach the task as part of a broader system health review rather than an isolated component swap. The PanelView 1000 terminal interfaces directly with the plant’s PLC network, and any disruption to the HMI layer can affect operator control, alarm acknowledgment, and process monitoring across the entire line.

Before removing the faulty 2711-T10C8X, verify the integrity of the communication cable connecting the terminal to the controller — typically a 1761-CBL-PM02 or 1747-CP3 cable depending on whether the system uses DH-485 or DH+ protocol. A degraded cable is often the root cause of intermittent HMI faults and should be replaced alongside the terminal if wear is visible. Similarly, inspect the 1747-AIC Advanced Interface Converter if the system uses a multi-drop DH-485 network, as a failing AIC can cause the replacement terminal to exhibit the same communication errors as the original unit.

Power supply integrity is equally important. The 2711-T10C8X operates on 120/240 VAC and draws power from the control cabinet’s main distribution. Before installation, confirm that the panel power supply — often a 1606-XLP or equivalent industrial power supply — is delivering stable voltage within specification. Voltage fluctuations or ground faults in the cabinet can damage a new HMI terminal within days of installation, negating the value of the spare part investment.

On the PLC side, the 2711-T10C8X typically communicates with Allen-Bradley PLC-5 or SLC 500 controllers. If the SLC 500 rack contains aging I/O modules such as the 1746-IB16 digital input module or 1746-OB16 digital output module, this is an appropriate time to inspect those modules for contact wear or blown fuses. A failed I/O module can cause process alarms to appear on the HMI screen that are unrelated to the terminal itself, leading to misdiagnosis during commissioning of the replacement unit.

For systems using the MicroLogix 1000 or MicroLogix 1500 as the host controller, verify that the RS-232 port configuration on the controller matches the communication parameters stored in the 2711-T10C8X application file. Baud rate, parity, and node address mismatches are common causes of failed HMI startup after a spare part replacement. Keep a printed copy of the original terminal configuration or a backup of the .PVA application file on site before beginning the replacement procedure.

Procurement teams sourcing the 2711-T10C8X should also consider building a small buffer stock of associated consumables: panel-mount gaskets for NEMA 4 sealing, replacement terminal block connectors for the power input, and a spare 1747-CP3 programming cable. These low-cost items are frequently overlooked in spare parts budgets but can extend unplanned downtime significantly if they are not available on site during an emergency replacement.

Site Replacement Workflow

A structured on-site replacement workflow for the 2711-T10C8X minimizes downtime and reduces the risk of commissioning errors. Begin by placing the production line in a safe hold state and notifying the control room that the HMI will be temporarily offline. Do not remove the terminal while the PLC is actively executing a process sequence, as loss of operator interface during a live process can trigger uncontrolled shutdowns or safety interlocks.

Once the line is in a safe state, disconnect the AC power feed to the terminal and label all wiring before removal. Photograph the existing terminal installation, including cable routing, terminal block positions, and any panel cutout labels, to serve as a reference during reinstallation. Remove the 2711-T10C8X from the panel cutout by releasing the panel clamps from the rear, taking care not to damage the surrounding panel surface.

Install the replacement 2711-T10C8X into the same panel cutout, reconnect all wiring per the original labeling, and restore AC power. On first power-up, the terminal will prompt for an application file if no internal memory is detected. Load the backed-up .PVA file using PanelBuilder 1400e software via the RS-232 programming port, or transfer the file from a memory card if the original installation used card-based storage. After loading, verify all screen pages, alarm displays, and control buttons function correctly before returning the line to production.

Document the replacement in the site maintenance log, including the date, replaced serial number, new unit serial number, and any observations about the condition of the failed terminal. This record supports warranty claims and provides valuable data for future spare parts planning and lifecycle management decisions.

Spare Parts Support FAQ

Q1: Is the 2711-T10C8X still in production, and how long can I expect supply availability?
The 2711-T10C8X is a legacy PanelView 1000 series product that has been discontinued by Rockwell Automation. However, NINERMAS maintains sourced stock of this part to support ongoing maintenance needs. We recommend that facilities with multiple PanelView 1000 terminals in service consider purchasing at least one spare unit to protect against future supply constraints. Contact our team for current stock levels and long-term supply planning options.

Q2: Will the replacement 2711-T10C8X be compatible with my existing PLC and application file?
Yes, provided the replacement unit is the same model number (2711-T10C8X) and your application file was created with PanelBuilder 1400e software. The terminal’s communication settings, tag database, and screen logic are stored in the application file, not in the terminal hardware itself. As long as you reload the original .PVA file onto the replacement terminal, compatibility with your PLC-5, SLC 500, or MicroLogix controller is maintained. Verify communication port settings (baud rate, node address, protocol) match the original configuration before going live.

Q3: What pre-shipment testing does NINERMAS perform on the 2711-T10C8X?
Each 2711-T10C8X unit shipped by NINERMAS undergoes functional power-on testing to verify display operation, touch screen response, and communication port integrity. Units are inspected for physical condition including screen surface, housing, and connector integrity before packaging. A 12-month warranty is included with every unit, covering defects in materials and workmanship under normal operating conditions. Our team can provide a test report upon request for quality-critical procurement requirements.

Q4: Can NINERMAS support long-term spare parts supply for our PanelView 1000 fleet?
Yes. NINERMAS specializes in long-term spare parts supply for legacy industrial automation equipment, including the full PanelView 1000 series. We can work with your maintenance and procurement teams to establish a supply agreement that ensures stock availability aligned with your planned maintenance schedule and equipment lifecycle. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
