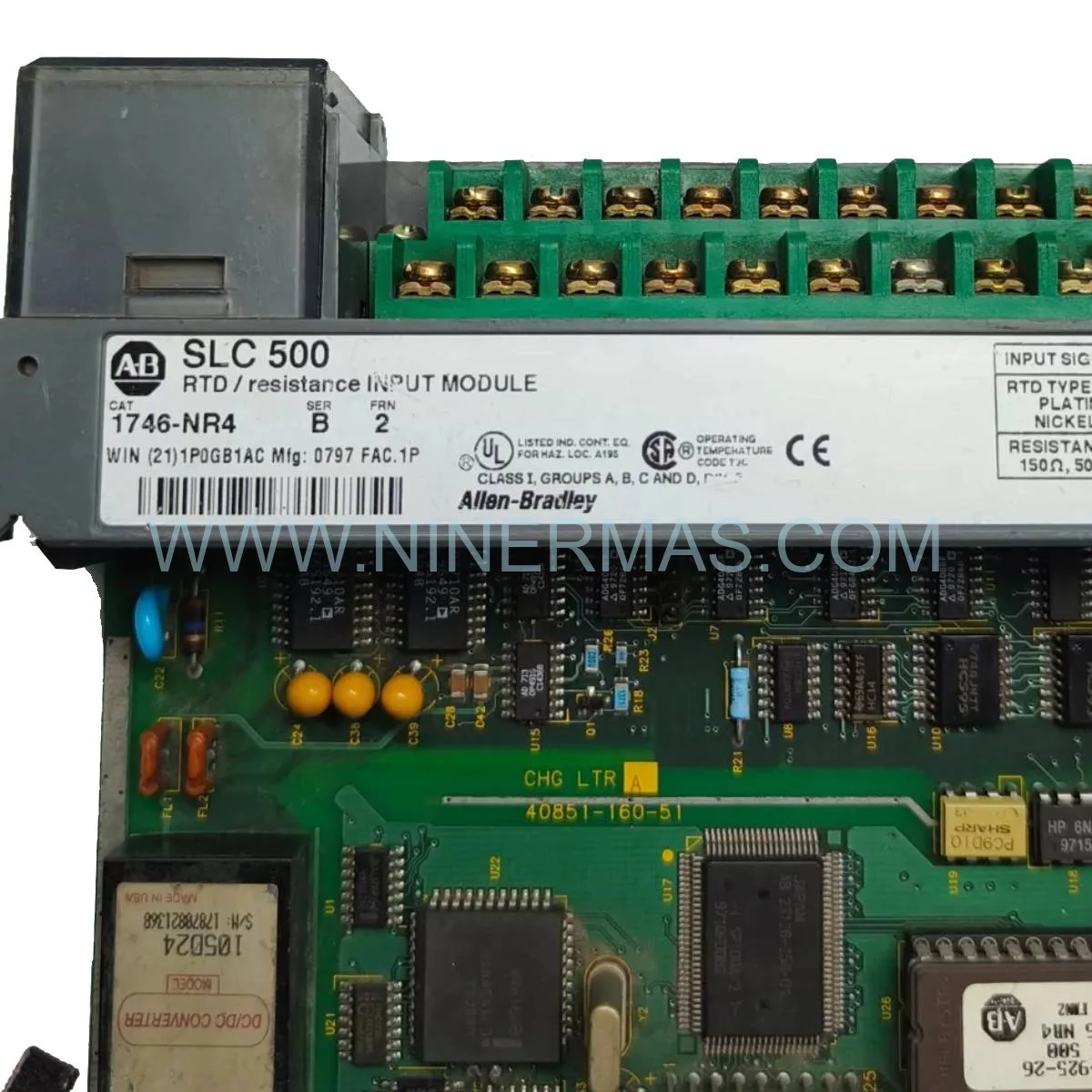

Allen-Bradley 1746-NR4 RTD Input Module for SLC 500 — New & Original

Allen-Bradley 1746-NR4 | Reliable Automation Component for SLC 500 Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1746-NR4 stands as a cornerstone I/O module for sustaining system availability in SLC 500-based control architectures. The 1746-NR4 delivers four fully isolated RTD/resistance input channels with 16-bit resolution, enabling precise thermal trending across rotating equipment, process vessels, and environmental monitoring loops — directly reducing unplanned downtime events in high-stakes operational environments.

Engineered for durability in demanding industrial conditions, this Automation Component maintains ±0.15% full-scale accuracy across an operating range of 0°C to 60°C, with 500V AC channel-to-backplane isolation that suppresses ground loop interference in electrically noisy plant floors. Installation requires a single SLC 500 chassis slot (compatible with 1746-A4 through A13 series), and commissioning via RSLogix 500 is streamlined through pre-built function blocks — minimizing exposure time during scheduled maintenance windows.

For facilities operating legacy SLC 500 infrastructure, maintaining a qualified stock of the 1746-NR4 as a critical spare is a non-negotiable element of any Operational Excellence strategy. End-of-life and long-lead-time procurement risks make pre-positioning this module essential for uninterrupted Process Optimization and System Integration continuity.

Key Operational Features

4-Channel Isolated RTD/Resistance Inputs — Supports 2-wire, 3-wire & 4-wire sensor configurations for maximum installation flexibility
High Availability Design — Hot-swappable module architecture enables replacement without full system shutdown, preserving production continuity
Seamless Integration — Native SLC 500 backplane compatibility; zero external signal conditioning required
Redundancy-Ready — Compatible with redundant SLC 500 chassis configurations for High Availability control topologies
Factory-Calibrated Linearization — Pre-configured for Pt100, Pt1000, Ni120, Cu10 RTD types; eliminates field calibration overhead
LED Fault Diagnostics — Per-channel status indicators accelerate fault isolation during corrective maintenance cycles

Maintenance & Performance Benchmarks

The 1746-NR4 is architected to scale across diverse industrial network topologies — from compact 4-slot SLC 500 racks in standalone machine control to multi-rack distributed I/O configurations spanning large-scale process plants. Its 100ms per-channel update rate satisfies the scan-time requirements of most PID temperature control loops without introducing latency penalties into the control program cycle.

In high-density installations, the module’s 150mA @ 5V DC backplane draw allows system designers to maximize chassis utilization without exceeding power budget constraints. Compliance with API 670, ISO 20816, CE, and UL standards ensures the module meets the regulatory benchmarks demanded by petrochemical, pharmaceutical, and food & beverage sectors — industries where measurement integrity is directly tied to product quality and personnel safety.

Firmware compatibility spans the full RSLogix 500 software lifecycle, and the module’s configuration data is stored within the SLC 500 processor file — simplifying backup, restoration, and version control as part of a structured change management program.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1746-NR4 unit dispatched by NINERMAS COMPANY LIMITED ships in Original Factory Packaging with full OEM documentation, calibration records, and authenticity verification. For time-sensitive plant shutdowns or emergency corrective maintenance, same-day dispatch is available for in-stock units — with global express freight options covering North America, Europe, Southeast Asia, and the Middle East.

As a specialized distributor of EOL (End-of-Life) and legacy Automation Components, we maintain strategic buffer stock of the 1746-NR4 to protect customers from supply chain disruptions affecting discontinued SLC 500 product lines. Our sourcing network spans authorized distribution channels and certified secondary market suppliers — ensuring traceability and authenticity for every unit.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1746-NR4?
A: Power down the SLC 500 chassis before insertion. Seat the module firmly into any available I/O slot (slots 1-30 depending on chassis size). Reconnect power, then open RSLogix 500 to configure each channel’s RTD type, temperature range, and filter settings via the module’s configuration dialog. Verify LED status indicators show green for all active channels before going online.

Q2: Which RSLogix 500 firmware versions are compatible with this module?
A: The 1746-NR4 is compatible with RSLogix 500 v7.0 and all subsequent releases. For SLC 5/05 processors running OS series FRN 10 or later, full feature support including enhanced diagnostics is available. Older processor firmware may require an upgrade to access all configuration parameters.

Q3: Can the 1746-NR4 be used in a redundant SLC 500 configuration?
A: Yes. When deployed in a redundant chassis pair using the 1747-BSN Backup Communication Module, the 1746-NR4 participates in the redundancy scheme. Input data is mirrored to the backup processor, ensuring seamless failover without loss of temperature measurement continuity.

Q4: How does the warranty process work for this module?
A: All units carry a 12-month warranty from the date of shipment. In the event of a verified manufacturing defect or component failure, contact sale@ninermas.com with your order reference and fault description. Replacement units are dispatched within 2 business days upon fault confirmation, with return freight covered for warranty claims.

Q5: Is it possible to mix different RTD sensor types across the four channels?
A: Yes. Each of the four channels on the 1746-NR4 is independently configurable for different RTD types (Pt100, Pt1000, Ni120, Cu10) and temperature ranges. This flexibility supports multi-sensor installations where different process points use different sensor standards.

Q6: What diagnostic data does the module expose to the SLC 500 processor?
A: The 1746-NR4 maps channel status bits, over-range/under-range flags, open-circuit detection, and calibration status into the SLC 500 input image file. These bits can be used in ladder logic for automated fault alarming and process interlock routines — a key enabler for proactive maintenance strategies.
