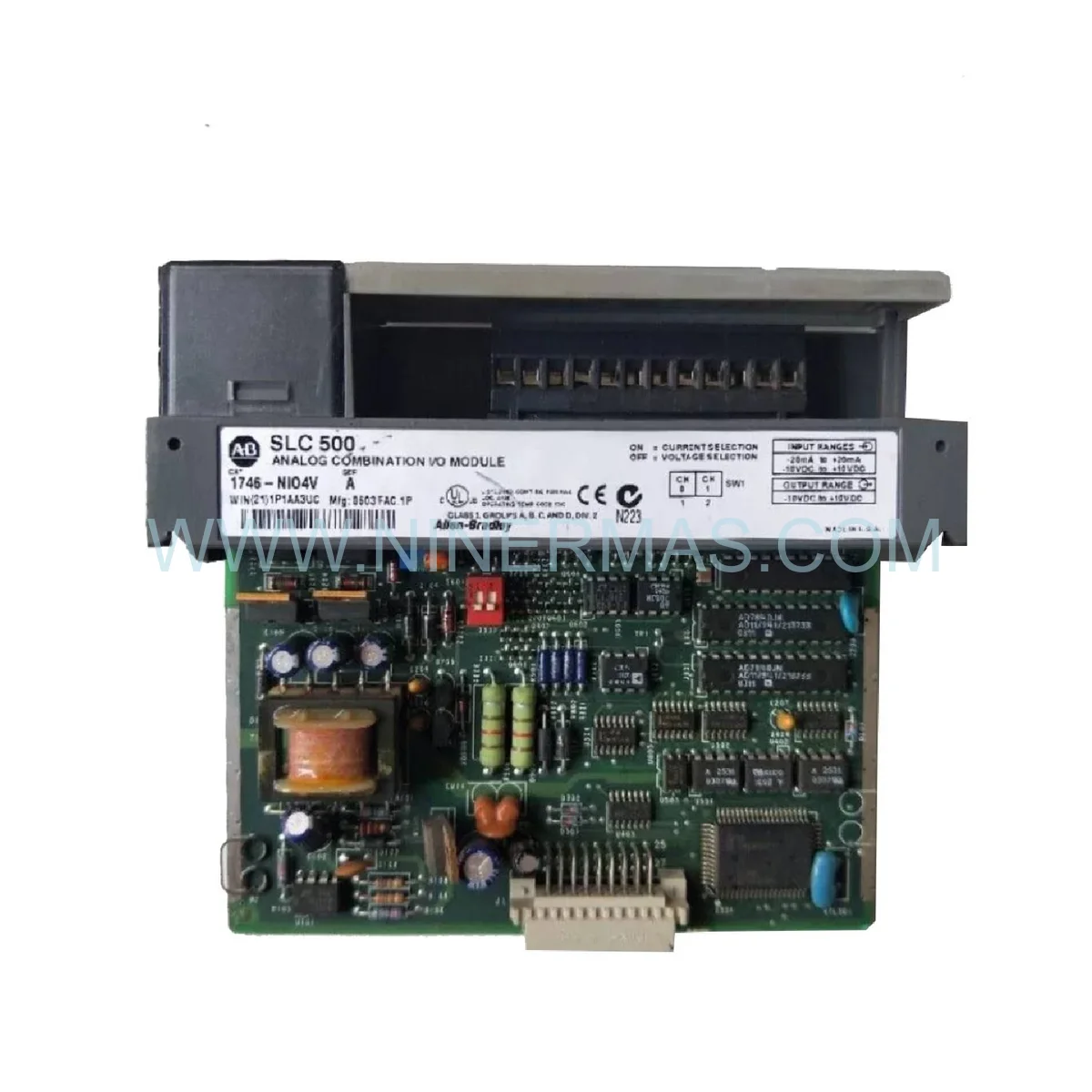

Allen-Bradley 1746-NI04V/A | SLC 500 Analog Voltage Input Module

Allen-Bradley 1746-NI04V/A — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1746-NI04V/A represents a cornerstone asset in maintaining the operational integrity of SLC 500-based control architectures. Its role extends beyond signal acquisition — it serves as a certified, precision-grade interface that upholds Safety Integrity standards across mission-critical process environments. The module’s differential 4-channel voltage input design, operating within a ±10V DC range at 16-bit resolution (305.176 µV), ensures that measurement fidelity is preserved even under electrically adverse conditions, directly supporting system-wide compliance with IEC and ANSI performance benchmarks.

Within the framework of Industry 4.0 and long-term asset lifecycle planning, the Allen-Bradley 1746-NI04V/A demonstrates sustained compatibility with legacy SLC 500 chassis configurations while remaining interoperable with modern supervisory control and data acquisition (SCADA) platforms. Its engineering pedigree — rooted in Rockwell Automation’s rigorous quality control methodology — ensures that the module continues to deliver consistent performance across extended operational cycles, reducing total cost of ownership and supporting Asset Optimization objectives for facilities managing multi-decade automation investments.

As a factory-sealed, Original Documentation-supported component, this module carries the full weight of Allen-Bradley’s certification ecosystem. Procurement of genuine, traceable units is essential to preserving system warranty validity, regulatory audit readiness, and the long-term reliability of safety-instrumented functions within the host control system.

Compliance & Safety Benchmarks

✅ Certified Original Component: Manufactured under Rockwell Automation’s ISO-aligned quality management system, ensuring full traceability and adherence to global industrial Compliance Standards.

✅ Electrical Isolation: 500V continuous channel-to-backplane isolation safeguards both personnel and downstream instrumentation, meeting stringent Safety Integrity requirements for hazardous process environments.

Environmental Durability: Rated for 0°C to 60°C operating range with a minimum 10 MΩ input impedance, the module sustains Standard Adherence across temperature-variable industrial installations.

✅ EMI/RFI Resilience: Differential input topology provides superior common-mode noise rejection, a critical attribute for installations in proximity to variable frequency drives, high-current bus bars, and RF-emitting equipment.

Backplane Power Compliance: Drawing only 150 mA at 5V DC from the SLC 500 backplane, the module operates within defined power budgets, preventing chassis overload conditions that could compromise system-wide Safety Integrity.

✅ Firmware & Configuration Integrity: Fully supported by RSLogix 500 and Studio 5000 Logix Designer (in compatibility mode), ensuring that configuration data remains auditable and version-controlled throughout the asset lifecycle.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: In cleanroom environments where process parameter deviations are measured in fractions of a percent, the 1746-NI04V/A’s ±0.1% full-scale accuracy at 25°C enables real-time monitoring of deposition chamber pressures, gas flow regulators, and thermal control loops — directly supporting yield optimization and defect reduction protocols.

Pharmaceutical & Life Sciences: FDA 21 CFR Part 11-compliant facilities rely on traceable, certified instrumentation for batch record integrity. This module’s Original Documentation support and factory-sealed provenance make it a preferred choice for validated automation systems where audit trails are non-negotiable.

Chemical Processing: Continuous process plants operating under OSHA PSM and IEC 61511 safety frameworks require instrumentation that maintains System Performance under sustained thermal and chemical exposure. The module’s robust isolation and wide operating temperature range address these demands directly.

Food & Beverage Production: High-throughput packaging and filling lines benefit from the module’s 10 ms per-channel update rate, enabling rapid closed-loop response to fill-level sensors, weight transmitters, and temperature probes — supporting both OEE targets and HACCP compliance requirements.

Energy & Utilities: Power generation and distribution facilities leverage this module for voltage signal monitoring from current transformers, power quality analyzers, and battery management systems, contributing to grid stability and Asset Optimization across the energy value chain.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Allen-Bradley 1746-NI04V/A unit dispatched from our inventory is verified to be in factory-sealed, unopened condition. Tamper-evident packaging and original labeling are preserved to support incoming inspection protocols and warranty registration requirements.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, we facilitate expedited customs clearance and door-to-door delivery for time-sensitive maintenance and capital project requirements. Export documentation, including commercial invoices and certificates of origin, is prepared in full compliance with international trade regulations.

12-Month Quality Guarantee for Legacy Systems: Recognizing the extended service life of SLC 500 infrastructure, we provide a 12-Month Quality Guarantee covering manufacturing defects and performance deviations from published specifications. This guarantee is specifically structured to support facilities operating legacy automation systems where component availability and long-term reliability are paramount to Lifecycle Management strategies.

Technical Support: Our engineering support team — with deep expertise in Rockwell Automation platforms — provides pre-sales configuration guidance, installation compliance review, and post-delivery troubleshooting assistance. Documentation packages including datasheets, installation instructions, and firmware compatibility matrices are available upon request.

Expert Technical FAQ

Q1: How does the 1746-NI04V/A comply with IEC 61131-2 standards for programmable controller input modules?
A: The Allen-Bradley 1746-NI04V/A is designed in alignment with IEC 61131-2 requirements governing analog input module performance, including input impedance thresholds, isolation voltage ratings, and accuracy specifications. Its 500V channel-to-backplane isolation and ±0.1% full-scale accuracy at reference temperature directly satisfy the standard’s performance criteria for industrial-grade analog input devices.

Q2: What firmware version compatibility considerations apply when integrating this module into an existing SLC 500 system?
A: The 1746-NI04V/A is compatible with all SLC 5/01 through SLC 5/05 processor firmware revisions supported under RSLogix 500. For systems running OS-series processors, it is recommended to verify the processor’s I/O configuration file against the module’s catalog number to ensure correct data file mapping. Original Documentation supplied with the unit includes firmware compatibility matrices for reference.

Q3: What environmental certifications apply to this module for use in chemically aggressive or high-humidity installations?
A: The module carries UL and CE certifications applicable to general industrial environments. For installations involving sustained chemical vapor exposure or humidity levels exceeding 95% non-condensing, additional protective enclosure ratings (NEMA 4X or IP66) should be applied at the chassis level. The module itself is rated for standard industrial environments per ANSI/ISA-71.04 G1 severity classification.

Q4: How should incoming inspection be conducted to verify the authenticity and compliance status of the 1746-NI04V/A upon receipt?
A: Incoming inspection should include verification of the factory-sealed packaging integrity, cross-referencing of the catalog label (1746-NI04V/A) and series designation against the purchase order, and confirmation of the date code against known production windows. Original Documentation — including the installation instructions sheet — should be present within the packaging. Any discrepancy in labeling, packaging condition, or documentation should be escalated to the supplier prior to installation.

Q5: Can this module be used in SIL-rated safety instrumented systems?
A: The 1746-NI04V/A is a standard automation module and is not independently SIL-rated under IEC 61508 or IEC 61511. For safety instrumented system (SIS) applications requiring SIL 1 or higher integrity levels, a dedicated safety-rated I/O platform — such as Rockwell Automation’s GuardLogix or Safety I/O modules — should be specified. The 1746-NI04V/A may, however, serve in a non-safety monitoring role within a broader SIS architecture, subject to the system safety engineer’s functional safety assessment.

Q6: What is the recommended calibration interval for maintaining measurement accuracy over the asset lifecycle?
A: Rockwell Automation recommends periodic calibration verification as part of a preventive maintenance program, with intervals typically ranging from 12 to 24 months depending on the criticality of the measured process variable and the ambient temperature stability of the installation environment. Calibration should be performed using NIST-traceable reference standards, and results documented in the facility’s asset management system to support regulatory audit readiness and Compliance Standards adherence.
