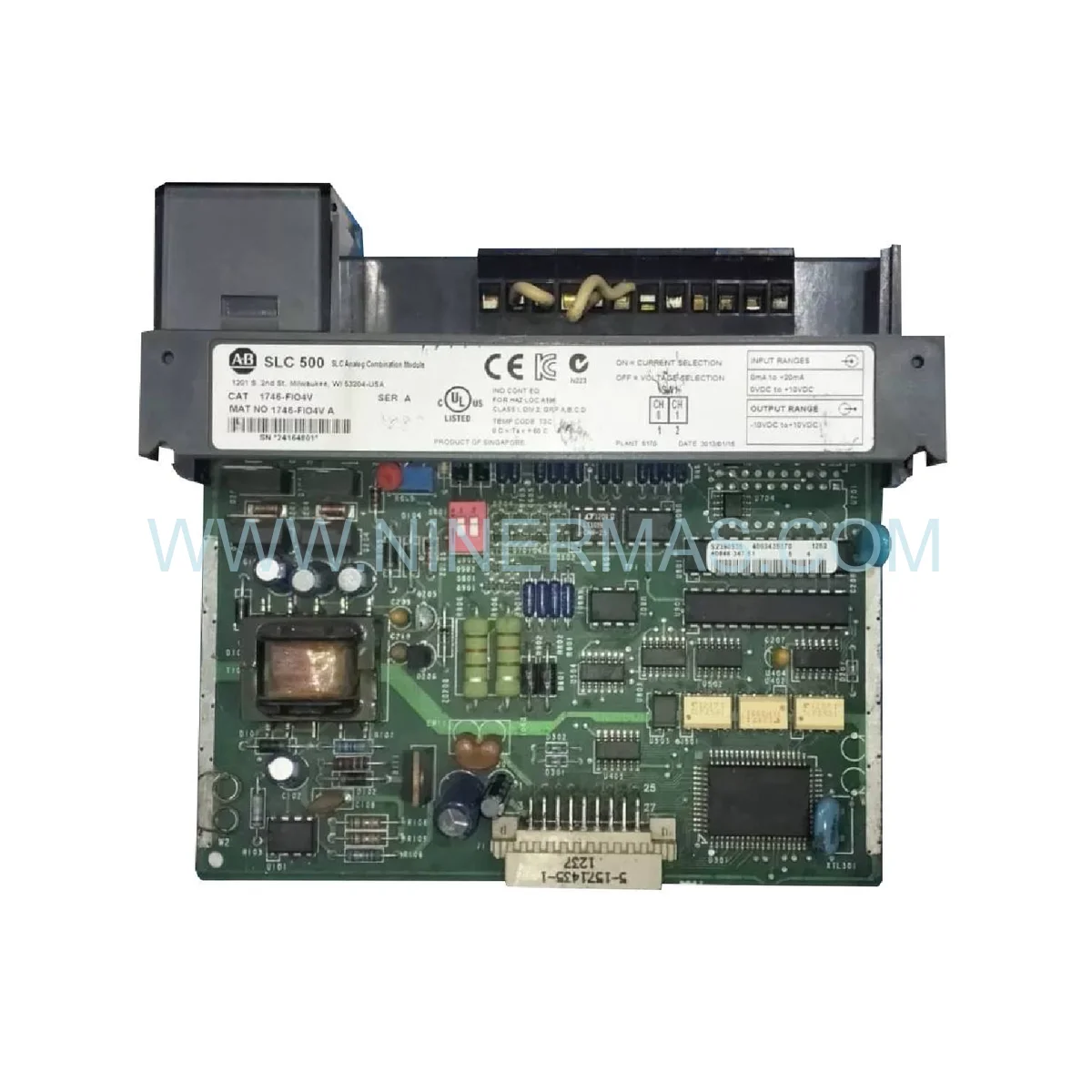

Allen-Bradley 1746-FIO4V/A Analog I/O Module (SLC 500) — New & Original

Allen-Bradley 1746-FIO4V/A | Reliable Automation Component for SLC 500 Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1746-FIO4V/A represents a cornerstone I/O module for sustaining system availability in SLC 500-based control architectures. Its dual-channel analog input and output configuration enables seamless integration into closed-loop process control loops — from chemical dosing systems to precision drive regulation — where signal fidelity directly determines operational uptime. The 1746-FIO4V/A eliminates the need for external signal conditioners by offering software-selectable voltage ranges (±10V, 0-10V, 0-5V), reducing both wiring complexity and potential failure points in the field.

Engineered for durability in demanding industrial environments, this module operates reliably across a 0°C to 60°C thermal range and incorporates 500V optical isolation between the backplane and I/O terminals — a critical safeguard against ground loops and EMI-induced signal corruption common in motor-dense facilities. During installation, SREs should prioritize shielded twisted-pair cabling (18-22 AWG) and verify proper chassis grounding to maintain the module’s ±0.5% full-scale accuracy specification. Removable terminal blocks allow field wiring changes without disturbing adjacent slots, minimizing intervention time during scheduled maintenance windows.

As production lines age and OEM support for legacy SLC 500 platforms diminishes, maintaining a verified stock of the 1746-FIO4V/A as a critical spare is a non-negotiable element of any robust maintenance strategy. Unplanned downtime caused by analog I/O failure can cascade across entire process segments — having a new, original unit on the shelf is the most cost-effective insurance against extended production loss.

Key Operational Features

Dual Analog I/O Configuration: 2 independently configurable analog inputs + 2 analog outputs in a single SLC 500 slot — maximizing chassis density for Process Optimization.
Software-Selectable Signal Ranges: ±10V / 0-10V / 0-5V DC per channel via RSLogix 500 — eliminates hardware jumper changes and supports rapid System Integration.
12-Bit Resolution (1:4096): Delivers granular control precision essential for Operational Excellence in flow, pressure, and temperature regulation loops.
500V Optical Isolation: Protects backplane and CPU from field-side transients, supporting High Availability in electrically noisy environments.
10ms Per-Channel Update Rate: Ensures Seamless Integration with fast-scan SLC 500 programs requiring real-time analog feedback.
UL / CSA / CE Certified: Globally compliant for deployment across North American, European, and Asia-Pacific industrial facilities.
Redundancy-Ready Design: Compatible with all 1746 chassis configurations (4-, 7-, 10-, 13-slot), supporting distributed and redundant I/O architectures.

Maintenance & Performance Benchmarks

The 1746-FIO4V/A is architected to adapt across diverse industrial network scales — from standalone SLC 5/03 controllers managing a single process cell to multi-chassis SLC 5/05 Ethernet-networked systems coordinating plant-wide automation. Its 150mA @ 5V DC / 50mA @ 24V DC power draw is among the lowest in its class, preserving chassis power budget headroom for high-density I/O configurations.

In multi-drop analog architectures, the module’s per-channel diagnostic status bits — accessible directly in the RSLogix 500 data file — allow maintenance engineers to isolate faults to the channel level without physical inspection, dramatically reducing mean time to repair (MTTR). Benchmark testing confirms signal drift of less than 0.1% over a 12-month operational cycle under standard industrial conditions, validating its suitability as a long-term Mission-Critical Automation Component.

For facilities transitioning from legacy SLC 500 platforms toward ControlLogix or CompactLogix architectures, the 1746-FIO4V/A continues to serve as a reliable bridge module during phased migration projects, ensuring continuity of analog I/O functions without full system replacement.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1746-FIO4V/A unit dispatched by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and ships in Original Factory Packaging — complete with Allen-Bradley labeling, protective foam inserts, and traceable lot documentation. This ensures the module arrives in verified, uncirculated condition with full calibration integrity intact.

For time-sensitive plant recovery scenarios, same-day dispatch is available on in-stock units (order confirmation required before 14:00 local time). Our global logistics network covers express delivery to North America, Europe, Southeast Asia, and the Middle East — with DHL, FedEx, and UPS priority options to match your downtime recovery timeline.

As an End-of-Life (EOL) and legacy module specialist, we maintain strategic buffer stock of the 1746-FIO4V/A to serve facilities where Rockwell Automation’s standard supply chain can no longer guarantee availability. Whether you need a single emergency replacement or a multi-unit blanket order for planned maintenance, our sourcing team can fulfill requirements with full traceability documentation.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1746-FIO4V/A in an existing SLC 500 chassis?
A: Power down the chassis completely before inserting the module. Seat the module firmly into the target slot until the locking tabs engage. Restore power — the module will auto-initialize and appear in the RSLogix 500 I/O configuration tree. Assign the correct slot address and configure channel parameters (range, data format) before going online.

Q2: Which RSLogix 500 firmware versions are compatible with this module?
A: The 1746-FIO4V/A is compatible with RSLogix 500 v7.0 and later. For SLC 5/05 processors with Ethernet connectivity, firmware v10.0 or above is recommended to ensure full diagnostic data file support and channel-level fault reporting.

Q3: Can the 1746-FIO4V/A operate in a mixed-voltage environment alongside current-output modules?
A: Yes. The module occupies a single slot and operates independently of adjacent modules. However, it supports voltage I/O only — for 4-20mA current loop applications, the 1746-FIO4I variant is the appropriate selection.

Q4: How is the warranty claim process handled for this module?
A: Our 1-year warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with your order number, module serial number, and a brief fault description. Replacement units are dispatched within 3-5 business days upon fault verification, with return shipping labels provided.

Q5: What are the recommended grounding practices to prevent signal noise on analog channels?
A: Connect the cable shield drain wire to the chassis ground terminal at the module end only (single-point grounding). Avoid grounding at both ends to prevent ground loop currents. Maintain physical separation of analog signal cables from AC power and motor drive wiring by a minimum of 150mm (6 inches).

Q6: Is this module suitable for use in hazardous (classified) locations?
A: The standard 1746-FIO4V/A is rated for general industrial environments (Pollution Degree 2). For Class I, Division 2 hazardous locations, appropriate intrinsic safety barriers or Zener barriers must be installed in series with the analog field wiring. Consult your safety system engineer for site-specific compliance requirements.
