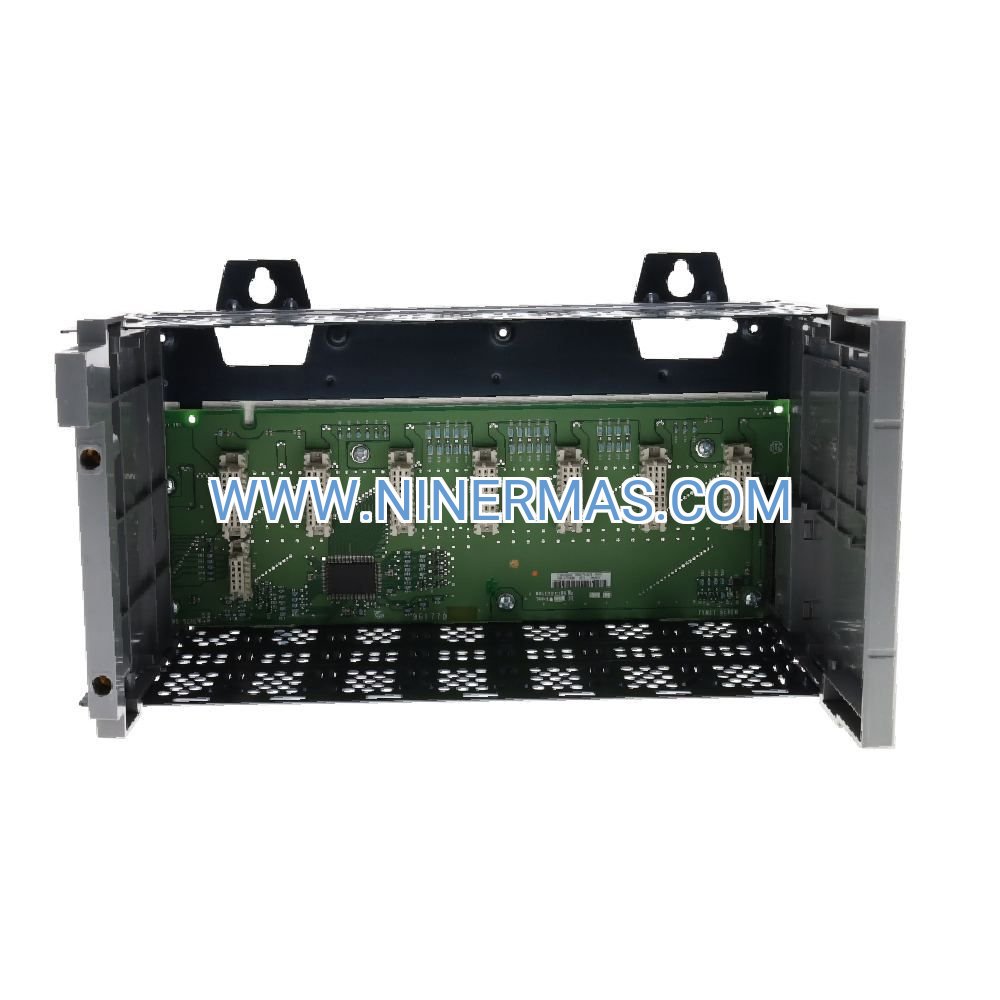

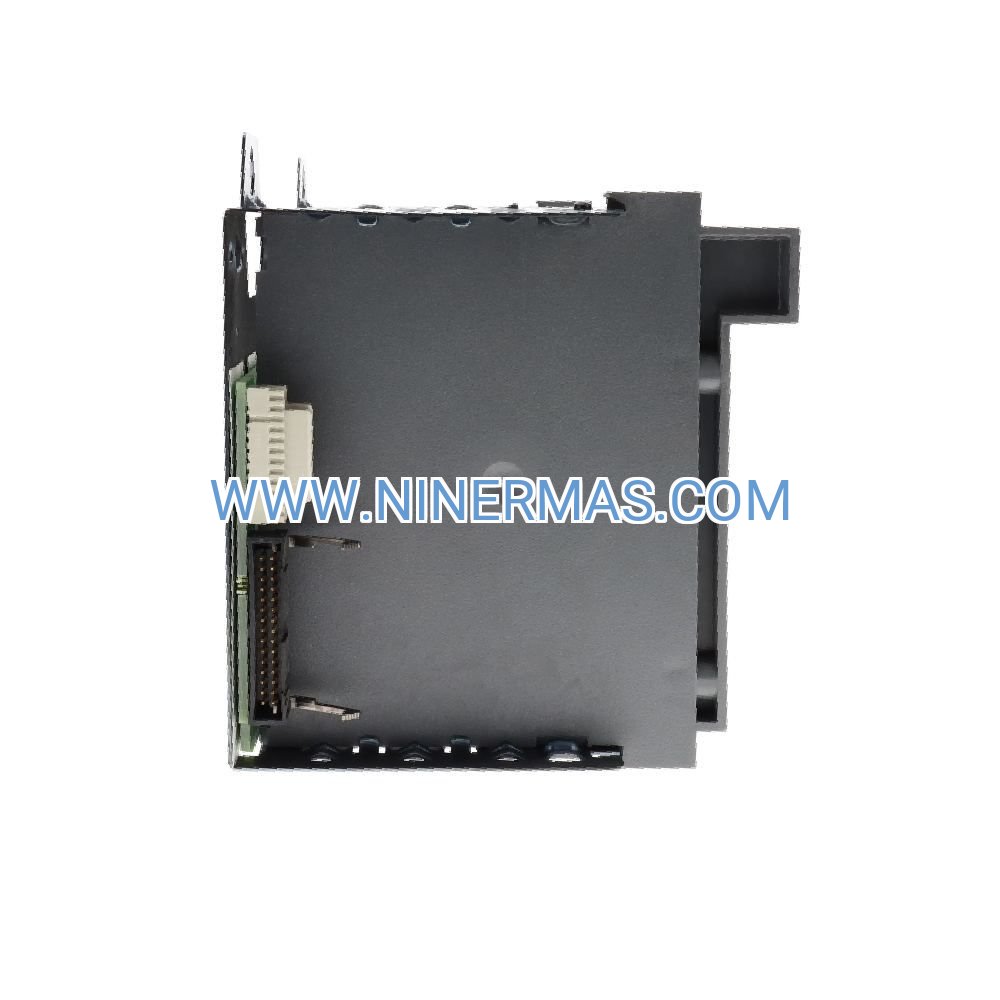

1746-A7 Modular PLC Chassis (Industrial-Grade 7-Slot Platform)

The 1746-A7 represents a field-proven modular chassis solution for Allen-Bradley SLC 500 programmable logic controller architectures. Engineered with seven expansion slots and a high-capacity backplane, this Series B platform delivers stable power distribution and flexible I/O integration for manufacturing automation, process control, and industrial machine applications. Whether you're scaling existing systems or deploying new control networks, the 1746-A7 provides the structural foundation for reliable, long-term operation.

Designed for engineers and system integrators who demand modularity without compromising performance, this chassis supports a wide range of digital, analog, and specialty I/O modules. Its compact form factor optimizes panel space while maintaining full compatibility with legacy and current-generation SLC 500 components. From packaging lines to water treatment facilities, the 1746-A7 adapts to diverse industrial environments with proven durability.

With hot-swap capability, DIN rail mounting options, and comprehensive diagnostic support, the 1746-A7 minimizes downtime and simplifies maintenance workflows. Backed by rigorous factory testing and a 12-month warranty, this chassis delivers the reliability your critical automation systems require.

Core Features & Benefits

→ Seven-Slot Modular Architecture
Accommodates one SLC 500 processor and six I/O modules, enabling scalable system design from compact machine control to multi-zone process automation. Supports mixed analog, digital, and communication modules in a single chassis.

✓ High-Capacity Backplane Power
Delivers 10 amperes at 5.1V DC across all slots, ensuring stable operation even with power-intensive specialty modules. Factory-calibrated distribution eliminates voltage sag and module instability.

→ Hot-Swap Module Replacement
Replace or upgrade I/O modules without shutting down the entire control system, reducing production interruptions and enabling live troubleshooting during critical operations.

✓ Dual Mounting Flexibility
Install via DIN rail or direct panel mount, adapting to space-constrained enclosures or standard 19-inch rack configurations. Compact 7-slot design balances I/O density with footprint efficiency.

→ Series B Enhanced Diagnostics
Backward-compatible with Series A modules while offering improved fault detection, LED status indicators, and faster module recognition for streamlined commissioning.

✓ Industrial Environmental Rating
Operates reliably in 0°C to 60°C ambient temperatures with 5-95% non-condensing humidity tolerance, meeting UL, CE, and RoHS compliance standards for global deployment.

Application Scenarios

Automated Packaging & Conveyor Systems
Control multi-stage packaging lines with distributed I/O for product sorting, labeling, and quality inspection. The 7-slot configuration handles sensor inputs, motor drives, and HMI communication in a single chassis, reducing wiring complexity and panel space requirements.

Municipal Water & Wastewater Treatment
Monitor pump stations, valve actuators, and flow sensors across treatment facilities. Hot-swap capability allows maintenance teams to replace modules during scheduled service windows without draining tanks or halting critical processes.

Material Handling & Warehouse Automation
Coordinate robotic pick-and-place systems, AGV interfaces, and inventory tracking networks. Modular expansion supports phased system growth as warehouse operations scale from manual to fully automated workflows.

HVAC & Building Management Systems
Manage temperature control, airflow regulation, and energy monitoring across commercial facilities. Compact chassis design fits standard electrical rooms while supporting mixed analog inputs for precise environmental control.

Legacy System Retrofits
Upgrade relay-based control panels to modern PLC architecture without complete system replacement. SLC 500 platform compatibility preserves existing wiring infrastructure while adding programmable logic and remote monitoring capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total module current draw before deployment. If your I/O configuration exceeds 8A, consider the 1746-A10 chassis or add a supplemental power supply. For remote I/O applications, pair with 1747-ASB or 1747-SN adapter modules for DH+, ControlNet, or DeviceNet integration.

Extended Functions

Network Integration: When combined with communication adapters (1747-ASB, 1747-SN), the chassis supports distributed I/O across DH+, ControlNet, and DeviceNet networks, enabling centralized SCADA monitoring and remote diagnostics.

Redundancy Options: Deploy dual-chassis configurations with redundant power supplies for mission-critical applications requiring failover protection and continuous uptime.

Custom Module Configurations: Mix specialty modules including high-speed counters, thermocouple inputs, PID control, and motion interfaces to create application-specific control solutions without external hardware.

Delivery & Service Assurance

Lead Time: Standard in-stock units ship within 1-3 business days. Custom-configured chassis with pre-installed modules available upon request (5-7 business days).

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended service plans available for critical infrastructure deployments.

Technical Support: Access to application engineers for system design consultation, module compatibility verification, and troubleshooting assistance via email and phone.

Documentation Included: Installation manual, backplane wiring diagram, module compatibility matrix, and RoHS/CE compliance certificates ship with every chassis.

Frequently Asked Questions

Can I use Series A modules in this Series B chassis?
Yes, the 1746-A7 Series B maintains full backward compatibility with Series A I/O modules. However, Series B modules provide enhanced diagnostic LEDs and faster fault detection.

What power supply should I pair with this chassis?
Recommended power supplies include the 1746-P1 (24V DC input), 1746-P2 (85-265V AC input), or 1746-P3 (120/240V AC input). Select based on your facility's available voltage and total module current requirements.

Does this chassis support remote I/O configurations?
Yes, when equipped with a 1747-ASB (DH+/RIO) or 1747-SN (ControlNet/DeviceNet) adapter module, the chassis integrates into distributed control networks for remote monitoring and control.

How do I calculate backplane current requirements?
Sum the current draw specifications from all installed modules' datasheets. Ensure the total does not exceed 10A at 5.1V DC. Leave 15-20% headroom for system stability and future expansion.

Is conformal coating required for harsh environments?
For applications involving extreme temperatures, high vibration, or corrosive atmospheres, conformal coating or NEMA-rated enclosures are recommended. Standard operating range is 0-60°C in non-condensing humidity.

Can I hot-swap modules during operation?
Yes, the chassis supports hot-swap replacement of I/O modules without powering down the processor or interrupting other modules. Always follow proper ESD precautions during live maintenance.

Ready to Integrate the 1746-A7 Into Your System?

Contact our technical team for module compatibility verification, system design consultation, or volume pricing. We provide same-day quotes and application-specific configuration support to ensure your automation project succeeds.
