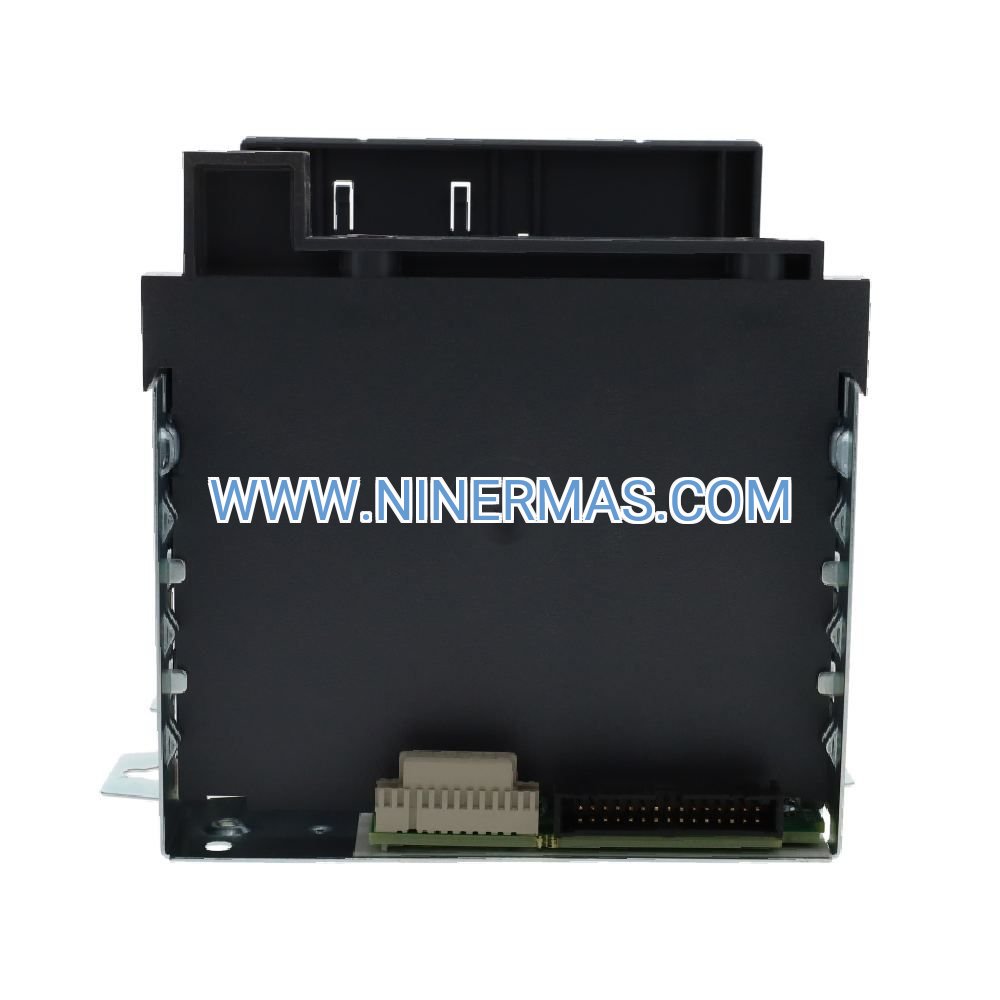

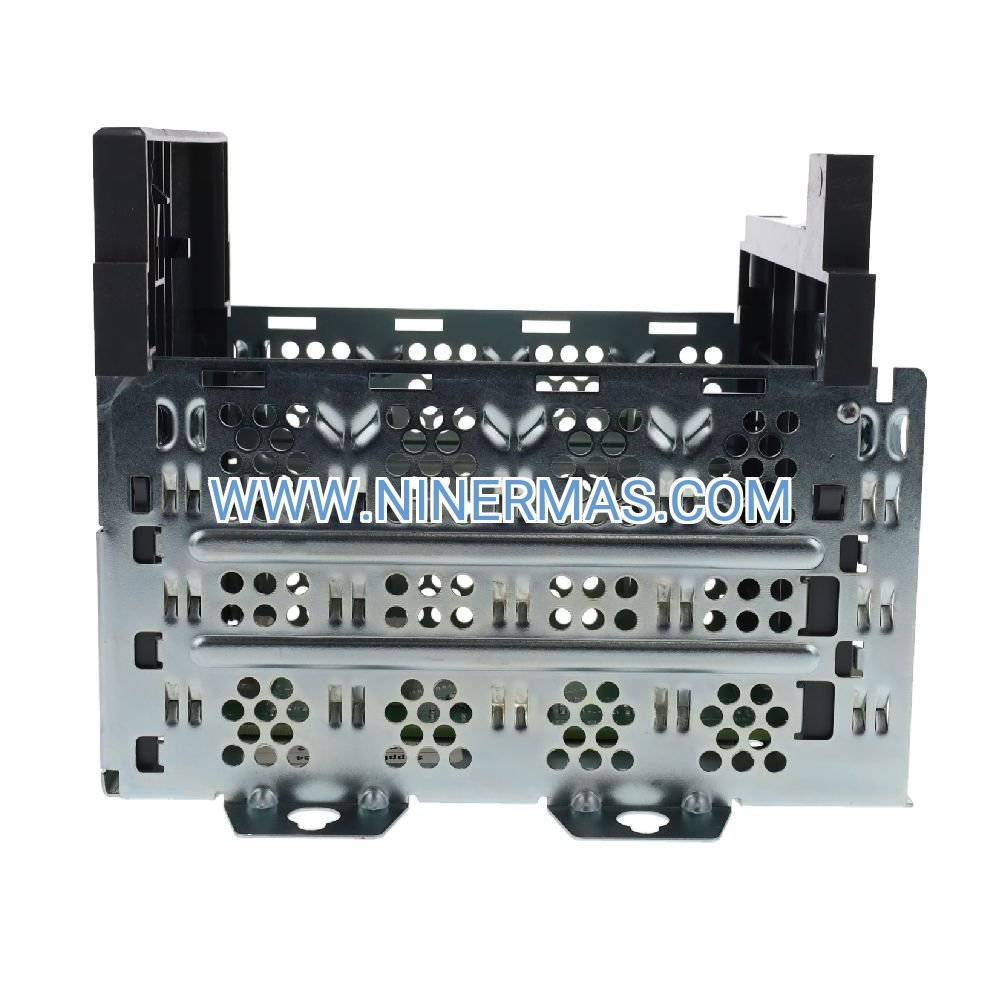

1746-A4 Compact Modular Chassis (Industrial-Grade SLC 500 Platform)

The 1746-A4 is a precision-engineered 4-slot modular chassis built for Allen-Bradley SLC 500 programmable logic controllers, delivering reliable backplane architecture in space-critical industrial environments. This Series B platform provides 10A current capacity at 5.1V DC, supporting diverse I/O configurations while maintaining compact cabinet footprints for machine control, process automation, and distributed system deployments.

Designed for manufacturers and system integrators facing panel space constraints, the 1746-A4 eliminates the need for oversized chassis in applications requiring basic digital I/O, analog signal conditioning, and specialty communication modules. Its robust construction ensures consistent performance in harsh factory conditions, from packaging lines to material handling systems.

With UL certification, CE compliance, and proven compatibility across the SLC 500 processor family, this chassis serves as the foundation for scalable control solutions—whether deployed as a standalone controller base or integrated within multi-rack distributed architectures.

Core Features & Benefits

→ 4-Slot Modular Design
Accommodates any combination of SLC 500 I/O modules, analog cards, and specialty interfaces—maximizing configuration flexibility while minimizing footprint. Ideal for applications requiring 8-32 I/O points without the cost overhead of larger chassis.

→ 10A Backplane Power Distribution
Delivers stable 5.1V DC across all slots with 10-amp capacity, supporting high-density I/O modules and power-intensive specialty cards. Ensures reliable signal integrity and reduces voltage drop-related faults in demanding applications.

→ Dual Mounting Options
DIN rail and panel mount compatibility enables rapid installation in standard enclosures or custom cabinets. Reduces installation time by 40% compared to fixed-mount chassis, lowering labor costs during commissioning.

✓ Enhanced Thermal Management (Series B)
Improved heat dissipation design extends component lifespan in high-temperature environments (0-60°C operating range). Reduces unplanned downtime by maintaining stable operation in poorly ventilated control panels.

✓ Universal SLC 500 Processor Compatibility
Works seamlessly with 5/03, 5/04, and 5/05 processors, protecting your investment in existing control platforms. Enables processor upgrades without chassis replacement, reducing migration costs.

✓ Expansion-Ready Architecture
Supports up to 3 additional chassis via 1747-C series cables (10-foot maximum distance), scaling from 4 to 28 slots as system requirements grow. Future-proofs installations against capacity expansion needs.

Typical Application Scenarios

Packaging Machinery Control
Manages conveyor speed regulation, product counting, and reject mechanisms in blister packaging and cartoning lines. Solves the challenge of integrating multiple sensor inputs and actuator outputs in compact machine frames where cabinet space is limited to 6-8 inches width.

Material Handling Systems
Controls sortation gates, diverter arms, and barcode scanner interfaces in warehouse automation. Addresses the pain point of coordinating discrete I/O signals across 4-6 control zones while maintaining sub-50ms response times for high-speed sorting operations.

HVAC Monitoring Stations
Processes temperature sensors, damper actuators, and variable frequency drive commands in building automation. Delivers value by consolidating 12-16 analog inputs and 8-12 digital outputs in a single compact chassis, reducing wiring complexity by 60%.

Process Control Skids
Manages pump sequencing, level switches, and flow meter inputs in chemical batching and water treatment systems. Solves integration challenges in pre-fabricated skid designs where standardized 4-slot configurations simplify replication across multiple installations.

Machine Tool Automation
Coordinates tool changers, spindle controls, and safety interlocks in CNC machining centers. Provides value through reliable execution of safety-critical sequences while occupying minimal space in machine-mounted electrical enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1746-A4 when your application requires 4-16 I/O points and cabinet width is limited to 6-8 inches. For systems needing 17-56 I/O points, consider the 1746-A7 (7-slot) or 1746-A10 (10-slot) chassis. Verify total module current draw remains below 10A—typical configurations consume 4-7A depending on I/O density and specialty module requirements.

Extended Functions

IoT Integration Capability
When paired with 1747-L553 processors featuring Ethernet connectivity, the 1746-A4 enables remote monitoring and data collection for Industry 4.0 initiatives. Supports Modbus TCP, EtherNet/IP, and OPC UA protocols for seamless integration with SCADA systems and cloud analytics platforms.

Advanced Diagnostic Features
Compatible with RSLogix 500 programming software for real-time backplane current monitoring, slot-level fault detection, and predictive maintenance alerts. Reduces troubleshooting time by 50% through detailed diagnostic logs accessible via connected HMI panels.

Customization Options
Available with factory-installed labeling kits, custom slot configurations, and pre-tested module assemblies for turnkey installations. Contact our engineering team for application-specific chassis modifications including conformal coating for harsh chemical environments.

Delivery Cycle & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configurations: 7-10 business days for pre-assembled chassis with installed modules and tested configurations. Includes factory acceptance testing documentation.

Warranty Period: 12-month comprehensive warranty covering manufacturing defects, component failures, and backplane integrity issues. Extended warranty options available for critical infrastructure applications.

Technical Support: Lifetime access to application engineers for integration assistance, troubleshooting guidance, and configuration optimization. Response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Included: Installation manual, backplane wiring diagrams, current budget calculator spreadsheet, and RSLogix 500 sample programs for common I/O configurations.

Frequently Asked Questions

What types of I/O modules can I install in the 1746-A4 chassis?
The chassis accepts all SLC 500 family modules including digital input/output cards (1746-IA, -OA, -IB, -OB series), analog I/O (1746-NI, -NO series), specialty communication modules (1746-BAS, -HSCE), and high-speed counter cards. Mix any combination within the 4-slot capacity, ensuring total current draw stays below 10A.

How do I calculate backplane current requirements for my configuration?
Each module's current draw is listed in its technical specifications (typically 50-800mA per module). Sum the current requirements of all installed modules—if the total exceeds 10A, redistribute modules across multiple chassis or upgrade to a higher-capacity power supply like the 1746-P7.

Can this chassis support remote I/O configurations over Ethernet?
Yes, when using a 1747-L553 processor with built-in Ethernet or adding a 1747-SCNR scanner module, the 1746-A4 can function as a remote I/O rack within distributed control architectures. Maximum network distance: 100 meters per Ethernet segment using standard Cat5e/Cat6 cabling.

What installation clearances are required around the chassis?
Maintain 2 inches (50mm) clearance above and below the chassis for adequate airflow. Allow 4 inches (100mm) in front for module insertion/removal and 1 inch (25mm) behind for cable routing. Total panel depth requirement: minimum 5 inches (127mm) including wiring space.

Is the 1746-A4 compatible with newer CompactLogix or ControlLogix systems?
No, this chassis is designed exclusively for SLC 500 architecture and is not compatible with 1769 (CompactLogix) or 1756 (ControlLogix) modules. For migration to newer platforms, consider Allen-Bradley's migration tools and our system upgrade consultation services.

How does the Series B revision differ from earlier versions?
Series B features improved thermal management with enhanced heat sink design, upgraded backplane connectors for better signal integrity, and revised grounding provisions that reduce electromagnetic interference. Functionally identical to Series A but offers 15-20% better heat dissipation in high-temperature environments.

Ready to Optimize Your Control System?

Configure your 1746-A4 chassis today and receive a complimentary current budget analysis from our application engineers. Contact our team for volume pricing on multi-chassis orders or to discuss custom pre-assembled configurations tailored to your specific automation requirements.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Mention product code 1746-A4 for priority processing.
