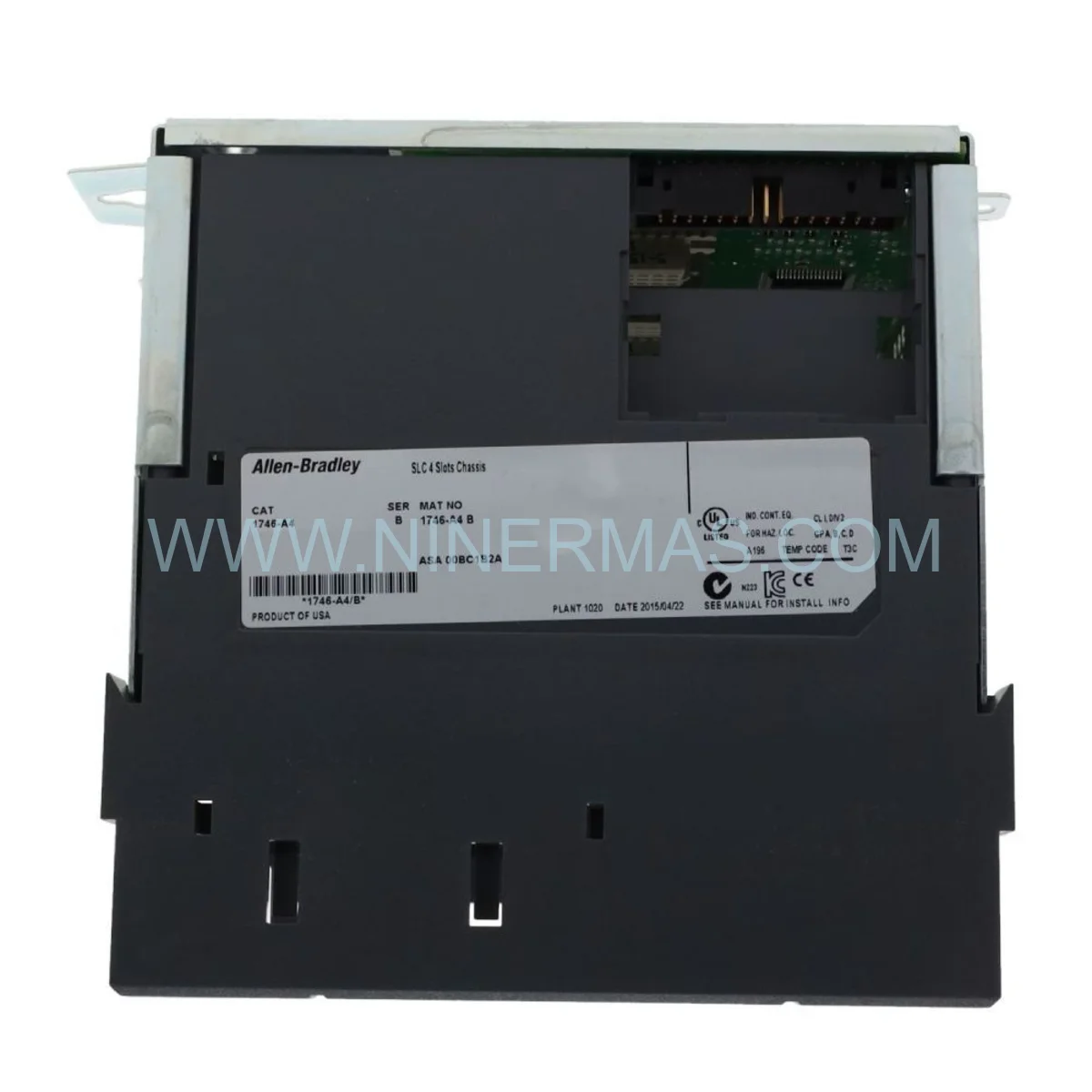

Allen-Bradley 1746-A4 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across manufacturing and process facilities, the Allen-Bradley 1746-A4 stands out as a critical enabler in extending the operational lifespan of SLC 500-based control architectures. Rather than forcing a full platform replacement, the Allen-Bradley 1746-A4 allows engineers to selectively modernize I/O layers, communication modules, and specialty cards within an existing 4-slot chassis footprint — dramatically reducing downtime risk and capital expenditure during phased migration projects.

One of the most compelling advantages of this component in a retrofit context is its backward compatibility with the entire SLC 500 processor family, including 5/03, 5/04, and 5/05 variants. This Legacy Compatibility means that facilities running decade-old control programs can introduce new I/O modules, analog signal processors, or communication adapters without rewriting ladder logic or reconfiguring processor parameters — a cornerstone of any low-risk Hardware Upgrade strategy.

From a migration cost perspective, deploying the 1746-A4 as part of a phased Retrofit Solution reduces the total cost of ownership by preserving existing wiring infrastructure, minimizing re-engineering hours, and allowing production lines to remain operational during incremental upgrades. This approach is particularly valuable in industries where unplanned downtime carries significant financial and safety consequences.

Upgrade Highlights & Compatibility

Full SLC 500 Ecosystem Compatibility — Accepts any combination of SLC 500 I/O, analog, and specialty modules; no firmware conflicts during module swap-outs.
? Stable 5.1V DC @ 10A Backplane — Consistent power delivery supports Performance Enhancement across mixed-module configurations without voltage sag.
DIN Rail & Panel Mount Flexibility — Seamless Integration into existing cabinet layouts without structural modifications.
? Series B Thermal Management — Enhanced heat dissipation design extends component service life in high-ambient industrial environments.
Multi-Rack Expansion Ready — Connect up to 3 additional chassis via 1747-C series cables for scalable system growth without processor replacement.
? UL Listed / CE / RoHS Compliant — Meets global regulatory standards, simplifying compliance documentation during system modernization audits.

Modernization Use Cases & Success Stories

DCS Integration in Chemical Processing Plants: Facilities operating legacy Distributed Control Systems have successfully deployed the 1746-A4 as a bridge chassis, housing new HART-enabled analog input modules alongside existing discrete I/O cards. This hybrid approach enabled real-time process data to be fed into modern SCADA platforms without decommissioning the original SLC 500 processor — a textbook System Migration with zero production interruption.

Turbine Supervisory Instrumentation (TSI) Retrofit: In power generation environments, the 1746-A4 has been used to house vibration monitoring interface modules within existing SLC 500 racks. By replacing aging specialty cards with updated equivalents in the same chassis, plant engineers achieved Performance Enhancement in signal accuracy and diagnostic resolution while maintaining the original control program structure.

Packaging Line Modernization: A mid-size packaging manufacturer replaced failing chassis components across 12 production cells using the 1746-A4 as a direct form-fit-function substitute. The standardized 4-slot footprint ensured Seamless Integration with existing panel layouts, reducing per-cell retrofit time to under 4 hours and eliminating the need for panel redesign.

HVAC & Building Automation Upgrades: Facility management teams have leveraged the 1746-A4 to introduce Ethernet communication modules into legacy HVAC control panels, enabling remote monitoring and predictive maintenance capabilities — a low-cost Performance Upgrade path that extends system relevance by 5-10 years.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Full Part Number | Allen-Bradley 1746-A4 | | Chassis Slot Count | 4 Slots (I/O + Specialty Modules) | | Backplane Voltage | 5.1V DC | | Backplane Current Capacity | 10A Maximum | | Series Revision | B (Enhanced Thermal Design) | | Processor Compatibility | SLC 500: 5/01, 5/02, 5/03, 5/04, 5/05 | | Mounting Options | DIN Rail / Panel Mount | | Operating Temperature | 0°C to 60°C (32°F to 140°F) | | Expansion Capability | Up to 3 additional racks via 1747-C cables | | Certifications | UL Listed, CE Marked, RoHS Compliant | | Retrofit Suitability | Direct replacement for legacy SLC 500 4-slot chassis | | Migration Risk Level | Low — no processor or program changes required | | Lifecycle Status | Mature / Legacy Support Phase |

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Allen-Bradley 1746-A4 supplied through our network is sourced from authorized distribution channels or verified surplus inventories, ensuring authenticity and full traceability — critical for regulated industries and audit-ready retrofit projects.

Expedited Global Logistics: Recognizing that retrofit timelines are often driven by unplanned failures or maintenance windows, we maintain ready stock and offer expedited international shipping to minimize system downtime. Export documentation, customs classification, and hazardous material compliance are handled end-to-end.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in SLC 500 architecture and can assist with chassis selection, module compatibility verification, backplane load calculations, and migration planning. Whether you are executing a like-for-like replacement or a phased Hardware Upgrade, we provide the technical depth to de-risk your project.

Warranty & Quality Assurance: All units are tested for backplane continuity, voltage regulation, and thermal integrity prior to dispatch. A 12-month warranty covers manufacturing defects, with extended coverage options available for long-term maintenance contracts.

Retrofit FAQ (Upgrade Guide)

Q1: Is the Allen-Bradley 1746-A4 a direct physical replacement for older SLC 500 4-slot chassis in existing panel installations?
A: Yes. The 1746-A4 maintains the same mechanical footprint and mounting hole pattern as previous SLC 500 4-slot chassis variants, enabling direct panel swap without cabinet modification. Wiring harnesses and module positions are preserved, making it the preferred choice for like-for-like retrofit deployments.

Q2: Can the 1746-A4 support communication modules required for integration with modern industrial networks such as EtherNet/IP or DeviceNet?
A: Absolutely. The chassis accepts SLC 500-compatible communication modules including 1747-SCNR (ControlNet), 1747-SDN (DeviceNet), and third-party EtherNet/IP bridge adapters. This enables Seamless Integration between legacy SLC 500 systems and modern industrial Ethernet backbones without processor replacement.

Q3: What is the recommended approach for migrating from a failed 1746-A4 chassis while minimizing production downtime?
A: The most effective strategy is a pre-staged hot-swap preparation: document all module slot positions and wiring labels before shutdown, transfer modules sequentially to the replacement chassis, and restore power with the original processor and memory intact. Total changeover time for experienced technicians is typically 2-4 hours per chassis.

Q4: Are there alternative or substitute chassis options if the 1746-A4 is unavailable, and how do they compare for retrofit purposes?
A: The 1746-A7 (7-slot) is the next logical alternative if additional I/O capacity is needed during the retrofit. For applications where SLC 500 is being phased out entirely, migration to CompactLogix 5380 or MicroLogix 1400 platforms may be evaluated, though these require program conversion and are not drop-in replacements.

Q5: How does the 1746-A4 handle communication between old and new I/O modules during a phased upgrade where mixed-generation modules coexist?
A: The SLC 500 backplane protocol is uniform across all module generations, so Legacy Compatibility is maintained regardless of module manufacture date. The processor addresses all slots identically, allowing engineers to replace individual modules incrementally without disrupting the control program or other installed modules.

Q6: What documentation is typically required for a retrofit project using the 1746-A4 in a regulated manufacturing environment?
A: Standard retrofit documentation packages include the chassis datasheet (publication 1746-TD001), module compatibility matrices, backplane current load calculations, UL/CE certification copies, and change control records. We can supply all manufacturer documentation alongside the hardware to support your validation and qualification processes.
