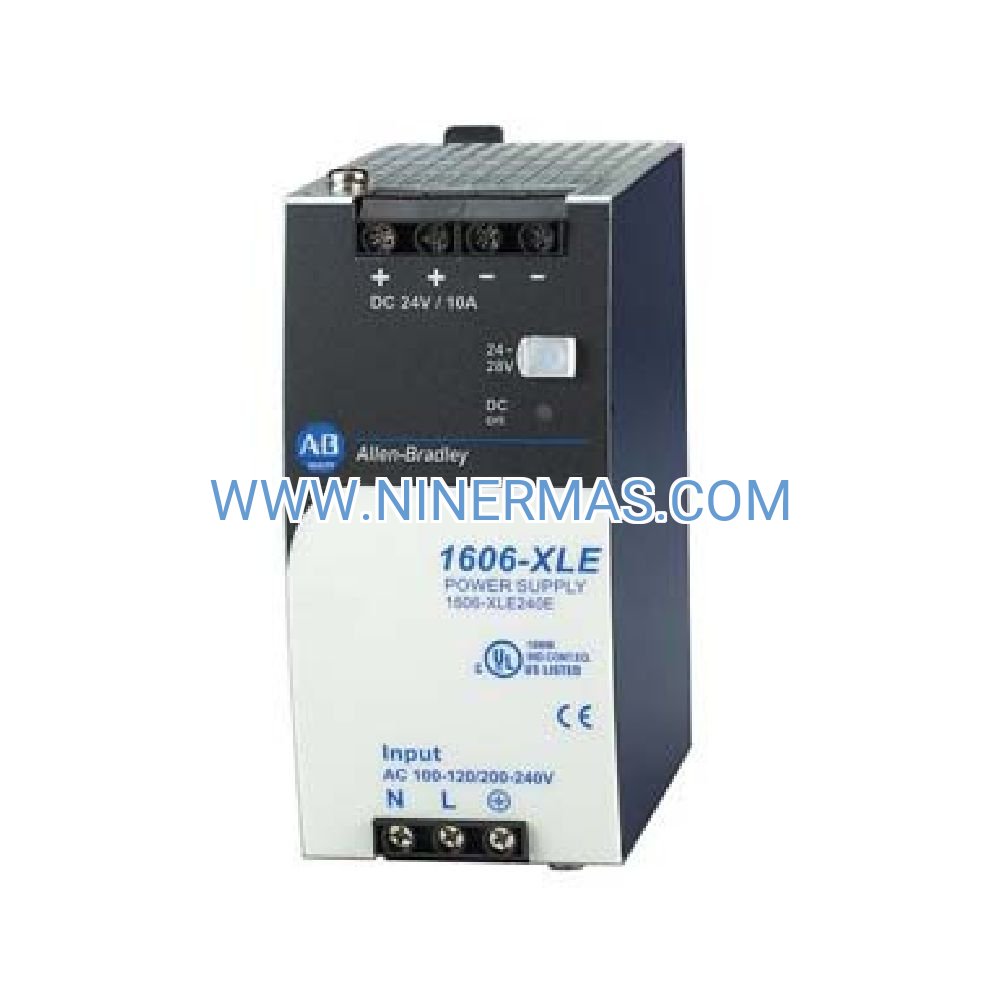

1606-XLE240E Switched-Mode Power Supply (Industrial-Grade 24VDC Solution)

The 1606-XLE240E represents a precision-engineered 240-watt switched-mode power supply designed specifically for ControlLogix automation architectures and industrial control environments. This unit transforms 100-240VAC mains power into stable 24VDC output at 10 amperes, ensuring consistent performance for PLCs, I/O modules, sensors, and actuators across manufacturing, process control, and machine automation installations.

Built for system integrators and plant engineers managing complex automation networks, this power supply addresses voltage fluctuation challenges, space constraints in control cabinets, and the need for reliable uptime in mission-critical applications. Whether you're retrofitting legacy systems or designing new control panels, the 1606-XLE240E delivers factory-calibrated precision with minimal configuration overhead.

Key differentiators include auto-sensing universal input (eliminating voltage selector switches), parallel operation capability for redundant configurations, and comprehensive protection circuits that safeguard downstream equipment. With >88% efficiency and conformal coating for harsh environments, this unit reduces energy costs while maintaining operational reliability in temperatures ranging from -25°C to +70°C.

Core Features & Business Value

✓ Universal Input Range (100-240VAC)
Auto-sensing technology adapts to global voltage standards without manual switching, reducing installation errors and enabling standardized inventory across multi-site operations. Saves 15-20 minutes per installation compared to voltage-selectable units.

✓ Factory Calibration & Tight Regulation (±2%)
Pre-tuned voltage output eliminates field adjustment requirements and ensures sensitive instrumentation receives clean, stable power. Reduces troubleshooting time by up to 40% in complex systems.

✓ Compact DIN-Rail Design (125mm Width)
Space-efficient footprint fits standard 35mm rails per EN 60715, maximizing usable cabinet space. Typical installations save 30-40% panel real estate versus traditional linear supplies.

✓ LED Diagnostic Indicators
Real-time status visualization enables rapid fault identification during commissioning and maintenance. Reduces mean time to repair (MTTR) by providing instant visual feedback on power and fault conditions.

✓ Parallel Operation Support
Multiple units can be configured for N+1 redundancy using diode decoupling modules, ensuring zero downtime in critical processes. Ideal for pharmaceutical, food processing, and continuous manufacturing applications.

✓ Low Ripple & Noise Performance
Advanced filtering circuitry delivers <150mV peak-to-peak ripple, protecting analog instrumentation and high-resolution sensors from electrical interference. Improves measurement accuracy in precision control loops.

Typical Application Scenarios

→ Automotive Assembly Lines
Powers ControlLogix chassis controlling robotic welding cells and conveyor systems. Addresses the challenge of maintaining consistent voltage despite frequent motor starts and inductive loads. Delivers 99.9% uptime through robust overload protection and thermal management.

→ Water Treatment Facilities
Supplies 24VDC to SCADA systems, flow meters, and valve actuators in corrosive environments. Solves the problem of premature equipment failure due to voltage sags and surges. Conformal coating extends service life 3-5 years beyond standard units.

→ Packaging Machinery
Energizes servo drives, vision systems, and safety relays in high-speed packaging lines. Eliminates production stoppages caused by power supply failures through parallel redundancy configurations. Reduces unplanned downtime by 60-75%.

→ Chemical Processing Plants
Provides reliable power for hazardous area instrumentation and emergency shutdown systems. Addresses compliance requirements for UL/cUL and CE certifications in regulated industries. Supports safety integrity level (SIL) rated architectures.

→ Building Automation Systems
Drives HVAC controllers, access control panels, and lighting management networks. Solves integration challenges in retrofit projects where existing wiring supports multiple voltage standards. Universal input eliminates need for step-down transformers.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total load current by summing all connected devices (PLCs, I/O modules, sensors). Add 20-30% safety margin for inrush currents and future expansion. For loads exceeding 8A continuous, consider the 1606-XL480E (480W) model. In redundant applications, size each supply for 100% of total load to ensure N+1 capability.

Extended Functions

Remote Monitoring Integration: DC-OK relay contact enables integration with SCADA systems and building management platforms for predictive maintenance scheduling. Contact closure signals normal operation; opening indicates fault condition requiring attention.

Parallel Redundancy Configuration: When combined with 1606-XLSRED diode modules, multiple units operate in load-sharing mode with automatic failover. If one supply fails, remaining units seamlessly assume full load without system interruption.

Customization Options: Extended temperature variants (-40°C to +85°C) available for extreme environments. Conformal coating levels can be upgraded to meet IPC-A-610 Class 3 requirements for high-reliability applications in aerospace and defense sectors.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days via express courier. Custom configurations (extended temp, special coatings) require 3-4 weeks manufacturing lead time. Expedited processing available for emergency replacements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime in critical applications.

Technical Support: Our applications engineering team provides pre-sales sizing assistance, installation guidance, and troubleshooting support via phone and email. Remote diagnostics available for complex system integration challenges.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD models (STEP, DXF) and 3D PDFs available for panel design integration.

Frequently Asked Questions

Can the 1606-XLE240E power non-Allen-Bradley control equipment?
Absolutely. This unit provides industry-standard 24VDC output compatible with any manufacturer's PLCs, drives, sensors, or instrumentation requiring this voltage. The output is electrically isolated and meets universal industrial specifications.

What's the recommended wire gauge for 10-ampere output connections?
Use 14 AWG (2.5mm²) copper wire for runs up to 15 meters. For longer distances or voltage-drop-sensitive applications, upgrade to 12 AWG (4mm²). Ensure terminal torque is set to 0.5-0.6 Nm per installation manual specifications.

How much energy savings can I expect versus linear power supplies?
Switched-mode topology delivers 88-90% efficiency compared to 50-60% for linear designs. In a typical 24/7 operation, this translates to 200-250 kWh annual savings per unit, reducing operating costs by $25-40 depending on local electricity rates.

Does this model support hot-swap replacement in redundant configurations?
Yes, when properly configured with diode decoupling modules. The DC-OK relay contact should be monitored to confirm supply health before removal. Follow lockout/tagout procedures and verify backup supply is carrying full load before disconnecting.

Is the unit suitable for marine or offshore platform installations?
The standard conformal coating provides protection against humidity and salt spray in controlled environments. For direct exposure to marine conditions, specify the enhanced coating option (suffix -M) which meets IEC 60945 maritime standards.

Can I adjust the output voltage for 12VDC or 48VDC applications?
No, the 1606-XLE240E is fixed at 24VDC nominal with ±2V trim range (22-26VDC). For 12VDC requirements, consider the 1606-XLE120E model. 48VDC applications require the 1606-XLE480D variant.

Take the Next Step

Ready to enhance your control system reliability? Contact our technical sales team for application-specific sizing, volume pricing, or integration support. We'll help you configure the optimal power architecture for your automation requirements.

Request a quote today or speak with an applications engineer to discuss your project specifications.
