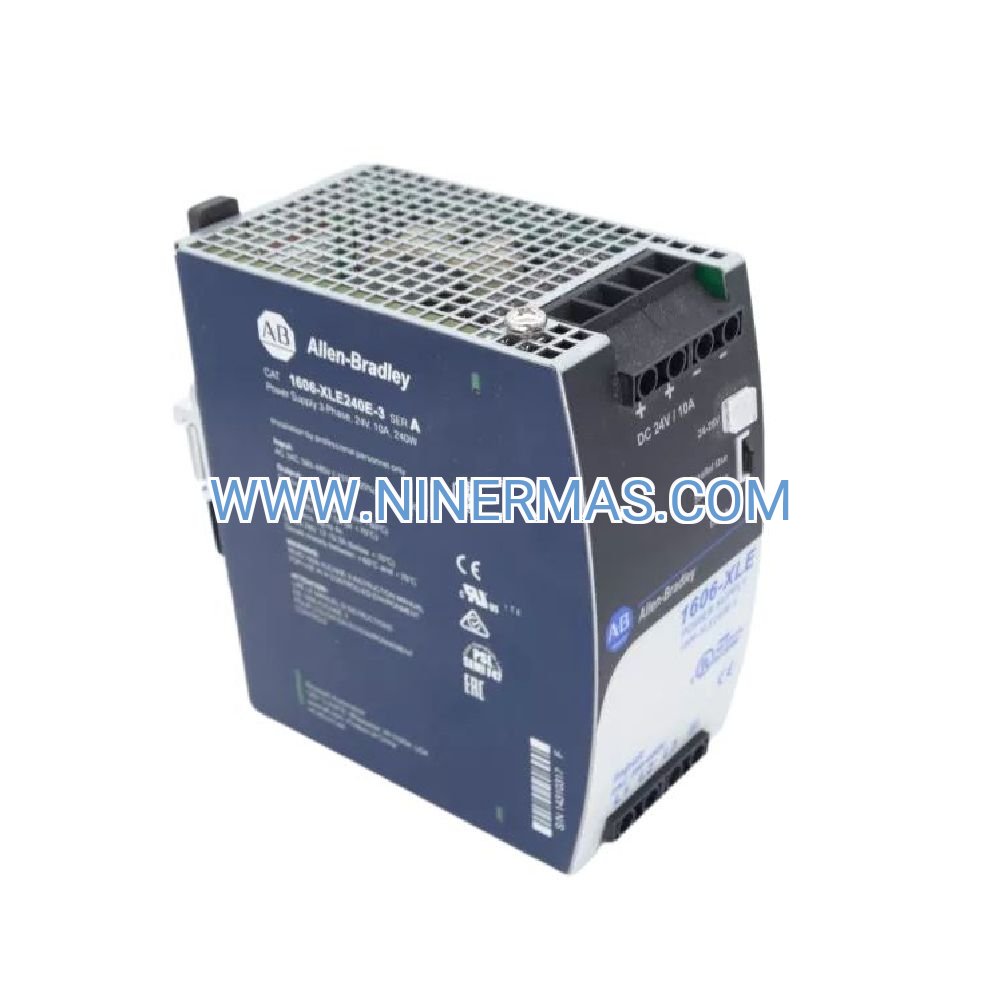

1606-XLE240E-3 Industrial-Grade Three-Phase Power Supply

The 1606-XLE240E-3 represents a robust switched-mode power solution specifically designed for heavy industrial installations requiring three-phase 480VAC distribution. This Allen-Bradley unit transforms high-voltage three-phase input into stable 24VDC output, delivering 240 watts of continuous power with exceptional 92% conversion efficiency. Built for ControlLogix ecosystem integration, it combines compact DIN rail mounting with enterprise-grade protection circuits to ensure uninterrupted operation in the harshest manufacturing environments.

Industrial facilities face constant challenges with power quality, thermal stress, and space constraints in control cabinets. This power supply addresses these pain points through active power factor correction, wide input tolerance (342-528VAC), and convection-cooled thermal management. Whether you're upgrading legacy systems or designing new automation architectures, the 1606-XLE240E-3 provides the reliability foundation your critical control infrastructure demands.

Engineered for professionals managing complex automation networks, this unit delivers consistent 24-28VDC output across demanding temperature ranges (-25°C to +70°C). With comprehensive protection against overload, short-circuit, and thermal events, plus UL508 and CE certifications, it meets global industrial standards while simplifying installation through standard 35mm DIN rail compatibility.

Core Capabilities & Business Value

→ Three-Phase 480VAC Input Architecture: Optimized for high-voltage industrial distribution systems, reducing current draw and enabling longer cable runs compared to single-phase alternatives—critical for large facility layouts.

→ 10A Continuous Output Capacity: Supports multiple ControlLogix modules, distributed I/O racks, and field devices from a single compact unit, reducing component count and simplifying power distribution design.

→ 92% Peak Efficiency Rating: Minimizes heat generation and energy waste, translating to lower operating costs and reduced cooling requirements in enclosed control panels—saving up to 15% on power consumption versus older linear supplies.

→ Extended Temperature Performance: Operates reliably from -25°C to +70°C without derating, ensuring consistent performance in outdoor enclosures, foundries, and refrigerated environments where standard supplies fail.

→ Active PFC Technology: Maintains >0.95 power factor across load ranges, reducing harmonic distortion and improving compatibility with backup generators and UPS systems during power events.

→ Intelligent Protection Suite: Automatic recovery from overload conditions, hiccup-mode short-circuit protection, and thermal shutdown with auto-restart prevent downtime while protecting downstream equipment investments.

Industrial Application Scenarios

✓ Automotive Assembly Lines: Powers ControlLogix chassis controlling robotic welding cells and conveyor systems. The three-phase input matches facility electrical infrastructure while 10A output handles multiple I/O modules and safety relays. Solves voltage sag issues during motor startup events through wide input range tolerance.

✓ Chemical Processing Plants: Provides stable power for distributed control systems monitoring reactor temperatures, flow rates, and pressure sensors. Convection cooling eliminates fan failures in corrosive atmospheres, while -25°C to +70°C rating handles outdoor analyzer enclosures. Delivers 99.9% uptime in continuous process environments.

✓ Water Treatment Facilities: Energizes PLC systems managing pump stations, filtration controls, and SCADA networks. Three-phase 480VAC input integrates with existing motor control centers, reducing installation complexity. Wide input range compensates for voltage fluctuations from variable frequency drives.

✓ Food & Beverage Production: Supports packaging line controllers, vision inspection systems, and recipe management PLCs. UL508 and CE certifications meet regulatory requirements for food-grade facilities. Compact DIN rail design maximizes usable space in hygienic stainless steel enclosures.

✓ Mining Operations: Delivers reliable power to conveyor control systems, crusher automation, and material handling networks in harsh underground and surface environments. Rugged construction withstands vibration and temperature extremes while maintaining stable output voltage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1606-XLE240E-3 when your facility operates on three-phase 480VAC distribution and requires 8-10A of 24VDC power. For lower current needs (5A or less), consider the 120W model. If your installation uses single-phase 480VAC, select the 1606-XLE240E variant instead. Calculate total load current including 20% safety margin for future expansion and inrush requirements.

Advanced Integration Features

Redundancy Configuration: Pair with the 1606-XLSRED redundancy module to create N+1 fault-tolerant power architectures. Two units operate in parallel with automatic load sharing and seamless failover, ensuring zero downtime during maintenance or component failure—essential for critical process control applications.

Remote Monitoring Capability: DC OK relay contact provides real-time status feedback to PLC or SCADA systems, enabling predictive maintenance alerts and automated shutdown sequences. Integrate with Allen-Bradley FactoryTalk View for centralized power system monitoring across multiple control cabinets.

Parallel Operation: Multiple units can be paralleled using external diode modules to scale output current beyond 10A for high-power applications. Supports distributed power architectures where multiple supplies feed different zones of large control systems.

Custom Voltage Adjustment: Output voltage trimmer allows field adjustment from 24-28VDC to compensate for voltage drop in long cable runs or match specific equipment requirements without replacing the entire unit.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 days international. Expedited same-day shipping available for emergency replacements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers all component failures and manufacturing defects. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support: Access to certified Allen-Bradley application engineers for integration assistance, troubleshooting, and system design consultation. Phone and email support available during business hours with 4-hour response time guarantee.

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings, and certification documents. CAD models and 3D STEP files available for download to streamline panel design and layout planning.

Frequently Asked Questions

What is the difference between 1606-XLE240E-3 and the standard 1606-XLE240E model?
The "3" suffix indicates three-phase 480VAC input capability, whereas the standard model accepts single-phase 120-240VAC input. Three-phase versions offer better efficiency and lower input current draw, making them ideal for industrial facilities with 480VAC distribution infrastructure.

Can this power supply operate on 400VAC three-phase European systems?
Yes, the wide input range (342-528VAC) fully supports 400VAC ±10% three-phase systems common in European and Asian industrial installations. The unit automatically adapts to input voltage variations without manual adjustment or configuration changes.

How much clearance is required above and below the unit for proper cooling?
Maintain minimum 50mm (2 inches) clearance above and below the unit for adequate convection airflow. In high-ambient environments (>50°C), increase spacing to 75mm or consider forced-air cooling of the entire enclosure to maintain optimal performance.

Does the unit include built-in circuit protection or do I need external fusing?
While the power supply has internal overload and short-circuit protection, Allen-Bradley recommends installing external input fusing (2A slow-blow) per UL508A panel building standards. This provides additional protection for facility wiring and simplifies troubleshooting during fault conditions.

What is the typical MTBF rating for this power supply model?
Mean Time Between Failures exceeds 300,000 hours at 25°C ambient temperature and 50% load, translating to approximately 34 years of continuous operation under normal industrial conditions. MTBF decreases at higher temperatures and full-load operation but remains above 150,000 hours even at maximum ratings.

Can I use this to power non-Allen-Bradley control equipment?
Absolutely. The 24VDC output is compatible with any industrial equipment rated for 24VDC operation, including Siemens, Schneider Electric, Omron, and other manufacturer's PLCs, I/O modules, sensors, and actuators. Standard industrial voltage and current specifications ensure universal compatibility.

Take the Next Step

Ready to upgrade your industrial power infrastructure with proven Allen-Bradley reliability? Our technical team is standing by to assist with system sizing, compatibility verification, and integration planning. Contact us today for volume pricing, custom configuration options, or to schedule a consultation with our automation specialists.
