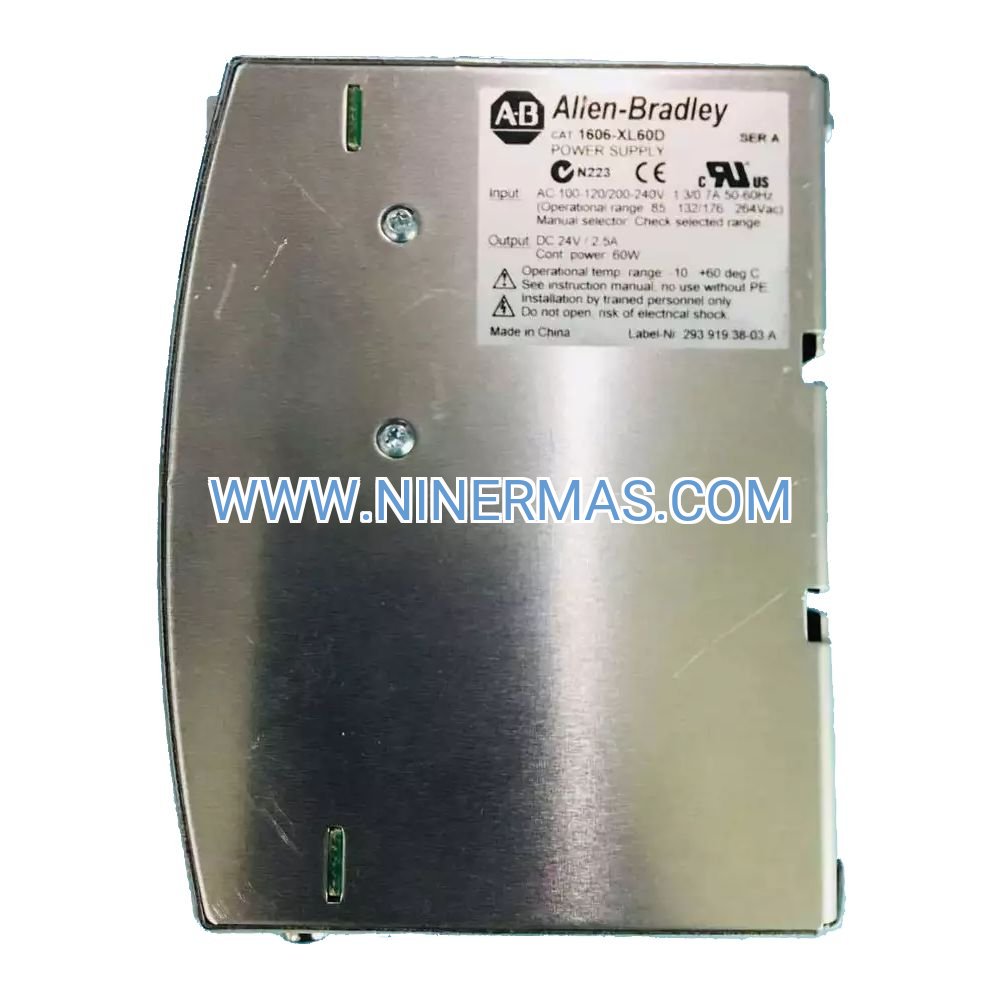

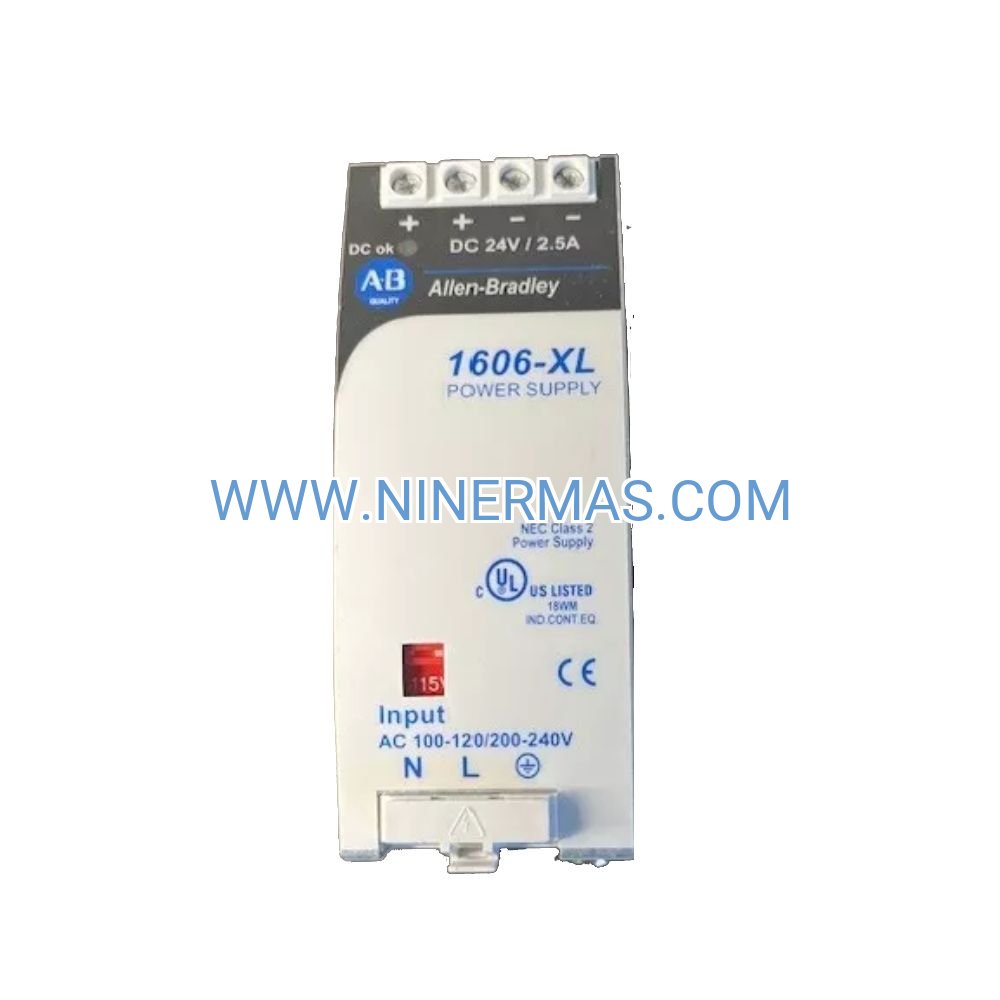

1606-XL60D Industrial Power Supply (60W 24VDC DIN Rail Solution)

The Allen-Bradley 1606-XL60D represents a professional-grade 24VDC power solution engineered for mission-critical automation infrastructure. This 60-watt DIN rail unit combines wide-range universal input (95-264VAC), exceptional thermal performance through +105°C longlife capacitors, and industry-leading 740,000-hour MTBF reliability. Designed for ControlLogix, PLC-5, and distributed I/O architectures, it addresses the core challenge of maintaining stable, noise-free DC power in electrically harsh industrial environments.

Target users include automation engineers specifying control panel components, maintenance teams managing legacy Allen-Bradley systems, and OEMs building machinery requiring compact, reliable 24VDC sources. The unit's 49mm slim profile and universal voltage acceptance eliminate common deployment headaches—no voltage selector switches to misconfigure, no bulky form factors consuming precious DIN rail space.

Key differentiators: 87.5% peak efficiency reduces heat generation and energy costs, >20ms hold-up time bridges momentary power interruptions without system resets, and comprehensive protection circuitry (overload, overvoltage, inrush limiting) ensures graceful fault handling rather than catastrophic failures.

Core Features & Benefits

→ Universal Input Voltage (95-264VAC, 47-63Hz)
Eliminates inventory complexity for global deployments. Single SKU supports North American 120VAC and European 230VAC installations without manual switching—reducing configuration errors and simplifying spare parts management.

→ High-Efficiency Topology (87.5% Typical)
Lower operating temperatures extend component life and reduce cooling requirements. In a 10-unit installation, efficiency gains translate to ~75W less heat dissipation versus 80% efficient alternatives—meaningful in sealed NEMA 4X enclosures.

→ Extended Hold-Up Time (>20ms @ Full Load)
Bridges voltage sags and momentary interruptions common in industrial power grids. Prevents nuisance PLC resets during motor starting transients or utility switching events, maintaining process continuity.

✓ Longlife Electrolytic Capacitors (+105°C Rated)
Doubles expected service life in high-ambient environments. Standard 85°C capacitors degrade rapidly above 50°C; 105°C components maintain performance in poorly ventilated panels or tropical climates.

✓ Compact 49mm Width Footprint
Saves 30-40% DIN rail space versus traditional 72mm units. Critical advantage in retrofit projects where panel real estate is constrained—allows power supply upgrades without enclosure modifications.

✓ Gradual Overload Response (Up to 1.5x Rated Current)
Prevents abrupt shutdowns during inrush events. Output voltage reduces proportionally rather than tripping offline, allowing capacitive loads to charge without triggering protection circuits.

Typical Application Scenarios

Scenario 1: ControlLogix Chassis Power Distribution
Pain Point: 1756 chassis require stable 24VDC for backplane communication and I/O modules, but shared power supplies create single points of failure.
Solution Value: Deploy dedicated 1606-XL60D per chassis section. Independent supplies isolate faults and simplify troubleshooting—a shorted I/O module won't crash the entire control system.

Scenario 2: Remote I/O Cabinet Power
Pain Point: Distributed FLEX I/O or Point I/O racks located 100+ meters from main panel experience voltage drop and electrical noise from long cable runs.
Solution Value: Local 1606-XL60D installation at remote cabinet eliminates voltage drop issues. Wide input range tolerates poor site power quality; low ripple (<25mVpp) ensures analog I/O accuracy.

Scenario 3: Machine Builder OEM Integration
Pain Point: Packaging machinery sold globally requires dual-voltage capability but space limitations prevent oversized power supplies.
Solution Value: 49mm width fits standard machine control panels. Universal input eliminates regional SKU variants—single BOM serves worldwide markets, reducing engineering overhead and inventory costs.

Scenario 4: Retrofit Upgrades in Legacy Systems
Pain Point: Aging linear power supplies in PLC-5 or SLC 500 systems fail frequently, but panel modifications are cost-prohibitive.
Solution Value: Direct DIN rail replacement without rewiring. Switching topology runs cooler than linear predecessors, extending service intervals and reducing unplanned downtime.

Scenario 5: Harsh Environment Installations
Pain Point: Foundries, chemical plants, and outdoor enclosures subject power supplies to extreme temperatures (-10°C to +70°C) and electrical transients.
Solution Value: 105°C capacitor rating and conformal coating options withstand thermal cycling. Overvoltage protection and EMI filtering maintain operation despite dirty power conditions.

Technical Parameters & Selection Guide

Selection Criteria:

• Calculate total load current including 20% safety margin for inrush and aging
• Verify ambient temperature—derate output 2% per °C above 60°C
• For redundant configurations, use 1606-XL120DR with built-in ORing diodes
• Pair with 1492-SPU1C100 circuit protector or 10A slow-blow fuse for input protection
• Ensure 25mm vertical clearance for convection cooling; forced air not required below 50°C

Extended Functions

DC Input Operation: Accepts 110-300VDC input for battery-backed UPS systems or DC bus architectures. Note: Hold-up time specification applies to AC input only; DC input reduces hold-up to ~5ms.

Parallel Operation Considerations: Unit lacks integrated ORing diodes—external diode modules required for N+1 redundancy. For critical applications, specify 1606-XL120DR redundancy module or use external ORing FETs rated for 3A minimum.

Remote Sensing Option: Not available on XL60D model. For applications requiring <1% regulation at load, consider 1606-XL120E with remote sense terminals to compensate for cable voltage drop.

Customization Availability: Factory-configured options include conformal coating for harsh environments, extended temperature screening (-25°C to +85°C), and custom output voltages (12VDC, 48VDC). Minimum order quantities apply—contact for engineering consultation.

Delivery & Service Assurance

Lead Time:

• Standard Stock Items: 3-5 business days (in-stock SKUs ship same day if ordered before 2 PM CST)
• Custom Configurations: 4-6 weeks for conformal coating or extended temp screening
• Bulk Orders (50+ units): 6-8 weeks; contact for expedited production scheduling

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Warranty excludes damage from overvoltage events, improper installation, or operation beyond published ratings. Extended 36-month coverage available for critical infrastructure projects.

Technical Support: Application engineering assistance for load calculations, thermal analysis, and system integration. Support includes:

• Pre-sales sizing and selection guidance
• Installation troubleshooting (wiring diagrams, grounding best practices)
• Failure analysis and RMA processing (48-hour turnaround)
• Custom testing reports for qualification programs

Documentation Package: Each unit ships with installation manual, dimensional drawings, and compliance certificates. Downloadable resources include 3D CAD models (STEP format), thermal derating curves, and MTBF calculation worksheets.

Frequently Asked Questions

What is the recommended input circuit protection for the 1606-XL60D?
Use a 10A slow-acting (time-delay) fuse or 1492-SPU1C100 circuit protector. Fast-acting fuses may nuisance-trip during cold-start inrush (25A typical @ 264VAC). Coordinate protection with upstream branch circuit breakers to ensure selective coordination.

Can this power supply drive solenoid valves or relay coils directly?
Yes, but install flyback diodes across inductive loads to suppress voltage spikes. Without suppression, back-EMF from coil de-energization can exceed the 32VDC overvoltage threshold, triggering protection shutdown. Use 1N4007 diodes (1A, 1000V) for typical 24VDC solenoids.

How does ambient temperature affect output capacity?
Full 60W output is available from -10°C to +60°C. Above 60°C, derate linearly to 80% capacity (48W) at 70°C maximum. For example, at 65°C ambient, maximum safe output is ~54W. Exceeding derating limits accelerates capacitor aging and may trigger thermal shutdown.

Is the unit suitable for outdoor installations?
The standard IP20 enclosure requires mounting inside a weatherproof panel (NEMA 3R minimum). For direct outdoor exposure, specify conformal coating option and ensure enclosure provides IP54 or better protection. Operating temperature range (-10°C to +70°C) covers most climates; extreme cold regions may require enclosure heaters.

What causes the green LED indicator to flash?
Flashing green indicates overload or overvoltage protection activation. Check load current (should not exceed 3.75A even briefly), verify output voltage under load (should be 22.8-25.2VDC), and inspect for output short circuits. If flashing persists with no load connected, unit may require service.

Can I use this power supply with non-Allen-Bradley PLCs?
Absolutely. The 1606-XL60D is a universal 24VDC source compatible with Siemens, Schneider Electric, Mitsubishi, Omron, and other manufacturers' control systems. Verify that your PLC's input voltage range (typically 20.4-28.8VDC) overlaps with the supply's regulation spec (22.8-25.2VDC).

Ready to Upgrade Your Power Infrastructure?

The 1606-XL60D delivers the reliability and performance your automation systems demand. Whether you're designing new control panels, upgrading aging equipment, or expanding distributed I/O networks, this industrial-grade power supply provides the stable 24VDC foundation critical for uptime and process quality.

Next Steps: Add to cart for immediate shipment, or contact our application engineers for system-level design assistance. Volume pricing available for OEMs and system integrators—request a quote for projects requiring 10+ units.
