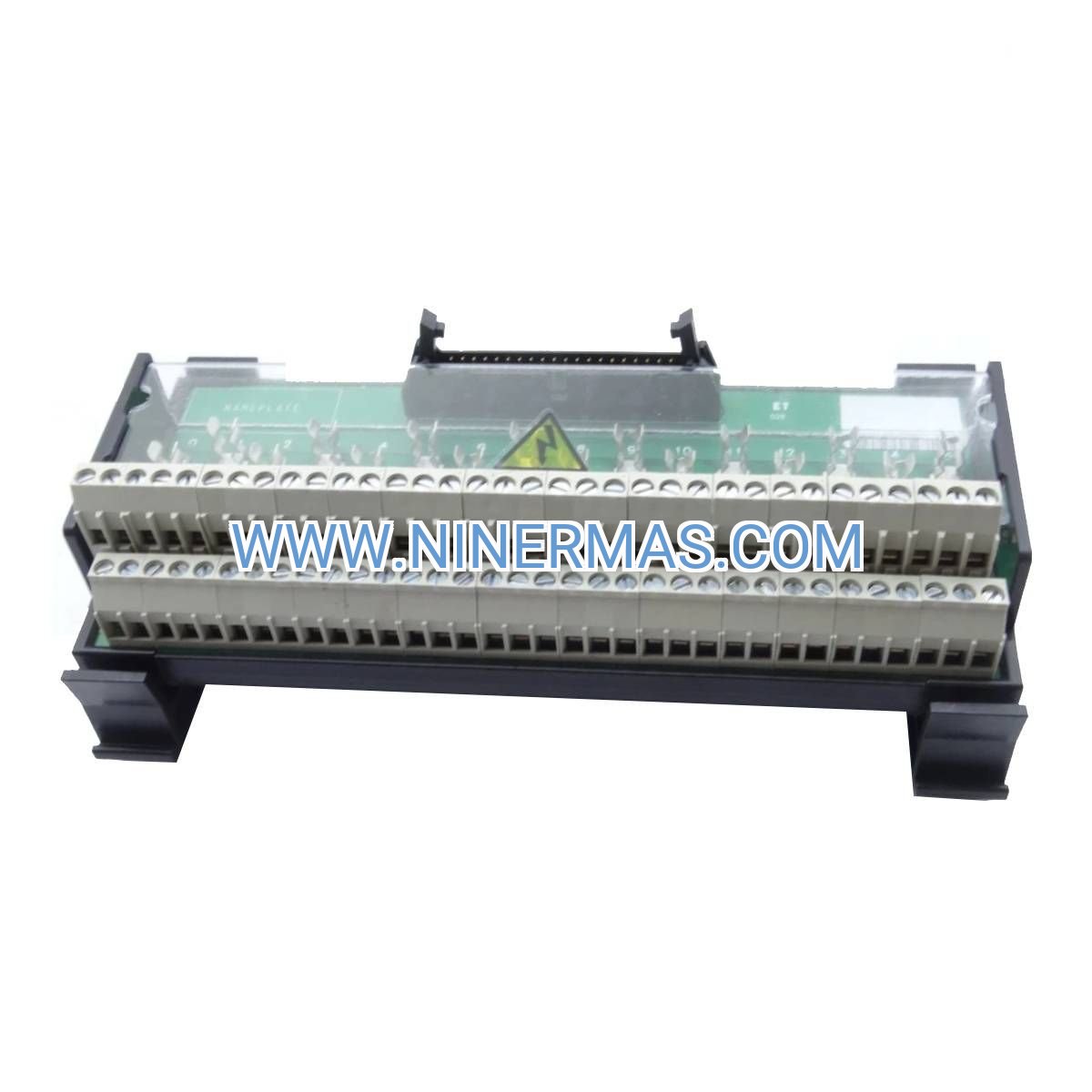

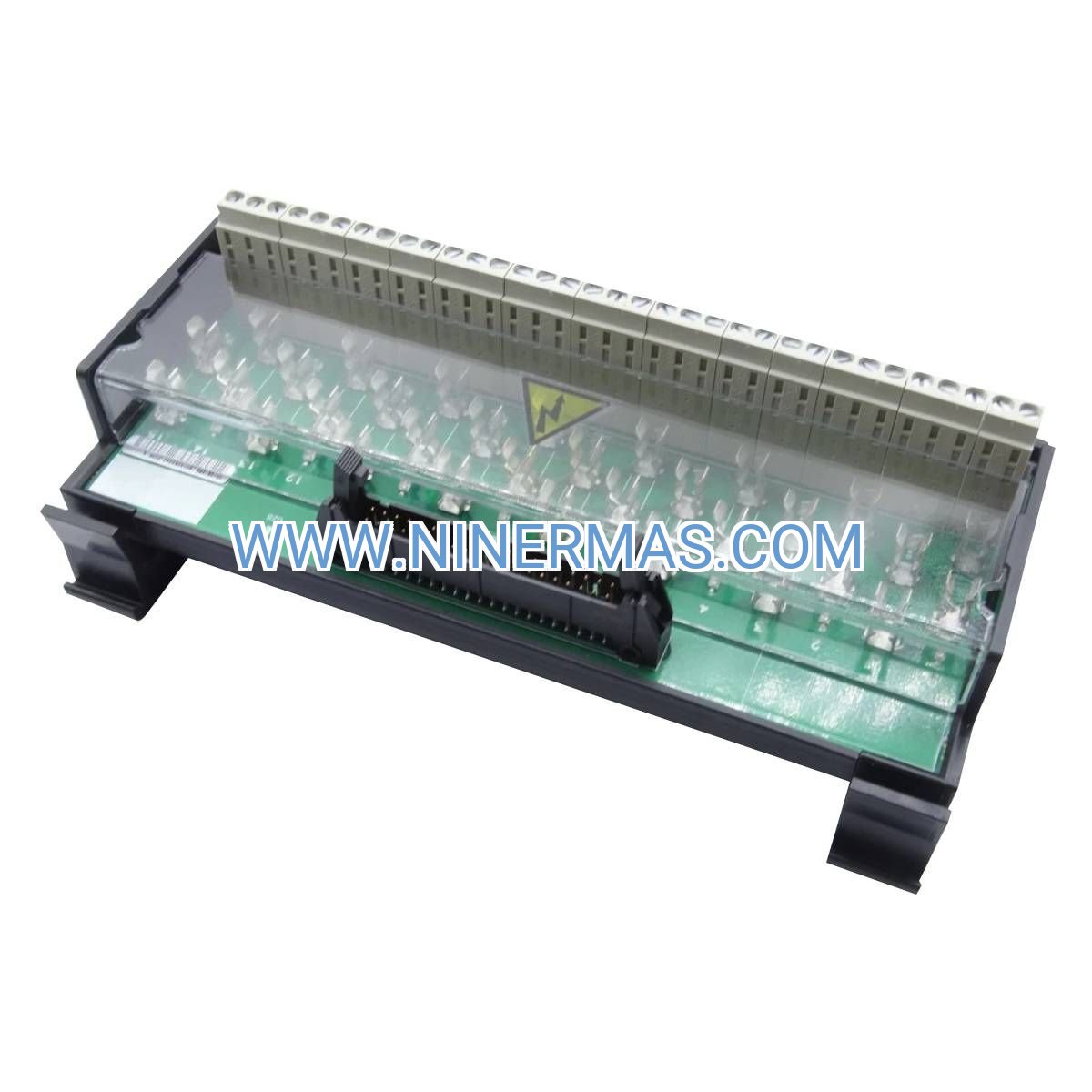

1492-IFM40F 40-Pin Interface Module (Industrial-Grade I/O Distribution Hub)

The 1492-IFM40F represents a breakthrough in industrial I/O connectivity, delivering a 40-pin feed-through architecture that transforms complex field wiring into a streamlined, error-resistant process. Built for demanding automation environments, this interface module serves as the critical bridge between your control system and field devices, enabling rapid deployment while maintaining signal integrity across manufacturing, process control, and machine automation applications.

Designed for system integrators and plant engineers who demand reliability without compromise, the 1492-IFM40F eliminates the traditional pain points of point-to-point wiring. Whether you're retrofitting legacy systems or commissioning new installations, this module reduces labor costs, minimizes troubleshooting time, and accelerates project timelines through its intelligent feed-through design and industry-standard compatibility.

With UL certification, CE compliance, and RoHS adherence, the 1492-IFM40F meets global regulatory standards while delivering the rugged performance industrial environments require. Its compact DIN-rail footprint optimizes panel space, while removable terminal blocks ensure maintenance teams can service connections without system-wide shutdowns.

Core Features & Benefits

→ Accelerated Installation Efficiency
Feed-through pin mapping reduces installation time by 40% compared to conventional wiring methods, translating to faster commissioning and reduced labor expenses.

→ Universal PLC Compatibility
Seamlessly integrates with Allen-Bradley SLC 500, CompactLogix, ControlLogix, and compatible third-party I/O systems following industry-standard 40-pin configurations.

→ Enhanced Signal Reliability
Screw-clamp terminals provide secure, vibration-resistant connections that maintain signal integrity in high-vibration industrial environments.

→ Maintenance-Friendly Architecture
Removable terminal blocks enable hot-swap servicing and rapid fault isolation without disrupting adjacent circuits or requiring full panel access.

→ Space-Optimized Design
Compact 1.0 kg form factor maximizes control cabinet density, critical for retrofit projects with limited panel real estate.

→ Environmental Resilience
Operates reliably across 0°C to 60°C temperature range, suitable for factory floors, outdoor enclosures, and climate-controlled facilities.

Application Scenarios

✓ Automated Production Lines
Challenge: Connecting dozens of proximity sensors, photoelectric switches, and solenoid valves to distributed I/O racks creates wiring congestion and increases error risk.
Solution: The 1492-IFM40F consolidates field device connections through pre-wired cable assemblies, reducing wiring errors by 65% and enabling modular machine design.

✓ Chemical Process Control
Challenge: Harsh chemical environments demand reliable signal transmission between field instruments and DCS systems without signal degradation.
Solution: Industrial-grade construction and sealed terminal blocks protect against corrosive atmospheres while maintaining consistent signal quality for critical process variables.

✓ Packaging Equipment Integration
Challenge: High-speed packaging machines require rapid I/O reconfiguration during product changeovers, but traditional wiring slows transitions.
Solution: Quick-disconnect cable assemblies paired with the 1492-IFM40F enable 15-minute I/O reconfigurations versus 2-hour manual rewiring.

✓ Conveyor System Networks
Challenge: Multi-zone conveyor systems with distributed control nodes create complex wiring documentation and troubleshooting challenges.
Solution: Standardized interface modules simplify documentation, reduce training time for maintenance staff, and accelerate fault diagnosis through consistent connection topology.

✓ Robotic Workcell Deployment
Challenge: Integrating safety I/O, gripper controls, and sensor networks in robotic cells demands flexible, reliable connectivity.
Solution: The module's feed-through design supports rapid workcell reconfiguration while maintaining safety circuit integrity and reducing commissioning from days to hours.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1492-IFM40F when your application requires passive signal distribution without power conversion. For applications needing signal isolation, voltage translation, or active buffering, consider the 1492-IFM40F-F24D series with integrated electronics. Verify your I/O card pinout matches the standard 40-pin configuration before ordering.

Extended Functions

Pre-Wired Cable Integration: Pair with Allen-Bradley 1492-CABLE series assemblies (0.25m to 5.0m lengths) for plug-and-play installation. Cable assemblies feature molded connectors with strain relief, eliminating field termination labor.

Modular System Expansion: Stack multiple 1492-IFM40F modules on shared DIN rail for scalable I/O distribution. Supports up to 16 modules per rail section with proper spacing for heat dissipation.

Custom Labeling Options: Removable label strips accept laser-printed or handwritten circuit identification, critical for maintenance documentation and troubleshooting efficiency.

Third-Party Compatibility: While optimized for Allen-Bradley ecosystems, the standard 40-pin footprint enables integration with Siemens, Schneider Electric, and other manufacturers' I/O systems following IEC 61131 standards (verify pinout compatibility).

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours. Custom cable assembly orders require 5-7 business days for fabrication and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for OEM partners and high-volume purchasers.

Technical Support: Pre-sales application engineering consultation, installation guidance, and post-deployment troubleshooting assistance included. Access to CAD drawings, wiring diagrams, and 3D STEP models via online resource portal.

Documentation Package: Each module ships with installation instructions, compliance certificates, and quick-reference wiring guide. Full technical manuals available in PDF format for integration into customer documentation systems.

Frequently Asked Questions

Q: What cable assemblies are compatible with the 1492-IFM40F interface module?
A: Allen-Bradley 1492-CABLE series pre-wired assemblies are factory-tested for compatibility. Available in 0.25m, 2.5m, and 5.0m standard lengths with custom lengths available for OEM orders exceeding 50 units.

Q: Can this module handle analog signals or only digital I/O?
A: The 1492-IFM40F is designed for digital signal distribution. For analog applications (4-20mA, 0-10V), specify the 1492-AIFM series analog interface modules with built-in signal conditioning.

Q: Does the interface module require external power for operation?
A: No external power required. The 1492-IFM40F is a passive feed-through device. Signal power is sourced from the connected I/O cards, simplifying installation and reducing panel power budget.

Q: Is the module suitable for hazardous location installations?
A: The standard 1492-IFM40F is rated for general industrial use (non-hazardous). For Class I Division 2 or ATEX Zone 2 applications, consult our explosion-proof interface module catalog or contact technical support for certified alternatives.

Q: How do I verify compatibility with non-Allen-Bradley PLC systems?
A: Request pinout documentation from your I/O card manufacturer and cross-reference with the 1492-IFM40F wiring diagram (available in product documentation). Most manufacturers following IEC 61131 standards use compatible pin assignments, but verification prevents costly field errors.

Q: What is the maximum wire gauge the screw terminals accept?
A: Terminals accommodate 14-22 AWG (0.25-2.5 mm²) solid or stranded copper wire. Use ferrules for stranded wire to ensure optimal contact pressure and long-term reliability.

Ready to Streamline Your I/O Wiring?

Transform your next automation project with the 1492-IFM40F interface module. Contact our application engineering team for project-specific recommendations, volume pricing, or technical consultation. Request a quote today and experience the efficiency gains that industrial professionals worldwide rely on.
