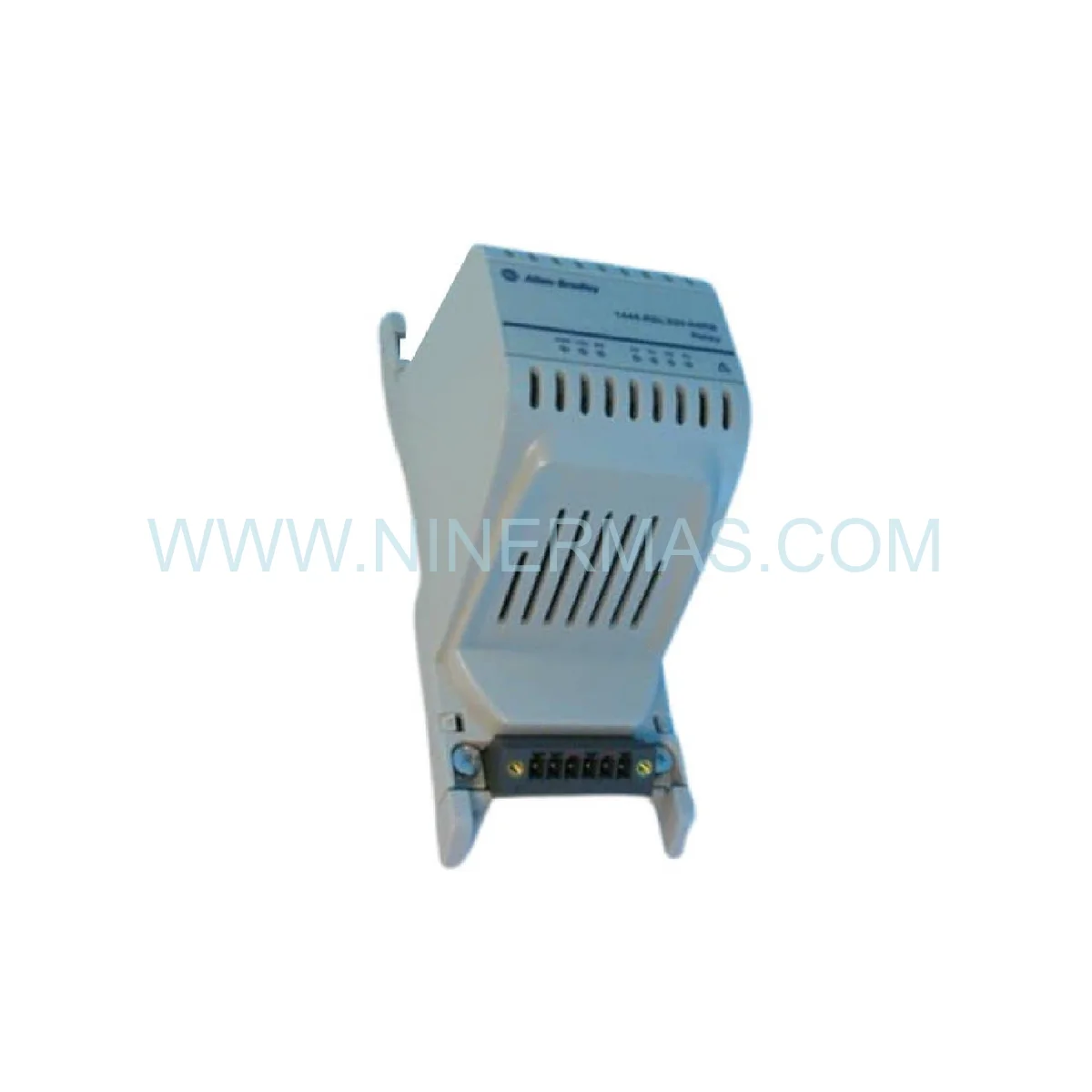

Allen-Bradley 1444-RELX00-04RB Relay Expansion Module – New & Original

Allen-Bradley 1444-RELX00-04RB | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1444-RELX00-04RB stands as a cornerstone component in sustaining system availability across high-demand industrial environments. Deployed within the 1444 Dynamix condition monitoring platform, the 1444-RELX00-04RB extends relay output capacity, enabling precise switching control for alarm annunciation, interlock circuits, and actuator command loops — all of which are fundamental to achieving Operational Excellence in continuous-process facilities.

Durability under adversarial operating conditions is a defining characteristic of this module. The SPDT gold-plated contact architecture resists oxidation and micro-arcing even in environments subject to thermal cycling, mechanical vibration, and airborne particulates. Installation engineers should note that the module requires a compatible 1444-TB terminal base and must be seated firmly to ensure low-resistance contact closure. Torque specifications on terminal screws must be observed to prevent intermittent faults during high-vibration operation.

For maintenance planners operating under a reliability-centered maintenance (RCM) framework, stocking the 1444-RELX00-04RB as a critical spare is a non-negotiable strategy. Mean time to repair (MTTR) is directly compressed when verified original modules are available on-site, eliminating procurement lead times that can extend unplanned downtime from hours into days.

Key Operational Features

SPDT Gold-Plated Contacts — Minimizes contact resistance; rated for 8A resistive load switching with both NO and NC configurations available
Seamless System Integration — Plug-and-play compatibility within the Allen-Bradley 1444 Dynamix ecosystem; no additional configuration hardware required
High Availability Design — Engineered for continuous-duty industrial cycles; supports redundant wiring topologies for fault-tolerant architectures
Broad Environmental Tolerance — Operates reliably across industrial temperature ranges with resistance to humidity, vibration, and EMI
Process Optimization Ready — Supports alarm relay, shutdown interlock, and actuator control loops critical to Process Optimization strategies
Original Factory Packaging — Every unit ships in OEM packaging with full traceability documentation

Maintenance & Performance Benchmarks

The 1444-RELX00-04RB is architected to slot into both small-scale machine-level control networks and large distributed control system (DCS) architectures without modification. In turbine monitoring applications, the module interfaces directly with vibration and temperature monitoring channels, translating analog threshold breaches into discrete relay outputs that trigger protective shutdowns or operator alerts.

In multi-node I/O Modules configurations, the relay expansion capability provided by this unit allows engineers to scale output capacity without redesigning the base control cabinet. This modularity is central to System Integration projects where minimizing engineering rework is a cost-control priority. Performance benchmarks from field deployments confirm contact life exceeding 100,000 mechanical operations under rated load — a figure that supports multi-year maintenance intervals in most industrial duty cycles.

Automation Components of this class are increasingly specified in safety-instrumented system (SIS) auxiliary circuits, where the combination of gold-contact reliability and deterministic switching behavior satisfies the diagnostic coverage requirements of IEC 61511-compliant installations.

Comprehensive Data Sheet

| Attribute | Technical Data | |—|—| | Model / Part Number | 1444-RELX00-04RB | | Manufacturer | Allen-Bradley (Rockwell Automation) | | Product Series | 1444 Dynamix Condition Monitoring Platform | | Module Function | Relay Output Expansion | | Contact Configuration | SPDT (Single Pole Double Throw) | | Contact Material | Gold-Plated | | Maximum Switching Current | 8A (Resistive Load) | | Compatible Terminal Base | 1444-TB Series | | Mounting Style | Modular / Snap-on to Terminal Base | | Operating Temperature | Per Rockwell Automation 1444 Series Specification | | Certifications | UL, CE (per platform certification) | | Condition | New & Original | | Warranty | 1 Year |

Professional Logistics & Sourcing Excellence

Every 1444-RELX00-04RB unit dispatched from our inventory is sourced directly from authorized distribution channels and ships in Original Factory Packaging with intact manufacturer labels and lot traceability codes. For mission-critical procurement scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off window — a capability that directly supports emergency maintenance operations where production continuity is at stake.

Our global supply network is specifically structured to serve End-of-Life (EOL) and legacy module requirements. As Rockwell Automation periodically transitions product lines, securing verified original stock of components like the 1444-RELX00-04RB becomes progressively more challenging through standard distribution. Our sourcing infrastructure maintains buffer inventory of mission-critical Automation Components to ensure availability for worldwide express logistics delivery to facilities across North America, Europe, Asia-Pacific, and the Middle East.

Engineering Support & FAQ

Q1: What terminal base is required to install the 1444-RELX00-04RB?
A: The module is designed for use with the Allen-Bradley 1444-TB terminal base series. Confirm the specific terminal base variant against your existing 1444 platform configuration prior to installation to ensure mechanical and electrical compatibility.

Q2: Is firmware configuration required after installing this relay expansion module?
A: The 1444-RELX00-04RB is a hardware relay output module and does not require independent firmware. However, the host 1444 monitoring module firmware version should be verified against Rockwell Automation’s compatibility matrix to confirm relay output mapping is supported in your current revision.

Q3: Can this module be used in safety-instrumented system (SIS) auxiliary circuits?
A: The module is suitable for SIS auxiliary and interlock applications where its SPDT contact configuration and gold-plated contact reliability meet the diagnostic coverage requirements. Consult your functional safety engineer to validate suitability against your specific SIL target.

Q4: What is the warranty process if a unit is found defective upon receipt?
A: Units are covered by a 1-Year Warranty from date of shipment. In the event of a defect, contact our technical support team at sale@ninermas.com with the order reference and a description of the fault. Replacement or credit processing is initiated within 2 business days of defect confirmation.

Q5: Do you supply documentation such as datasheets or certificates of conformance?
A: Yes. Original manufacturer documentation, including datasheets and certificates of conformance where available, can be provided upon request. Contact our team prior to order placement to confirm documentation availability for your compliance requirements.

Q6: What is the typical lead time for express international delivery?
A: For in-stock units, worldwide express logistics typically delivers within 3-7 business days depending on destination country and customs clearance. Expedited options are available for emergency maintenance scenarios — contact us directly to arrange priority dispatch.
