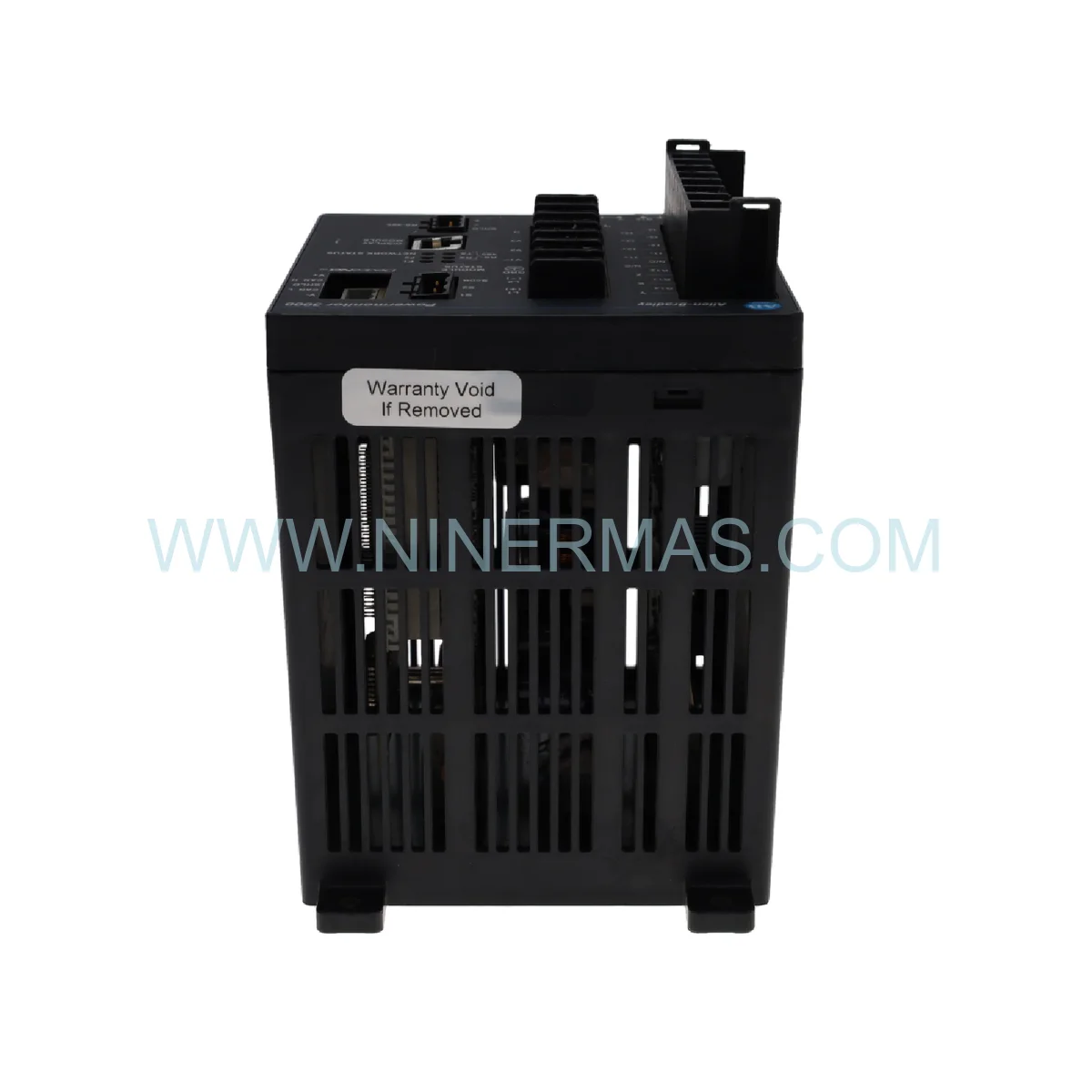

Allen-Bradley 1404-M405A-DNT PowerMonitor 3000 Master Module

Allen-Bradley 1404-M405A-DNT PowerMonitor 3000 Master Module

The Allen-Bradley 1404-M405A-DNT PowerMonitor 3000 Master Module serves as the central intelligence hub for comprehensive electrical power monitoring systems in industrial facilities. Engineered by Rockwell Automation, this DeviceNet-enabled master controller aggregates real-time power quality data from distributed monitoring points, enabling facility managers to optimize energy consumption, prevent costly downtime, and maintain regulatory compliance across manufacturing operations.

Technical Specifications

• Catalog Number: 1404-M405A-DNT
• Product Family: PowerMonitor 3000 Series
• Module Type: Master Controller with DeviceNet Interface
• Network Protocol: DeviceNet (CIP-based industrial network)
• Data Channels: Supports up to 5 monitoring modules per master
• Communication Speed: 125 kbps to 500 kbps (DeviceNet configurable)
• Power Supply: 24 VDC nominal (18-30 VDC operating range)
• Power Consumption: 8W maximum
• Operating Temperature: -10 °C to 60 °C (14 °F to 140 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Humidity: 5% to 95% non-condensing
• Mounting: DIN rail or panel mount (standard 35mm DIN rail compatible)
• Enclosure Rating: IP20 (suitable for controlled industrial environments)
• Display: Integrated LCD for local diagnostics and configuration
• Data Logging: Internal memory for trend storage and event recording
• Certifications: UL Listed, CE marked, RoHS compliant

Application Scenarios

Manufacturing Energy Management: Deploy the 1404-M405A-DNT as the central coordinator in automotive assembly plants, where it monitors power consumption across robotic welding cells, conveyor systems, and paint booths. The master module correlates energy usage with production cycles, identifying inefficient equipment and optimizing shift schedules to reduce demand charges during peak utility pricing periods.

Data Center Power Quality Monitoring: In mission-critical data centers, this master module continuously tracks voltage harmonics, power factor, and load balancing across UPS systems and distribution panels. Real-time alerts notify facility teams of anomalies before they escalate into equipment failures or service interruptions, protecting sensitive IT infrastructure.

Food & Beverage Processing: Pharmaceutical and food processing facilities leverage the PowerMonitor 3000 system to document electrical parameters for FDA 21 CFR Part 11 compliance. The master module timestamps all power events, creating an auditable trail that demonstrates environmental control during batch production of temperature-sensitive products.

Water Treatment Facilities: Municipal water treatment plants use the 1404-M405A-DNT to monitor pump stations, aeration blowers, and chemical dosing systems. By analyzing power signatures, maintenance teams detect bearing wear, impeller damage, and motor inefficiencies before catastrophic failures disrupt water service to communities.

Solution Architecture

Distributed Monitoring Network: The master module coordinates with up to five PowerMonitor 3000 slave modules via DeviceNet, creating a scalable architecture that grows with facility expansion. Each slave module monitors local electrical parameters (voltage, current, power factor, harmonics) and transmits data to the master for centralized analysis and reporting.

SCADA Integration: DeviceNet connectivity enables seamless integration with Allen-Bradley ControlLogix PLCs, PanelView HMIs, and third-party SCADA platforms. The master module exposes power data as standard DeviceNet I/O, allowing control engineers to incorporate energy metrics into existing automation logic without custom programming.

Alarm Management: Configure threshold-based alarms for voltage sags, current imbalances, power factor deviations, and harmonic distortion. The master module triggers discrete outputs to activate warning lights, send email notifications via connected gateways, or initiate load-shedding sequences during demand response events.

Historical Trending: Internal data logging captures 15-minute interval data for up to 45 days, supporting ISO 50001 energy management system requirements. Export trend files via DeviceNet to enterprise historians like OSIsoft PI or Wonderware for long-term analysis and benchmarking across multiple facilities.

Installation & Configuration

Mount the 1404-M405A-DNT master module on standard 35mm DIN rail within an electrical enclosure rated for the ambient environment. Connect 24 VDC power to terminals 1 (+) and 2 (-), ensuring proper polarity to prevent module damage. Wire DeviceNet trunk cable to the integrated 5-pin connector, maintaining proper network termination at both ends of the segment.

Use Rockwell Automation’s RSNetWorx for DeviceNet software to assign the master module a unique node address (1-63) and configure communication parameters. Upload the Electronic Data Sheet (EDS) file to enable parameter access and diagnostic monitoring from the engineering workstation. Set data polling intervals, alarm thresholds, and logging preferences through the intuitive configuration interface.

Frequently Asked Questions

Q: Can the 1404-M405A-DNT master module operate standalone without a PLC?
A: Yes, the master module functions independently with its integrated display and local alarm outputs. However, connecting to a ControlLogix PLC via DeviceNet unlocks advanced features like remote configuration, centralized data logging, and integration with plant-wide automation strategies.

Q: What is the maximum DeviceNet cable length supported?
A: DeviceNet trunk cable length depends on baud rate: 500m at 125 kbps, 250m at 250 kbps, or 100m at 500 kbps. Use thick cable (DeviceNet thick trunk) for backbone runs and thin cable (DeviceNet thin drop) for short connections to individual modules.

Q: How do I upgrade firmware on the master module?
A: Firmware updates require Rockwell Automation’s ControlFLASH utility and a DeviceNet interface card (such as 1770-KFD or 1788-CNC). Download the latest firmware revision from the Rockwell Automation Product Compatibility and Download Center, then follow the step-by-step upgrade procedure in the PowerMonitor 3000 user manual.

Q: Is the module compatible with Modbus or Ethernet/IP networks?
A: The 1404-M405A-DNT is DeviceNet-specific. For Modbus RTU connectivity, consider the 1404-M405A-485 variant. For Ethernet/IP integration, use a DeviceNet-to-Ethernet/IP gateway such as the Allen-Bradley 1788-EN2DN or upgrade to the newer PowerMonitor 5000 series with native Ethernet support.

Q: What preventive maintenance is recommended?
A: Inspect DeviceNet cable connections quarterly for corrosion or looseness. Verify termination resistors remain properly installed at network endpoints. Clean the LCD display with a soft, lint-free cloth. Review logged alarm history monthly to identify recurring power quality issues that may indicate upstream electrical problems requiring utility coordination.

Related Products

Expand your power monitoring system with these compatible Allen-Bradley components:

Warranty & Support

Every Allen-Bradley 1404-M405A-DNT PowerMonitor 3000 Master Module includes a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Our technical support team provides installation guidance, DeviceNet troubleshooting, and configuration assistance to ensure successful system commissioning.

Quality Assurance: All units undergo factory acceptance testing including DeviceNet communication verification, power supply stress testing, and environmental chamber cycling. We maintain full traceability documentation with serial number tracking for critical infrastructure applications requiring compliance records.

Technical Resources: Access user manuals, EDS files, wiring diagrams, and application notes through our online resource library. For complex system design questions, our application engineers provide complimentary pre-sales consultation to optimize PowerMonitor 3000 architecture for your specific facility requirements.

Order Information

In-stock units ship within 1-2 business days via expedited carrier. Volume pricing available for multi-site deployments and system integrator partners. Contact our automation specialists for technical specifications, dimensional drawings, or custom configuration services.
