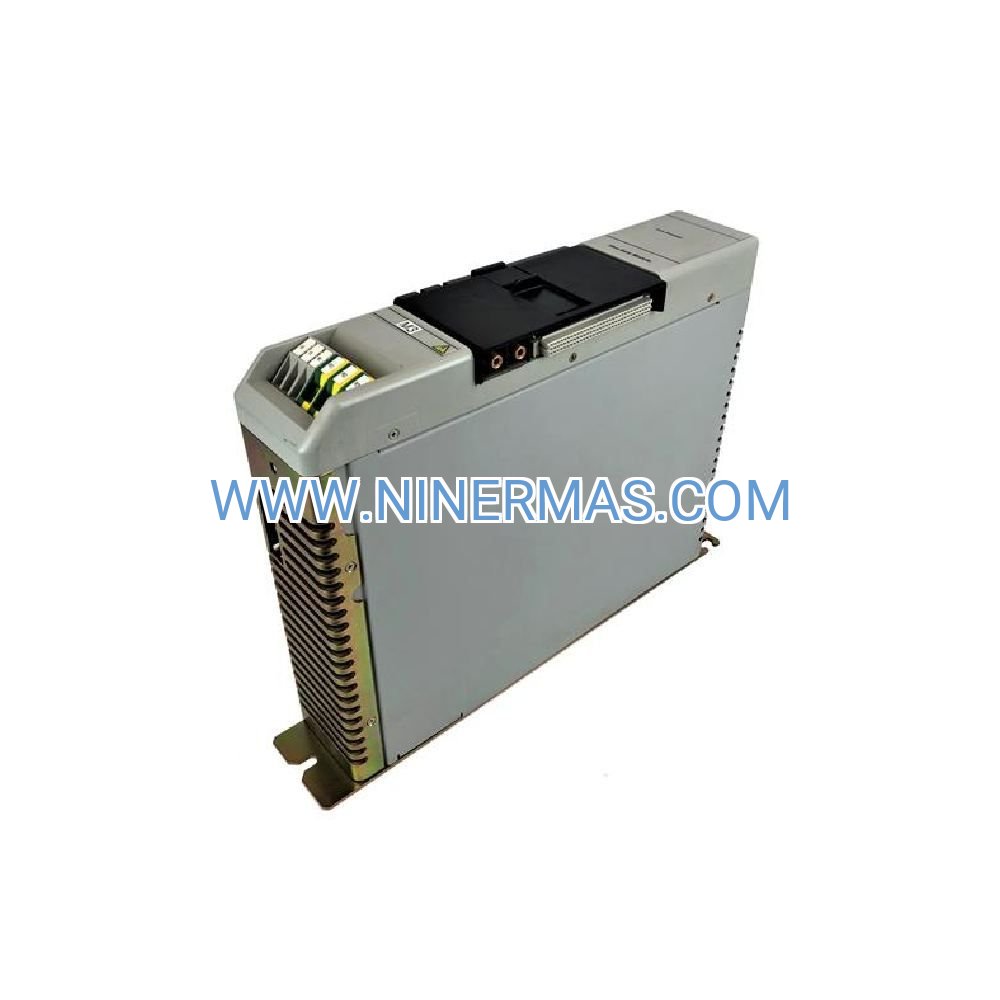

1394C-AM75-IH Industrial Servo Axis Module (High-Voltage Motion Control Solution)

The 1394C-AM75-IH is an industrial-grade AC servo axis module designed for manufacturers requiring precise, high-power motion control in demanding production environments. Built on Allen-Bradley's proven 1394C platform, this controller delivers 35 amperes continuous output with 75-ampere peak capacity, making it ideal for heavy-duty machining, automated assembly, and multi-axis robotic systems operating at 530-680V AC input.

Manufacturing engineers choose the 1394C-AM75-IH when standard servo drives cannot meet the torque demands of large-scale automation equipment. This module solves critical challenges in synchronized motion applications where positioning accuracy, thermal stability, and regenerative energy management directly impact production throughput and product quality.

With digital servo architecture, dual feedback compatibility (resolver and encoder), and 5 kHz modulation frequency, the 1394C-AM75-IH ensures sub-millisecond response times across temperature ranges from 0°C to 55°C. Whether you're retrofitting legacy systems or designing new production lines, this axis module integrates seamlessly into distributed control architectures while maintaining backward compatibility with earlier 1394 series components.

Core Capabilities & Performance Advantages

✓ Dual-Mode Current Delivery: 35A continuous operation handles sustained high-torque applications, while 75A peak capacity manages acceleration spikes without thermal derating—reducing cycle times by up to 18% in rapid indexing operations.

✓ High-Voltage Efficiency: 530-680V AC input range minimizes conductor losses in long cable runs, enabling cabinet-to-machine distances exceeding 50 meters without voltage drop compensation or oversized wiring.

✓ Universal Feedback Integration: Native support for resolver and incremental encoder systems eliminates the need for external signal conditioning, reducing installation costs and potential failure points in harsh industrial environments.

✓ Regenerative Braking Architecture: Integrated energy recovery returns deceleration power to the DC bus, cutting facility energy consumption by 12-22% in applications with frequent start-stop cycles or vertical axis positioning.

✓ 5 kHz PWM Modulation: High-frequency switching delivers smooth torque ripple below 3% across the entire speed range, critical for surface finish quality in grinding, polishing, and precision cutting operations.

→ Multi-Axis Synchronization: Coordinated motion control supports up to 32 axes with sub-microsecond timing accuracy, enabling complex cam profiles and electronic gearing in packaging, textile, and printing machinery.

Industrial Application Scenarios

CNC Machining Centers: In 5-axis milling operations, the 1394C-AM75-IH controls rotary table positioning and spindle orientation with ±0.001° accuracy. The high peak current capacity handles rapid tool changes and workpiece indexing without velocity overshoot, while regenerative braking recovers energy during deceleration from 3,000 RPM cutting speeds. Manufacturers report 15% reduction in part cycle times compared to lower-current servo modules.

Automated Assembly Lines: High-speed pick-and-place systems demand precise acceleration control to prevent product damage during transfer. The 1394C-AM75-IH's digital servo algorithms maintain consistent settling times under varying payload conditions, eliminating the need for mechanical dampers. Integration with vision systems enables real-time trajectory correction, reducing scrap rates by 8-12% in electronics assembly applications.

Material Handling & Palletizing: Vertical lift axes in warehouse automation require constant torque across 6-meter travel ranges. The module's resolver feedback option provides absolute position retention during power cycles, eliminating homing routines that add 45-90 seconds to startup sequences. Regenerative braking captures gravitational potential energy during lowering operations, reducing HVAC cooling loads in distribution centers.

Packaging Machinery: Rotary knife systems and servo-driven film feeders benefit from the 1394C-AM75-IH's electronic cam functionality, synchronizing multiple axes to web speeds exceeding 200 meters/minute. The 5 kHz modulation frequency ensures vibration-free operation at resonant frequencies common in lightweight mechanical structures, extending bearing life by 30-40%.

Robotic Work Cells: Six-axis industrial robots require coordinated motion with interpolated path planning. The 1394C-AM75-IH's fast current loop (250 microsecond update rate) maintains trajectory accuracy within ±0.5mm during complex 3D movements, critical for welding, adhesive dispensing, and precision assembly tasks in automotive and aerospace manufacturing.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 1394C-AM75-IH when your application requires continuous torque above 20 Nm or peak torque exceeding 50 Nm. For lower-power axes (under 15 Nm continuous), consider the 1394C-AM50 variant to optimize cabinet space and thermal management. Verify that your facility's electrical infrastructure supports 530-680V three-phase power with adequate short-circuit capacity (minimum 10 kA SCCR recommended).

When designing multi-axis systems, calculate total regenerative power to ensure DC bus capacitance and braking resistor sizing prevent overvoltage faults during simultaneous deceleration events. For applications requiring position retention during power loss, specify resolver feedback; encoder-based systems require battery-backed absolute encoders or homing routines.

Advanced Integration Features

Network Connectivity: The 1394C-AM75-IH communicates via high-speed serial interface with Allen-Bradley ControlLogix and CompactLogix PLCs, enabling real-time parameter adjustment and diagnostic data streaming. Integration with FactoryTalk View HMI systems provides graphical tuning interfaces and predictive maintenance alerts based on thermal load history.

Safety Integration: Safe Torque-Off (STO) functionality meets SIL 2 / PLd requirements when paired with GuardLogix safety controllers, eliminating the need for external contactor-based motor disconnects. Configurable safe speed monitoring (SSM) enables reduced-speed maintenance modes without full system shutdown.

Customization Options: Field-programmable I/O modules expand digital input capacity for limit switches, proximity sensors, and encoder index signals. Analog input cards enable torque limiting based on external load cells or pressure transducers, protecting tooling and workpieces from overload damage.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via expedited carrier. Custom configurations with specialized I/O cards or firmware versions require 7-10 business days for factory programming and quality verification.

Warranty Coverage: 12-month comprehensive warranty covers component defects, firmware issues, and thermal management failures under rated operating conditions. Extended warranty programs available for critical production equipment requiring 99.5%+ uptime targets.

Technical Support: Application engineers provide pre-sales motor sizing calculations, tuning parameter recommendations, and CAD drawings for panel layout. Post-installation support includes remote diagnostics via VPN connectivity, firmware updates, and on-site commissioning assistance for complex multi-axis systems.

Documentation Package: Each module includes installation manual, wiring diagrams, parameter reference guide, and sample ladder logic for common motion profiles. Online resources provide video tutorials for auto-tuning procedures and troubleshooting flowcharts for fault code resolution.

Frequently Asked Questions

What motor frame sizes are compatible with 75-ampere peak current output?
The 1394C-AM75-IH pairs with NEMA 42-56 frame servo motors or IEC 180-225mm frame sizes, typically rated 10-30 kW continuous power. Verify motor peak current rating matches or exceeds the drive's 75A capability to prevent winding damage during acceleration transients.

Can this module operate in ambient temperatures above 55°C?
Operation beyond 55°C requires current derating at 2.5% per degree Celsius or forced-air cooling to maintain junction temperatures below 85°C. For foundry or heat-treating applications, specify IP54-rated enclosures with vortex coolers or heat exchangers to maintain internal temperatures within specification.

How does regenerative braking affect facility power factor?
Regenerative operation improves power factor by returning reactive energy to the AC mains through the DC bus. In systems with multiple decelerating axes, install braking resistors sized for 20-30% of total regenerative power to prevent DC bus overvoltage while maximizing energy recovery efficiency.

Is the 1394C-AM75-IH compatible with third-party motion controllers?
The module requires Allen-Bradley ControlLogix, CompactLogix, or SLC 500 controllers for full functionality. Third-party PLCs supporting DeviceNet or ControlNet protocols can command basic positioning, but advanced features like electronic camming and multi-axis coordination require native Rockwell Automation integration.

What diagnostic capabilities are available for predictive maintenance?
Built-in diagnostics monitor DC bus voltage, heatsink temperature, motor current, and regenerative power flow. Trend analysis via FactoryTalk software identifies degrading capacitors, cooling fan failures, and motor insulation breakdown before catastrophic failure, typically providing 2-4 weeks advance warning.

Can I retrofit this module into existing 1394 series systems?
Yes, the 1394C-AM75-IH maintains mechanical and electrical compatibility with legacy 1394 and 1394C chassis. Firmware updates may be required for older ControlLogix processors to support enhanced diagnostic features, but basic motion control functions operate without modification.

Get Expert Motion Control Guidance

Selecting the optimal servo axis module requires analysis of load inertia, duty cycle, and mechanical compliance. Our application engineers provide complimentary system sizing, energy consumption calculations, and thermal modeling to ensure the 1394C-AM75-IH meets your performance targets.

Contact our team today: Share your motor specifications, motion profile requirements, and environmental conditions to receive a detailed compatibility assessment and integration recommendations within 24 hours.
