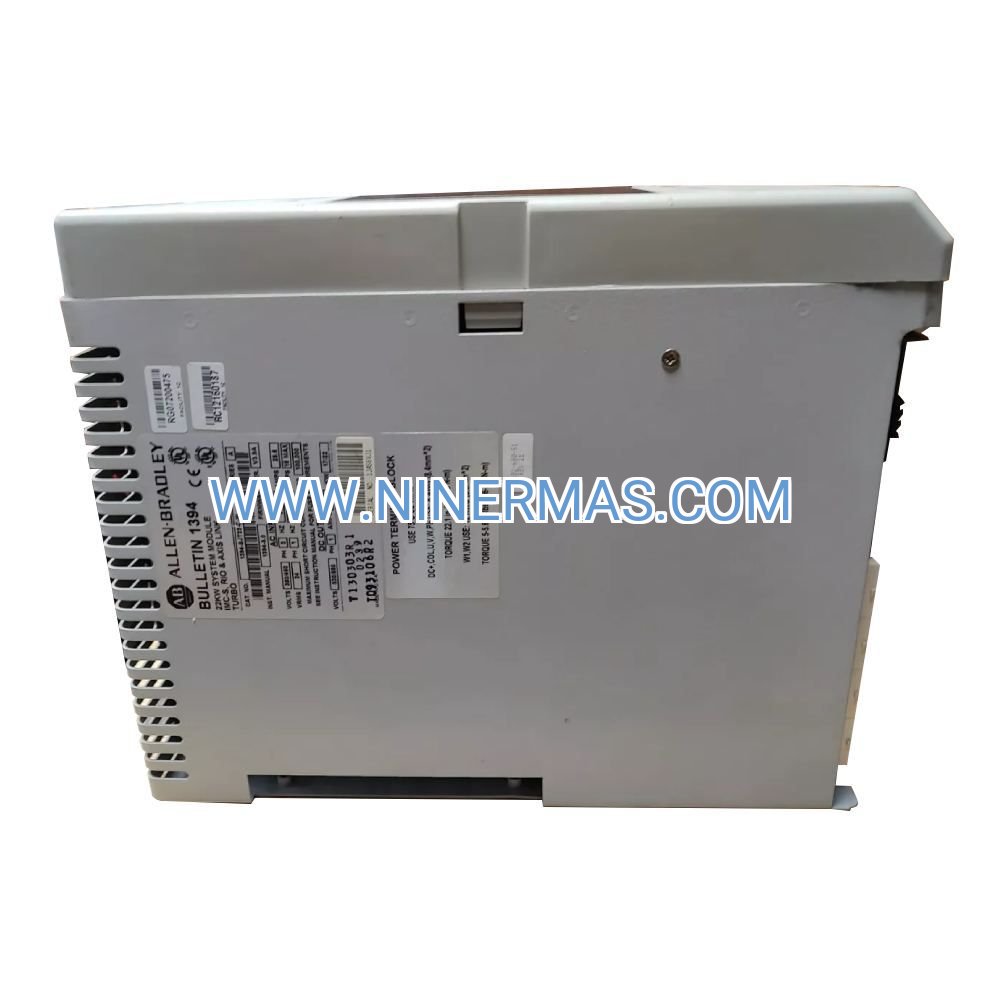

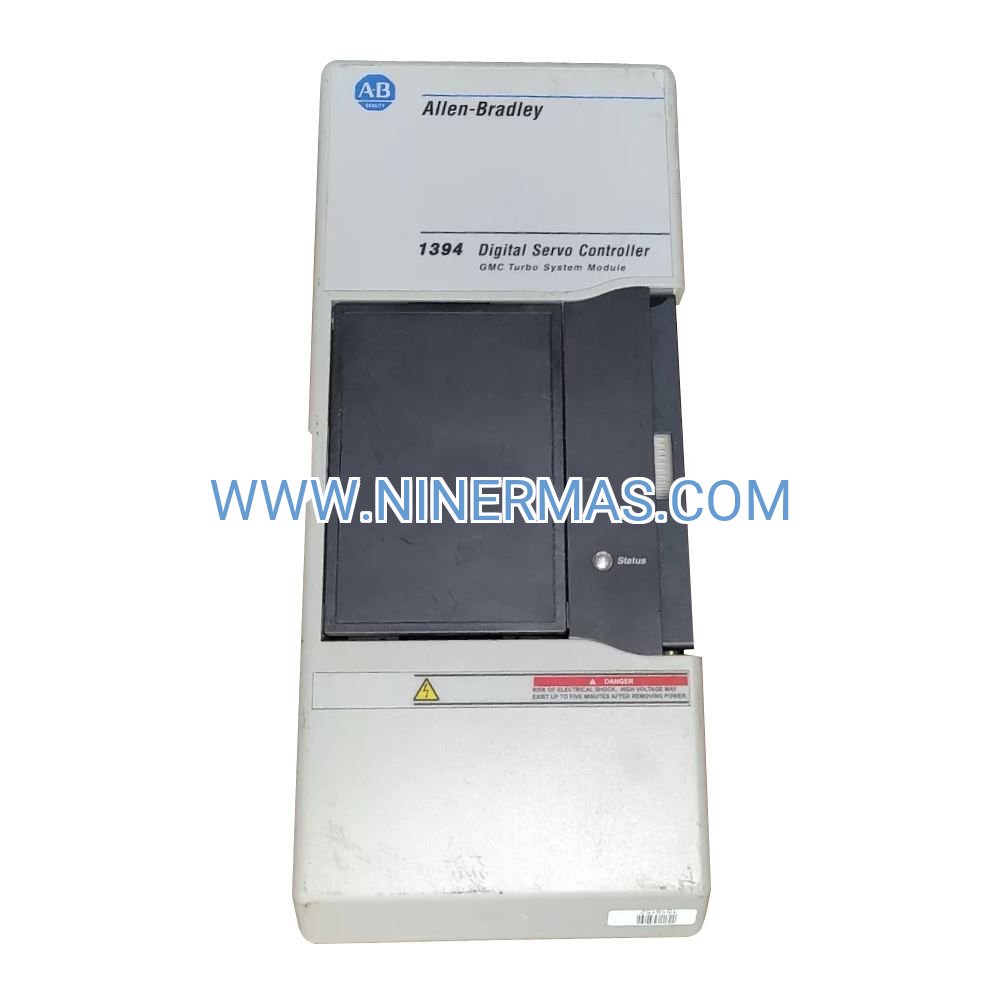

1394-SJT22-C-RL System Power Module (Industrial-Grade Multi-Axis Servo Control)

The 1394-SJT22-C-RL represents a proven solution in industrial motion control, engineered to power demanding multi-axis servo applications across packaging, CNC machining, and material handling environments. This system power module delivers 17 kW continuous capacity with 22 kW peak capability, providing the electrical foundation for coordinated motion systems that demand precision, reliability, and energy efficiency.

Built on the Allen-Bradley 1394 Turbo platform, this power module addresses critical challenges in modern manufacturing: reducing energy waste through regenerative braking, minimizing harmonic distortion with active front-end technology, and enabling flexible system scaling through common DC bus architecture. Whether you're upgrading legacy motion systems or designing new automation cells, the 1394-SJT22-C-RL offers field-proven performance backed by comprehensive diagnostic capabilities.

Ideal for OEMs, system integrators, and maintenance teams managing high-throughput production lines where downtime translates directly to lost revenue. This module supports up to four axis modules simultaneously, making it the optimal choice for applications requiring synchronized motion across multiple degrees of freedom.

Core Capabilities & Technical Advantages

→ Active Front-End Power Conversion
IGBT-based rectification actively shapes input current waveform, achieving power factor >0.95 while reducing total harmonic distortion below 3%. This technology eliminates the need for passive harmonic filters in most installations, reducing panel space requirements by 15-20% compared to conventional diode-bridge designs.

→ Common DC Bus Energy Sharing
Shared 650V DC bus architecture allows energy transfer between accelerating and decelerating axes. In coordinated motion applications, this reduces peak power demand by up to 30% and lowers utility costs by 15-25% compared to individual axis drives. The system automatically balances energy flow without external programming.

→ Integrated Regenerative Braking
Captures kinetic energy during deceleration cycles and returns it to the DC bus capacitors or redistributes to other axes. In high-cycle applications (packaging, pick-and-place), regeneration efficiency reaches 85-90%, significantly reducing heat generation and extending component service life.

→ Ride-Through Protection
Maintains DC bus voltage during brief power interruptions up to 20ms at full load, preventing motion faults and product scrap during momentary utility disturbances. Critical for facilities with unstable grid conditions or frequent switching transients.

✓ Soft-Start Inrush Limiting
Controlled charging of DC bus capacitors prevents nuisance tripping of upstream circuit breakers during power-up sequences. Inrush current limited to <150% of rated input current over 2-second ramp period.

✓ Multi-Axis Scalability
Supports 1394-AM03 through 1394-AM75 axis modules in any combination up to 22kW aggregate power. Hot-swap capability allows axis module replacement without powering down entire system (DC bus must be discharged first).

Industrial Application Scenarios

Packaging & Converting Machinery
Challenge: Form-fill-seal machines require synchronized motion across 3-4 servo axes (film feed, sealing jaw, product pusher, discharge conveyor) at speeds exceeding 200 cycles/minute with ±0.5mm registration accuracy.
Solution: The 1394-SJT22-C-RL powers all axes from common DC bus, enabling electronic line-shaft operation with microsecond-level synchronization. Regenerative braking from rapid deceleration cycles reduces panel cooling requirements by 40%.

CNC Machine Tools
Challenge: Multi-axis milling centers demand coordinated interpolation across X-Y-Z axes plus rotary table, maintaining contouring accuracy to ±0.001" while managing rapid acceleration/deceleration cycles.
Solution: Common DC bus architecture allows energy sharing during simultaneous multi-axis moves. Ride-through protection prevents scrap parts during brief power dips. Supports velocity loop bandwidths to 400 Hz for exceptional surface finish quality.

High-Speed Material Handling
Challenge: Automated storage/retrieval systems (AS/RS) require gantry motion with cycle times under 1 second, managing payloads from 5-500 kg with smooth acceleration profiles to prevent load shifting.
Solution: 22kW peak power capability handles high-inertia loads during acceleration. Electronic gearing synchronizes horizontal and vertical axes for optimized path planning. Regenerative braking recovers up to 60% of energy during deceleration from maximum velocity.

Printing & Web Handling
Challenge: Flexographic presses need precise registration control across multiple print stations, maintaining ±0.1mm accuracy at web speeds to 300 meters/minute with automatic tension compensation.
Solution: Electronic line-shaft mode synchronizes all print stations to master axis. Torque mode operation on unwind/rewind stands maintains constant web tension regardless of roll diameter. Low-speed torque capability enables creep speeds for setup and cleaning.

Semiconductor Equipment
Challenge: Wafer handling robots in cleanroom environments require ultra-smooth motion profiles with jerk limiting, operating in Class 10 cleanroom conditions with minimal particle generation.
Solution: Sealed enclosure design (IP20 standard, IP54 with optional kit) prevents contamination. S-curve acceleration profiles with programmable jerk limits ensure gentle handling of fragile substrates. Diagnostic capabilities enable predictive maintenance without unscheduled downtime.

Technical Parameters & Selection Criteria

Sizing Guidelines: Calculate total continuous power by summing RMS power of all axes over complete machine cycle. Verify peak power requirement does not exceed 22kW for more than 2 seconds. For applications with >20% regeneration duty cycle, specify external regeneration resistor (consult Rockwell publication 1394-UM001 for sizing calculations).

Extended Functionality & System Integration

Communication & Programming
The module integrates with Allen-Bradley control architectures through multiple communication options. DeviceNet and ControlNet interfaces enable real-time parameter adjustment and diagnostic monitoring from PLC or HMI. RS-232 serial port provides direct connection for DriveExplorer configuration software. When paired with ControlLogix or CompactLogix controllers, integrated motion instructions in RSLogix 5000 simplify programming of complex motion profiles including point-to-point positioning, velocity contouring, electronic gearing, and electronic camming.

Feedback Device Compatibility
Axis modules accept incremental encoders (single-ended or differential), absolute encoders (EnDat, BiSS, Hiperface), resolvers, and Hall-effect sensors. Encoder inputs support resolutions to 16 million counts/revolution for ultra-high precision applications. Commutation alignment wizard in DriveExplorer automates motor phasing setup, reducing commissioning time by 60% compared to manual alignment procedures.

Safety Integration
Dual-channel Safe Torque-Off (STO) inputs comply with IEC 61800-5-2 safety requirements, achieving SIL 2 / PLd rating without external safety relays. STO function disables axis module output stages within 10ms of input signal removal, meeting Category 3 / PLd requirements per ISO 13849-1. Integrate with GuardLogix safety controllers for comprehensive machine safety architecture.

IoT & Predictive Maintenance
When connected through FactoryTalk AssetCentre, the module streams real-time operational data including DC bus voltage trends, thermal loading, fan runtime hours, and fault event logs. Machine learning algorithms analyze historical data to predict component failures 2-4 weeks in advance, enabling scheduled maintenance during planned downtime rather than emergency repairs.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx Express. Custom configurations (special voltage ratings, conformal coating) require 4-6 weeks factory lead time.

Warranty Coverage: 18-month warranty from ship date covering defects in materials and workmanship. Warranty includes advance replacement service with cross-ship of replacement unit within 24 hours (subject to stock availability).

Technical Support: Lifetime technical support via email and phone. Application engineering assistance available for system design, sizing calculations, and troubleshooting. Access to comprehensive documentation library including user manuals, application notes, and CAD models.

Documentation Package: Each unit ships with installation quick-start guide, safety summary, and CE declaration of conformity. Complete user manual (publication 1394-UM001), programming reference, and DriveExplorer software available for download from Rockwell Automation Literature Library.

Frequently Asked Questions

Q: What communication protocols does the 1394-SJT22-C-RL power module support for integration with Allen-Bradley PLCs?
A: The module supports DeviceNet, ControlNet, and RS-232 serial communication. DeviceNet provides cost-effective connectivity for basic parameter access and diagnostics. ControlNet offers deterministic, high-speed communication for time-critical motion control applications requiring <5ms update rates. RS-232 serial port connects directly to DriveExplorer software for configuration and monitoring. For integration with ControlLogix/CompactLogix, ControlNet is recommended to leverage integrated motion instructions in RSLogix 5000.

Q: How do I determine if I need an external regeneration resistor for my servo application?
A: Calculate regeneration duty cycle by measuring total deceleration time versus total cycle time. If regeneration duty cycle exceeds 20%, or if DC bus voltage rises above 720V during deceleration, external regeneration resistor is required. Size resistor using formula: R = (Vbus²) / (0.9 × Pregen), where Vbus = 650V and Pregen = peak regenerative power in watts. Consult Rockwell publication 1394-UM001 Section 4.3 for detailed sizing worksheets and resistor selection tables.

Q: What are the power consumption and energy efficiency benefits compared to older DC drive systems?
A: The 1394-SJT22-C-RL achieves >95% conversion efficiency versus 75-85% for legacy DC drives. Active front-end technology delivers >0.95 power factor, reducing utility demand charges by 10-15%. Regenerative braking recovers 60-85% of deceleration energy in high-cycle applications, reducing total energy consumption by 20-35% compared to non-regenerative systems. In a typical 3-shift packaging operation, energy savings of $3,000-$8,000 annually are common, providing 18-36 month payback on upgrade investment.

Q: What are the installation clearance requirements and panel mounting considerations?
A: Maintain minimum 100mm (4") clearance on left, right, and front sides for adequate airflow. Provide 150mm (6") clearance above unit for heat dissipation and cable routing. Bottom clearance of 50mm (2") recommended for cable entry. Panel mounting uses four M5 screws through corner mounting holes. Optional DIN rail mounting kit (catalog 1394-MDK) available for 35mm DIN rail installation. Ensure panel material is steel or aluminum with minimum 2mm thickness for effective heat sinking and EMI shielding.

Q: Can the module support remote monitoring and predictive maintenance capabilities?
A: Yes, when connected through DeviceNet or ControlNet to FactoryTalk AssetCentre or FactoryTalk Analytics, the module streams operational data including DC bus voltage, input current, thermal loading, and fan runtime. Built-in event logging stores last 8 fault events with timestamp and operating conditions. Predictive algorithms analyze trends in DC bus capacitor ESR (equivalent series resistance), fan bearing vibration, and thermal cycling to forecast component failures 2-4 weeks in advance, enabling proactive maintenance scheduling.

Q: What is the expected service life and recommended preventive maintenance schedule?
A: Expected service life is 10-15 years in controlled industrial environments (20-30°C ambient, <70% humidity). Critical maintenance tasks include: quarterly cleaning of fan intake filters, annual verification of DC bus capacitor ESR (replace if >20% degradation from baseline), fan replacement every 5 years or 40,000 operating hours, and inspection of power terminal torque annually. DC bus capacitors typically require replacement at 7-10 year intervals depending on thermal stress and ripple current exposure.

Ready to Optimize Your Motion Control System?

The 1394-SJT22-C-RL power module delivers field-proven reliability for demanding multi-axis applications. Our technical team can assist with system sizing, configuration selection, and integration planning to ensure optimal performance for your specific application.

Contact our motion control specialists today:
→ Request a technical datasheet and application note library
→ Schedule a consultation for system design assistance
→ Obtain a formal quotation with delivery timeline
→ Arrange factory acceptance testing for custom configurations
