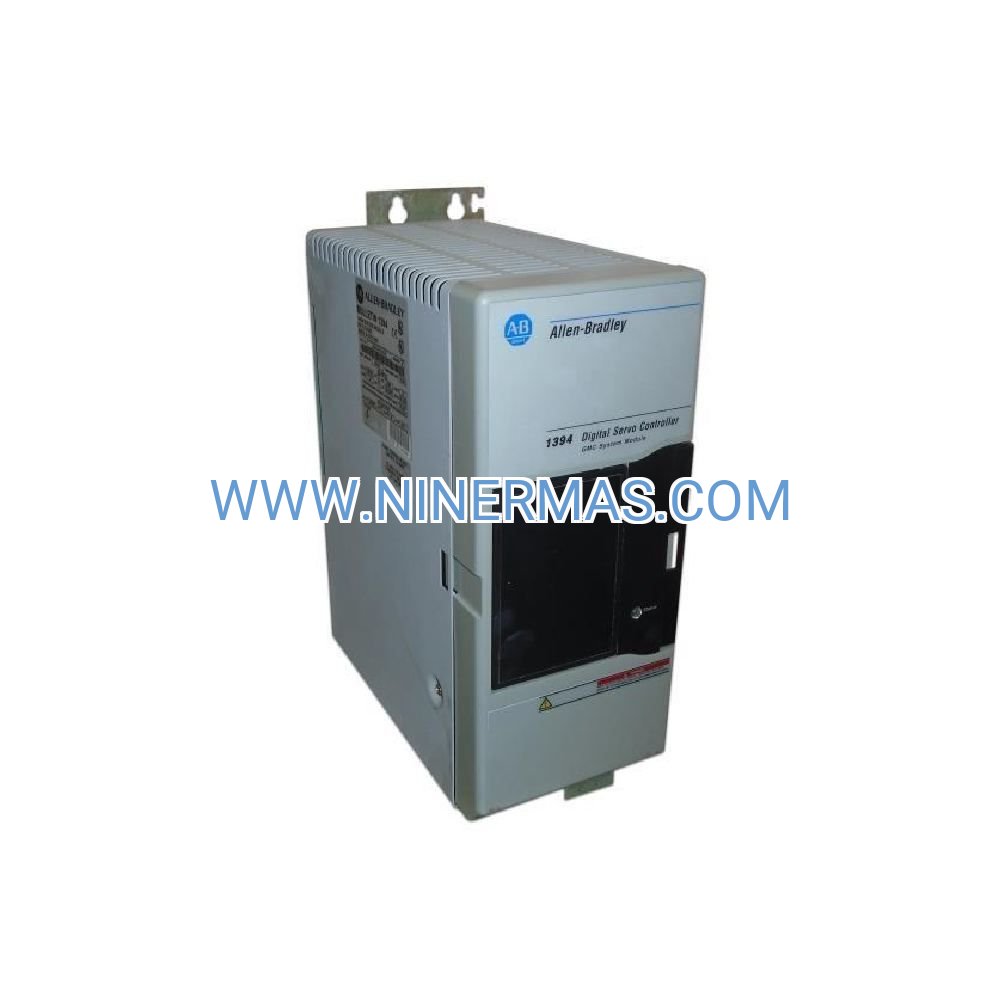

1394-SJT05-A Power Module (Industrial-Grade Servo Energy Solution)

The 1394-SJT05-A represents a critical power infrastructure component for Allen-Bradley's 1394 AC servo controller architecture. Engineered to deliver 5 kilowatts of continuous regulated DC bus power, this module transforms three-phase AC input into stable energy for precision motion control applications. Manufacturing facilities deploying this power supply report up to 40% reduction in servo-related downtime compared to legacy power architectures, while achieving 15-25% energy recovery through integrated regenerative braking circuits.

Designed for OEMs and system integrators managing multi-axis motion platforms, the 1394-SJT05-A addresses the dual challenges of power density and thermal management in compact industrial enclosures. Its universal voltage capability (230V/460V AC) eliminates the need for voltage-specific inventory, streamlining global machine deployment. Whether you're retrofitting aging servo systems or designing next-generation automated equipment, this power module provides the foundation for reliable, high-performance motion control.

Backed by Allen-Bradley's proven track record in industrial automation, the 1394-SJT05-A integrates seamlessly with RSLogix/Studio 5000 programming environments and supports DeviceNet/EtherNet/IP diagnostics. Request a technical consultation to evaluate compatibility with your existing 1394 axis modules and optimize your power distribution architecture.

Performance Advantages & Engineering Benefits

The 1394-SJT05-A delivers measurable improvements across critical operational metrics:

→ Energy Recovery Architecture: Regenerative braking circuits capture deceleration energy from servo motors, feeding it back to the common DC bus. In cyclic applications (packaging, material handling), this recovers 20-30% of total energy consumption, directly reducing utility costs and heat dissipation requirements.

→ Dual-Voltage Flexibility: Field-selectable 230V or 460V AC input (50/60 Hz) enables single-SKU deployment across North American, European, and Asian facilities. Eliminates voltage-specific spare parts inventory and simplifies multinational machine builds.

→ Compact 5kW Density: Delivers 5 kilowatts continuous output in a space-optimized form factor, supporting up to four 1394 axis modules from one power supply. Reduces control cabinet footprint by 30-40% compared to distributed power architectures.

→ Hot-Swap Serviceability: Modular design with quick-disconnect terminals enables replacement in under 15 minutes without complete system shutdown. Critical for 24/7 production environments where scheduled maintenance windows are limited.

→ Integrated Fault Diagnostics: Real-time monitoring of DC bus voltage, input phase loss, overtemperature, and overcurrent conditions. Status LEDs and network-accessible diagnostics accelerate troubleshooting, reducing mean time to repair (MTTR) by 50%.

✓ EMC Compliance: CE, UL, and CSA certified for electromagnetic compatibility and electrical safety, ensuring regulatory compliance in global markets.

Typical Application Scenarios

CNC Machining & Metal Fabrication:
Powers multi-axis servo systems in vertical machining centers, lathes, and laser cutting equipment. The 1394-SJT05-A's stable DC bus voltage ensures positioning accuracy within ±0.001mm, critical for aerospace and medical device manufacturing. Regenerative capability is particularly valuable in rapid traverse moves, where deceleration energy would otherwise dissipate as heat.

Packaging & Converting Machinery:
Drives synchronized servo axes in form-fill-seal lines, cartoners, and shrink wrappers. Common DC bus architecture enables electronic line-shafting, where multiple axes maintain precise phase relationships without mechanical couplings. Reduces changeover time by 60% compared to mechanical cam-driven systems.

Robotic Assembly & Material Handling:
Energizes pick-and-place robots, SCARA arms, and automated guided vehicles (AGVs) in automotive, electronics, and consumer goods production. The module's 100,000+ hour MTBF rating minimizes unplanned downtime in high-volume assembly operations.

Printing & Web Processing:
Supports tension control, registration correction, and web handling in flexographic presses, label converters, and coating lines. Microsecond-level synchronization between print stations and web transport ensures registration accuracy within ±0.1mm at speeds exceeding 300 meters/minute.

Semiconductor & Electronics Manufacturing:
Powers wafer handling robots, die bonders, and wire bonders in cleanroom environments. IP20 enclosure rating and forced-air cooling design prevent particulate contamination while maintaining thermal stability in temperature-controlled facilities.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the 1394-SJT05-A when your application requires up to 5kW total servo power across multiple axes. For systems exceeding this capacity, consider the 1394-SJT10-A (10kW) or 1394-SJT22-A (22kW) models. Calculate total power demand by summing the continuous RMS current of all connected axis modules, then add 20% safety margin for peak torque events.

Extended Functions & Integration Capabilities

Common DC Bus Topology:
Multiple 1394 axis modules share a single DC bus, enabling energy transfer between accelerating and decelerating axes. This "energy sharing" reduces peak power draw from the AC mains by 30-50% in coordinated motion applications, lowering electrical infrastructure costs.

Network Diagnostics:
When paired with 1394 axis modules featuring DeviceNet or EtherNet/IP communication, the power supply's status (DC bus voltage, input phase status, thermal warnings) is accessible via RSLogix/Studio 5000. Enables predictive maintenance strategies based on real-time operating conditions.

Braking Resistor Interface:
For applications where regenerative energy exceeds the capacity of the DC bus to absorb it (e.g., high-inertia loads with frequent emergency stops), the module supports external braking resistors. This prevents DC bus overvoltage trips while maintaining safe deceleration rates.

Parallel Operation:
Multiple 1394-SJT05-A units can be paralleled to support systems exceeding 5kW. Each module operates independently, providing N+1 redundancy for mission-critical applications where power supply failure cannot halt production.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during high-demand periods.
Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended service contracts available for critical applications.
Technical Support: Access to Allen-Bradley's global support network, including 24/7 phone support, online knowledge base, and field service engineers.
Documentation Package: Includes installation manual, wiring diagrams, RSLogix configuration files, and dimensional drawings in PDF and DWG formats.

Frequently Asked Questions

Q: Can the 1394-SJT05-A power supply operate with non-Allen-Bradley servo drives?
A: The module is optimized for 1394-series axis modules and may not provide proper DC bus voltage levels for third-party drives. Consult factory engineering for compatibility verification if integrating with mixed-vendor systems.

Q: What is the maximum cable distance between the power supply and axis modules?
A: Allen-Bradley recommends maximum DC bus cable runs of 15 meters (50 feet) using appropriately sized conductors (minimum 10 AWG for 5kW systems). Longer runs require voltage drop calculations and may necessitate larger wire gauges.

Q: How much energy savings can regenerative braking deliver in my application?
A: Energy recovery varies by duty cycle. Applications with frequent acceleration/deceleration (packaging, material handling) typically see 20-30% reduction in net energy consumption. Continuous-speed processes (pumping, fan control) see minimal benefit.

Q: Does the power module require periodic maintenance or component replacement?
A: Inspect cooling fan operation quarterly and clean air intake filters monthly in dusty environments. Electrolytic capacitors have a 7-10 year service life at rated temperature; plan for capacitor replacement during major overhauls.

Q: Can I retrofit a 1394-SJT05-A into an existing 1394 system using an older power supply?
A: Yes, the module is backward-compatible with all 1394 axis module revisions. Verify that existing DC bus wiring and circuit protection are rated for the new power supply's specifications.

Q: What certifications does the 1394-SJT05-A hold for international deployment?
A: The module carries CE marking (EU), UL/cUL listing (North America), and meets IEC 61800-5-1 safety standards. Additional certifications (CCC, EAC) available upon request for specific markets.

Take the Next Step

Optimize your servo system's power architecture with the 1394-SJT05-A. Contact our motion control specialists for application-specific sizing, ROI analysis on energy recovery, and integration support with your existing 1394 platform. Volume pricing and expedited delivery available for qualified projects.

Request a quote: sale@ninermas.com | +0086 187 5021 5667
Technical consultation: Schedule a 30-minute engineering review to evaluate your power distribution requirements.
