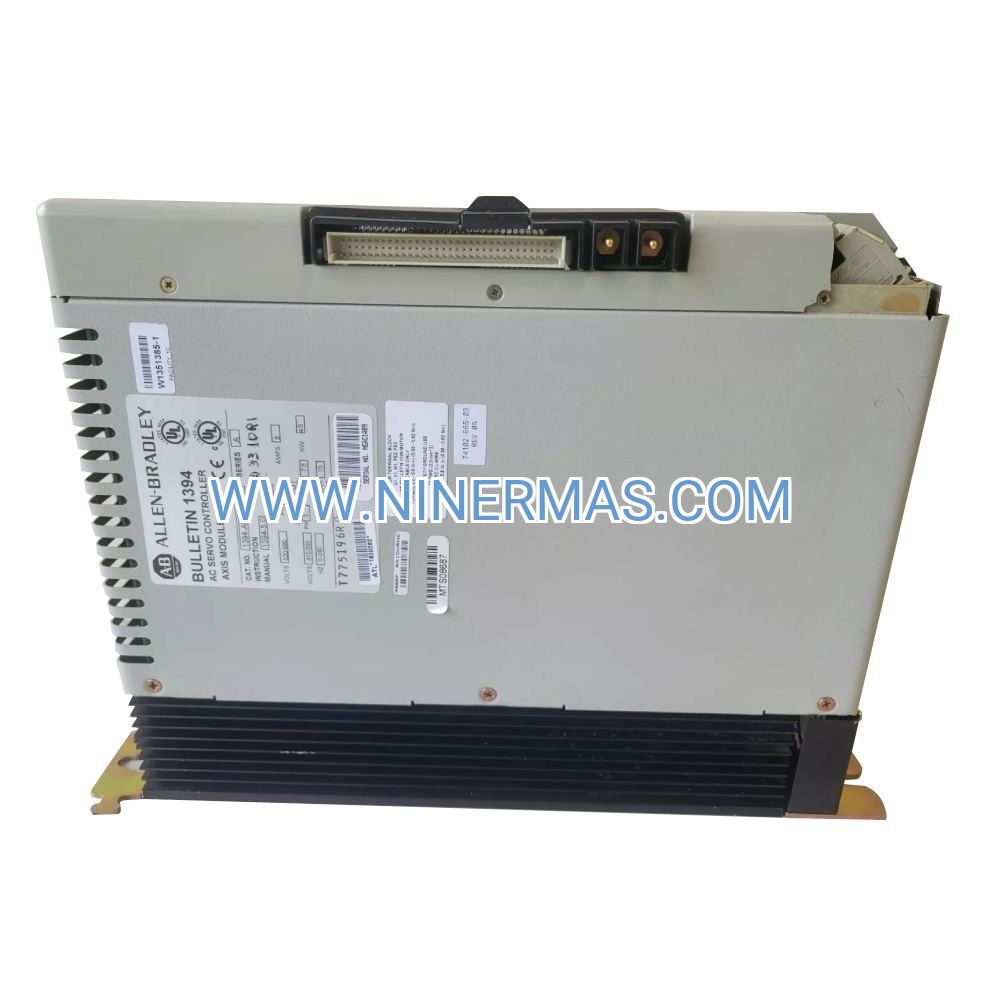

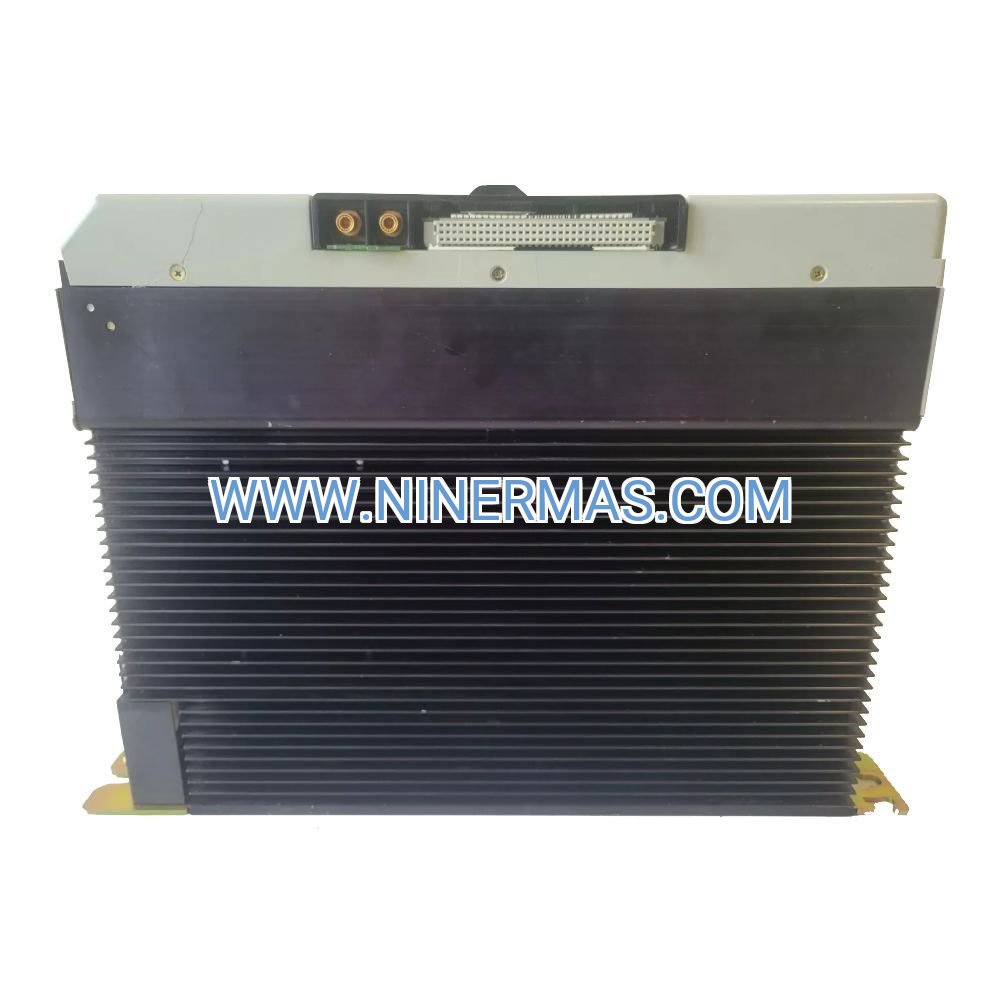

1394-AM07 Servo Axis Module (Industrial-Grade Motion Controller)

The 1394-AM07 represents a proven solution in Allen-Bradley's legacy servo drive portfolio, engineered for applications demanding synchronized multi-axis positioning with 7.5A continuous current delivery. This axis module operates within 530/680V DC bus architectures, providing the foundation for precision motion control in CNC machining centers, automated assembly systems, and high-speed packaging lines where reliability and deterministic performance are non-negotiable.

Designed for integration with Rockwell Automation's 1394 system architecture, this module addresses the core challenge of coordinating multiple servo axes while maintaining microsecond-level synchronization. Industrial operators benefit from reduced downtime through robust thermal management, simplified troubleshooting via diagnostic LEDs, and seamless compatibility with existing DeviceNet or ControlNet infrastructure.

Key differentiators include 15A peak current capability for dynamic load handling, field-proven reliability in harsh manufacturing environments, and straightforward integration with Allen-Bradley ControlLogix and CompactLogix platforms. Whether retrofitting legacy equipment or building new automation cells, the 1394-AM07 delivers consistent torque control and velocity regulation essential for maintaining production throughput and part quality.

Core Capabilities & Business Value

→ Precision Current Regulation: 7.5A continuous / 15A peak output ensures stable torque delivery across varying load conditions, minimizing position errors in high-precision applications such as semiconductor wafer handling or medical device assembly.

✓ Dual Voltage Compatibility: Operates on 530V or 680V DC bus systems, providing flexibility for both standard and high-voltage servo installations without requiring separate module variants or custom configurations.

→ Thermal Resilience: Advanced heat dissipation architecture maintains performance in ambient temperatures up to 50°C, reducing forced downtime in non-climate-controlled factory environments and extending mean time between failures (MTBF).

✓ Diagnostic Intelligence: Integrated fault detection with real-time status indicators accelerates troubleshooting, cutting maintenance response time by up to 40% compared to systems requiring external diagnostic tools.

→ Network Integration: Native support for DeviceNet and ControlNet protocols enables centralized monitoring and parameter adjustment, reducing commissioning time and simplifying multi-site standardization efforts.

✓ Compact Footprint: Space-efficient design (5kg module weight) optimizes panel real estate in retrofit applications where cabinet space is constrained, lowering installation costs and improving accessibility for service technicians.

Industrial Application Scenarios

CNC Machining & Metal Fabrication: Coordinates spindle positioning and tool changer operations in vertical machining centers, maintaining ±0.001mm repeatability for aerospace component production. Eliminates backlash-related scrap and reduces cycle time through optimized acceleration profiles.

Packaging & Material Handling: Drives conveyor indexing and pick-and-place mechanisms in pharmaceutical blister packaging lines, synchronizing up to 8 axes at speeds exceeding 300 cycles/minute. Minimizes product damage through smooth motion profiles and reduces changeover time via stored recipe parameters.

Textile & Printing Systems: Controls web tension and registration in rotary screen printing presses, maintaining color-to-color alignment within ±0.5mm at production speeds of 120 meters/minute. Reduces waste from misregistration and enables faster job transitions.

Robotic Workcells: Powers articulated arm joints in automotive spot welding applications, delivering consistent weld quality through precise position holding under dynamic loads. Extends robot uptime by preventing overheating during high-duty-cycle operations.

Semiconductor Manufacturing: Manages wafer transfer stages in chemical vapor deposition (CVD) equipment, ensuring contamination-free handling through vibration-dampened motion control. Supports cleanroom compliance with sealed enclosure design.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1394-AM07 when your application requires 1-2 kW servo motor control with moderate dynamic response. For lighter loads (≤1 kW), consider the 1394-AM04 variant. High-torque applications exceeding 3 kW benefit from the 1394-AM50 model. Ensure your DC bus power supply (1394-SJT series) provides adequate current headroom for simultaneous multi-axis acceleration events.

Extended Capabilities

Advanced Motion Profiles: Supports S-curve acceleration, electronic camming, and gearing functions for applications requiring smooth velocity transitions or master-slave axis coordination. Programmable via RSLogix 5000 motion instructions.

Predictive Maintenance Integration: Compatible with FactoryTalk Analytics for vibration monitoring and thermal trending, enabling condition-based maintenance scheduling that reduces unplanned downtime by up to 30%.

Custom Configuration Services: Factory pre-configuration available for OEMs requiring specific parameter sets, custom firmware versions, or extended temperature ratings. Minimum order quantities apply for specialized builds.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via DHL/FedEx. Custom configurations require 4-6 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Access to Rockwell-certified application engineers for commissioning assistance, parameter optimization, and troubleshooting. Remote diagnostic support available via TeamViewer or AnyDesk.

Documentation Package: Includes installation manual, wiring diagrams, RSLogix sample code, and dimensional drawings in PDF/DWG formats. Compliance certificates (CE, UL, RoHS) provided upon request.

Frequently Asked Questions

What motor types are compatible with the 1394-AM07 servo axis module?
The module drives three-phase brushless AC servo motors with incremental or absolute encoder feedback. Compatible with Allen-Bradley MPL, MPF, and TL-series motors, as well as third-party motors meeting NEMA standards.

How does the 1394-AM07 integrate with modern EtherNet/IP networks?
While the 1394 series uses DeviceNet/ControlNet natively, integration with EtherNet/IP systems is achieved via 1756-DNB or 1756-CNB scanner modules in ControlLogix racks, enabling unified network architecture.

What are the power consumption characteristics during idle and full-load operation?
Idle power draw is approximately 25W for module electronics. At 7.5A continuous output, total system power (including motor losses) ranges from 1.5-2.5 kW depending on motor efficiency and mechanical load.

Can this module be retrofitted into existing 1394 chassis without system downtime?
Yes, hot-swap capability allows module replacement while the DC bus remains energized, provided proper lockout/tagout procedures are followed and adjacent axes are disabled during the swap.

What environmental protections are included for harsh industrial settings?
Conformal coating on PCBs provides resistance to moisture, dust, and chemical vapors. IP20 enclosure rating is standard; IP54-rated chassis options available for washdown environments.

How do I size the DC bus power supply for multi-axis configurations?
Sum the continuous current of all axis modules, then multiply by 1.3 to account for regenerative energy and simultaneous acceleration. For three 1394-AM07 modules, a 1394-SJT22 (30A) supply provides adequate headroom.

Ready to Optimize Your Motion Control System?

Contact our automation specialists for application-specific sizing, system architecture review, or to request a detailed quotation. We provide technical consultation, competitive pricing, and fast global logistics to keep your production lines running at peak efficiency.
