Alerton VLC-16160 Service-Ready Spare Part

Alerton VLC-16160 Service-Ready Spare Part for Industrial Maintenance

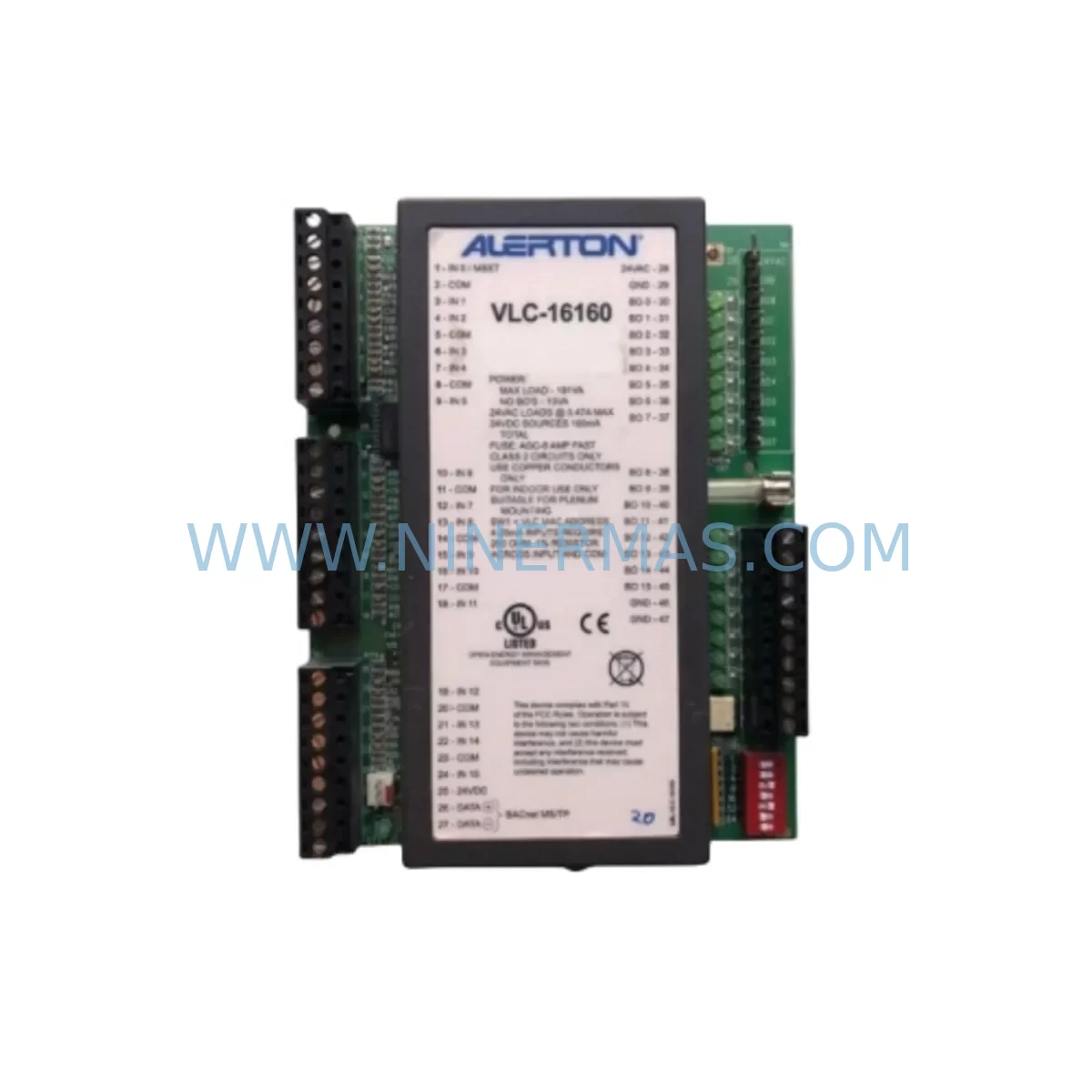

The Alerton VLC-16160 is a BACnet-compliant Variable Air Volume (VAV) controller designed for building automation and HVAC control systems operating under the Alerton IBEX and Envision platform. As a service-ready spare part, the VLC-16160 is a critical replacement component for facilities management teams, maintenance engineers, and procurement specialists responsible for sustaining continuous building operations. Whether you are managing a scheduled annual inspection, responding to an emergency controller failure, or building a strategic spare parts inventory, the VLC-16160 delivers the reliability and compatibility required to minimize downtime and restore system control quickly.

The VLC-16160 supports BACnet MS/TP communication protocol, enabling seamless integration into existing BACnet networks without requiring protocol conversion or gateway hardware. Its onboard I/O configuration supports direct connection to VAV box actuators, duct temperature sensors, and airflow pressure transducers, making it a drop-in replacement for failed or aging controllers in multi-zone HVAC systems. Maintenance engineers should verify the existing MS/TP network address, baud rate settings, and BACnet device instance number before installation to ensure the replacement controller is recognized correctly by the building management system (BMS) without disrupting other network nodes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a BACnet VAV system built around the Alerton VLC-16160 requires a holistic view of the entire control loop. When replacing the VLC-16160, maintenance engineers should simultaneously inspect the 24 VAC Class 2 transformer supplying power to the controller, as an undersized or aging transformer is a common root cause of controller brownout failures. The EIA-485 MS/TP network wiring and termination resistors at both ends of the daisy-chain segment should be verified for continuity and correct impedance to prevent communication errors after the replacement unit comes online.

The Alerton BCX One or BCX 9900 BACnet router serving as the network backbone should be checked for firmware compatibility with the replacement VLC-16160 to ensure the new device instance is properly discovered and bound. If the facility uses an Alerton Envision for BACtalk workstation, the operator should confirm that the controller’s database object list is re-downloaded after replacement to restore all setpoints, schedules, and trend logs. Facilities running mixed-generation Alerton hardware may also have VLC-853 or VLC-454 controllers on the same MS/TP trunk — these should be polled for communication health after the VLC-16160 swap to confirm no address conflicts have been introduced.

On the field device side, the VAV box actuator (typically a 24 VAC floating or proportional type) connected to the analog output of the VLC-16160 should be tested for correct stroke and torque after the controller is replaced. The duct static pressure sensor and room temperature sensor wired to the universal inputs should be verified for correct signal range (0–10 VDC or 4–20 mA as applicable) and calibrated against a reference instrument before the system is returned to automatic control. If the installation includes a CO₂ sensor for demand-controlled ventilation, its wiring and signal output should also be confirmed against the new controller’s input configuration.

For control cabinet installations where the VLC-16160 is panel-mounted alongside terminal blocks, 24 VAC fuses, and DIN rail power distribution components, a full cabinet inspection is recommended during the replacement window. Check all screw terminal connections for tightness, inspect fuse ratings against the transformer VA capacity, and verify that the MS/TP network cable shield is grounded at one point only to prevent ground loops. Procurement teams should maintain at least one spare VLC-16160 per building zone cluster to support rapid response to unplanned failures without waiting for lead-time delivery.

Site Replacement Workflow

Before removing the failed VLC-16160, the maintenance engineer should document the existing BACnet device instance number, MS/TP MAC address, network baud rate, and all I/O wiring labels using photographs or a wiring diagram. Power down the 24 VAC supply to the controller using the dedicated circuit breaker or fuse in the control panel — do not rely on the controller’s own power LED as confirmation of de-energization; use a multimeter to verify zero voltage at the controller terminals.

Remove the failed unit from its mounting position, noting the orientation of the MS/TP network cable polarity (+ and − terminals on the EIA-485 bus). Install the replacement VLC-16160, reconnect all field wiring in the same terminal positions, and restore 24 VAC power. Using the Alerton Envision or BACtalk programming tool connected via a USB-to-MS/TP programming cable, download the previously backed-up controller database to the new unit. Confirm that the BMS workstation discovers the replacement controller at the correct device instance and that all associated VAV zone setpoints, occupancy schedules, and alarm thresholds are restored. Perform a manual override test on the actuator output and verify sensor readings before releasing the zone back to automatic BMS control. Total replacement time for a prepared technician with a pre-configured spare is typically under 60 minutes, significantly reducing the impact on building occupant comfort and HVAC energy efficiency.

Spare Parts Support FAQ

Q1: Is the VLC-16160 a direct drop-in replacement for an existing failed unit?
Yes. The VLC-16160 is a direct replacement for units of the same part number. The controller must be programmed with the original device database (backed up from the BMS) to restore all setpoints and schedules. No hardware modification is required for a same-model swap.

Q2: What compatibility checks are required before installation?
Verify the BACnet MS/TP baud rate (typically 9600, 19200, or 38400 bps) matches the existing network segment, confirm the device instance number is unique on the BACnet internetwork, and ensure the 24 VAC power supply has sufficient VA capacity for the replacement controller plus all connected field devices.

Q3: Is the unit tested before shipment?
Yes. Every VLC-16160 unit supplied by NINERMAS undergoes functional testing prior to dispatch, including power-on verification and communication port checks, to ensure the unit is operational upon arrival at site.

Q4: What warranty and long-term supply support is available?
All VLC-16160 units are covered by a 12-month warranty from the date of shipment. NINERMAS maintains ongoing inventory of Alerton VLC Series spare parts to support long-term procurement planning for facilities with extended maintenance cycles. Contact our team for volume pricing and scheduled delivery programs.
