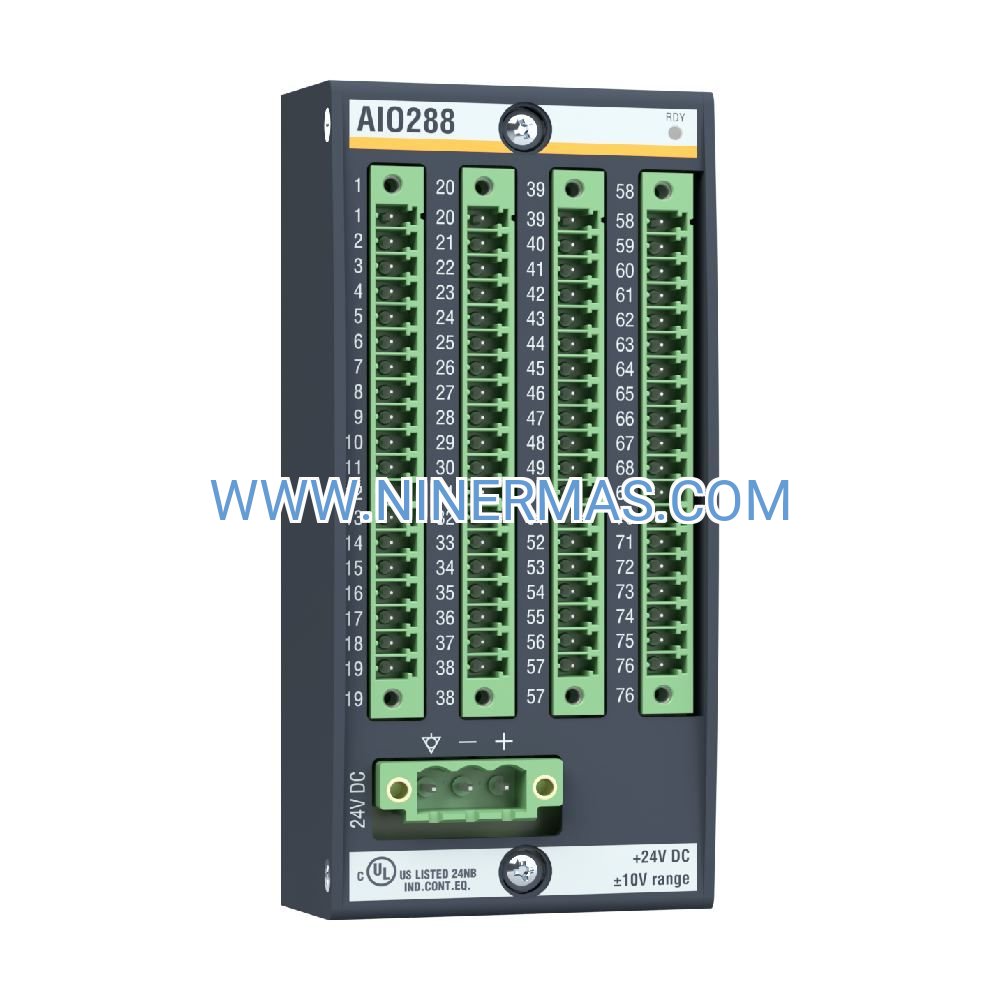

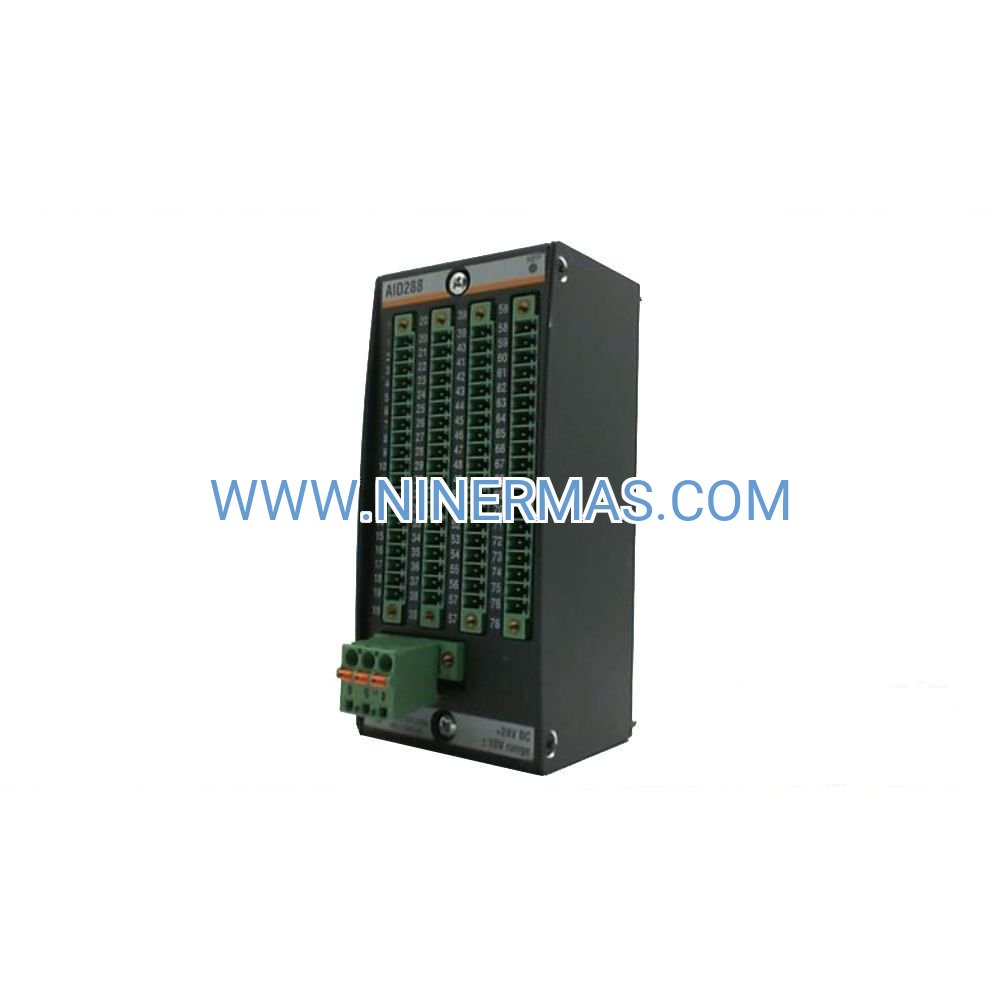

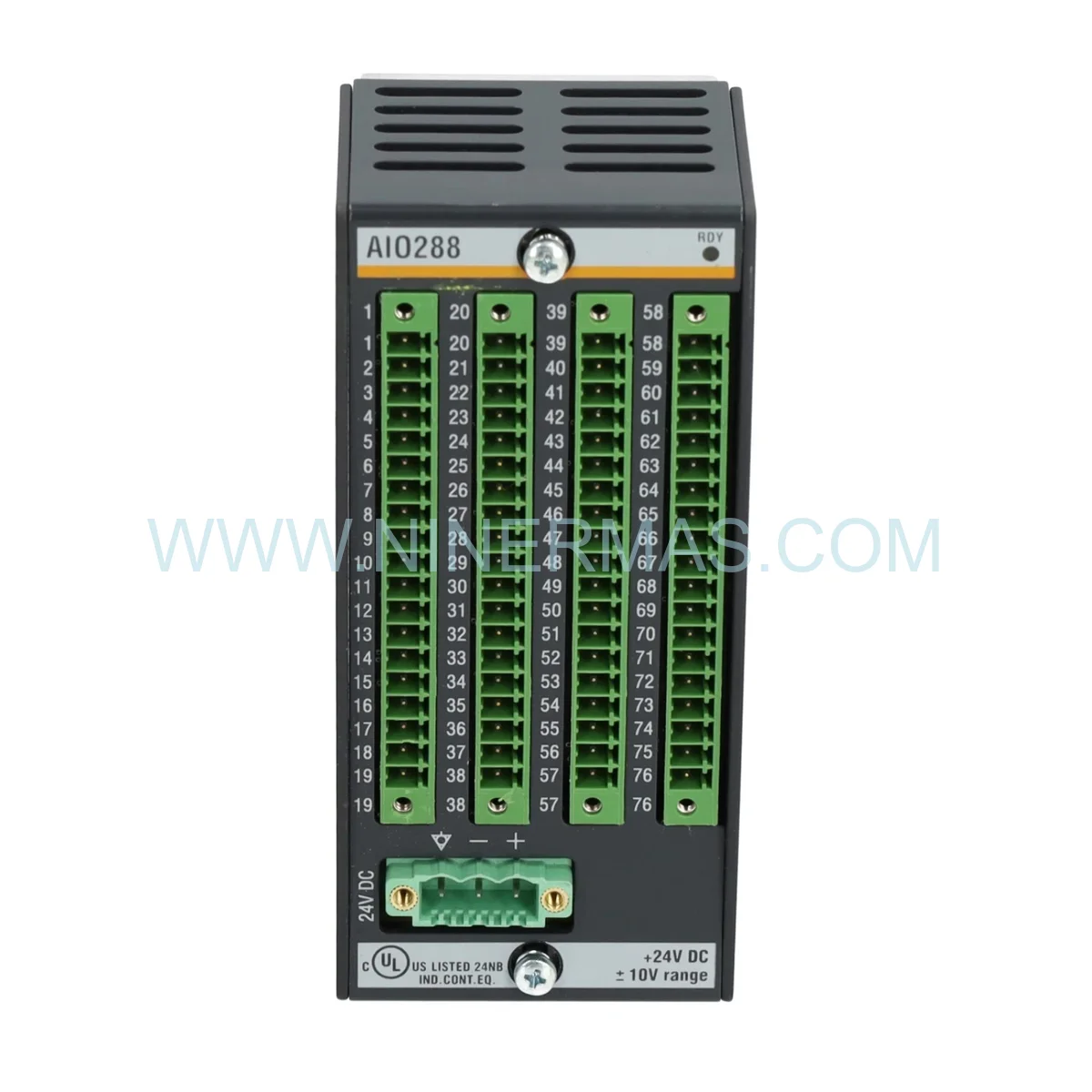

BACHMANN AIO288 Multi-Channel Analog I/O Module (Industrial-Grade Precision)

The BACHMANN AIO288 represents a versatile analog interface solution engineered for demanding industrial control applications. This multi-channel module delivers 14-bit resolution across 8 configurable analog inputs, 8 voltage outputs, and 4 dedicated temperature sensor channels, enabling comprehensive process monitoring and control in a single compact unit.

Designed for manufacturers and system integrators requiring reliable signal conditioning in harsh environments, the AIO288 addresses critical challenges in process automation, temperature regulation, and multi-point data acquisition. Whether you're managing chemical batch processes, HVAC systems, or manufacturing line controls, this module provides the accuracy and flexibility needed for mission-critical operations.

With 500V galvanic isolation, wide operating temperature range (-30°C to +60°C), and support for multiple sensor types including Pt100/Pt1000 RTDs, the AIO288 delivers industrial-grade performance that reduces installation complexity while maintaining measurement integrity across diverse applications.

Core Features & Technical Advantages

✓ Multi-Signal Flexibility
Handles voltage (±1V/±10V), current (0-20mA), and temperature inputs simultaneously, eliminating the need for multiple specialized modules and reducing cabinet space requirements by up to 40%.

→ High-Speed Sampling Architecture
200µs sample time with 1.5kHz cutoff frequency ensures real-time response for dynamic process control, critical for applications requiring rapid feedback loops and precise setpoint tracking.

✓ Superior Measurement Accuracy
14-bit resolution with ±0.05% voltage input accuracy and ±0.025% output accuracy at 25°C provides laboratory-grade precision for quality-critical manufacturing processes.

→ Robust Electrical Isolation
500V galvanic isolation protects sensitive control systems from ground loops and electrical noise, ensuring signal integrity in electrically noisy industrial environments.

✓ Temperature Sensing Integration
Native support for Pt100/Pt1000 RTDs with 2-wire or 4-wire configurations enables direct temperature measurement without external transmitters, reducing system cost and complexity.

→ Extended Environmental Range
Operates reliably from -30°C to +60°C with 5-95% humidity tolerance (with condensation), making it suitable for outdoor installations and extreme climate conditions.

Typical Application Scenarios

Chemical Process Control
Monitor reactor temperatures, pressure transducer signals, and control valve positions in pharmaceutical and chemical manufacturing. The AIO288's high accuracy and fast sampling enable tight process control, reducing batch variation and improving product consistency while meeting FDA 21 CFR Part 11 data integrity requirements.

HVAC & Building Automation
Manage multiple zone temperatures, damper positions, and variable frequency drives in commercial buildings. The module's ability to handle mixed signal types simplifies BMS integration, cutting installation time by 30% while providing precise climate control that reduces energy consumption by 15-25%.

Water Treatment & Environmental Monitoring
Acquire pH, conductivity, flow rate, and temperature data from distributed sensor networks. Galvanic isolation prevents ground loop interference common in wet environments, while the wide operating range supports outdoor installations without environmental enclosures.

Manufacturing Line Control
Interface with analog sensors for position feedback, pressure monitoring, and quality inspection systems. The 14-bit resolution enables detection of subtle process variations, supporting predictive maintenance strategies and reducing unplanned downtime.

Energy Management Systems
Collect data from power meters, current transformers, and voltage transducers for real-time energy monitoring. Fast sampling captures transient events while high accuracy ensures billing-grade measurement compliance with ISO 50001 energy management standards.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AIO288 when your application requires mixed analog signal types in a single module, when cabinet space is limited, or when you need to interface with both voltage/current transmitters and RTD temperature sensors. For applications requiring only voltage inputs or higher channel counts, consider specialized single-function modules. The AIO288 is ideal for systems with 8-20 total analog points requiring diverse signal conditioning.

Extended Functions & Integration Capabilities

Industrial IoT Connectivity
Seamlessly integrates with BACHMANN M1 controller ecosystem, enabling MQTT, OPC UA, and Modbus TCP communication for Industry 4.0 applications. Remote monitoring and cloud data logging capabilities support predictive analytics and digital twin implementations.

Advanced Diagnostics
Built-in channel health monitoring detects open circuits, short circuits, and out-of-range conditions, triggering configurable alarms that reduce troubleshooting time by 60% and prevent process upsets.

Customization Options
Available with factory-configured input ranges, custom calibration certificates (NIST-traceable), and conformal coating for extreme environments. Contact our engineering team for application-specific modifications including extended temperature ranges or specialized filtering.

Delivery & Service Assurance

Lead Time
Standard units: 3-5 business days (in-stock items)
Custom configurations: 2-3 weeks
Express shipping available for urgent projects

Warranty Coverage
12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for critical infrastructure applications.

Technical Support
Complimentary pre-sales application engineering assistance, post-installation commissioning support, and lifetime technical hotline access. Average response time: <4 hours for critical issues.

Documentation Package
Includes detailed datasheet, wiring diagrams, sample PLC code, calibration certificate, and CE/UL compliance declarations. CAD models and 3D STEP files available for download.

Frequently Asked Questions

Q: Can the AIO288 interface directly with 4-20mA transmitters without external resistors?
A: Yes, the module includes built-in 243Ω precision shunt resistors for current input channels, eliminating external components. Simply connect the transmitter loop directly to the input terminals.

Q: What is the maximum cable length for analog input signals?
A: With shielded twisted-pair cable, voltage inputs support up to 100 meters and current inputs up to 300 meters. For longer distances, use 4-20mA transmitters which offer superior noise immunity.

Q: Does this module support HART protocol communication?
A: The AIO288 provides analog signal conditioning only. For HART communication, pair with a BACHMANN MX220 HART multiplexer module or use HART-transparent barriers.

Q: How much power does the module consume from the backplane?
A: The AIO288 requires external 18-34V DC power supply (230mA typical) and does not draw power from the M1 system backplane, preventing overload on heavily populated racks.

Q: Can I mix Pt100 and Pt1000 sensors on the same module?
A: Yes, sensor type is software-selectable per channel through the M1 configuration tool, allowing mixed RTD types without hardware changes or jumper settings.

Q: What environmental certifications does the AIO288 hold?
A: The module carries CE, UL508, and RoHS compliance. Marine certifications (DNV-GL, ABS) are available for offshore and shipboard applications upon request.

Get Started with Precision Analog Control

Ready to upgrade your process control accuracy? Contact our industrial automation specialists for application-specific recommendations, custom configuration assistance, or volume pricing. Request a technical datasheet or schedule a virtual demonstration to see the AIO288 in action.

Next Steps: Add to cart for immediate purchase, or reach out to our engineering team at sale@ninermas.com for project consultation and integration support.
