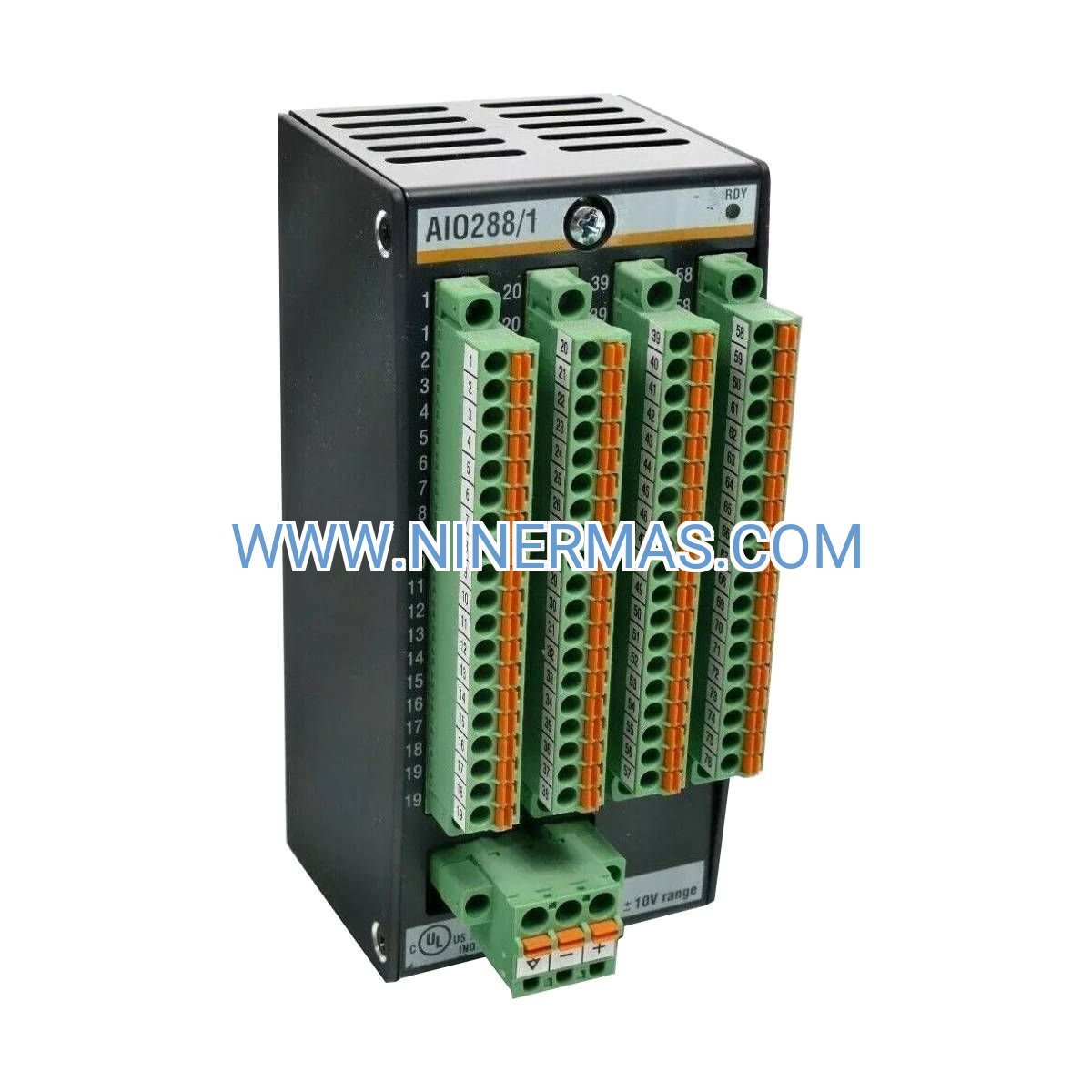

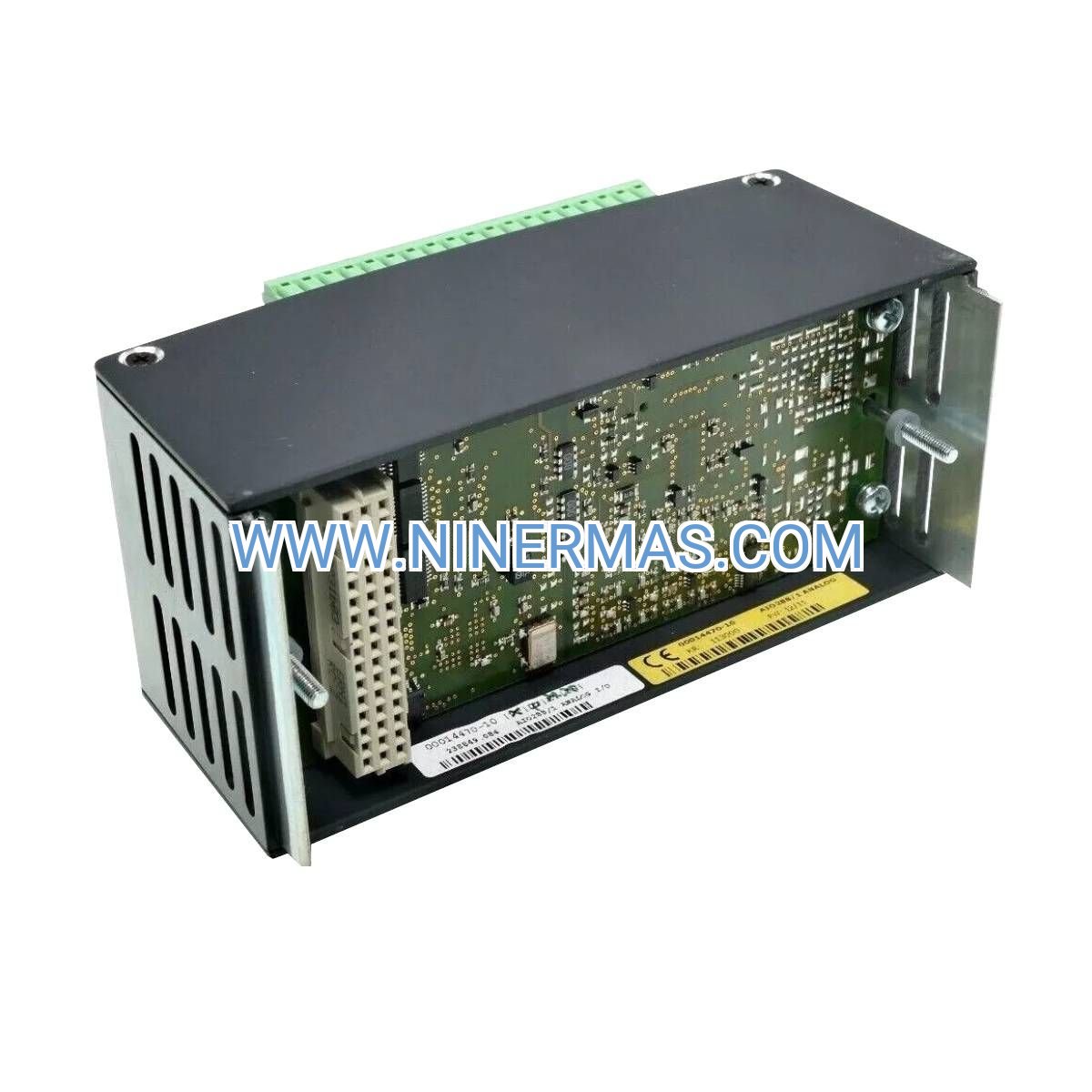

BACHMANN AI0288 Analog I/O Module (Industrial-Grade Signal Processing)

The BACHMANN AI0288 represents a precision-engineered analog interface solution for demanding industrial control environments. Featuring 14-bit analog-to-digital conversion with dual voltage range capability (±1V/±10V), this module delivers microsecond-level response times essential for real-time process monitoring and closed-loop control applications within M1 modular automation architectures.

Designed for system integrators and automation engineers who require reliable signal acquisition in harsh industrial settings, the AI0288 bridges the gap between field instrumentation and digital control platforms. Its galvanic isolation and extended temperature rating ensure consistent performance across manufacturing, energy, and process industries where signal integrity is non-negotiable.

Whether you're upgrading legacy control systems or designing new automation solutions, the AI0288 provides the precision, speed, and ruggedness needed to transform analog sensor data into actionable control intelligence with minimal latency and maximum accuracy.

Core Features & Benefits

→ 14-Bit Resolution Precision
Captures analog signals with 16,384 discrete levels, enabling detection of subtle process variations that 12-bit systems miss. Critical for applications requiring ±0.1% full-scale accuracy in temperature control, pressure regulation, and flow measurement.

→ Dual Voltage Range Flexibility
Software-selectable ±1V and ±10V input/output ranges accommodate both low-level sensor signals and industrial-standard 0-10V actuator control without external signal conditioning. Reduces BOM costs and simplifies wiring in multi-sensor installations.

→ 200µs Sample Time Performance
Ultra-fast conversion cycles support control loop frequencies up to 5kHz, essential for servo positioning, vibration monitoring, and high-speed packaging machinery where millisecond delays cause quality defects or safety issues.

✓ 500V Galvanic Isolation Protection
Electrical isolation between field signals and system logic prevents ground loop interference, protects expensive controllers from voltage spikes, and ensures compliance with industrial safety standards in multi-voltage installations.

✓ Extended Temperature Operation
Qualified for -25°C to +60°C ambient conditions without derating, making it suitable for outdoor enclosures, unheated facilities, and tropical climates where commercial-grade electronics fail.

✓ M1 System Native Integration
Plug-and-play compatibility with BACHMANN M1 backplanes, controllers, and configuration tools eliminates custom driver development. Hot-swappable design minimizes downtime during maintenance.

Typical Application Scenarios

Chemical Batch Processing
Monitor reactor temperatures, pH levels, and flow rates with 14-bit precision while controlling dosing pumps and heating elements. The AI0288's fast sampling detects thermal runaway conditions before they escalate, while galvanic isolation protects control systems from corrosive environment-induced ground faults. Typical installations pair 4-8 AI0288 modules with BACHMANN MX213 controllers for multi-zone batch reactors.

Renewable Energy Inverter Control
Acquire DC bus voltage, current shunt signals, and temperature feedback in solar inverters and wind turbine converters. The ±10V range directly interfaces with Hall-effect current sensors, while 200µs sampling enables MPPT algorithms to track rapidly changing irradiance conditions. Isolation prevents PV array ground faults from damaging control electronics.

Water Treatment SCADA Systems
Interface with 4-20mA transmitters (via 250Ω shunt resistors) for level, turbidity, chlorine residual, and flow measurements across distributed pump stations. The module's -25°C rating suits outdoor kiosk installations, while M1 system redundancy options ensure continuous operation in critical infrastructure applications.

Packaging Line Tension Control
Read load cell and dancer arm position sensors in web handling systems for film, paper, and foil processing. Sub-millisecond response times maintain constant tension during acceleration/deceleration cycles, reducing material waste and improving print registration accuracy in high-speed converting operations.

HVAC Energy Optimization
Monitor chiller differential pressure, supply air temperature, and CO₂ levels in commercial building automation. The AI0288's accuracy enables predictive maintenance algorithms to detect fouled heat exchangers and failing damper actuators before occupant comfort is affected, reducing energy consumption by 15-25% versus fixed-schedule operation.

Technical Parameters & Selection Guide

Selection Criteria: Choose AI0288 when you need ±1V low-level sensor compatibility (thermocouples, strain gauges) combined with ±10V actuator control in a single module. For applications requiring only 0-10V unipolar signals, consider the AIO288 variant. If you need 16-bit resolution for precision weighing or analytical instruments, evaluate the AIO216 module instead. Confirm your M1 backplane has available 5V power budget (2.5W per AI0288 module).

Extended Functions

IoT Gateway Integration: The AI0288 data streams to BACHMANN's mGuard industrial routers for secure cloud connectivity, enabling remote monitoring via OPC UA, MQTT, or RESTful APIs. Integrate with Azure IoT Hub, AWS IoT Core, or on-premise historians for predictive analytics and machine learning model training.

Advanced Diagnostics: Built-in self-test routines detect open-circuit sensors, out-of-range signals, and ADC calibration drift. Status LEDs and software-accessible fault registers simplify commissioning and troubleshooting, reducing mean-time-to-repair by 40% versus modules without diagnostic feedback.

Customization Options: Factory-configurable input filtering (10Hz/100Hz/1kHz bandwidth) available for OEM quantities >50 units. Custom firmware for specialized signal processing (RMS calculation, peak detection, rate-of-change limiting) can be developed under NDA for volume applications.

Delivery & Service Assurance

Lead Time: Stock items ship within 3-5 business days via DHL/FedEx International Priority. Custom-configured modules require 4-6 weeks factory lead time. Expedited production available for critical project deadlines (contact sales for feasibility).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal industrial operating conditions. Extended 36-month coverage available for an additional 15% of purchase price.

Technical Support: Lifetime email/phone support from BACHMANN-certified application engineers. Typical response time <4 hours during business hours (GMT+8). On-site commissioning assistance available in major industrial regions (quoted separately).

Documentation Package: Each module ships with installation manual, wiring diagrams, PLC function block libraries (IEC 61131-3), and calibration certificate. CAD models (STEP/DXF) and 3D PDFs available for panel design integration.

Frequently Asked Questions

Can the AI0288 interface directly with 4-20mA transmitters?
Yes, by installing a 250Ω precision resistor across the input terminals (converts 4-20mA to 1-5V signal within the ±10V range). For applications with >8 current loop sensors, consider the dedicated current input module AIC214 to eliminate external resistor networks.

What is the maximum cable length for analog signals?
Shielded twisted-pair cable up to 300 meters is supported for ±10V signals in industrial EMI environments. For ±1V low-level signals, limit cable runs to 100 meters and use driven shields to minimize noise pickup. Longer distances require 4-20mA transmitters or isolated signal conditioners.

How does the AI0288 compare to Allen-Bradley 1769-IF4XOF2 modules?
The AI0288 offers faster sampling (200µs vs 10ms), higher isolation (500V vs 250V), and wider temperature range (-25°C vs 0°C minimum). The 1769 module provides 16-bit resolution and removable terminal blocks. Choose based on your existing platform (M1 vs CompactLogix) and whether speed or resolution is more critical.

Is hot-swapping supported during system operation?
Yes, the M1 backplane architecture allows module replacement without powering down the entire system. The controller automatically detects module insertion and resumes I/O scanning within 2 seconds. Ensure proper ESD precautions and verify configuration download after hot-swap events.

What calibration interval is recommended?
BACHMANN specifies annual calibration verification for applications requiring traceable accuracy (ISO 9001, FDA 21 CFR Part 11). Non-critical applications can extend to 24-month intervals. Factory recalibration service available with 5-day turnaround; field calibration using precision voltage sources is supported via configuration software.

Can I mix AI0288 modules with other M1 I/O types on the same backplane?
Absolutely. The M1 system supports heterogeneous module configurations—combine analog I/O (AI0288, AIO216), digital I/O (DIO280, DIO216), communication modules (MX213 Ethernet), and specialty cards (PTAI216 RTD) in any slot arrangement. Total backplane power budget is the only constraint (verify 5V rail capacity).

Take the Next Step

Ready to enhance your automation system with precision analog I/O? Contact our technical sales team for application-specific recommendations, volume pricing, and integration support. We'll help you configure the optimal M1 system architecture for your process control, energy management, or manufacturing automation project.

Request a quote: sales@indctrlhub.com | +0086 187 5021 5667
Technical inquiries: Include your application details, signal types, and environmental conditions for fastest response.
