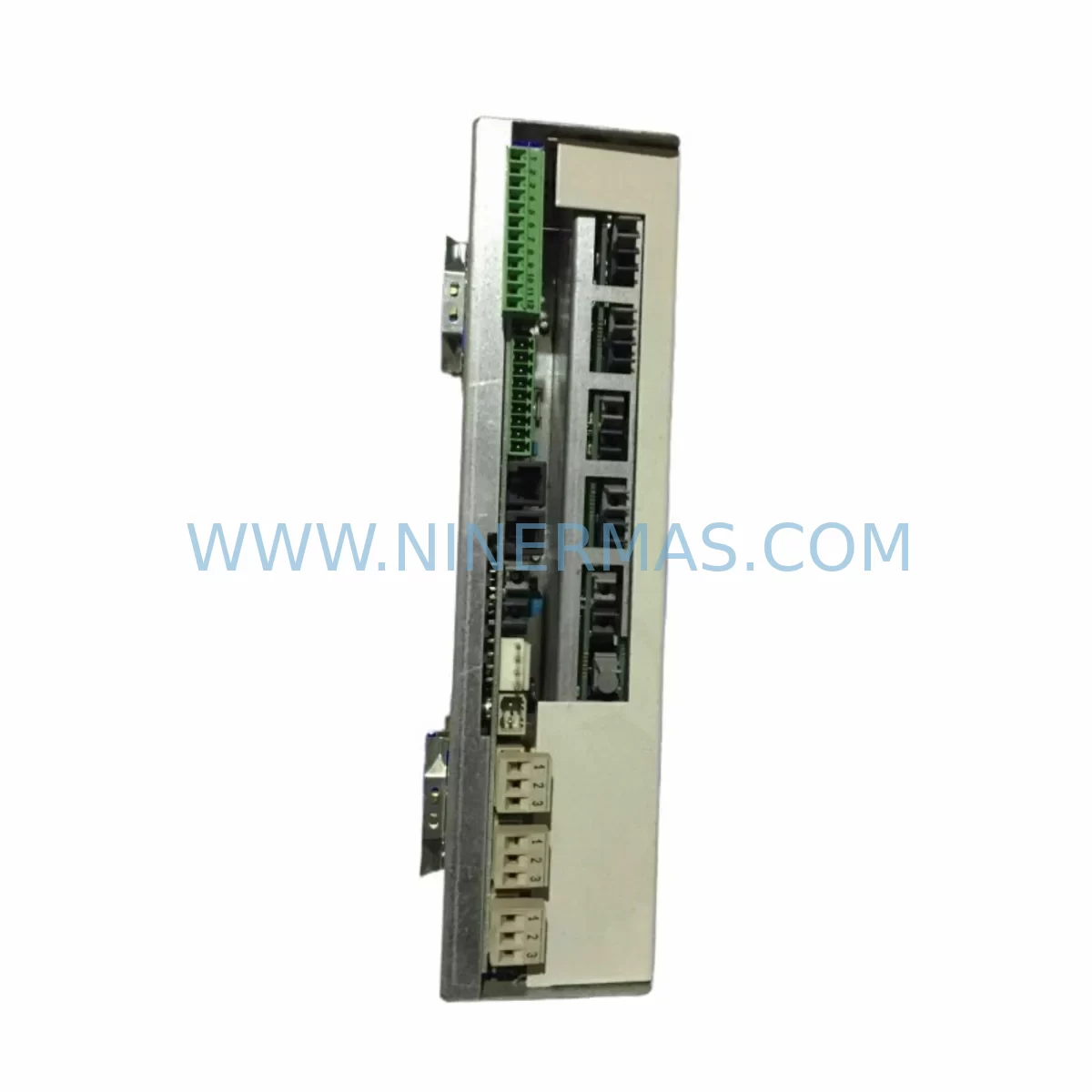

The ABB NDCU-04 is an original drive control unit designed for industrial automation environments, widely deployed in ACS800 series variable frequency drive systems. For maintenance engineers managing aging production lines, control cabinets, or critical drive infrastructure, the NDCU-04 represents a high-priority spare component — one whose failure can trigger immediate line stoppage, unplanned downtime, and cascading faults across connected I/O and power circuits.

At NINERMAS, we supply the ABB NDCU-04 as a service-ready spare part, pre-tested before shipment, backed by a 12-month warranty, and available for rapid dispatch to support emergency replacement and planned maintenance programs alike. Whether you are restocking your spare parts inventory, executing a scheduled annual overhaul, or responding to an unplanned drive fault, the NDCU-04 can be sourced with confidence through our industrial supply chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB NDCU-04 in the field, experienced maintenance engineers know that the control unit does not operate in isolation. A thorough site inspection should accompany any NDCU-04 swap to prevent repeat faults and ensure full system restoration.

Begin by inspecting the ACS800 power supply module feeding the drive — voltage irregularities or ripple on the DC bus are a common root cause of control unit degradation. Check the AINT-02 or AINT-14 inverter control interface board for signs of thermal stress or connector oxidation, as these boards communicate directly with the NDCU-04 and a faulty interface can damage a newly installed control unit within hours of commissioning.

Review the RDCO-02 or RDCO-04 communication option module if the drive is integrated into a fieldbus network (PROFIBUS, DeviceNet, or Modbus). A corrupted communication module can prevent the replacement NDCU-04 from initializing correctly and may be misdiagnosed as a control unit fault. Similarly, inspect the RAIO-01 analog I/O extension module and any RDIO-01 digital I/O modules installed in the drive’s option slots — damaged I/O modules can generate fault codes that mask the true source of the original failure.

For drives connected to external control systems, verify the integrity of the signal cables between the NDCU-04 and the PLC or DCS. Shielding breaks, loose ferrules on terminal blocks, or degraded cable insulation are frequently overlooked during emergency replacements and can introduce noise that destabilizes the new control unit. If the installation includes a NINT-41 or NINT-43 inverter module interface, confirm that the fiber optic links are clean and undamaged before powering up.

Thermal management is equally critical. Inspect the drive cooling fan assembly and heatsink for dust accumulation — blocked airflow is a leading cause of premature control unit failure in high-ambient industrial environments. If the drive cabinet includes an NPBU-12 or NPBU-42 branching unit for multi-drive configurations, verify that all fiber connections are secure and that no other drives in the chain are generating fault conditions that could propagate to the newly installed NDCU-04.

For sites running legacy ACS800 systems beyond their original design life, consider adding the NDCU-04 to your annual inspection spare parts list alongside the AINT board, communication modules, and I/O extensions. Proactive stocking of these components significantly reduces mean time to repair (MTTR) and supports long-term system availability without dependency on spot-market sourcing.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the NDCU-04 as the failed component using ABB ACS800 fault code diagnostics. Document the fault history from the drive’s control panel or connected HMI before powering down.

Step 2 — Safe Isolation: Follow lockout/tagout (LOTO) procedures. Discharge the DC bus capacitors fully before opening the drive cabinet. Verify zero voltage with a calibrated meter.

Step 3 — Component Removal: Photograph the existing wiring and connector positions before disconnecting. Remove the NDCU-04 carefully, noting the hardware revision label for compatibility verification against the replacement unit.

Step 4 — Compatibility Verification: Confirm that the replacement NDCU-04 hardware revision and firmware version are compatible with your ACS800 drive frame size and installed option modules. Contact NINERMAS if clarification is needed — our technical team can assist with revision matching.

Step 5 — Installation: Seat the replacement NDCU-04 firmly, reconnect all cables and fiber links, and restore any parameter backups using the ABB Drive Composer or control panel upload function.

Step 6 — Commissioning Test: Power up in local control mode first. Verify all I/O signals, communication links, and drive parameters before returning to automatic or remote control. Log the replacement in your maintenance management system.

This workflow minimizes downtime, reduces the risk of repeat faults, and ensures the replacement NDCU-04 is commissioned correctly for long-term reliable operation.

Spare Parts Support FAQ

Q1: Is the ABB NDCU-04 supplied by NINERMAS an original part?
Yes. NINERMAS supplies original ABB NDCU-04 units sourced through established industrial supply channels. Each unit is inspected and tested before shipment to verify functionality. A 12-month warranty is provided from the date of shipment.

Q2: How do I confirm compatibility between the NDCU-04 and my ACS800 drive?
Compatibility depends on the ACS800 frame size, hardware revision, and installed option modules. We recommend providing your drive’s full nameplate data and existing NDCU hardware revision when enquiring. NINERMAS technical support can assist with compatibility verification before purchase.

Q3: Can NINERMAS support long-term or repeat supply of the NDCU-04 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of ABB ACS800 series spare parts to support both emergency replacement and planned annual maintenance programs. We can discuss framework supply agreements for customers managing multiple drives or extended EOL system support programs.

Q4: What is included with the NDCU-04 shipment?
Each NDCU-04 is shipped with standard protective packaging suitable for international freight. Test records are available on request. For installations requiring specific documentation, contact sale@ninermas.com in advance of your order.
