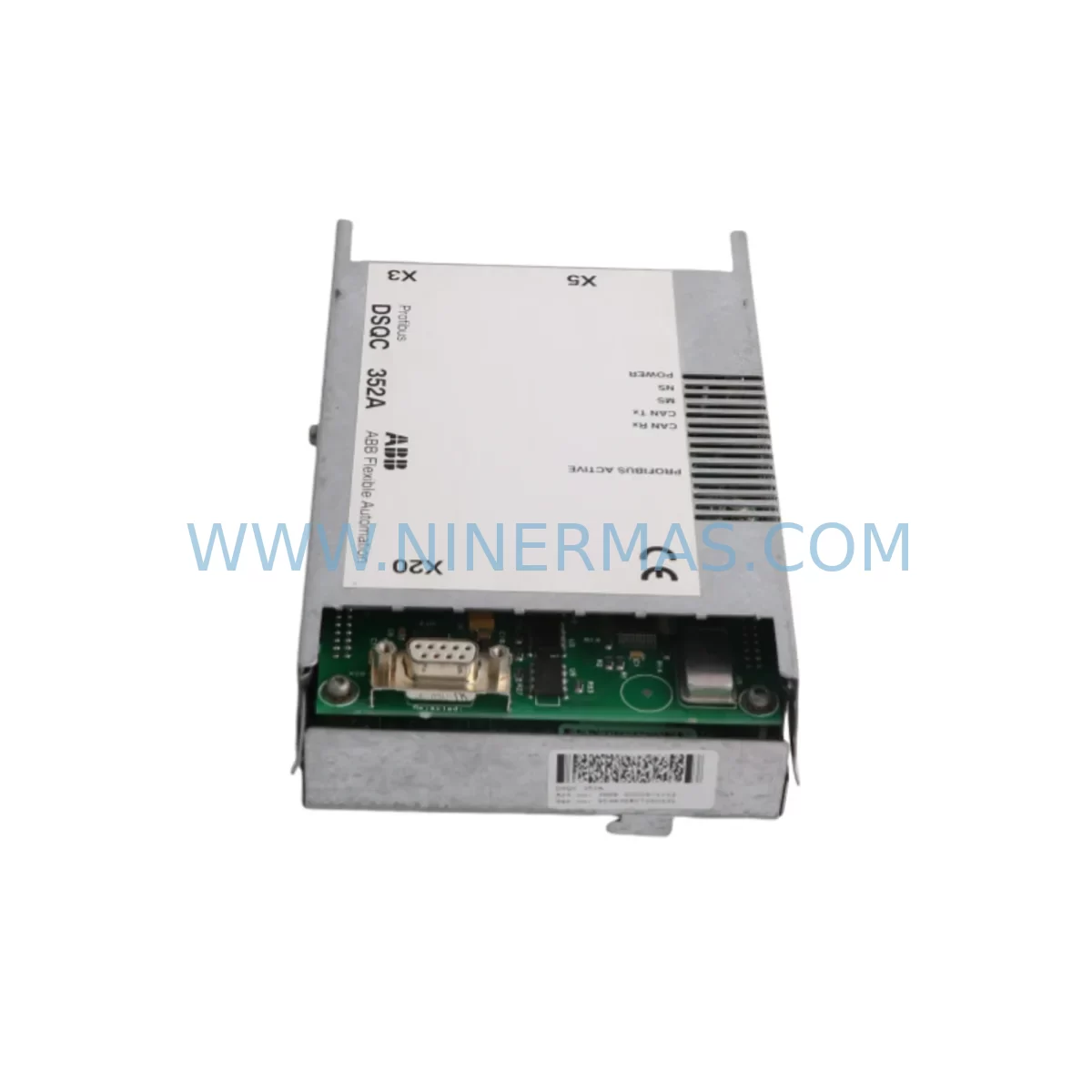

The ABB DSQC352A (also referenced under part number 3HNE00009-1) is an Ethernet communication board originally designed for ABB S4C and S4C+ robot controller platforms. As production lines built around these controllers age and OEM support contracts expire, the DSQC352A becomes a critical spare part for maintaining network connectivity between the robot controller, supervisory SCADA systems, and factory Ethernet infrastructure. NINERMAS maintains verified stock of the DSQC352A to support retrofit projects, emergency replacements, and planned system upgrades across automotive, metal fabrication, foundry, and general industrial automation environments.

When an S4C or S4C+ controller loses Ethernet communication capability due to a failed DSQC352A, the impact extends beyond simple network loss. Supervisory control, remote diagnostics, production data logging, and coordinated multi-robot sequencing can all be interrupted simultaneously. Restoring the board with a verified replacement minimizes unplanned downtime and avoids the far greater cost of a full controller replacement or unplanned line stoppage.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC352A retrofit begins well before the replacement board arrives on site. Engineers should first audit the full communication architecture of the affected S4C or S4C+ controller cabinet. This includes confirming the current IP address scheme, verifying the network switch port configuration, and documenting all active RAPID communication tasks that depend on the Ethernet link. In many S4C installations, the DSQC352A works alongside other communication and I/O boards within the same controller rack. Common co-installed components include the DSQC313 serial measurement board, the DSQC346B digital I/O board, and the DSQC332 analog I/O board — all of which share the same backplane and must remain undisturbed during the Ethernet board swap.

Power supply integrity is a prerequisite for any board-level retrofit. The DSQC325 power supply unit within the S4C cabinet should be inspected for output voltage stability before the new DSQC352A is installed. A marginal power supply can cause intermittent communication faults that are difficult to distinguish from a board-level failure, leading to unnecessary repeat replacements. Similarly, the DSQC236T computer board — which hosts the main controller CPU and system memory — should be confirmed as stable, since Ethernet communication tasks are managed at the system software level running on that processor.

For sites where the S4C controller communicates with a DeviceNet or Profibus network in addition to Ethernet, the DSQC314B DeviceNet board or DSQC345B Profibus board may also be present in the same rack. These boards are independent of the DSQC352A and do not require reconfiguration during an Ethernet board replacement, but their slot positions and address settings should be documented before any cabinet work begins. Backplane connector condition should be visually inspected at the same time — oxidized or damaged backplane pins are a common secondary cause of communication instability in aging S4C cabinets.

After physical installation of the replacement DSQC352A, the commissioning sequence involves restoring the IP address configuration through the system parameters menu, restarting the controller, and verifying network connectivity with a ping test from the supervisory system. RAPID programs that use socket communication or FTP file transfer should be tested individually to confirm that all communication tasks resume correctly. If the site uses a DSQC328A remote I/O board for distributed I/O over Ethernet, its communication link should also be verified as part of the post-installation checkout. Programming cable access via the 3HAC025562-001 service port may be required if system parameter restoration is needed at the controller level.

Downtime Control During System Migration

Minimizing downtime during an S4C Ethernet board replacement requires a structured approach that protects the original program logic and maintains production continuity wherever possible. The recommended sequence is to perform a full system backup — including RAPID programs, system parameters, and I/O configuration — before any hardware is removed from the controller cabinet. This backup should be stored on an external USB drive or network location independent of the controller being serviced.

Where production scheduling allows, the board swap should be planned during a scheduled maintenance window rather than as an emergency repair. This allows time for a controlled controller shutdown, proper ESD precautions during board handling, careful backplane connector seating, and a systematic post-installation verification sequence. Emergency replacements performed under production pressure are more likely to result in configuration errors, missed communication task restarts, or overlooked IP address conflicts on the factory network.

For sites where the S4C controller is part of a multi-robot cell, the impact of taking one controller offline should be assessed against the cell’s overall production logic. In many cases, adjacent robots or PLCs can be placed in a safe hold state while the affected controller is serviced, allowing the retrofit to proceed without triggering a full line shutdown. Clear communication between the maintenance team, production supervisors, and the control system integrator is essential to executing a low-risk, minimum-downtime board replacement.

NINERMAS ships the DSQC352A with pre-shipment functional testing completed, reducing the risk of receiving a non-functional unit and the associated delay of a second repair cycle. Stock availability is maintained to support both planned retrofit projects and urgent emergency replacements, with lead times confirmed at the time of order.

Retrofit Support FAQ

Q1: Is the DSQC352A a direct drop-in replacement for the original board in my S4C or S4C+ controller?
Yes. The DSQC352A is designed for the dedicated Ethernet communication slot in the S4C and S4C+ controller backplane. Physical installation is a direct swap. After installation, IP address configuration must be restored through the system parameters menu, and the controller must be restarted to activate the new board. No modification to the backplane or cabinet wiring is required.

Q2: Will my existing RAPID programs and I/O configuration be affected by replacing the DSQC352A?
RAPID programs, system parameters, and I/O configuration stored in the controller memory are not affected by replacing the Ethernet communication board. However, a full system backup is strongly recommended before any hardware work begins. Communication tasks that depend on the Ethernet link — such as socket programs or FTP routines — should be individually tested after the board swap to confirm correct operation.

Q3: What pre-shipment testing is performed on the DSQC352A before delivery?
Each DSQC352A unit supplied by NINERMAS undergoes functional testing prior to shipment to verify board-level operation. This testing is designed to confirm that the unit is operational before it reaches the customer site, reducing the risk of a failed installation and the associated additional downtime. Test records are available upon request.

Q4: What warranty and stock availability does NINERMAS offer for the DSQC352A?
NINERMAS provides a 12-month warranty on the DSQC352A covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained to support both planned retrofit projects and urgent replacement requirements. Long-term supply commitments and reserved inventory arrangements are available for customers with ongoing maintenance programs or multi-site retrofit projects. Contact our team to confirm current availability and lead times.
