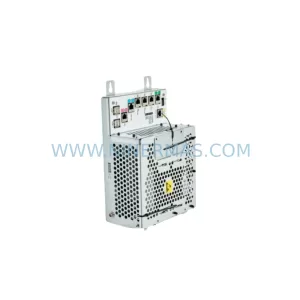

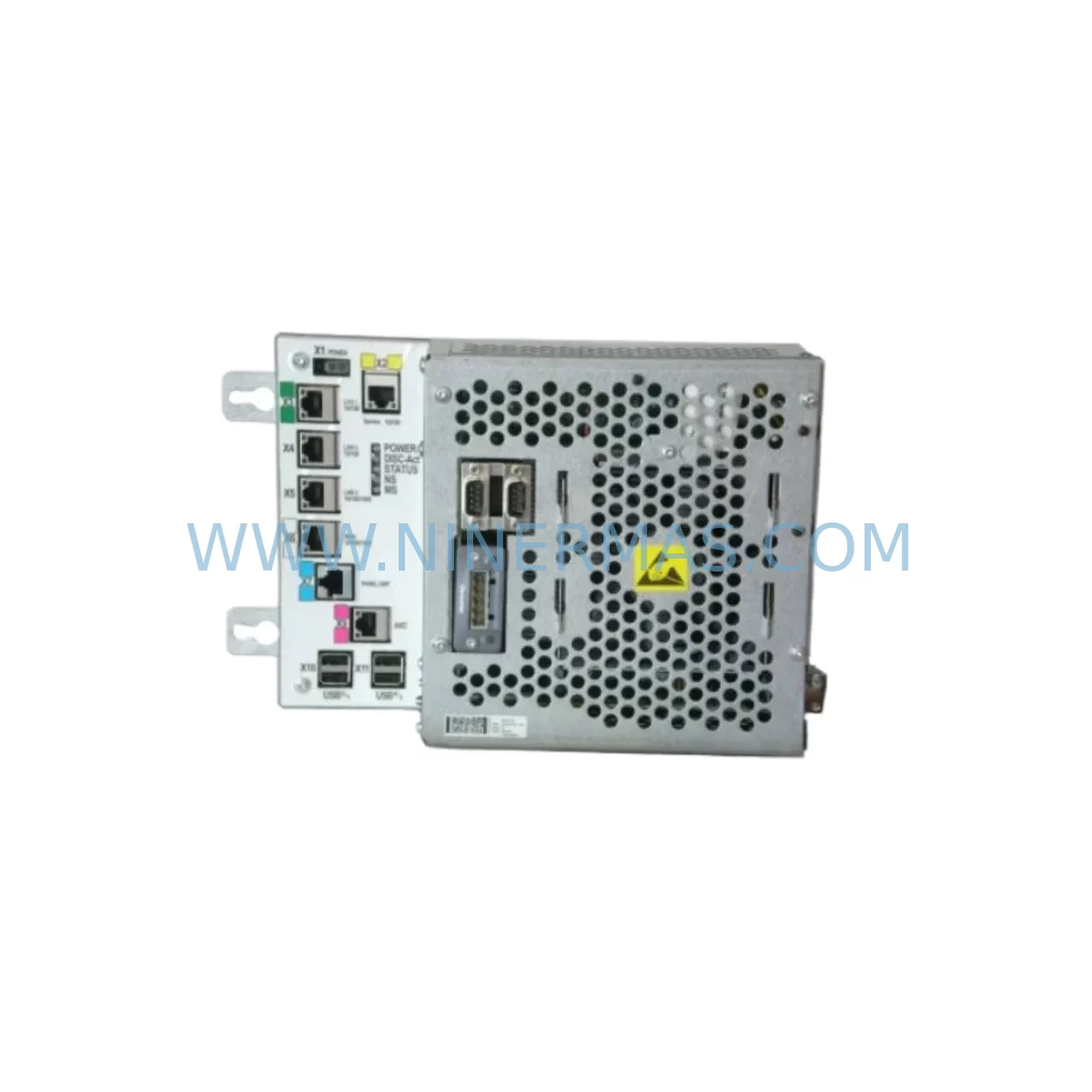

The ABB DSQC1024 (Part No. 3HAC058366-001) is a high-integrity digital input/output unit engineered for ABB IRC5 robot controller cabinets operating in safety-critical and continuous-production environments. As a direct replacement and upgrade solution compatible with DSQC1018 (3HAC075048-001 / 3HAC042766-001), this module delivers deterministic signal processing, robust EMI immunity, and field-proven reliability across petrochemical, power generation, automotive, metallurgical, and heavy manufacturing sites where unplanned downtime carries severe operational and safety consequences.

Designed to meet the demanding requirements of modern industrial safety architectures, the DSQC1024 supports hardwired safety interlocks, emergency stop circuits, and process control loops that must remain stable under high electromagnetic interference, voltage transients, mechanical vibration, and ambient temperature extremes. Its compact DIN-rail-compatible form factor integrates seamlessly into the IRC5 single-cabinet and dual-cabinet configurations, preserving original program logic while extending service life and reducing mean time to repair (MTTR) to within the 4–6 hour target window critical for continuous-process facilities.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Maintaining uninterrupted operation of an ABB IRC5 control cabinet requires a coordinated approach to component reliability across every subsystem. The DSQC1024 digital I/O unit sits at the intersection of field signal acquisition and robot motion command, making its integrity foundational to the entire safety architecture. When this module is paired with a healthy DSQC1030 Power Supply Unit, stable 24 VDC rail voltage is guaranteed across all logic circuits, eliminating the risk of signal dropout caused by power rail sag during high-load servo cycles.

The DSQC1000 Main Computer Unit relies on accurate, noise-free digital inputs from the DSQC1024 to execute motion programs without false triggers or missed interlocks. In high-EMI environments such as resistance welding cells or induction heating lines, the DSQC1031 Safety Board works in tandem with the DSQC1024 to enforce dual-channel emergency stop validation, ensuring that any single-point failure in the field wiring does not propagate into an unsafe robot state.

For drive-level protection, the DSQC652 Servo Drive Unit depends on clean enable and inhibit signals sourced from the I/O module. Signal drift or contact bounce on these lines can cause nuisance faults or, in worst cases, uncontrolled axis motion. Replacing an aged DSQC1018 with the DSQC1024 restores signal edge integrity and eliminates the latent risk of intermittent drive faults during production peaks.

The DSQC639 Axis Computer coordinates real-time position feedback with the I/O state reported by the DSQC1024. In continuous casting or press-transfer applications where cycle times are under two seconds, any communication anomaly between these modules can trigger protective stops that cascade into multi-hour recovery procedures. Stocking a verified DSQC1024 spare alongside a DSQC611 Power Unit and a DSQC627 Digital I/O Unit provides a complete first-response kit that covers the three most common IRC5 cabinet failure modes.

For facilities running DeviceNet or Profibus field networks, the 3HAC044168-001 DeviceNet Module bridges the IRC5 backplane to plant-level SCADA and DCS systems. Ensuring the DSQC1024 is operating within specification prevents false network node dropouts that can trigger plant-wide interlock responses far beyond the robot cell itself. Similarly, the DSQC1018 panel board variants (3HAC075048-001 and 3HAC042766-001) share the same IRC5 backplane slot architecture, and maintaining cross-compatible spares for both generations reduces the risk of extended downtime when the exact revision is not immediately available from the OEM supply chain.

Critical Industrial Safety Applications

The DSQC1024 has demonstrated reliable field performance across a broad spectrum of safety-critical industrial environments. In petrochemical and refinery automation, IRC5-controlled manipulators handle valve actuation, pipe inspection, and hazardous material transfer in Zone 2 classified areas. The I/O module’s surge-protected input lines prevent false emergency stop activations caused by ground potential differences common in large earthed steel structures.

In electric power generation and grid infrastructure, robotic systems equipped with DSQC1024-based I/O handle high-voltage switchgear assembly and transformer winding operations. The module’s deterministic response time ensures that protective relay signals are processed within the sub-millisecond windows required by IEC 61511 functional safety standards.

Within automotive body-in-white and press-shop environments, the DSQC1024 manages tooling change confirmation, part-presence detection, and weld gun tip-dress interlock signals. Its resistance to conducted EMI from spot-welding transformers — which can generate transients exceeding 1 kV on signal lines — makes it the preferred replacement for older DSQC1018 variants that exhibit increased error rates after five or more years of service.

In mining and mineral processing facilities, where dust ingress, humidity cycling, and mechanical shock are constant stressors, the DSQC1024’s industrial-grade connector system and conformal-coated PCB construction maintain signal integrity across the full operating temperature range. Water treatment and desalination plants similarly benefit from the module’s stable performance in high-humidity pump and valve control applications.

For metallurgical and steel mill automation, where continuous casting lines cannot tolerate unplanned stops, the DSQC1024 supports the rapid spare-swap strategy that reduces MTTR to under six hours. Pre-tested units shipped from verified stock eliminate the bench-testing phase that typically adds two to four hours to a field replacement procedure.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the DSQC1024 3HAC058366-001?
Every DSQC1024 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed directly without requiring OEM authorization, minimizing administrative delay during critical spare-part replacements.

Q2: What pre-shipment testing is performed on each unit?
Each DSQC1024 undergoes a full functional test protocol prior to dispatch. This includes digital input signal verification across all channels, output switching load test, backplane communication handshake validation, and visual inspection for connector integrity and PCB condition. Test records are retained and available upon request for quality audit purposes.

Q3: Is the DSQC1024 directly compatible with systems currently running DSQC1018 (3HAC075048-001 / 3HAC042766-001)?
Yes. The DSQC1024 is designed as a form-fit-function replacement for the DSQC1018 family within ABB IRC5 controller cabinets. No firmware modification or mechanical adaptation is required for standard IRC5 single-cabinet and dual-cabinet configurations. Customers are advised to verify the RobotWare version compatibility with their system integrator before installation in non-standard or customized cabinet builds.

Q4: Can long-term supply and reserved inventory be arranged for ongoing maintenance programs?
Yes. NINERMAS supports long-term supply agreements and reserved inventory programs for customers with multi-robot fleets or planned maintenance schedules. Reserved stock arrangements ensure that DSQC1024 units are allocated and held against your facility’s maintenance calendar, eliminating the lead-time risk associated with spot purchasing from the open market. Contact our technical sales team to discuss volume commitments and consignment options.
